Philips FC8524/09 Manuel utilisateur

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Philips Consumer Lifestyle

Vacuum cleaner

FC8524/09

16/05 Version 1.6

PRODUCT INFORMATION

•This product meets the requirements regarding

interference suppression on radio and TV.

•After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

•Colour : Merlin Blue

•Input Power : 750 W

•Suction Power : 190 W

•Noise level : 79 dB

•Dustcapacity : 4 L

•Filtration : EPA 10 Filter

•Cord length : 6 m

•Action Radius : 9 m

•Connection : Conical

•Dimensions : 44 x 30 x 20 cm

•Weight : 5 kg

ACCESSORIES

•Standard nozzle : TriActive+ nozzle

•Additional nozzle : Alma HF nozzle

•Tube : Metal 2-pieces telescopic tube

•Accessories : Crevice nozzle, Small nozzle and

Easy reach tool

REPAIR INSTRUCTION

•No specific issues

OPTIONAL (accessories)

•Smart Cleaning Kit 4322 004 25481

•Filter assy FC8059/01

FC8524/09

2-8

•First remove the dust bag.

•To replace the Valve assy (10), turn the appliance

upside down and remove bottom plate (16) by removing

screw D. Now by using a screwdriver the valve assy can

be removed (see picture).

•Remove the dustcover assy (1) using a screwdriver

(see picture).

•To disassemble the Back housing (9):

Remove the 4 screws B. (see exploded view).

To reach the 2 screws on the back, rst remove the

On/O button (12) and the small panel, which has 4

snap locks! (see pictures).

•Disconnect the connector from the potmeter PCBA (33).

•To remove the Turning knob (8) & Potmeter PCBA:

Turn the Back housing upside down and remove the 2

screws C. The potmeter PCBA can now be removed and

replaced.

•Turning knob (8) can be pushed to the outside with a

screwdriver.

•The On/Off switch (20) can be replaced by unplugging

the two wires.

•To replace the main PCBA (19) remove the small 2

screws E(see exploded view)

•The Cordwinder (17) can be removed by pulling it

in upwards direction and unplugging the two wires,

the Cordwinder can replaced by placing it back in the

opposite direction.

•To replace the Motor assy (22):

Disassemble the Motor housing (21) by removing the 4

screws F(see exploded view).

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

FC8524/09

3-8

220 - 240V

50Hz

27-¼W

TR1

Motor

TMP

10M-¼W

0.47F

275V

100nF

ZD1

4.7V

½ W

330F

16V

1N4007

10k-1W

47k

12 13

PARTS LIST

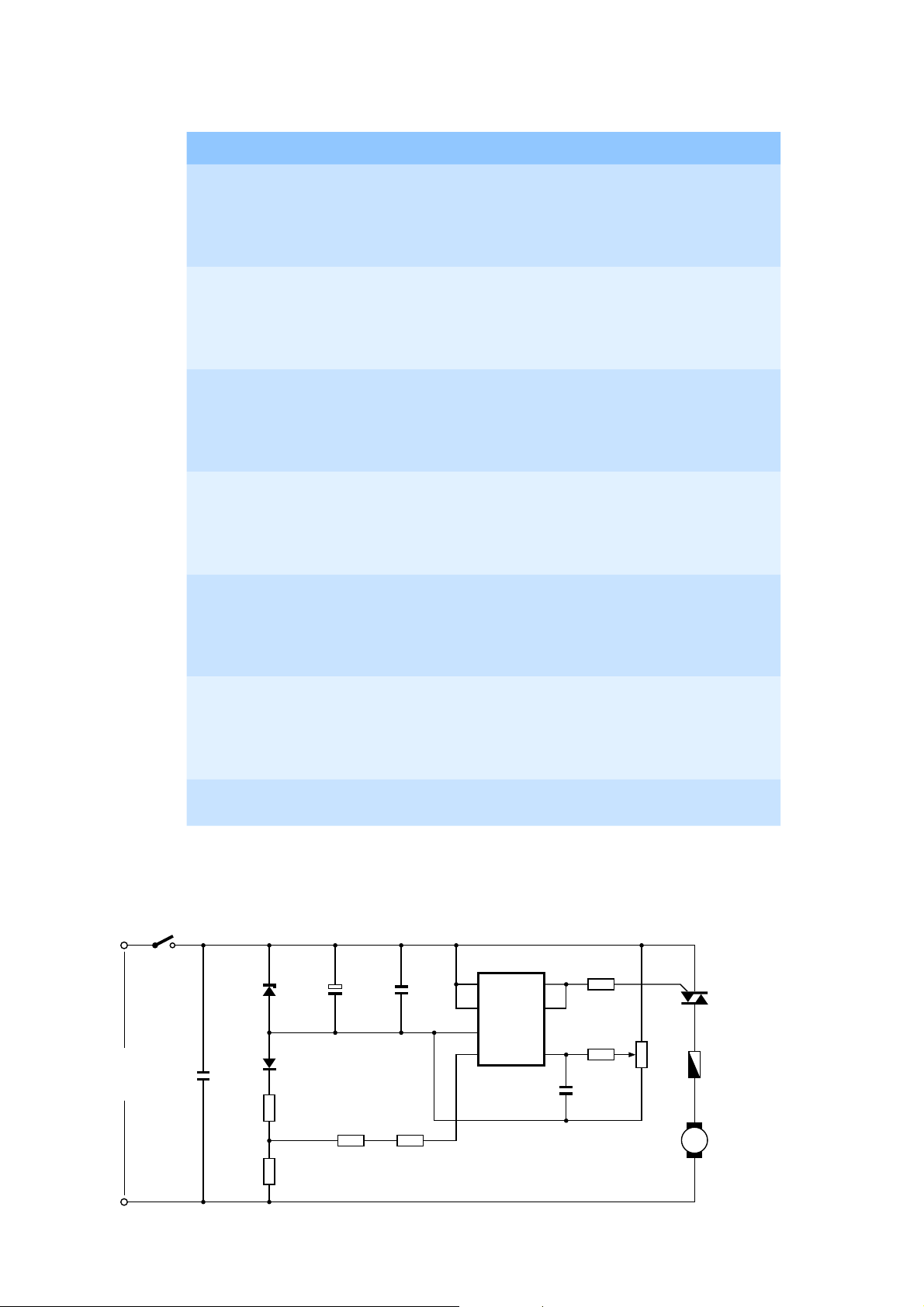

ELECTRICAL DIAGRAM

Pos Service code Description Remark

9965 100 71513

9965 100 71512

9965 100 68376

4322 005 28301

4322 004 93931

Dust cover assy

Dust cover lock

Dustbag holder

DBFI assy (Red)

Motor inlet lter

Merlin blue metallic

Basic blue 61192

Atlas Low power

Atlas

9965 100 68372

9965 100 68381

9965 100 68373

9965 100 71514

9965 100 71511

Motor inlet lter frame

Cordwinder button

Turning knob

Back housing

Valve assy

Deep black 80231

Merlin blue metallic

9965 100 68357

9965 100 68379

9965 100 68374

4322 004 93941

9965 100 62294

Casterdish assy

On/O button

Exhaust lter frame

EPA 10 lter

Wheel assy

Deep black 80231

Atlas

9965 100 68378

4322 005 36261

9965 100 68377

4322 006 25481

9965 100 60949

Bottom housing plate

Cordwinder Performer active

Bottom housing

PCBA 220 - 230 V

Switch

Deep black 80231

0.75 / 6 m / Euro / Black

Deep black 80231

Atlas low power

9965 100 68371

4322 009 00951

4322 004 25422

4322 004 25061

4322 004 25121

Motor housing

Service assy motor

Hose assembly

Telescopic tube Conical 35 mm

Small nozzle Conical 35 mm

800 W IEC

Atlas

Metal

Deep black 80231

4322 004 25111

4322 004 25431

4322 004 25201

4322 004 25531

4322 004 25571

Crevice nozzle Conical 35 mm

TriActive+ nozzle Conical 35 mm KC

Accessory holder EasyLive

Easy reach tool

Connector

Deep black 80231

4322 004 26061

9965 100 75319

Alma HF nozzle Conical 35 mm KC

PCBA switch

Deep black

FC8524/09

4-8

EXPLODED VIEW

FC8524/09

5-8

EXPLODED VIEW

FC8524/09

6-8

EXPLODED VIEW

FC8524/09

7-8

29 31

EXPLODED VIEW

FC8524/09

8-8

Version history

14/09 Version 1.1 : FC8524/09 initial release.

15/02 Version 1.2 : On page 1 under Accessories Added Alma HF nozzle.

In Parts List and Exploded view: Added Pos. 32:

4322 004 26061 Alma HF nozzle Conical 35 mm KC Deep black.

15/05 Version 1.3 : In Parts List and Exploded view: Added Pos. 33: 9965 100 73194 PCBA switch.

15/06 Version 1.4 : In Parts List: Changed Pos. 19: 4322 006 25051 PCBA 220 - 230 V Atlas into

4322 006 25481 PCBA 220 - 230 V Atlas low power.

15/11 Version 1.5 : In Parts List: Changed Pos. 15: 9965 100 68375 Rear wheel assy Cashmere grey 11418 into

9965 100 62294 Wheel assy.

16/05 Version 1.6 : In Parts List: Changed Pos. 33: 9965 100 73194 PCBA switch into 9965 100 75319.
