Phanteks Eclipse p400 Manuel utilisateur

CLEARANCE

CPU Cooler Height 160mm

PSU Clearance 270mm

GPU Clearance 420mm

E-ATX Motherboard

360mm Front radiator

280mm Front radiator

272mm

130x420x115mm

145x325mm

REAR

120

FAN

120

RAD

TOP

120

FAN

140

FAN

140

FAN

140

RAD

FRONT

120

FAN

120

RAD

Solid

Breathing

Color Cycle

Short Press to change color:

Long Press to change mode:

Press and Hold to turn o or

switch to motherboard control.

COLO RS

2 SEC

MODE S

SOLID

BREATHING

RA DA R

SPARKL E

RAINBOW

PRESS AND HOLD TH E MOD E BUT TO N TO TURN O FF LEDS

English

1. Headphone

2. Microphone

3. USB 3.0

4. HDD LED

5. Power Button

6. Fan Control

7. Reset Button

8. RGB Control

9. D-RGB Mode

10. D-RGB Color

Francais

1. Casque

2. Microphone

3. USB 3.0

4. HDD LED

5. Bouton d’alimentation

6. Contrôle du ventilateur

7. Bouton de réinitialisation

8. RGB Contrôle

9. D-RGB Mode

10. D-RGB Couleur

Deutch

1. Kopfhörer

2. Mikrofon

3. USB 3.0

4. HDD LED

5. Ein-/Aus Schalter

6. Lüftersteurung

7. Reset-Knopf

8. RGB Steurung

9. D-RGB Modus

10. D-RGB Farbe

Espanol

1. Auricular

2. Micrófono

3. USB 3.0

4. HDD LED

5. Botón de encendido

6. Control del ventilador

7. Botón de reinicio

8. RGB Controlar

9. D-RGB Mode

10. D-RGB Color

Thank you for choosing Phanteks. Please take a moment

to carefully go through the manual. Phanteks will not

take responsibility for any damages incurred due to

incorrect installation or usage of this product.

This manual is applicable for the following products:

PH-EC400ATG

PH-EC400ATG_D

PH-EC416PTG

PH-EC416PSTG

ECLIPSE P400(S) FRONT I/OECLIPSE P400A FRONT I/O

RGB CONTROLS (P400(S) MODELS)Digital-RGB CONTROLS (P400A_D MODEL)

INTRODUCTION INCLUDED ACCESSORIES

Eclipse P400A / Eclipse 400(S)

120 mm Case Fan

(Pre-Installed)

2.5” SSD Bracket

(Pre-Installed)

2x Thumb Screw

4x PSU Screw

12x Fan Screw

1x This Manual

6x Zip Tie22x Motherboard

+ SSD Screw

1x Motherboard

Stando

PRODUCT OVERVIEW

LIGHTING CONTROLS

ECLIPSE P400A / P400(S) INSTALLATION GUIDE V1.0

Press and Hold to turn o the case controller to sync

with the motherboard RGB or D-RGB software.

The 3-pin fan controller allows you to set any

connected fans to low, medium or full speed.

1. Headphone

2. Microphone

3. USB 3.0

5. Power Button

4. HDD LED

1. Headphone

2. Microphone

3. USB 3.0

5. Power Button

4. HDD LED

7. Reset Button

8. RGB Control

6. Fan Control

7. Reset Button

10. D-RGB Color

6. Fan Control

9. D-RGB Mode

P400S only

P400A_D onlyP400A_D only

P400A onlyP400A only

6. Reset Button

P400A_D only

*remove the mid-plate cover

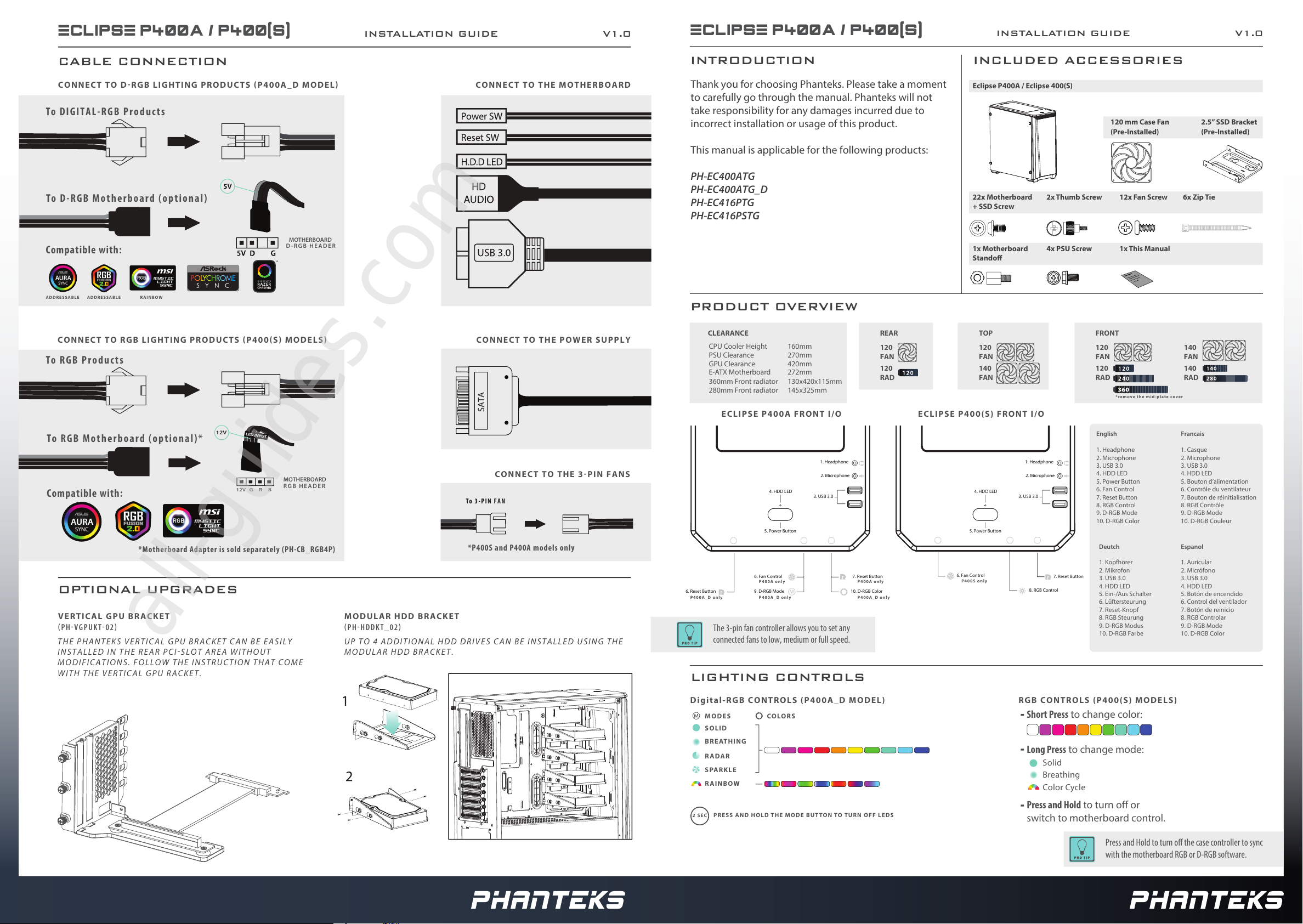

CABLE CONNECTION

OPTIONAL UPGRADES

CONNECT TO DRGB LIGHTING PRODUCTS P400A_D MODEL

CONNECT TO RGB LIGHTING PRODUCTS P400S MODELS

VERTICAL GPU BRACKET

(PH-VGPUKT-02)

MODULAR HDD BRACKET

(PH-HDDKT_02)

CONNECT TO THE MOTHERBOARD

CONNECT TO THE POWER SUPPLY

RAINBOW

ADDRESSABLE ADDRESSABLE

MOTHERBOARD

D-RGB HEADER

To D-RGB Motherboard (optional)

Compatible with:

MOTHERBOARD

RGB HEADER

To RGB Motherboard (optional)*

12V G R B

12V

Compatible with:

SATA

CONNECT TO THE 3PIN FANS

To DIGITAL-RGB Products

To RGB Products

THE PHANTEKS VERTICAL GPU BRACKET CAN BE EASILY

INSTALLED IN THE REAR PCISLOT AREA WITHOUT

MODIFICATIONS. FOLLOW THE INSTRUCTION THAT COME

WITH THE VERTICAL GPU RACKET.

UP TO 4 ADDITIONAL HDD DRIVES CAN BE INSTALLED USING THE

MODULAR HDD BRACKET.

ECLIPSE P400A / P400(S) INSTALLATION GUIDE V1.0

*P400S and P400A models only

To 3-PIN FAN

*Motherboard Adapter is sold separately (PH-CB_RGB4P)

All manuals and user guides at all-guides.com

all-guides.com

HARDWARE INSTALLATION

MOTHERBOARD

INSTALL:

1. INSTALL THE MOTHERBOARD WITH 9 MOTHERBOARD SCREWS

Micro - ATX

POWER SUPPLY

1. INSTALL THE POWER SUPPLY WITH 4 PSU SCREWS

2.5” SSD

1. INSTALL THE SSD DRIVE WITH 4 SSD SCREWS

3.5” HDD

1. INSTALL THE HDD DRIVE IN THE TOOLLES HDD TRAY AND SLIDE IT BACK INTO THE CHASSIS

The HDD Tray can also

hold a 2.5” SSD

ECLIPSE P400A / P400(S) INSTALLATION GUIDE V1.0

There are three panels that can be removed from the P400 Chassis; the left side tempered

glass panel, the right side panel and the front panel. Follow these steps below.

INTRODUCTION

LEFT SIDE PANEL

REMOVE:

1. REMOVE 4 THUMB SCREWS 1. 2.

1. 2.

RIGHT SIDE PANEL

1. LOOSEN THUMB SCREWS

FRONT PANEL

1. REMOVE FRONT PANEL BY PULLING

ON THE PANEL FROM BELOW

2. REMOVE TEMPERED GLASS PANEL

2. SLIDE SIDE PANEL OFF

LOOSEN:

ECLIPSE P400A / P400(S) INSTALLATION GUIDE V1.0

With the P400(S) models you can acces the

dust lters after removing the front panel.

We recommend to clean the dust lters every

month for optimal performance.
