Phanteks GLACIER ONE 240 MP Manuel utilisateur

Pump & Fan cables

A) Connect the Fans together with the Daisy-chain cables

and use the Fan PWM Extension Cable to reach the

motherboard.

Choose between 2 congurations:

B1) Use the PWM Splitter Cable to connect the pump

and fans to a single motherboard CPU header.

B2) If 2x CPU headers are available on the motherboard,

the pump and fans can also be connected individually

(without PWM Splitter Cable) for more precise control.

GLACIER ONE HIGH PERFORMANCE CLOSED LOOP CPU LIQUID COOLER

GLACIER ONE 240 MP

• Innity Mirror Cap

• 240 Radiator

• 2x 120mm MP Fans

GLACIER ONE 360 MP

• Innity Mirror Cap

• 360 Radiator

• 3x 120mm MP Fans

GLACIER ONE 240 MPH

• Innity Mirror Cap

• 240 Radiator

• 2x 120mm MP Fans

• 2x D-RGB Halos Fan Frames

GLACIER ONE 280 MP

• Innity Mirror Cap

• 280 Radiator

• 2x 140mm MP Fans

1. Package Contents

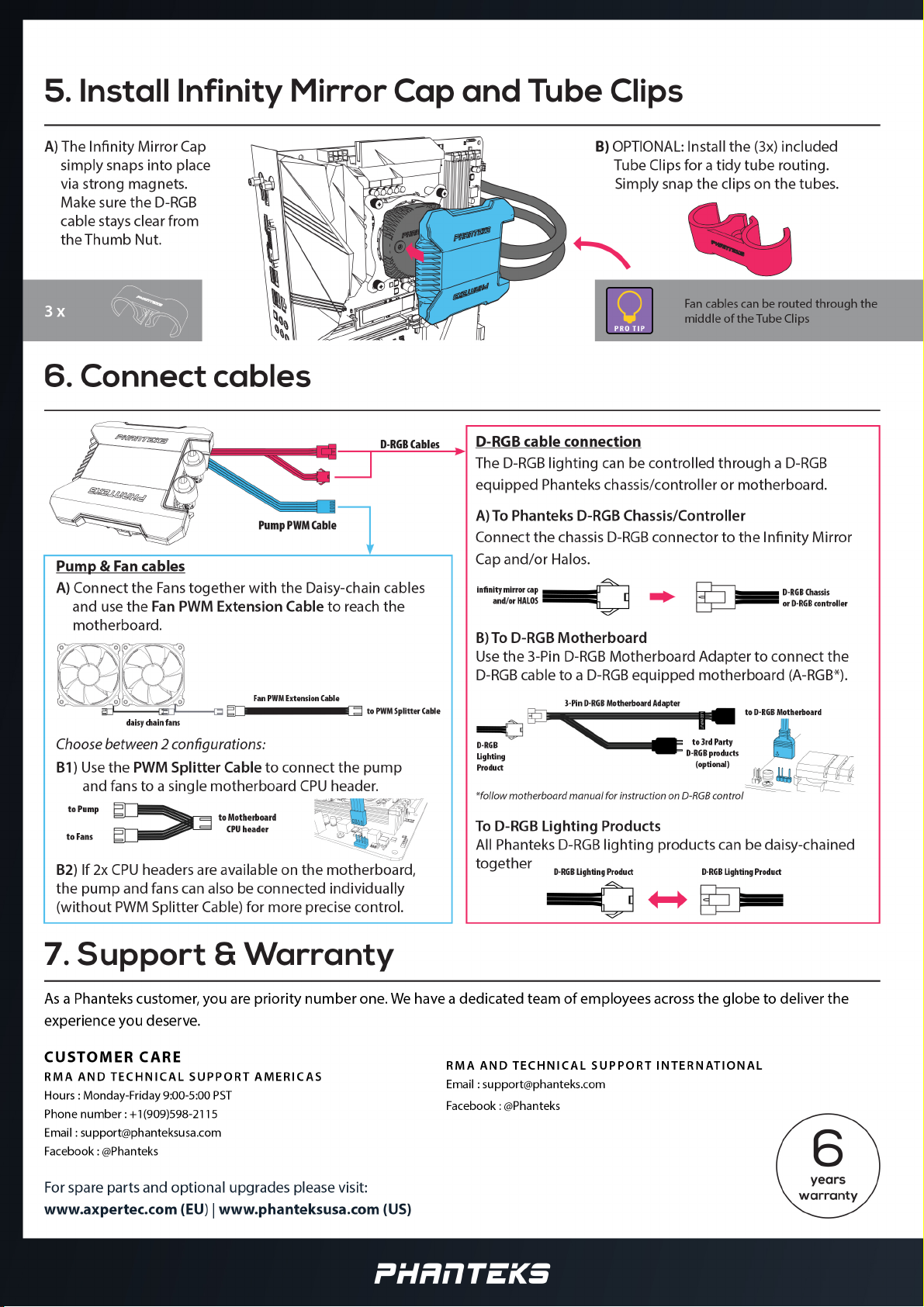

5. Install Infinity Mirror Cap and Tube Clips

6. Connect cables

As a Phanteks customer, you are priority number one. We have a dedicated team of employees across the globe to deliver the

experience you deserve.

CUSTOMER CARE

RMA AND TECHNICAL SUPPORT AMERICAS

Hours : Monday-Friday 9:00-5:00 PST

Phone number : +1(909)598-2115

Email : [email protected]

Facebook : @Phanteks

For spare parts and optional upgrades please visit:

www.axpertec.com (EU) | www.phanteksusa.com (US)

RMA AND TECHNICAL SUPPORT INTERNATIONAL

Email : [email protected]

Facebook : @Phanteks

7. Support & Warranty

4x AM4 Stand-o

4x 115x/1200 Stand-o

4x 2066 Stand-o

4x Thumb Nut

8x/12x 34mm Halos Screws

(MPH model only)

8x/12x 31mm Fan Screws

8x/12x 5mm Radiator Screws

8x/12x Washers

Manual V1.0

Accessories (for all models)

Screws:

A) The Innity Mirror Cap

simply snaps into place

via strong magnets.

B) OPTIONAL: Install the (3x) included

Tube Clips for a tidy tube routing.

Simply snap the clips on the tubes.

D-RGB Cables D-RGB cable connection

The D-RGB lighting can be controlled through a D-RGB

equipped Phanteks chassis/controller or motherboard.

A) To Phanteks D-RGB Chassis/Controller

Connect the chassis D-RGB connector to the Innity Mirror

Cap and/or Halos.

B) To D-RGB Motherboard

Use the 3-Pin D-RGB Motherboard Adapter to connect the

D-RGB cable to a D-RGB equipped motherboard (A-RGB*).

*follow motherboard manual for instruction on D-RGB control

Fan cables can be routed through the

middle of the Tube Clips

4-Pin PWM Splitter Cable, 2x

80mm

4-Pin Fan PWM Extension Cable,

500mm

3-Pin D-RGB Motherboard

Adapter, 600mm

PH-NDC Thermal Compound

3x Tube Clips

Intel 115x/1200/1366

Backplate

AMD AM4 Bracket

(Intel Bracket is pre-installed)

3 x

daisy chain fans

to PWM Splitter Cable

Fan PWM Extension Cable

to Motherboard

CPU header

to Pump

to Fans

Pump PWM Cable

D-RGB Chassis

or D-RGB controller

innity mirror cap

and/or HALOS

to 3rd Party

D-RGB products

(optional)

to D-RGB Motherboard

D-RGB

Lighting

Product

3-Pin D-RGB Motherboard Adapter

To D-RGB Lighting Products

All Phanteks D-RGB lighting products can be daisy-chained

together D-RGB Lighting ProductD-RGB Lighting Product

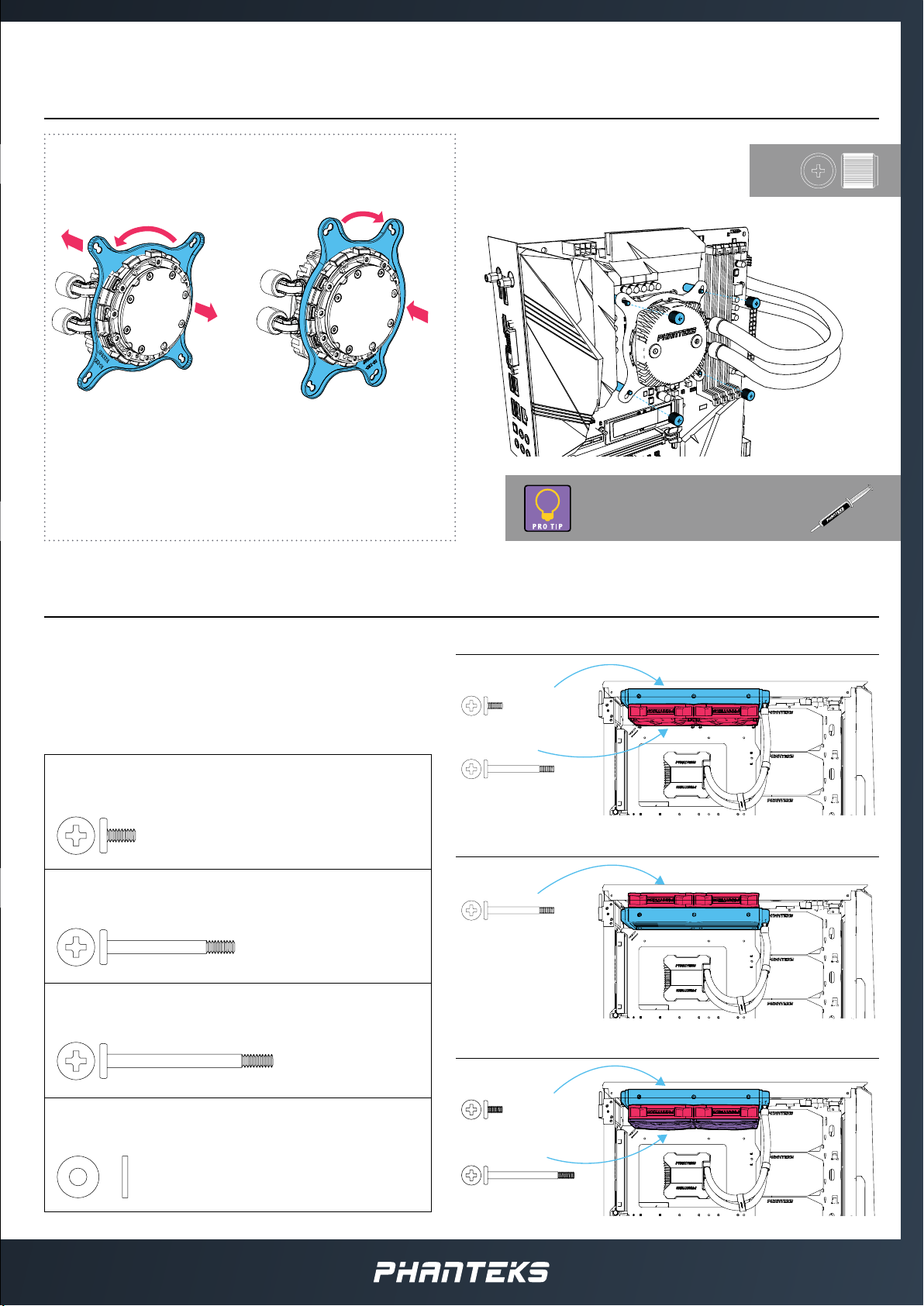

3. Installing the pump block

4. Mount the radiator and fans

2. Motherboard preparation (follow instructions for the corresponding socket)

AMD Socket AM4

INTEL Socket 115X / 1200 / 1366

INTEL Socket 2011 & 2066

A) Remove the stock mounting brackets

A) This step is for AMD AM4 socket only

(for Intel socket installation, go to step 3B)

We recommend to install the fans to the radiator before

mounting it into the chassis.

3 Types of screws are included to mount the radiator and

the fans in dierent options:

Remove the Intel bracket

from the pump

1. Push the Intel bracket in

2. Rotate to loosen

3. pull the bracket o

Secure the AMD AM4

Bracket to the pump

4. push the AMD bracket in

5. rotate to fasten the bracket

A) Prepare the Intel Backplate for the correct socket

A) Secure the 4x Intel 2011/2066 Stand-os to the motherboard

B) Secure the 4x AM4 Stand-os to the motherboard

B) Secure the pump unit to the

stand-os on the motherboard

with the 4x Thumb Nuts

B) Secure the 4x 115x/1200/1366 Stand-os

to the motherboard and Intel Backplate

The thermal compound is pre-applied.

More thermal compound is included for

future installations

Use the optional washers if necessary on the

chassis for a secure t

Use the 31mm fan screw to mount the fan to the

radiator (and chassis)

Use the 5mm radiator screw to mount the radiator

directly to the chassis

Use the 34mm Halos screw to mount the Halos and

fans to the radiator (and chassis)

MPH model only

5mm radiator screw

31mm fan screw

5mm radiator screw

34mm Halos screw

115x/1200

1366

4 x

Option B:

Option A:

Option C (MPH model only):

3. Installing the pump block

4. Mount the radiator and fans

2. Motherboard preparation (follow instructions for the corresponding socket)

AMD Socket AM4

INTEL Socket 115X / 1200 / 1366

INTEL Socket 2011 & 2066

A) Remove the stock mounting brackets

A) This step is for AMD AM4 socket only

(for Intel socket installation, go to step 3B)

We recommend to install the fans to the radiator before

mounting it into the chassis.

3 Types of screws are included to mount the radiator and

the fans in dierent options:

Remove the Intel bracket

from the pump

1. Push the Intel bracket in

2. Rotate to loosen

3. pull the bracket o

Secure the AMD AM4

Bracket to the pump

4. push the AMD bracket in

5. rotate to fasten the bracket

A) Prepare the Intel Backplate for the correct socket

A) Secure the 4x Intel 2011/2066 Stand-os to the motherboard

B) Secure the 4x AM4 Stand-os to the motherboard

B) Secure the pump unit to the

stand-os on the motherboard

with the 4x Thumb Nuts

B) Secure the 4x 115x/1200/1366 Stand-os

to the motherboard and Intel Backplate

The thermal compound is pre-applied.

More thermal compound is included for

future installations

Use the optional washers if necessary on the

chassis for a secure t

Use the 31mm fan screw to mount the fan to the

radiator (and chassis)

Use the 5mm radiator screw to mount the radiator

directly to the chassis

Use the 34mm Halos screw to mount the Halos and

fans to the radiator (and chassis)

MPH model only

5mm radiator screw

31mm fan screw

5mm radiator screw

34mm Halos screw

115x/1200

1366

4 x

Option B:

Option A:

Option C (MPH model only):
