Phanteks GLACIER DUAL EVO Series Manuel utilisateur

INSTALLATION GUIDE V1.0

DUAL EVO

GLAC IER G2080 ASUS

PH-GB2080ASDEVO_BK01/CR01

PACKAGE CONTENTS

WARNING - This product is intended for advanced users. Improper installation may result in damage to your equipment.While all eorts have

been made to provide the most comprehensive information possible, Phanteks assumes no liability expressed or implied for any damage(s) occurring to your

components as a result of using Phanteks cooling products, either due to mistake or omission on our part in the below instructions, or due to failure or defect in

the Phanteks cooling products. Do not disassemble the water block.Warranty will be voided.

Turn o the power to your system and discharge your body’s static electric charge before proceeding with the installation procedure. If you do not feel comfortable

with performing the installation procedure, consult a qualied computer technician.

For latest version check www.Phanteks.com

Clean o the original thermal compound.

We recommend using isopropanol alcohol.

Apply a drop of the Phanteks Thermal

Compound to the center of the GPU chip

and place the thermal pads on correct

position on the PCB.

STEP 1. REMOVING STOCK COOLER

GLACIER

PH-GB2080ASDEVO

QTY: 1

GLACIER Stop Fitting

QTY: 2

Thermal Pads

QTY: 3

M2.5x5 Screws/Washers

QTY: 15/15

Thermal Compound

PH-NDC-01

QTY: 1

Phanteks D-RGB Cable

QTY: 1

Unscrew all highlighted screws to remove

the backplate and cooler.

STEP 2. APPLYING THERMAL PASTE & PADS

Make sure to unplug the LED and Fan

cables when you remove the stock cooler.

Make sure to remove the protective lm on

both sides of the thermal pads.

Follow the correct thermal pad placement

specic to your Dual EVO model.

Take the EVA-Foam from the box to use

as a base for your installation process.

3 3 3 3 3 3 3 3

3 3 3 3

Dual 2080 Super EVO

Dual 2080 Super EVO v2

Dual 2080 EVO

Dual 2070 EVO

Dual 2070 Super EVO

Dual 2060 Super EVO

3 3 3 3

3 3 3 3 3 3 3 3

3 3 3 3

Remove backplate

- 5x screws

Remove cooler

- 7x screws

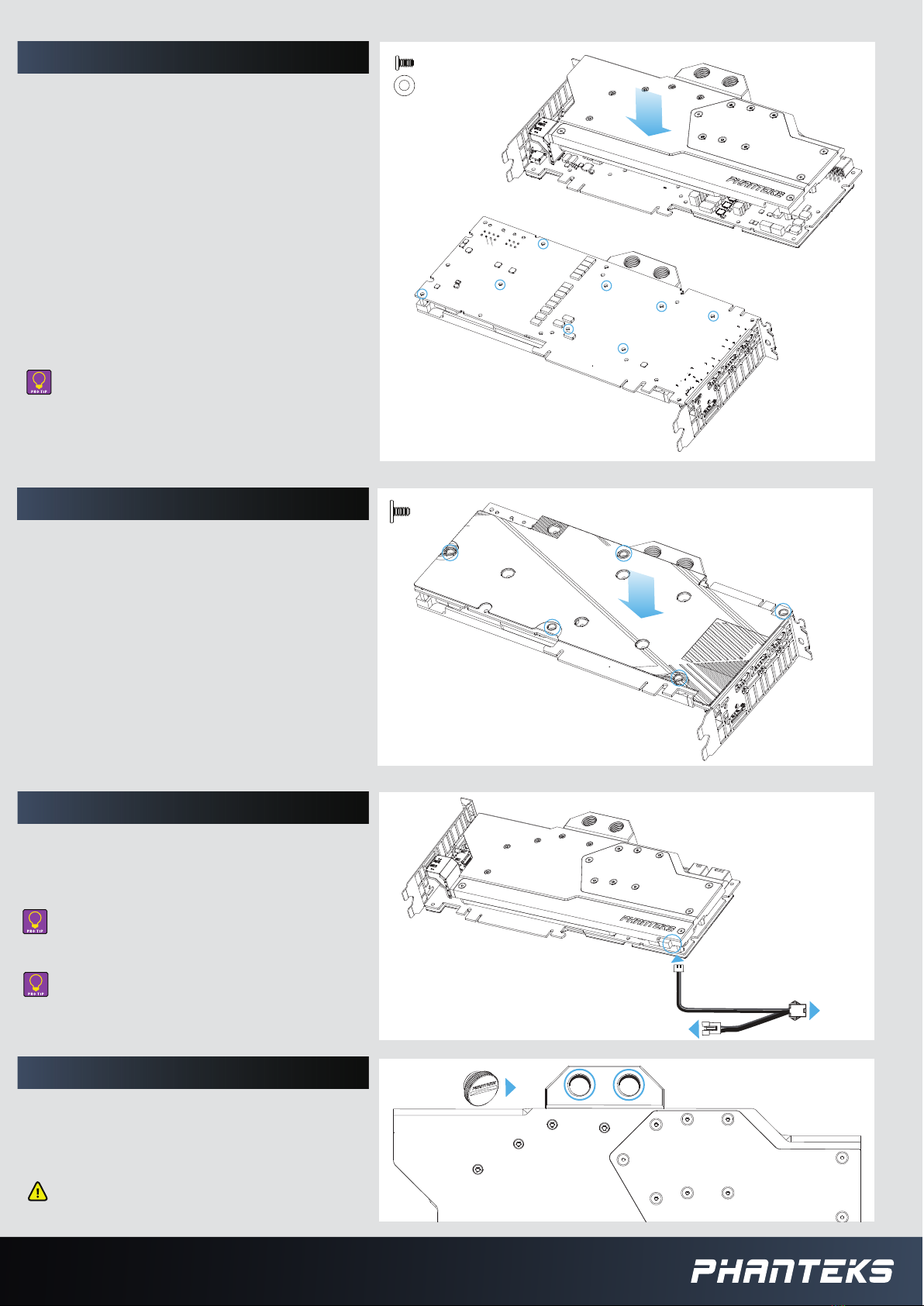

STEP 3. MOUNT THE WATER BLOCK

STEP 4. RE-INSTALL THE BACKPLATE

Carefully position the backplate onto the

graphics card. Align the mounting holes on

the PCB with the holes on the backplate.

Secure the backplate with 5 M2.5x5mm

screws to the PCB.

STEP 5. CONNECT D-RGB LIGHTING

Connect the D-RGB cable to the D-RGB strip

in the water block.

STEP 6. INSTALLING FITTINGS

Install G1/4 threaded male ttings and

close the remaining ports with the two

included Stop Fittings.

Connect to

Phanteks Case / Motherboard Cable

Always perform a leak test before providing

power to any system components.

You can connect the D-RGB cable to a

compatible motherboard with the cable

that is included with the motherboard.

Make sure to lay the GPU with the water

block at down without resting on the

PCI bracket.

All Phanteks D-RGB products can be

daisy-chained together.

Carefully position the water block onto the

graphics card. Align the mounting holes on

the PCB with the holes on the water block.

Secure the water block with 8 M2.5x5mm

screws and washers to the PCB.
