Perlesmith PSTVS20 Manuel utilisateur
Model: PSTVS20
Table Top TV Stand
Instruction Manual
V2.0
Thank you for choosing this PERLESMITH product! At
PERLESMITH we strive to provide you with the best quality
products and services in the industry. Please share your
experience of our product with others at www.per-
lesmith.com/pages/reviews if you are satisfied. Should you
have any issues, please don't hesitate to contact us.
Technical Support:
1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
[email protected] (US）
[email protected] (CA)
Website:
www.perlesmith.com
P1
IMPORTANT SAFETY INFORMATION
Please carefully read all instructions before attempting installation. If you do not
understand the instructions or have any concerns or questions, please contact
our Technical Support line at 1-800-556-6806 or customer service at
CAUTION: Avoid potential personal injuries and property damage!
Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use.
Check the VESA Pattern of TV before the Installation
Minimum VESA pattern: 75mm/3 in.(W)x75mm/3 in.(H)
If your TV VESA is greater than 400x400 mm/16x16 in. or less than
VESA 75x75mm/3x3in., this TV stand is NOT compatible.
MAX:
400
mm/
16
in.
MAX: 400mm/16 in.
75 mm ≈ 3 in.
100 mm ≈ 4 in.
200 mm ≈ 7 7/8 in.
400 mm ≈ 15 3/4 in.
Tools Needed (Not lncluded)
Phillips Screwdriver
If this TV stand is NOT compatible, please contact customer service
to find a compatible product.
P2
WARNING: This product contains small items that could be a choking
hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not
use damaged or defective parts. lf you require replacement parts, contact our
Product Support line at 1-800-556-6806 or customer service at
• Please note: Not all hardware included in this package will be used.
Supplied Parts and Hardware
Supplied Parts and Hardware for Step 1
Supplied Parts and Hardware for Step 2
x4
Rubber Foot
Note: The bolt is shown in
accordance with the actual size
(A) x3
M6x25mm Bolt
x1
Gasket with 3 Holes
(D) x1
5/32in. (4mm)
Allen Key
x1
Support Pillar
x1
Plastic Cover
05A
x1
TV Plate
x1
Tempered Glass Base
(B) x4
M5x15mm
Bolt
x2
Wire Clip
(C) x1
5/32in. (4mm)
Allen Key
x1
Sponge Pad
Note: The bolt is shown
in accordance with the
actual size
05B
06
01
03 08
02
05C
(M-B-1) x4
M6x15mm
Bolt
(M-A-1) x4
M4x12mm
Bolt
(M-A-2) x4
M4x30mm
Bolt
(M-B-2) x4
M6x30mm
Bolt
(M-C-1) x4
M8x15mm
Bolt
(M-C-2) x4
M8x50mm
Bolt
P3
(M-F) x8
L5mm
Spacer
(M-E) x4
M4/M6
Washer
(M-D) x8
L10mm
Spacer
Note: The bolts and spacers are shown in
accordance with the actual size
Supplied Part and Hardware for Step 3
Supplied Part and Hardware for Step 4
x2
TV Bracket
04
x2
Safety Lock
07
M4
M6
M8
[M-B]
[M-A]
[M-C]
Place rubber feet [06] to the tempered glass base [02] in the
corners
Note: Kindly note that the tempered glass base is designed to show the
shiny glass side facing up
Step 1-1
Connect the support pillar [01] to tempered glass base [02]
Step 1-2
P4
Secure the support pillar [01] to tempered glass base [02] using plastic
cover [05A], gasket with 3 holes [05B], sponge pad [05C], bolts [A] and
allen key [C].
Note: You may need
assistance with this step.
Step 1 Assemble the Base
02
06
Table
05C
05A
01
02
05B
[A]
[C]
P5
Step 2 Connect the TV Plates [03] to Support Pillar [01]
08
08
03
01
[B]
[D]
Too Long
Correct Correct
Too Short
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers
combination. We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Please Note: The provided TV bolts meet most of today’s TVs design.
However, some TVs require special bolts which may not be in the hardware
bag. In this case we offer our “PSUHP" Universal Hardware Kit which provides
a large selection of bolts that can meet the demand of older and unique
applications.
Please Note: When using the spacers it is important to note that they can be
used in multi-layers (meaning stacked). If you have any difficulty understand-
ing how to install the TV bolts or spacers, please contact customer service at
CAUTION: Ensure the TV brackets
[04] is EQUALLY CENTERED on your
TV and securely fastened in place.
Please note: The bolt hole locations
on your TV may vary in accordance of
the manufacturers design of the TV. We
are only illustrating possible locations
of the bolt holes.
Only one bolt size fits your TV.
Select TV Bolts
Step 3 Secure the TV Brackets [04] to TV
M6 M8M4
04
P6
UP

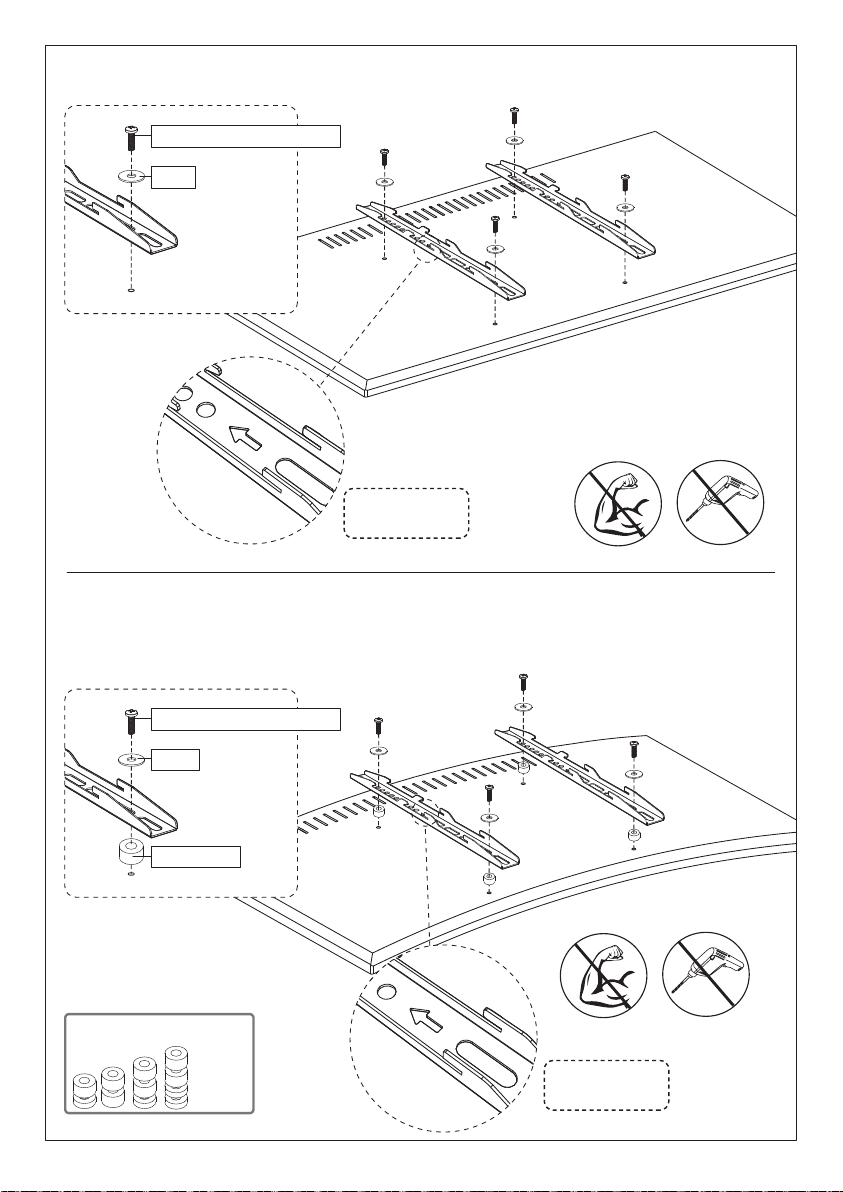

Option B (For Round Back TV)
Alternate Spacer
Setups
Note: Keep
the arrow up
Note: Keep
the arrow up
Option A (For Flat Back TV)
P7
M-A-1/M-B-1/M-C-1
M-A-2/M-B-2/M-C-2
M-D/M-F
M-E
M-E
(If Needed)
(If Needed)
Option D
For cable interference or inset holes, use spacers [M-D], [M-F] to create
extra space between the TV and TV brackets.
Spacers may be necessary for 2 holes ONLY.
Option C (For TV with A “Bump”)
Note: Keep
the arrow up
P8
Alternate Spacer
Setups
Alternate Spacer
Setups
M-A-1/M-B-1
/M-C-1
M-A-2/M-B-2/M-C-2
M-A-2/M-B-2
/M-C-2
M-D/M-F
M-D/M-F
M-E
M-E
(If Needed)
M-E
(If Needed)
(If Needed)
P9
①
②
Step 4-1 Hang the TV with brackets to the TV plate
Step 4-2 Push the bottom of the TV to TV plate
Step 4-3 Insert the safety locks [07] into the upward facing hooks at the
midway to lower part of the TV bracket. Please note this is where the lower
part of the TV bracket meets the lower part of TV plate. Then tighten the
bolts of the safety lock [07] until the bolts touch the TV plate.
Step 4 Secure TV to TV Plate and Manage the Wires
TV brackets are two-height-adjustable. You can choose the proper height.
Manage
the wires
The First Choice
The Second Choice
HEAVY! You may need
assistance with this step.
Note: Please note, there is
no bolt holes in the TV plate.
07
Note: Kindly note that the TV
should be hung in the center of
the TV plate to keep balance.
