Perlesmith PSCLF1 Manuel utilisateur

Thank you for choosing our product! We strive to provide the best

quality and services for our customers. Would you kindly share

your experience on Amazon if you are satisﬁed? Should you have

any issues, please don't hesitate to contact us.

Telephone：

1-800-556-6806 Mon-Fri 10am - 6pm (PST) (USA) (CAN)

Email：

[email protected] (US/CA/DE/UK/FR/IT/ES/AU)

V1.0

PSCLF1

Installation lnstructions

Note:To keep your TV from colliding with the walls, please note the

individual maximum width of the TV for the three diﬀerent adjustment

methods of the TV wall mount.

Max:1000mm/39 in.

Max:1320mm/52 in.

Max:1530mm/60 in.

5mm

Wood Drill

TV Bracket

Level

Supplied Parts

Tools Needed (Not lncluded)

Stud Finder Tape Measure Pencil Drill

10mm

Concrete Drill

13mm

Socket Wrench Screwdriver

Hammer

IMPORTANT SAFETY INFORMATION

•Check package contents against Supplied Parts and Hardware List to assure that all

components were received undamaged. Do not use damaged or defective parts. lf you

require replacement parts, contact customer service at [email protected]

•Not all parts and hardware included will be used.

•Carefully read all instructions before attempting installation. If you do not understand

the instructions or have any concerns or questions, please contact customer service at

[email protected]

•This product may contain moving parts. Use with caution.

•Do not use this product for any purpose or in any conﬁguration not explicitly speciﬁed

in this instruction. We hereby disclaim any liability for injury or damage arising from

incorrect assembly, incorrect mounting, or incorrect use of this product.

•DO NOT INSTALL INTO DRYWALL ALONE.

•Please check www.perlesmith.com for more products and company information.

Arm and

Wall Plate Front Support

01 x1 02 x1

x2 x2

03 05

Arm Extensions

Wall Plate

Template

Wrench

10mm

Wrench

4mm

Hardware for Attaching the Arm Assembly/Wall Plate to Wall

Washers

Supplied Hardware

These anchors are for

concrete or brick walls

ONLY. DO NOT use them

in drywall or wood studs.

CAUTION!

Wall

Anchor

Lag Bolts

ST8X65

A1 A2

Hardware for Attaching TV Brackets to TV

M6/M8 x4

M6 x 15mm x4 M6 x 35mm x4

M8 x 25mm x4 M8 x 35mm x4 M8 x 50mm x4

Washers

Spacers

08 TV Screws

[Only one size ﬁts your TV]

[If necessary]

2.5mm X8 10mm X4 22mm X4

Step 1

Check TV Hole Pattern and Select TV Screws

Step 2

Select Spacers (if needed)

Only one screw size ﬁts your TV.

WITH SPACER

For Rounded TV

For Flat TV with:

Inset Holes Cable Interference

aLong Screw

Short Screw

Washer

Spacer

TV Bracket

EXTRA

NO SPACER b

For Flat TV

Spacer not necessary

SPACE

200 mm ≈ 7 7/8 in.

400 mm ≈ 15 3/4 in.

100 mm ≈ 4 in.

300 mm ≈ 11 3/4 in.

600 mm ≈ 23 6/10 in.

MAX:600mm/23.6 in.

MAX:400mm/16 in.

M6 M8

WARNING:

● Any material covering the wall must not exceed 5/8 in. (16 mm)

● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum 1½ x 3½

in. (38 x 89 mm)

● Stud center must be veriﬁed

Step 4

For wood stud installation, follow STEP 4A

For concrete installation, follow STEP 4B

Attach the Arm Assembly/Wall Plate [01] to Wall

Step 4A

Wood Stud Option

●DONOT USE ANCHOR [A3] FOR THIS STEP!

●Avoid potential personal injury or property damage! DO NOT over-tighten the

lag bolts [A1]. Tighten the lag bolts [A1] only until the washers [A2] are pulled

ﬁrmly against the wall plate.

●Ensure the arm assembly/wall plate[01] is securely fastened to the wall

before continuing on to the next step.

Too Short Too Long

Step 3

Secure the TV Brackets to Your TV

Alternate Spacer

Setups

With Spacer

08 No Spacer

08 08

Position the arm template [05] at

your desired height and line up the

holes with your stud center line.

Level the wall plate and mark the

holes.

Use a stud ﬁnder(not included) to

locate wood studs. Mark the edge and

center locations.(The distance to

assemble is 525mm/20.6 in.)

ø5mm

65mm

Drill 6 pilot holes using a 5 mm

diameter drill bit. Make sure the

depth is not less than 65mm.

525mm/20.6 in.

4A-1

4A-2

4A-3

13mm

Socket Wrench

Install the arm assembly/wall plate

using lag bolts [A1] and washer [A2].

Tighten the lag bolts [A1] only until the

washers [A2] are pulled ﬁrmly against

the wall plate.

(Not included)

4B-1

4A-4

WARNING:

Wall

Anchor

Step

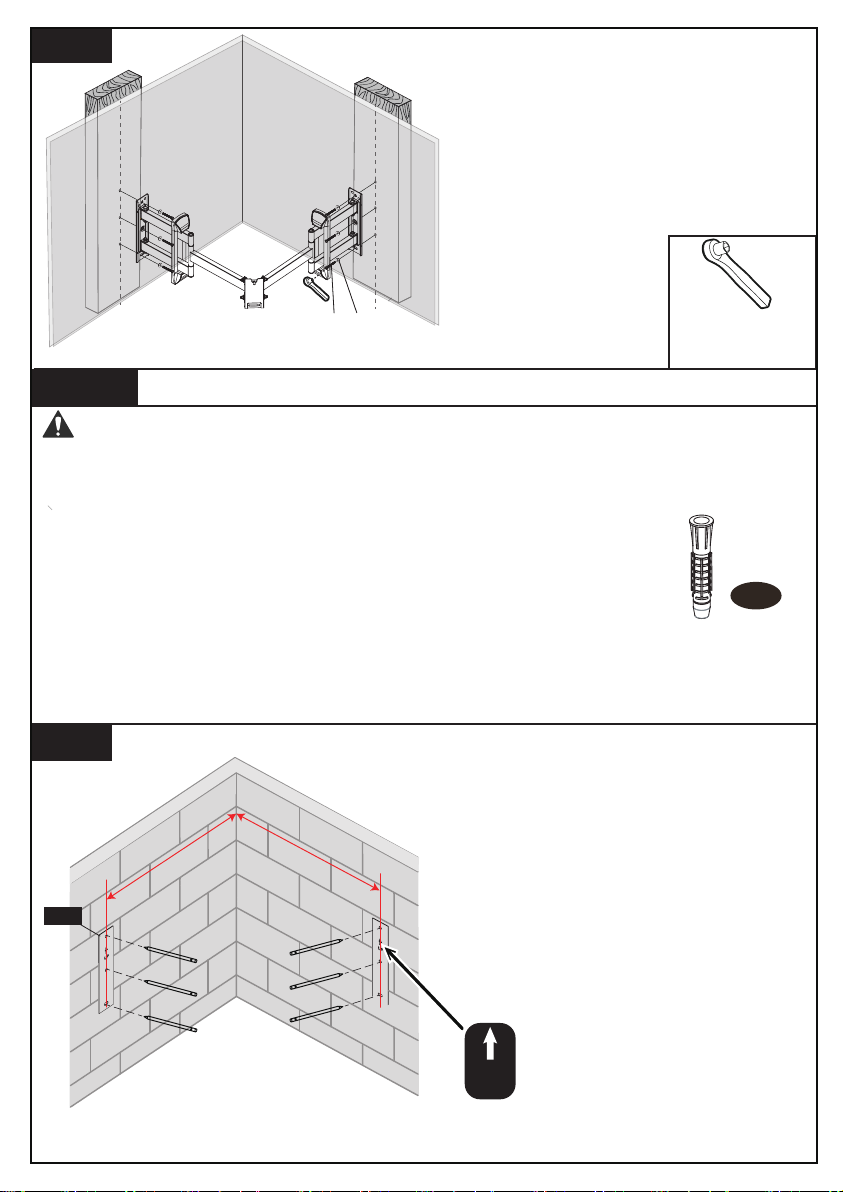

4B Solid Concrete or Concrete Block Option

●Avoid potential personal injury or property damage! DO NOT over-tighten the lag bolts

[A1]. Tighten the lag bolts [A1] only until the washers [A2] are pulled ﬁrmly against the

wall plate.

Position the arm template [05] at your

desired height, level the template and

mark the pilot hole locations.(The distance

to assemble is 525mm/20.6 in.)

A1 A2

●Ensure the arm assembly/wall plate[01] is securely fastened to the

wall before continuing on to the next step.

● Any material covering the wall must not exceed 5/8 in. (16 mm)

● Mount the arm assembly/wall plate[01] directly onto the concrete surface

● Minimum solid concrete thickness: 203 mm (8 in.)

● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)

525mm/20.6 in.

13mm

Socket Wrench

(Not included)

ø10mm

70mm

Drill 6 pilot holes using a 10mm diameter

drill bit. Make sure the depth is not less

than 70mm. Never drill into the mortar

between blocks.

4B-2

4B-3

4B-4

Use the hammer to knock anchors [A3] into the

wall. Be sure the anchors [A3] are seated ﬂush

with the concrete surface.

Install the arm assembly/wall

plate using lag bolts [A1],

washers [A2] and anchors

[A3]. Tighten the lag bolts [A1]

only until the washers [A2] are

pulled ﬁrmly against the wall

plate. DO NOT over-tighten

the lag bolts [A1].

A1 A2

Step

5-1

5-2

5-3

5-4

Install arm extensions [02] and fasten with screws [S4] x4

Wrench 4mm

Remove the pre-assembed screws [S4]

from the front support [02] and save them

for the use of step 5-3. 02

Wrench 4mm

Insert the arm extensions

[03] into the [02]

Fasten the screws [S4] x4

removed from the front

support [02].

Hang [01] onto [02]. Tighten preassembled screws [S1] and washers [S2] to secure [01]

to [02]

Make sure the big button in Front

Support [02] hang on the hook of the

Arm and Wall Plate assembly [01].
