Perlesmith PSLF4 Manuel utilisateur
V1.0
Thank you for choosing our product! We strive to provide the best quality
and services for our customers. Would you kindly share your experience
on Amazon if you are satisfied? Should you have any issues, please don't
hesitate to contact us.
Telephone：800-5566-806 Mon-Fri 10am - 6pm (PST) (USA) (CAN)
Email：[email protected] (US/CA/DE/UK/FR/IT/ES/JP/AU)
PSLF4
LARGE FULL-MOTION TV WALL MOUNT
This TV mount must be securely attached to the vertical wall. If the mount is
not properly installed it may fall, resulting in possible injury and/or damage.
WARNING! SEVERE PERSONAL INJURY AND PROPERTY DAMAGE CAN RESULT FROM
IMPROPER INSTALLATION OR ASSEMBLY. READ FOLLOWING WARNINGS BEFORE
BEGINNING.
If you do not understand the instructions or have any concerns or questions, please contact
customer service at [email protected]
Do not install or assemble if the product or hardware is damaged or missing. Not all parts and
hardware included will be used. lf you require replacement parts, contact customer service at
This product may contain moving parts. Use with caution.
DO NOT INSTALL INTO DRYWALL ALONE.
Please check www.perlesmith.com for more products and company information.
WARNING
!
Tools Required 5/32"(4mm) Drill Bit
Phillips Screwdriver
3/8"(10mm) Masonry Bit
Stud Finder
Wrench or Socket Set
Carpenter's Level
Supplied Parts List
IMPORTANT SAFETY INFORMATION
CAUTION!
Note: The mounting components and hardware supplied in this package are not designed for installations
to walls with steel studs or to cinder block walls. If the hardware you need for your installation is not
included, please consult your local hardware store for proper mounting hardware for the application.
Wall PlateMonitor Bracket
M8x65 Bolt
M6x15 Bolt M6x30 Bolt
M8x15 BoltM8x45 BoltM6 Washer
M10x80 Concrete Anchor
M6 Spacer
M8x90 Lag Bolt
M8 Washer
Lag Bolt WasherM6 Wrench
a （1） b （2） d （4）c （4）
h （4） i （4）
g （4）
f （4）
n （4）
k （4）
M6x50 Bolt
f （4）
M6/M8 Spacer
l （8）
rM8x20 Space
m （4）
j （4）
q （1）
p （4）
o （4）
Supplied Parts List
IMPORTANT SAFETY INFORMATION
CAUTION!
Step 1 Before TV Bracket Installation
100 mm ≈4 in
200 mm ≈ 7 7/8 in
300 mm ≈ 11 3/4 in
400 mm ≈ 15 3/4 in
600 mm ≈ 23 5/8 in
400mm (15 3/4 in)
Max 600mm（23 5/8 in）
Max
Measure the distance between the holes located
at the back of your TV (these measures may form
the shape of a square, or a rectangle) and check
that these taken measures are within the VESA(*)
range for this wall mount.
(*) VESA: International standard established by the
TV manufacturers used to determine if LCD / LED
TVs are compatible with wall mounts.
Check TV Screws
Hand thread screws into the threaded inserts
on the back of your TV to determine which
screw diameter ( M6, or M8) to use
TV
Step 2 Mounting the Monitor Brackets to a TV
Step 3 Install the Wall Plate to the Wall
These anchors are for concrete or brick walls ONLY. DO NOT use them in
drywall or wood studs.
First of all, make sure the diameter of the Bolt(c to h) your TV requires. Once you have
determined the correct diameter, please see the diagram as below. You will thread the
Bolt into the TV using the correct Washer(i,j), and using the spacer(k,l,m) if necessary.
Please make sure the Monitor Brackets are vertically centered and level with each other.
i,j
c ~ h
k,l,m
a
4
a
24"(60.96cm)
Mount the wall plate using 4 sets of 5/16 lag bolts and
washers with a 1/2 in. socket wrench (not included).
Step 4 Install the Wall Plate to the Wall
Drill 4 pilot holes using a 5/32 in. (4 mm) diameter drill bit.
Make sure the depth is not less than 3.35 in.(85mm).
5/32 in.
Ø4 mm
3.35 in. (85 mm)
o
Anchor
These anchors are for concrete or brick walls ONLY. DO NOT use them in
drywall or wood studs.
n
n
p
p
a
a
Position the wall plate at your
desired height, level the wall plate
and mark the pilot hole locations.
Step 5 Hang Monitor to Wall Plate and Add the Safety Bolts
b
a
Drill 4 pilot holes using a 3/8 in. (10 mm) diameter drill bit.
Make sure the depth is not less than 3.74 in.(95mm).
3/8 in.
Ø10 mm
3.74 in. (95 mm)
Use the hammer to knock
anchors o into the wall.
Warning: Some TVs may require two people to lift! We are not responsible for personal injury or
product damage.
First hook the Monitor Brackets(b) over the top of the wall Plate(a), then let the bottom of the
Monitor Brackets rotate to the bottom of the Wall Plate as shown in the Diagram 5A. Use the
screw driver to tighten the safety bolts. Then the Monitor Bracket will sit behind the bottom tab on
the Wall Plate as shown in the Diagram 5B.
n
p
o
Diagram 5A Diagram 5B
safety bolt
o
Install wall plate using lag bolts n, washers p and anchors o. Tighten the
lag bolts until they are pulled firmly against the wall plate.

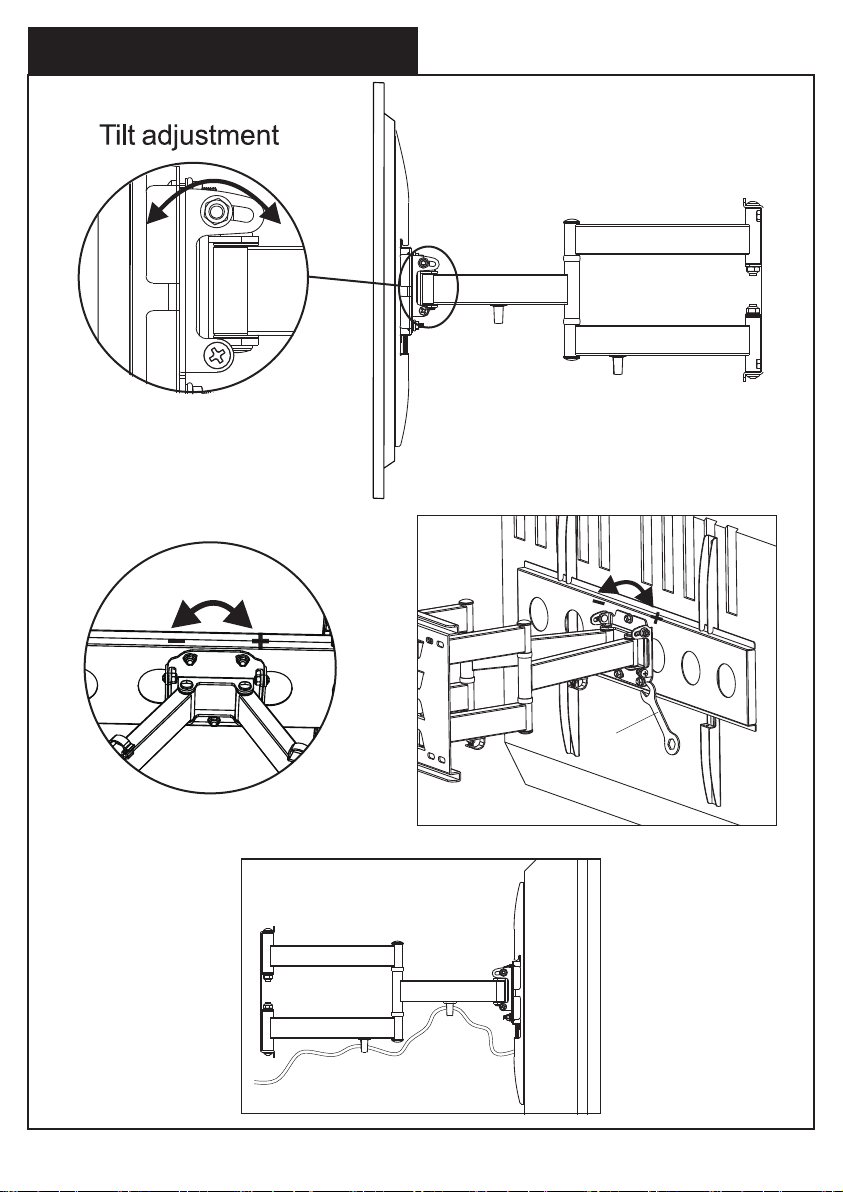

Step 6 Tilt and Level Adjustment
Adjust
TV Level
Wire Management
+
+2°
-15°
-3.5°
