TV Wall Mount
Instruction Manual V2.0
Model: PSSL1
Thank you for choosing this PERLESMITH product! At PERLESMITH we
strive to provide you with the best quality products and services in the
industry. Please share your experience of our product with others at
www.perlesmith.com/pages/reviews if you are satisfied. Should you have
any issues, please don't hesitate to contact us.
Technical Support:
1-800-556-6806 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
[email protected] (US）
[email protected] (CA)
Website:
www.perlesmith.com
Please carefully read all instructions before attempting installation. If you do not
understand the instructions or have any concerns or questions, please contact
our Technical Support line at 1-800-556-6806 or customer service at suppor-
CAUTION: Avoid potential personal injuries and property damage!
• Do not use this product for any purpose that is not explicitly specified in this
manual. Do not exceed weight capacity. We are not liable for damage or injury
caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, solid concrete, concrete block
and brick walls. - DO NOT install into drywall alone.
• The wall must be capable of supporting five times the weight of the TV and
mount combined.
Check the VESA Pattern of Your TV before the Installation
IMPORTANT SAFETY INFORMATION
Verify Your Wall Construction
Minimum VESA pattern: 75mm/3 in.(W)x75mm/3 in.(H)
If your TV VESA is greater than 200x200 mm/7.9x7.9in. or less
than VESA 75x75mm/3x3 in., this mount is NOT compatible.
MAX: 200mm/7.9 in.
MAX: 200mm/7.9 in.
75 mm ≈ 3 in.
100 mm ≈ 4 in.
200 mm ≈ 7 7/8 in.
If this mount is NOT compatible, please contact customer service at
find a compatible mount.
If you are not sure the
wall construction, please
contact our technical
support line at
1-800-556-6806 or
customer service at
(US)/
(CA).
Solid Concrete
or Concrete Block
CAUTION
DO NOT
install into
drywall alone Wood Studs
(with Drywall)
01 02 03 04 05 06 07 08 09
L5mm
[C1] x8
L10mm
[C2] x4
3/8 in.(10mm)
Concrete Drill
Warning: This product contains small items that could be a choking hazard if
swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not use
damaged or defective parts. lf you require replacement parts, contact our Product
Support line at 1-800-556-6806 or customer service at
• Please note: Not all hardware included in this package will be used.
Awl
Stud Finder Tape Measure Pencil Drill
5/32 in.(4 mm)
Wood Drill
3/8in.(10mm)
Socket Wrench
Phillips
Screwdriver
Tools Needed (Not lncluded)
Supplied Parts and Hardware
Supplied Parts and Hardware for Step 1
Hammer
02 x2
TV Bracket
Spacers
[If needed]
Washer
03 04
[B] x4
Note: The spacers are shown in
accordance with the actual size
01 02 03 04 05 06 07 08 09
Note: The lag screw is shown in accordance with the actual size
Washer
M6
A2
Lag Screw
M6x60mm
x4
x4
A1
Wall
Anchor
φ10x60mm
x4
A3
M4 x 30mm
[D2] x4
M6 x 15mm
[E1] x4
M6 x 30mm
[E2] x4
M6
M4
M4 x 15mm
[D1] x4
[Only one bolt size fits your TV]
TV Bolts
Note: The bolts are shown in accordance with the actual size
05
Supplied Parts and Hardware for Step 2 to Step 3
Wall Plate 01 x1 Level x1
This anchor is for
concrete or brick walls
ONLY. DO NOT use
them in drywall or wood
studs.
CAUTION!
Bolt [S] x2
01 02 03 04 05 06 07 08 09
Option A (For Flat Back TV)
05 D1/E1
03 B
UP
CAUTION: Ensure the TV brackets
[02] are EQUALLY CENTERED on your
TV and securely fastened in place.
02
Only one bolt size fits your TV.

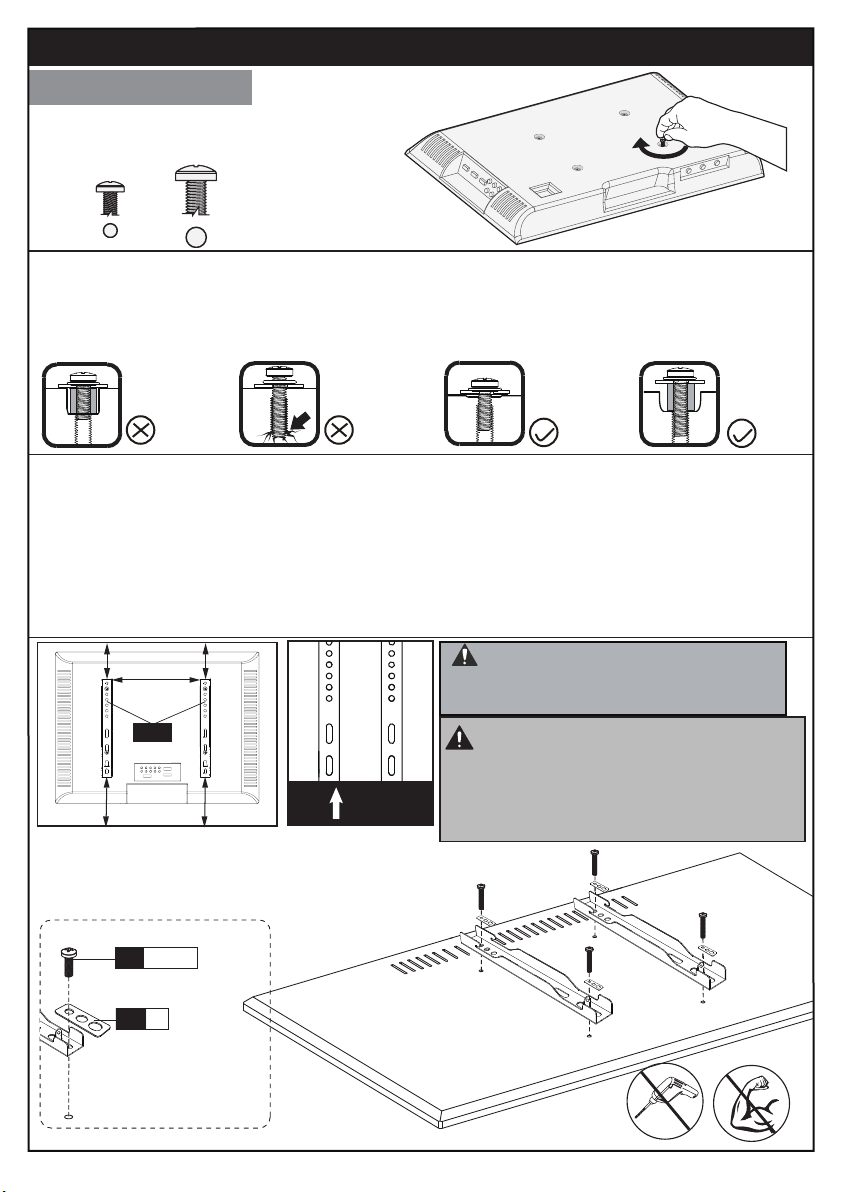

Step 1 Secure the TV Brackets to TV
Select TV Bolts
M6M4
Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination.
We recommend thread engagement by at least 5 turns.
-Too short will not hold the TV.
-Too long will damage the TV.
Too Short Too Long Correct Correct
Please Note: The provided TV bolts meet most of today’s TVs design. However, some TVs
require special bolts which may not be in the hardware bag. In this case we offer our
“PSUHP" Universal Hardware Kit which provides a large selection of bolts that can meet
the demand of older and unique applications.
Please Note: When using the spacers it is important to note that they can be used in
multi-layers (meaning stacked). If you have any difficulty understanding how to install the
TV bolts or spacers, please contact customer service at [email protected] (US)/
[email protected] (CA).
Please note: The bolt hole locations
on your TV may vary in accordance of the
manufacturers design of the TV. We are
only illustrating possible locations of the
bolt holes.
01 02 03 04 05 06 07 08 09
Option D
For cable interference or inset holes, use
spacers to create extre space between the
TV and TV bracket.
04
D2/E2
05
B
03
C1/C2
04
Option B (For Round Back TV)
Spacers may be necessary for 2 holes ONLY.
Option C (For TV with A “Bump”)
Alternate Spacer Setups
Alternate Spacer Setups
Alternate Spacer Setups
05 D2/E2
03 B
04 C1/C2
05 D1/E1
03 B
05 D2/E2
03 B
04 C1/C2
01 02 03 04 05 06 07 08 09
X
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum 1½ x
3½ in. (38 x 89 mm)
● Stud center must be verified
●Ensure the wall plate [01] is securely fastened to the wall before
continuing to the next step.
●DONOT USE ANCHOR [A3] FOR THIS STEP!
●Avoid potential personal injury or property damage! DO NOT over-tighten the
lag screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are
pulled firmly against the wall plate.
2-2
Position the wall plate [01] at your desired
height and line up the holes with your stud
center line. Level the wall plate [01] and mark
the holes.
2-1
Use a stud finder (not included) to
locate wood studs or use an awl (not
included) to verify the edges. Mark the
edge and center locations.
Awl
(Not lncluded)
Step 2 Attach the Wall Plate [01] to Wall
Step 2A Wood Stud Option
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B
WARNING:
01
01 02 03 04 05 06 07 08 09
WARNING:
●Avoid potential personal injury or property damage! DO NOT over-tighten the lag
screws [A1]. Tighten the lag screws [A1] only until the washers [A2] are pulled firmly
against the wall plate.
●Ensure the wall plate [01] is securely fastened to the wall before
continuing to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
● Never drill into the mortar between blocks
Wall
Anchor
A3
Step 2B Solid Concrete or Concrete Block Option
2-4
3/8in.(10mm)
Socket Wrench
(Not included)
2-3

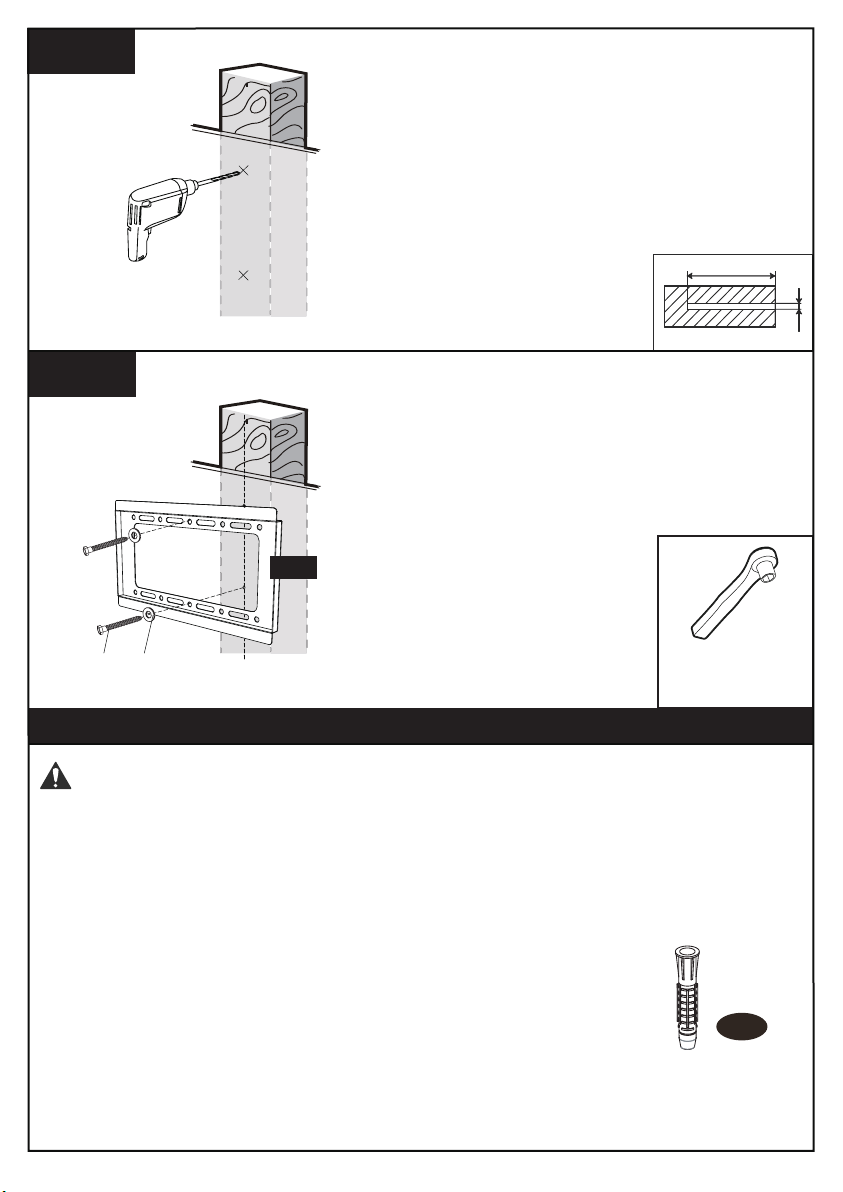

Drill 2 pilot holes using a 5/32 in.(4 mm)
diameter drill bit. Make sure the depth is
not less than 2 23/64 in.(60mm).
ø5/32 in.(4mm)
2 23/64 in. (60mm)
Install the wall plate using lag screws [A1]
and washer [A2]. Tighten the lag screws [A1]
only until the washers [A2] are pulled firmly
against the wall plate.
01
A1 A2
01 02 03 04 05 06 07 08 09
ø3/8 in.(10mm)
2 9/16 in.(65mm)
Drill 4 pilot holes using a 3/8 in.
(10mm)diameter drill bit. Make
sure the depth is not less than 2
9/16 in. (65mm). Never drill into
the mortar between blocks.
Use the hammer to knock anchors
[A3] into the wall. Be sure the
anchors [A3] are seated flush with
the concrete surface.
Install wall plate using lag screws [A1],
washers [A2] and anchors [A3].
Tighten the lag screws [A1] only until
the washers [A2] are pulled firmly
against the wall plate. DO NOT
over-tighten the lag screws [A1].
2A-1
2A-2
2A-3
2A-4
You may need assis-
tance with this step.
3/8in.(10mm)
Socket Wrench
(Not included)
01
Position wall plate [01] at your
desired height, level wall plate
[01] and mark the pilot hole
locations.
A1
A3
A2
01 02 03 04 05 06 07 08 09
Step 3 Hang the TV onto the Wall Plate
TV
Iocking
S
01 02 03 04 05 06 07 08 09
