PEERLESS WSP 320 Manuel utilisateur

ISSUED: 02-04-00 SHEET #: 024-9004-1 08-10-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

1 of 2

Assembly Instructions - Metal Stud Wall Plate

IMPORTANT! Read entire instruction sheet before you start installation and assembly.

MAXIMUM LOAD

CAPACITY:

125 lb (56.8 kg)

Models:

WSP 320,

WSP 320S,

WSP 320W

WSP320 & WSP320W for studs

on 16" (406 mm) centers.

Refers to maximum weight of TV or max.

combined weight of TV, VCR and VCR bracket.

MODEL # WSP 320 PARTS LIST

PART # QTY. DESCRIPTION

A024-1019 1 wall plate (black)

B510-9131 3 1/4-20 x 1/4" phillips screw

C520-9521 4 1/4-20 x 2 1/2" phillips screw

D590-1093 4 steel drop down toggler

Use a stud finder to locate stud

centers.

*Note: Three 1/4-20 x 1/4" philips screw (B) are provided to attach wall

mount bracket (sold separately) to wall plate (A).

MODEL #WSP 320S PARTS LIST

PART # QTY. DESCRIPTION

A024-4019 1 wall plate (silver)

B520-2013 3 1/4-20 x 1/4" phillips screw

C520-9522 4 1/4-20 x 2 1/2" phillips screw

D590-1093 4 steel drop down toggler

MODEL #WSP 320W PARTS LIST

PART # QTY. DESCRIPTION

A024-2019 1 wall plate (white)

B520-2013 3 1/4-20 x 1/4" phillips screw

C520-9522 4 1/4-20 x 2 1/2" phillips screw

D590-1093 4 steel drop down toggler

• Wall or mounting structure must be capable of supporting a minimum static load of 600 lb (272 kg).

WARNING

ISSUED: 02-04-00 SHEET #: 024-9004-1 08-10-04

Visit the Peerless Web Site at www.peerlessindustries.com For customer service call 1-800-729-0307 or 708-865-8870.

2 of 2

Fasten all four screws (C) tight, untill

wall plate (A) is flushed with wall.

Pushtoggler(D)throughhole.Pullscrew(C)

back untill toggler (D) hits the inside of the

metal stud.

Placescrew(C)throughwallplate(A).

Partially fasten the toggler (D) to the

back of the screw. Pivot ends of toggler

(D)90°.

Use wall plate (A) as a template to mark

slot centers on stud centers.

∅ 3/4"

(19 mm)

Drillfour3/4"(19mm)dia.holesthrough

drywall and studs. Insert togglers (D) as

shown to the right...

PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

• Make sure that mounting screws are anchored into the

center of the studs. The use of an "edge to edge" stud

finderishighly recommended.

WARNING

Ce manuel convient aux modèles suivants

Autres manuels PEERLESS Support TV

PEERLESS

PEERLESS Jumbo 2000 OP-JMW2630 Mode d’emploi

PEERLESS

PEERLESS SR1G Mode d’emploi

PEERLESS

PEERLESS HP432-002 Mode d’emploi

PEERLESS

PEERLESS DS-VL-H024 Mode d’emploi

PEERLESS

PEERLESS HP450-GB Mode d’emploi

PEERLESS

PEERLESS SR1M Mode d’emploi

PEERLESS

PEERLESS WSP700 Manuel utilisateur

PEERLESS

PEERLESS Peerless OneMount Flat Panel Modular Wall Mount... Mode d’emploi

PEERLESS

PEERLESS SUA746PU Mode d’emploi

PEERLESS

PEERLESS PLCK-1 Mode d’emploi

PEERLESS

PEERLESS Smartmount ST650 and assembly Mode d’emploi

PEERLESS

PEERLESS WSP824 Mode d’emploi

PEERLESS

PEERLESS Smartmount ST630P and assembly Mode d’emploi

PEERLESS

PEERLESS PARAMOUNT PP740 Mode d’emploi

PEERLESS

PEERLESS SUF660P and assembly Mode d’emploi

PEERLESS

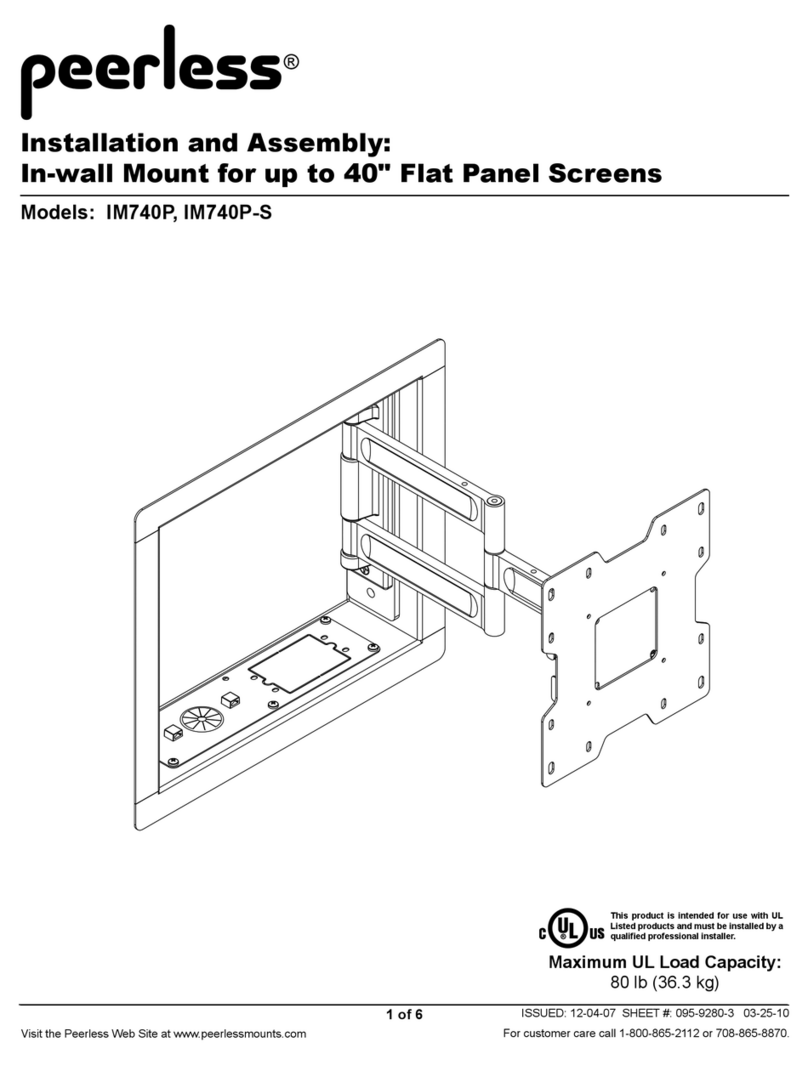

PEERLESS IM740P Mode d’emploi
