PEERLESS SR1M Mode d’emploi

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

Installation and Assembly: 32" - 60" Flat Panel TV Cart

Models: SR1M, SR560M

Max UL Load Capacity:

150 lb (68 kg) screen

50 lb (22.7 kg) per shelf

This product is UL Listed. It must be

installed by a qualified professional

installer.

2 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

Note: Read entire instruction sheet before you start installation and assembly.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

callPeerlesscustomercareat1-800-729-0307.

• Thisproduct should only beinstalled by someone ofgood mechanical aptitude, andfully understands these instruc-

tions.

• NeverexceedtheMaximumULLoadCapacity.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tightenscrewsfirmly,butdonotovertighten.Overtighteningcan damage the items, greatly reducing their holding

power.

• The cart is not affixed or secured to the floor, and may therefore tip over and/or fall if screen and/or stand is shaken

or hit.Always monitor children and do not let children play alone around stand as they could get hurt by a falling

screen.Not recommended for usein areas with heavy traffic.

WARNING

Table of Contents

Parts List..........................................................................................................................................................................3, 4

AssemblingCart ...................................................................................................................................................................5

AttachingScreenUsingUniversalPlatewithAdapterBrackets .............................................................................................. 10

AttachingScreen with VESA 100 Mounting Pattern...............................................................................................................13

AttachingScreenUsingaDedicated plate ............................................................................................................................ 14

Tools Needed for Assembly

•level

•phillipsscrewdriver

3 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

Parts List SR1M SR560M

Description Qty. Part Number Part Number

Ascreen mount bracket 1 201-1156 201-1156

Bhook plate 1 201-1157 201-1157

Cshelf support 1 201-1158 201-1158

Dbase 1 009-1223 009-1223

Euniversal plate 1 N/A 201-1110

Fadapter bracket 2 N/A 200-0752

Gupright 1 580-1180 580-1180

Htop cover 1 590-1210 590-1210

I1/4-20 x 12mm decorative screw 14 520-2325 520-2325

J1/4-20mm nut 10 530-1022 530-1022

K5/16" flat washer 10 540-9406 540-9406

L3/8-16 x 2.5" socket screw 3 520-9550 520-9550

M7/32" allen wrench 1 560-9715 560-9715

N4mm allen wrench 1 560-9646 560-9646

O8/32 nylock nut 6 530-1038 530-1038

Pshelf pan 1 009-1225 009-1225

Q6mm allen wrench 1 N/A 560-9716

Rleft leg 1 009-0220 009-0220

Sright leg 1 009-0218 009-0218

Twheel caster 2 600-0044 600-0044

Uwheel caster/brake 2 600-0045 600-0045

Vjoint connector nut 4 530-1037 530-1037

W3/8-16 x 1.5" screw bolt 4 520-1329 520-1329

XM10 x .402 ID lock washer 3 540-9424 540-9424

Yend cap 4 590-1032 590-1032

Z3/16 allen wrench 1 560-0071 560-0071

AA M4 x 12 mm serrated washer head socket pin screw 6 N/A 510-1079

BB M4 x 25 mm serrated washer head socket pin screw 4 N/A 510-1082

CC M5 x 12 mm socket pin screw 4 N/A 520-1064

DD M5 x 25 mm socket pin screw 4 N/A 520-1122

EE M6 x 12 mm socket pin screw 4 N/A 520-1050

FF M6 x 25 mm socket pin screw 4 N/A 520-1211

GG M8 x 15 mm socket button screw 6 N/A 520-1068

HH M8 x 40 mm socket pin screw 4 N/A 520-1152

II .219 ID x .5 OD x .5 HT spacer 4 N/A 540-1057

JJ .344 ID x .75 OD x .5 HT spacer 4 N/A 540-1059

KK universal plasma tilt multi washer 6 N/A 580-1036

LL M6 x 20 mm socket pin screw 4 N/A 520-9554

MM M6 x 30 mm socket pin screw 4 N/A 520-1067

NN M8 x 25 mm socket pin screw 4 N/A 520-1101

OO M10 x 15 mm socket pin screw 4 N/A 520-9262

Before you begin, make sure all parts shown are included with your product.

Parts may appear slightly different than illustrated.

4 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

Some parts may appear slightly different than illustrated.

AA BB

CC HH

5 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

1Insert four end caps (Y) into ends of left and right support legs (R & S)as shown.

Guide left leg (R) towards base housing (D) as seen in fig.2.1. Then line up holes in base housing with holes in left leg. Fasten base housing

to left leg using two 3/8-16 x 1.5" screw bolts (W) and two joint connectors (V) tighten using 3/16"allen wrench (Z) and 7/32"allen wrench

(M) as shown in fig.2.2. Repeat for right side with right leg (S).

fig 2.2

fig 2.1

6 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

3Insert and screw casters (U & T) into holes of support legs (S & R). Attach casters with brake (U)to the back of left and right support legs.

Attach casters without brake (T)to front of support legs as shown.

NOTE: Lock brakes on casters to avoid sudden movements during installation.

HANDTHREAD

HOLDWHEEL

fig 4.2

CHORDMANAGEMENT

HOLES

fig 4.1

Attach upright (G) to base (D), as shown in in fig 4.2 using three 3/8-16 x 2.5" socket screws (L) and M10 x .402ID

lock washers (X). Tighten screws using 7/32" allen wrench (M) shown in fig. 4.1.

7 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

Loosely attach four 1/4-20 x 12 mm screws (I), washers (K), and 1/4-20 nuts (J) to shelf support (C).

Slide shelf support (C) onto upright (G) so that 1/4-20 nuts (J) slide into slots of upright (G) as shown in figure 6 and

detail 1. Slide shelf support to desired position, level, then tighten 1/4-20 x 12 mm screws (I) using 4 mm allen

wrench(N).

NOTE: MAXIMUMOFTWOSHELVES

Max height of top shelf is 34" from base.

Max height of second shelf is 28" from base.

DETAIL 1

SLOT

fig 6

8 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

7-1

7-2

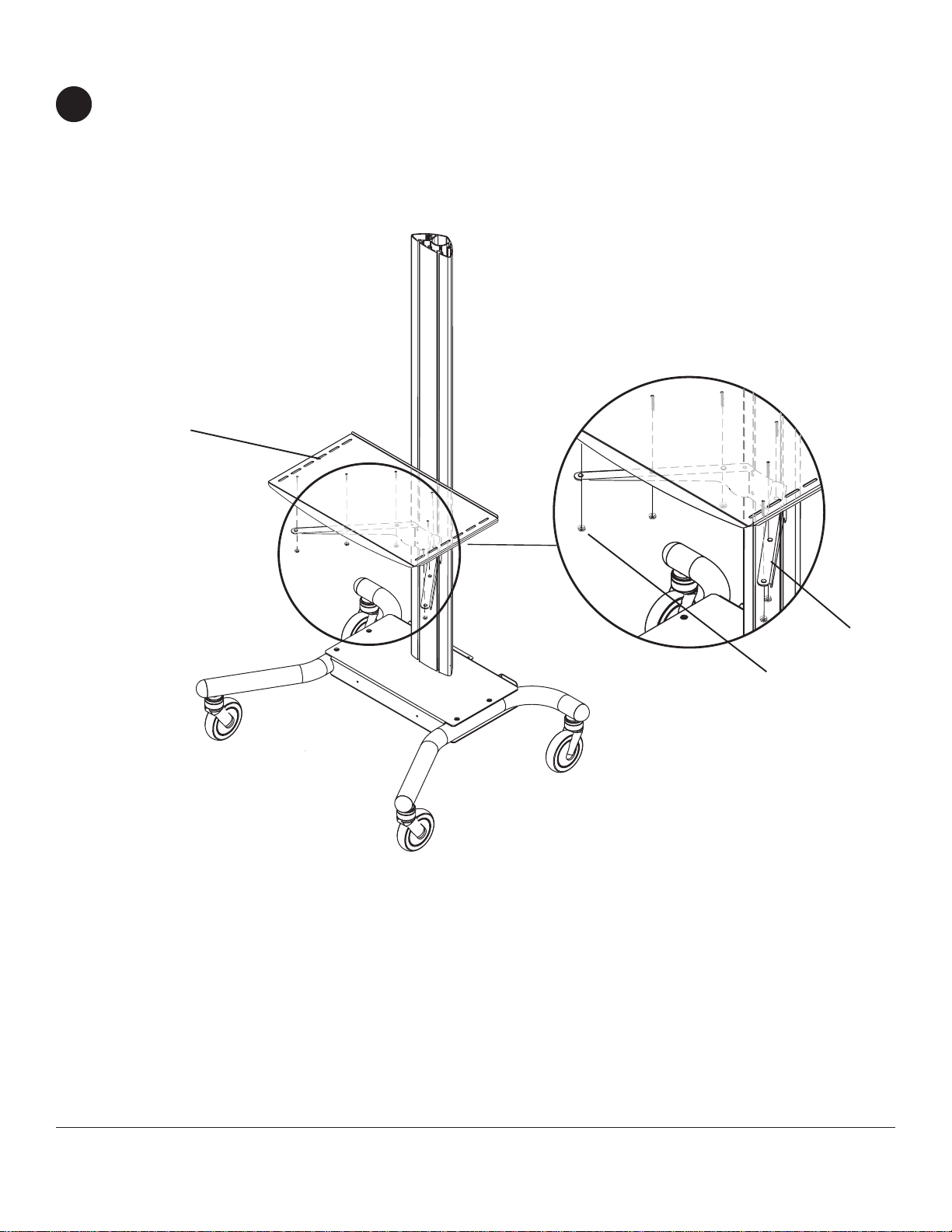

AttachingMetal Shelf

Attach shelf pan (P) to shelf support (C) using six 8/32 nylock nuts (O) as shown below. Use an adjustable wrench to

tighten six 8/32 nylock nuts (O).

9 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

Insert two 1/4-20 x 12 mm screws (I) into screen

mountbracket (A),leaving3/16"of exposed thread

as shown in figure 11 and detail 3.

Snaptopcover (H) onto upright (G). 11

3/16"

fig 11

DETAIL 3

Loosely attach six 1/4-20 x 12 mm screws (I),

washers (K), and 1/4-20 nuts (J) to screen mount

bracket(A).

8Slide screen mount bracket (A) onto upright (G) so

that 1/4-20 nuts (J) slide into slots of upright (G) as

shown in figure 9 and detail 2. Slide screen mount

bracket to desired position, level, then tighten 1/4-20

x 12 mm screws (I) using 4 mm allen wrench (N).

IKA

SLOT

fig 9

DETAIL 2

10 of 14 ISSUED: 01-10-07 SHEET #: 009-9039-2 03-12-07

Attach universal plate (E) to hook plate (B) using four

M10 x 15 mm socket screws (OO). Tighten screws

using 6 mm allen wrench (Q).

Attaching Screen using Universal Plate withAdapter Brackets

For attaching screens with VESA 100 hole pattern, skip to page 13. For attaching Dedicated plate

skip to page 14.

13 Attach hook plate (B) to screen mount bracket (A).

14 Insert two 1/4-20 x 12 mm screws (I) into holes indicated below for desired screen orientation. Tighten all screws

using 4 mm allen wrench (N).

2° Backward Tilt 5° Forward TiltNo Tilt
