Air Quality Meter PCE-RCM 16

User Manual

User manuals in various languages (français,

italiano, español, português, nederlands, türk, polski,

русский, 中文) can be found by using our

product search on: www.pce-instruments.com

Last change: 23 October 2020

v1.0

English


 © PCE Instruments


Contents
1Safety notes........................................................................................... 1
2Device description ................................................................................2
2.1 Keys and connections...................................................................................................... 2
2.2 Display............................................................................................................................. 3
3Technical specifications ...................................................................... 4
4Delivery cope.........................................................................................4
5Operating instructions ......................................................................... 4
5.1 Switch on the device ........................................................................................................ 4
5.2 Switch off the device ........................................................................................................ 4
5.3 Toggle view...................................................................................................................... 4
5.4 Traffic light function.......................................................................................................... 5
5.5 Settings............................................................................................................................ 6
5.6 Charging the battery......................................................................................................... 6
6Warranty.................................................................................................7
7Disposal ................................................................................................. 7




1 Safety notes

Please read this manual carefully and completely before you use the device for the first time. The

device may only be used by qualified personnel and repaired by PCE Instruments personnel.

Damage or injuries caused by non-observance of the manual are excluded from our liability and

not covered by our warranty.

•The device must only be used as described inthis instructionmanual. If used otherwise,

this can cause dangerous situations for the user and damage to the meter.

•The instrument may only be used if the environmental conditions (temperature, relative

humidity, …) are within the ranges stated in the technical specifications. Do not expose

the device to extreme temperatures, direct sunlight, extreme humidity or moisture.

•Do not expose the device to shocks or strong vibrations.

•The case should only be opened by qualified PCE Instruments personnel.

•Never use the instrument when your hands are wet.

•You must not make any technical changes to the device.

•The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,

no abrasives or solvents.

•The device must only be used with accessories from PCE Instruments or equivalent.

•Before each use, inspect the case for visible damage. If any damage is visible, do not

use the device.

•Do not use the instrument in explosive atmospheres.

•The measurement range as stated in the specifications must not be exceeded under

any circumstances.

•Non-observance of the safety notes can cause damage to the device and injuries to

the user.

•This meter has very precise sensors. Avoid contact with alcohol. Alcohols influence the

measurement results.

We do not assume liability for printing errors or any other mistakes in this manual.

We expressly point to our general guarantee terms which can be found in our general terms of

business.

If you have any questions please contact PCE Instruments. The contact details can be found at

the end of this manual.

2 Device description

2.1 Keys and connections

1. On/off key

2. Arrow key DOWN

3. Arrow key UP

4. Micro USB charging socket

2.2 Display

Figure 1Standard view

Figure 2List view

Figure 3Graphic view

3 Technical specifications

Measurement

function

Measurement range

Resolution

Accuracy

TVOC

0.000 ... 9.999 mg/m³

0.001 mg/m³

±10 % of reading

PM1, PM 2.5,

PM10

0 ... 999 µg/m³

1 µg/m³.

±10 % of reading

Temperature

0 ... 50 °C

1 °C

±1 °C

Humidity

20 ... 90 %

1 %

±4 %

CO2

0 ... 5000 ppm

1 ppm

±10 % of reading

General

Settling time

approx. 24 hours

Display

TFT display, 4.3"

Environmental conditions

0 ... 50 °C / max. 90 % RH

Connection

micro USB to charge the battery

Power supply micro USB

5 V / 2 A

Power supply rechargeable battery

3000 mAh battery

Operating time without mains adaptor

approx. 6 hours

Battery charging time

approx. 2-3 hours

Case

metal

Dimensions

131 x 78 x 67.5 mm

Weight

336 g

4 Delivery cope

1 x air quality meter PCE-RCM 16

1 x micro USB cable

1 x user manual

5 Operating instructions

5.1 Switch on the device

When the air quality meter is switched off, press and hold the on/off key for 3 seconds to switch

on the meter.

5.2 Switch off the device

When the power is on, press and hold the on/off key for 3 seconds to switch off the meter.

5.3 Toggle view

When the unit is switched on, all measured values are displayed as numerical values.

Furthermore, the air quality meter displays the air quality status in traffic light colours. The view

can be changed using the UP arrow key. The graph shows the course of the measured values for

the last 5 h after switching on.

In graphic view, you can select the measured variable for which the history is to be displayed with

the DOWN arrow key.

5.4 Traffic light function

The air quality meter indicates the measured value with traffic light colours. The limit values for

changing the colours are as follows:

CO2 in ppm

Air quality

Value

Colour

Good

<1000

Green

1001…3000

Yellow

Poor

>3000

Red

PM2.5 in µg/m³

Good

<60

Green

61…120

Yellow

Poor

>120

Red

AQI (Air Quality Index)

Good

<100

Green

101…300

Yellow

Poor

>300

Red

TVOC

Good

<0.500

Green

0.501…1.500

Yellow

Poor

> 1.500

Red

5.5 Settings

Press the on/off key twice in quick succession to open the settings menu.

5.5.1 Setting the date (DATE)

Use the arrow keys to change the highlighted numerical value for day, month, year. Confirm the

setting with the on/off key. You are automatically taken to the next setting option.

5.5.2 Setting the time (TIME)

Use the arrow keys to change the highlighted numerical value for hour and minute. Confirm the

setting with the on/off key. You will automatically be taken to the next setting option.

5.5.3 Alarm clock (Alarm Clock)

Use the arrow keys to change the highlighted numerical value for hour and minute. You can

also use them to switch the alarm clock on or off. Confirm the setting with the on/off key. You

will automatically be taken to the next setting option.

5.5.4 Screensaver

Use the arrow keys to set 10, 30, 60 min or "Never". When the screen saver is active, the

display is black but measurements are still taken. This extends the battery life.

5.6 Charging the battery

As soon as the battery symbol on the display indicates that the battery is discharged, the PCE-

RCM 16 must be charged via the micro USB port. To do this, use the supplied USB cable or a

USB adaptor with 5 V / 1000 mA. Please note that it may take at least 2 hours to recharge the

battery to 100 %.

Note: The unit can also be operated permanently with a mains adaptor.

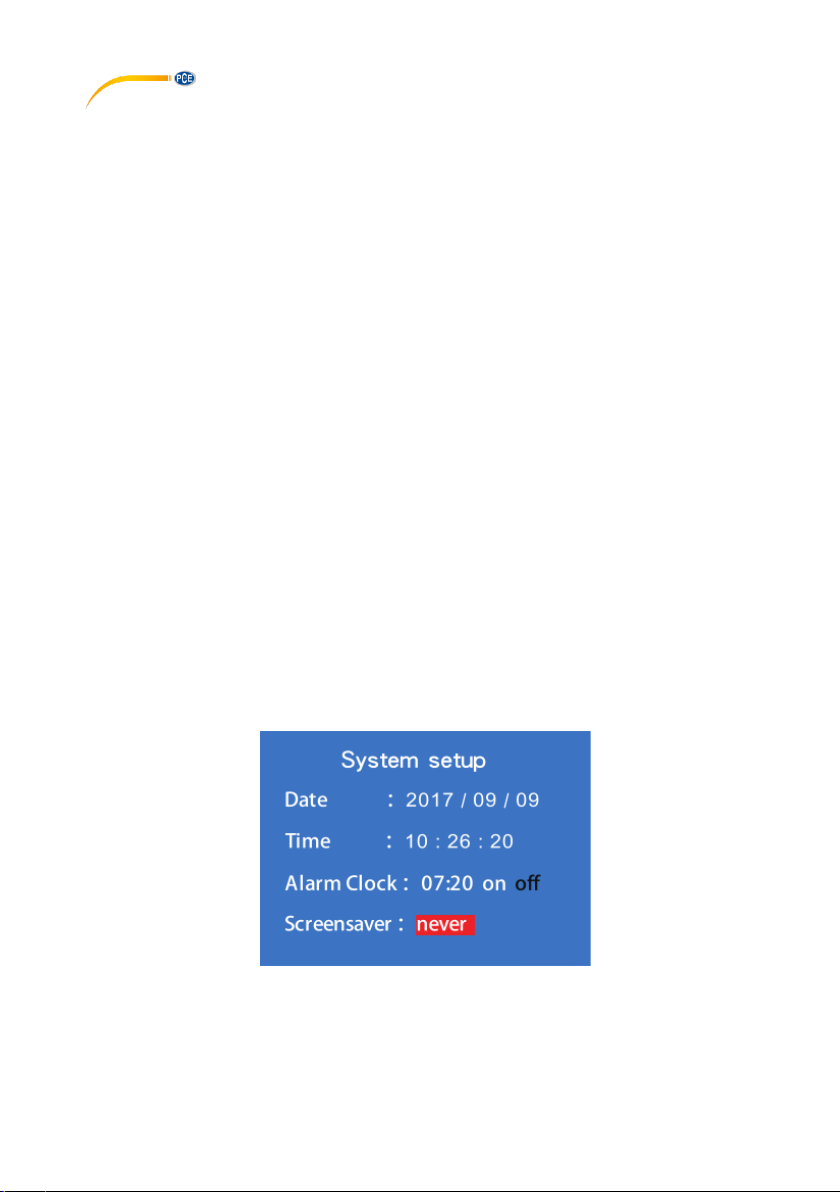

Figure 4Setup menu

6 Warranty

You can read our warranty terms in our General Business Terms which you can find here:

https://www.pce-instruments.com/english/terms.

7 Disposal

For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament

applies. Due to the contained pollutants, batteries must not be disposed of as household waste.

They must be given to collection points designed for that purpose.

In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use

them or give them to a recycling company which disposes of the devices in line with law.

For countries outside the EU, batteries and devices should be disposed of in accordance with

your local waste regulations.

If you have any questions, please contact PCE Instruments.

PCE Instruments contact information

Germany France Spain

PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L.

Im Langel 4 23, rue de Strasbourg Calle Mayor, 53

D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete)

Deutschland France España

Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel. : +34 967 543 548

Fax: +49 (0) 2903 976 99 29 Numéro de fax: +33 (0) 972 3537 18 Fax: +34 967 543 542

[email protected] [email protected] [email protected]

www.pce-instruments.com/deutsch www.pce-instruments.com/french www.pce-instruments.com/espanol

United Kingdom Italy Turkey

PCE Instruments UK Ltd PCE Italia s.r.l. PCE Teknik Cihazları Ltd.Şti.

Unit 11 Southpoint Business Park Via Pesciatina 878 / B-Interno 6 Halkalı Merkez Mah.

Ensign Way, Southampton 55010 Loc. Gragnano Pehlivan Sok. No.6/C

Hampshire Capannori (Lucca) 34303 Küçükçekmece - İstanbul

United Kingdom, SO31 4RF Italia Türkiye

Tel: +44 (0) 2380 98703 0 Telefono: +39 0583 975 114 Tel: 0212 471 11 47

Fax: +44 (0) 2380 98703 9 Fax: +39 0583 974 824 Faks: 0212 705 53 93

[email protected] info@pce-italia.it in[email protected]

www.pce-instruments.com/english www.pce-instruments.com/italiano www.pce-instruments.com/turkish

The Netherlands China Hong Kong

PCE Brookhuis B.V. PCE (Beijing) Technology Co., Limited PCE Instruments HK Ltd.

Institutenweg 15 1519 Room, 6 Building Unit J, 21/F., COS Centre

7521 PH Enschede Zhong Ang Times Plaza 56 Tsun Yip Street

Nederland No. 9 Mentougou Road, Tou Gou District Kwun Tong

Telefoon: +31 (0)53 737 01 92 102300 Beijing, China Kowloon, Hong Kong

[email protected] Tel: +86 (10) 8893 9660 Tel: +852-301-84912

www.pce-instruments.com/dutch [email protected] [email protected]

www.pce-instruments.cn www.pce-instruments.cn

United States of America

PCE Americas Inc.

1201 Jupiter Park Drive, Suite 8

Jupiter / Palm Beach

33458 FL

USA

Tel: +1 (561) 320-9162

Fax: +1 (561) 320-9176

[email protected]

www.pce-instruments.com/us
