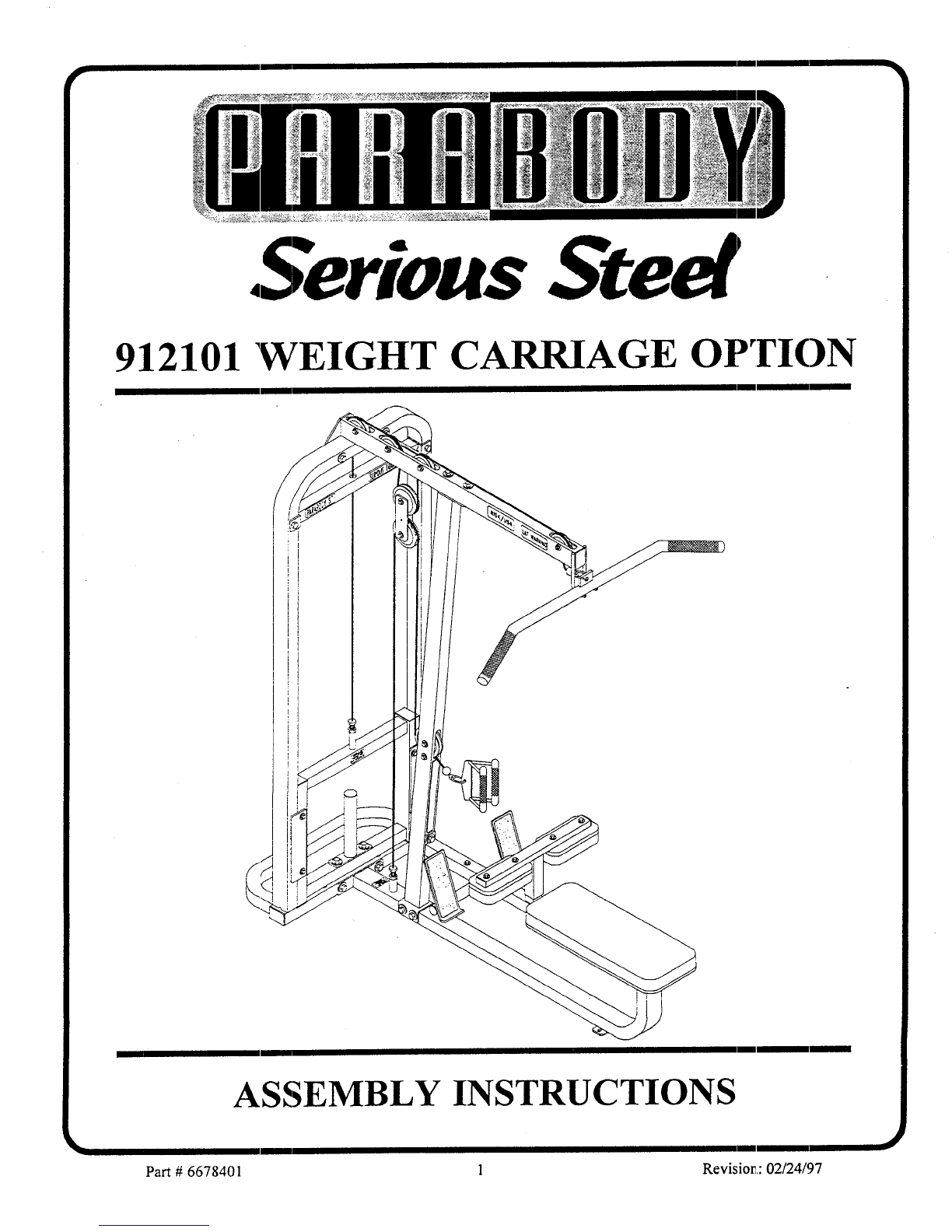

.~erious Steel

912101 ’WEIGHT CARRIAGE OPTION

ASSEMBLY INSTRUCTIONS

Part # 6678401 1Revision,: 02/24/97

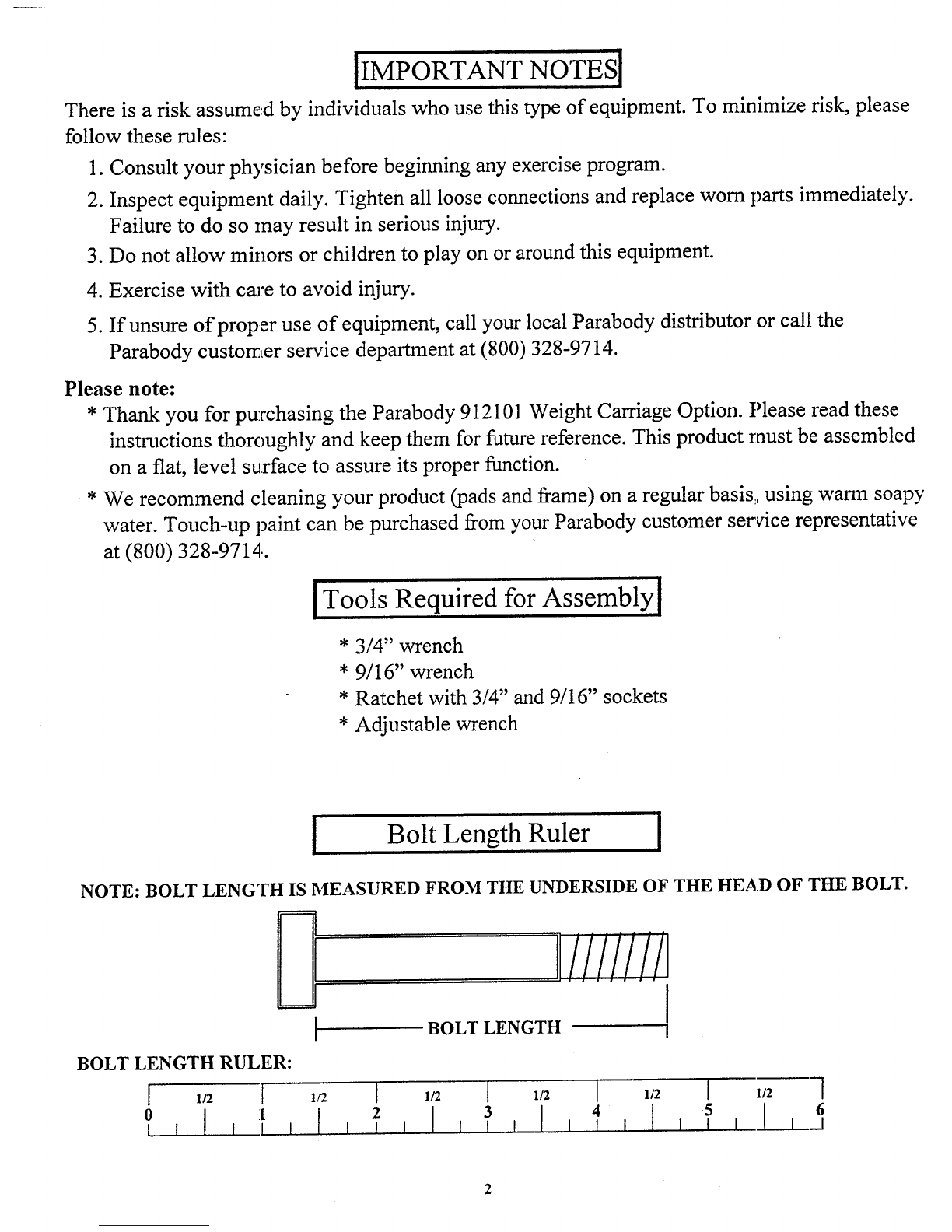

IIMPORTANT NOTES]

There is a risk assumedby individuals whouse this type of equipment. To minimizerisk, please

follow these rules:

1. Consult your physician before beginning any exercise program.

2. Inspect equipmentdaily. Tighten all loose connections and replace wornparts immediately.

Failure to do so mayresult in serious injury.

3. Donot allow minors or children to play on or around this equipment.

4. Exercise with care to avoid injury.

5. If unsure of proper use of equipment,call your local Parabodydistributor or call the

Parabody customer service department at (800) 328-9714.

Please note:

* Thankyou for purchasin~ the Parabody 912101Weight Carriage Option. Please read these

instructions thoroughly and keep themfor future reference. This product faust be assembled

on a flat, level surface to assure its properfunction.

* Werecommendcleanin~ your product (pads and frame) on a regular basis.., using warmsoapy

water. Touch-uppaint can be purchased from your Parabody customer ser~,ice representative

at (800) 328-9714.

]Tools Required for Assembly]

* 3/4" wrench

* 9/16" wrench

* Ratchet with 3/4" and 9/16" sockets

* Adjustable wrench

Bolt LengthRuler

NOTE: BOLTLENGTHIS MEASUREDFROMTHE UNDERSIDEOF THE HEADOF THE BOLT.

IBOLT LENGTH ]

BOLT LENGTHRULER:

] 1/2 6

0 1

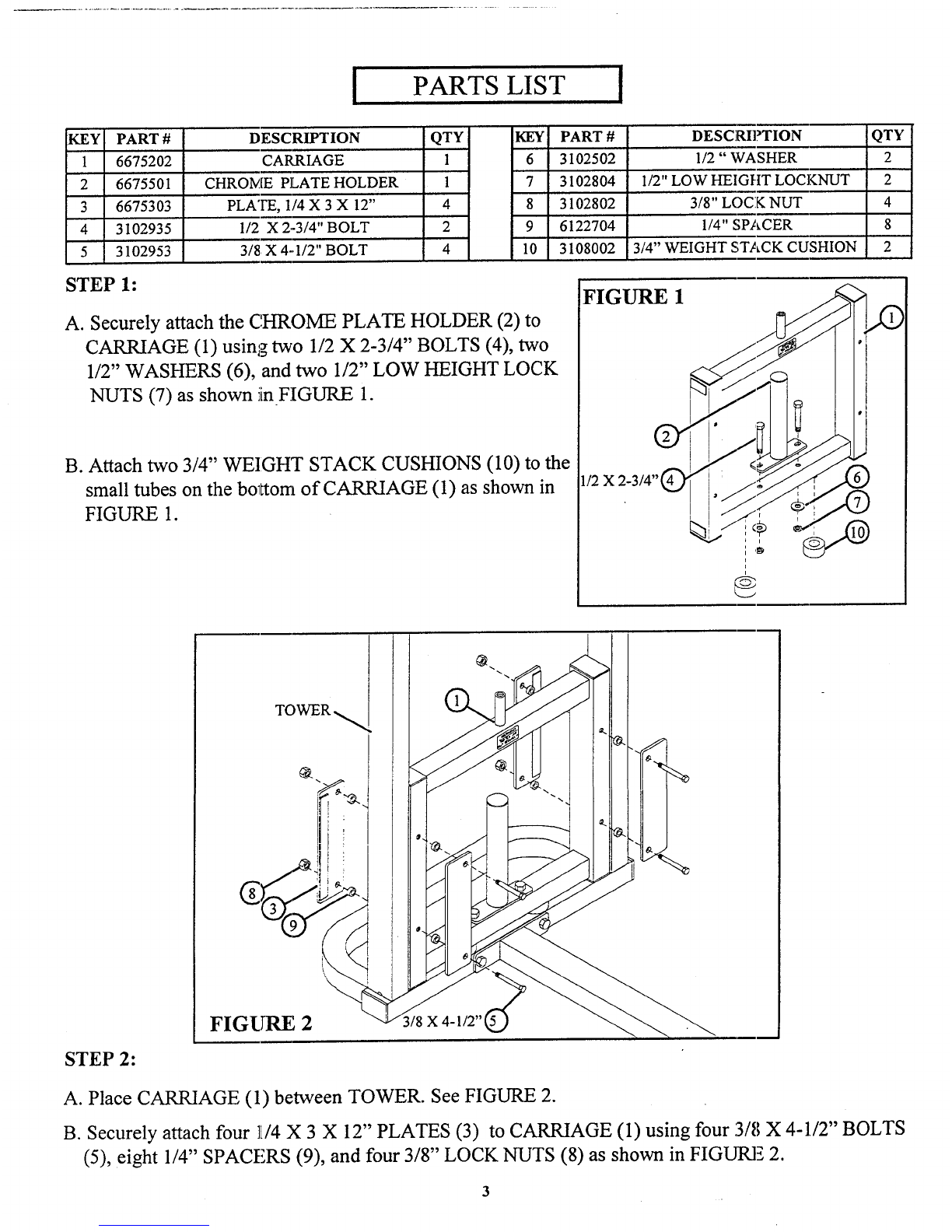

PARTS LIST

KEY

PART #DESCRIPTION

6675202 CARRIAGE

6675501 CHROME PLATE HOLDER

6675303 PLATE,1/4 X 3 X 12"

3102935 1/2 X 2.-3/4" BOLT

3102953 3/8. X4-.1/2" BOLT

QTY KEY

1 6

4 8

410

PART # DESCRIPTION

3102502 1/2" WASHER

3102804 1/2" LOWHEI LOCKNUT

3102802 3/8" LOCKNUT

6122704 1/4" SPACER

3108002 3/4" WEIGHTSTACKCUSHION

QTY

STEP1:

A. Securely attach the CHROMEPLATEHOLDER(2)

CARRIAGE(1) using two 1/2 X 2-3/4" BOLTS(4),

1/2" WASHERS(6), and two 1/2" LOWHEIGHTLOCK

NUTS(7) as showniin FIGURE

B. Attach two 3/4" WEIGHTSTACKCUSHIONS(10) to the

small robes on the bottom of CARRIAGE(1) as shown

FIGURE1.

STEP2:

TOWER

FIGURE 2 3/8 X4-1/2"1 ~.~

A. Place CARRIAGE(1) between TOWER.See FIGURE

B. Securely attach four 1/4 X 3 X 12" PLATES(3) to CARRIAGE(1) using four 3/8 X4-1/2" BOLTS

(5), eight 1/4" SPACERS(9), and four 3/8" LOCKNUTS(8) as shownin FIGURE

TOWER

BRACE

,TOP BOOM

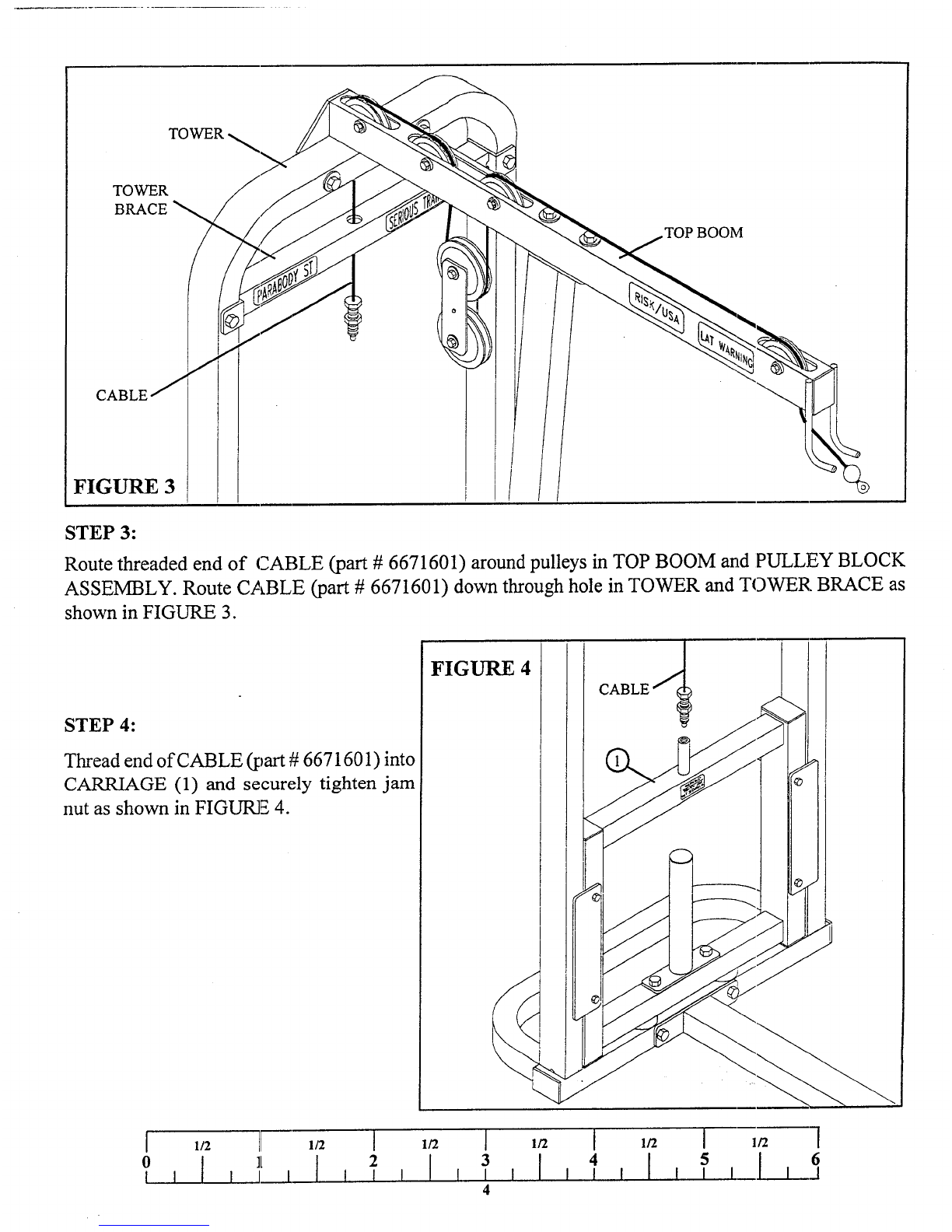

FIGURE 3

STEP3:

Route threaded end of CABLE(part # 6671601) around pulleys in TOPBOOMand IPULLEYBLOCK

ASSEMBLY.Route CABLE(part # 6671601) down through hole in TOWERand TOWERBRACE

shown in FIGURE3.

STEP4:

Threadend of CABLE(part # 6671601)into

CARRIAGE(1) and securely tighten jam

nut as shownin FIGURE4.

FIGURE 4

1/2 1/2 2

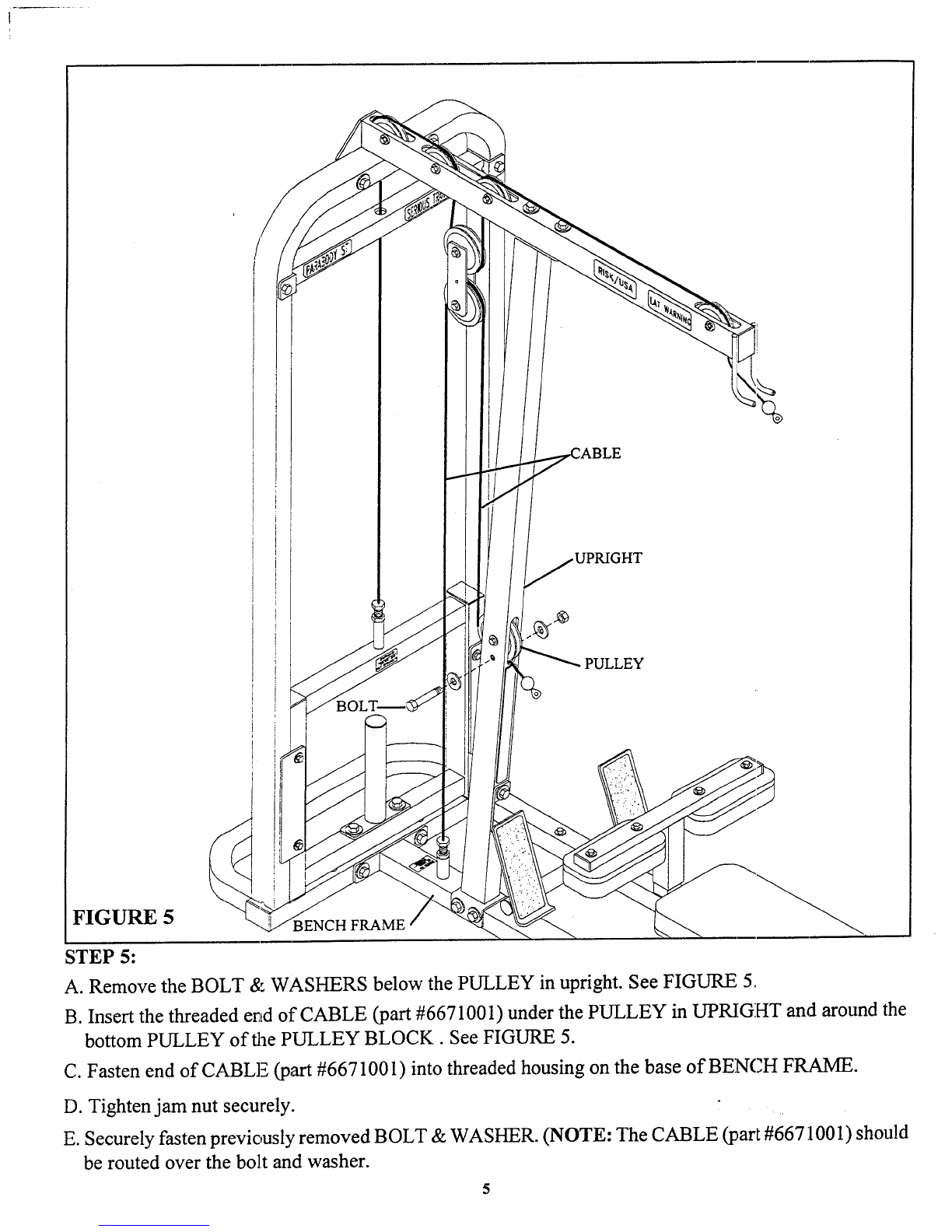

FIGURE 5

STEP5:

A. Removethe BOLT&WASHERSbelow the PULLEYin upright. See FIGURE5,

B. Insert the threaded end of CABLE(part #6671001)under the PULLEYin UPRIGHTand around the

bottom PULLEYof the PULLEYBLOCK.See FIGURE5.

C. Fasten end of CABLE(part #6671001)into threaded housing on the base of BENCHFRAME.

D. Tighten jamnut securely. .

E. Securely fasten previously removedBOLT&WASHER.(NOTE:The CABLE(part #6671001) should

be routed over the bolt andwasher.

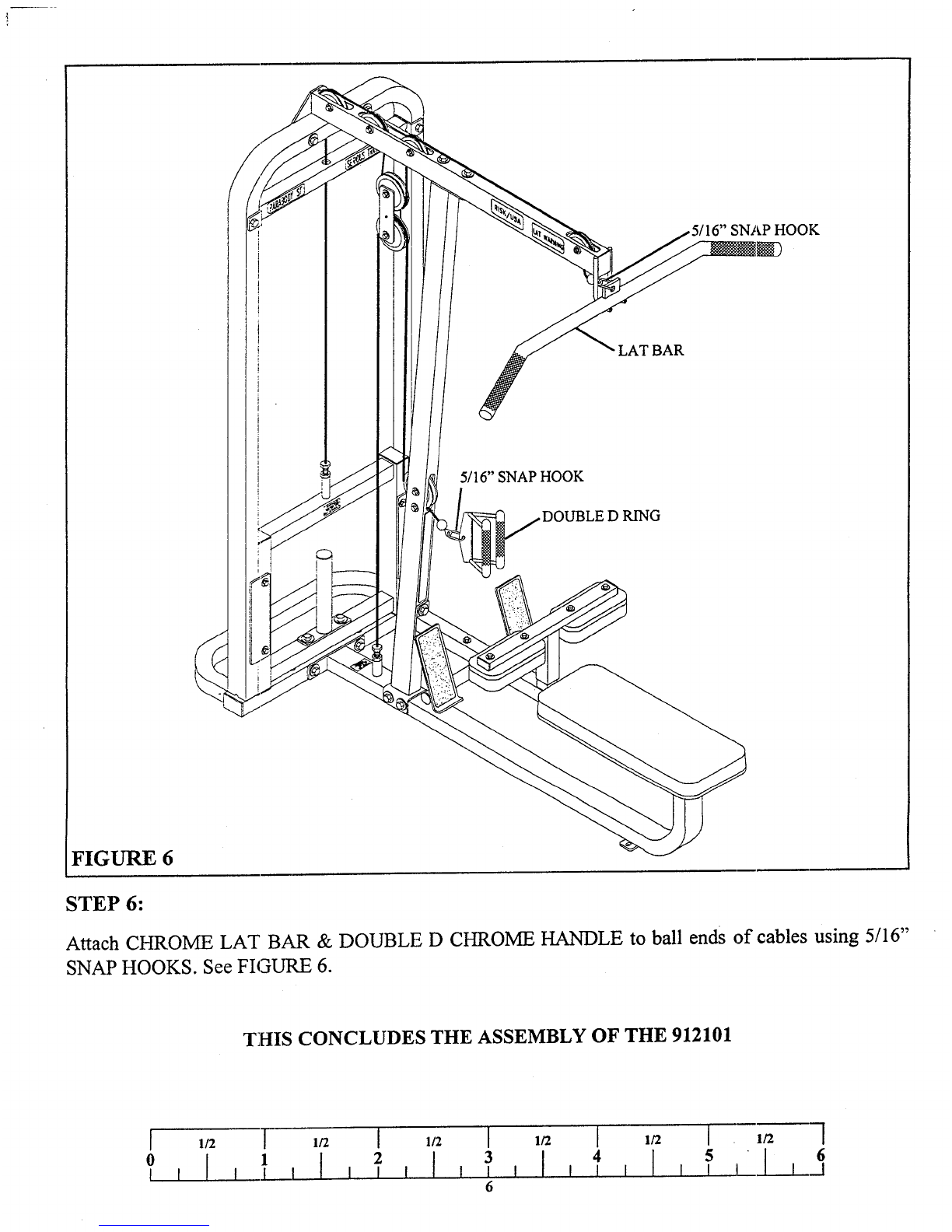

FIGURE 6

"~ LATBAR

," SNAPHOOK

RING

STEP6:

Attach CHROMELATBAR& DOUBLED CHROMEHANDLEto ball ends of cables using 5/16"

SNAPHOOKS.See FIGURE6.

THIS CONCLUDESTHE ASSEMBLYOF THE 912101
