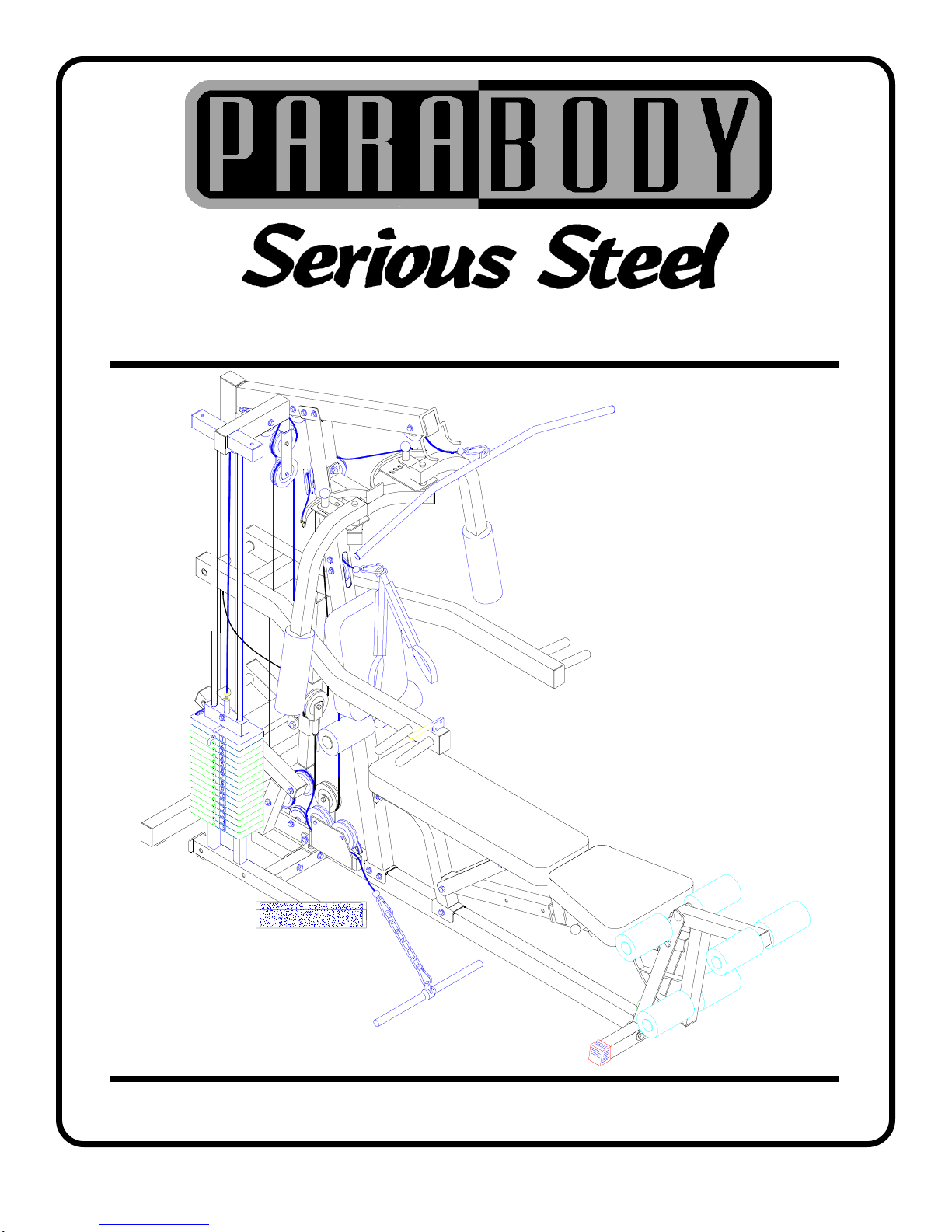

ParaBody 400102 Manuel utilisateur

1Part#6873301 Revision: 8/30/00

ASSEMBLY INSTRUCTIONS

400102 HOME GYM

IMPORTANT NOTES

Please note:

Tools Required forAssembly

* Thank you for purchasing the Parabody 400102 Home Gym. Please read these

instructions thoroughly and keep them for future reference. This product must be assembled

on a flat, level surface to assure its proper function.

* Rubber mallet or hammer

* 3/4” wrench

* 9/16” wrench

* Ratchet with 3/4” and 9/16” sockets

* 5/32” Allen wrench

* Adjustable wrench

* Tape measure

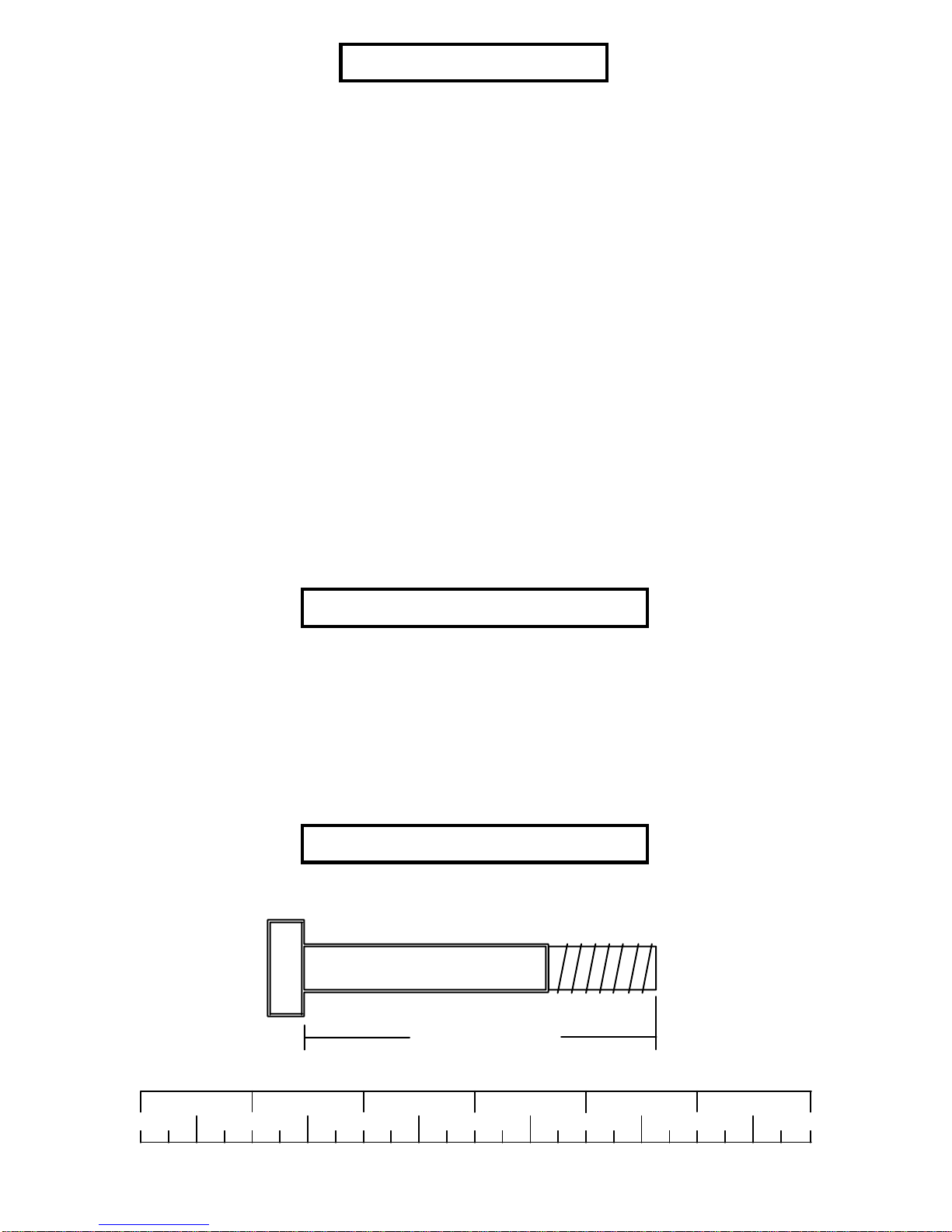

NOTE:BOLTLENGTHISMEASUREDFROMTHE UNDERSIDE OFTHEHEADOFTHEBOLT.

BOLT LENGTH RULER:

* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy

water. Touch-up paint can be purchased from your Parabody customer service representative

at (800) 328-9714.

Bolt Length Ruler

0123456

1/2 1/2 1/2 1/2 1/2 1/2

BOLT LENGTH

WELCOME TO THE WORLD OF Serious steel!

There is a risk assumed by individuals who use this type of equipment. To minimize risk, please

follow these rules:

2. Do not allow minors or children to play on or around this equipment.

1. Inspect equipment daily. Tighten all loose connections and replace worn parts immediately.

Failure to do so may result in serious injury.

3. Exercise with care to avoid injury.

4. If unsure of proper use of equipment, call your local Parabody distributor or call the

Parabody customer service department at (800) 328-9714.

5. Consult your physician before beginning any exercise program.

PARTS LIST

PART #

6874903

6683302

6682803

6832203

6686802

6679503

6678603

6683103

6680402

6682103

6682503

6681303

6680202

6874502

6874603

6680903

6680803

6681902

6532903

6532803

6530203

6594702

6624402

6529702

6275302

6654302

6597402

6681502

6690901

6125102

6194601

6176201

6523401

6375902

3102909

3102924

3102933

3102922

3102904

3102905

3102906

3102910

3102943

3102917

3102937

3102901

3102949

3102802

3102801

3102804

3102501

KEY

QTY

PART #

3102502

3102503

3109602

6686301

6075906

6214401

6533501

6321201

3119201

3226301

3117901

3114407

3118401

3106803

6480301

6020601

6019701

3104901

6416601

6412001

3103801

3105401

6214501

6692601

6405201

6236701

6406401

3116201

6266001

6714601

6375801

6389701

6409101

3116001

6270501

6140701

3108002

3117401

6873801

6687201

6687001

6535601

6189501

6145801

6382301

6866601

6866801

6122702

6427101

DESCRIPTION

1/2”WASHER

3/4”WASHER

PALNUT

1/2” DIAU-PIN

CHAIN

WEIGHTSTACKPIN

CABLERETAININGCLIP

CONTROLLEVER

8-32X3/16”SCREW

3/8”JOINTCONNECTORCAP

E-RING

#10 FLATWASHER

4”VINYL CAP

5/16” SET SCREW

3/8” FLANGE SPACER

1/2” FLANGE BEARING

3/4” THRUST BEARING

3/4” FLANGE BEARING

1-3/4 X 3/4” PARAGLIDE

SPRING PINASSEMBLY

5/16” DIA SNAP LINK

STARLOCKCOLLAR

WEIGHTPLATE

3 X 2” END CAP

2” SQ. END CAP

1-3/4” SQ END CAP

HINGETAB

3-1/2” PULLEY

WEIGHTSTACK SHAFT

HEADPLATE

STRAPAB CRUNCH

LOW ROW BAR

STRAPANKLE

1-1/4” BUMPER RUBBER

4 X 14” NON-SKID

1 X 1” GLIDE

WEIGHT STACK CUSHION

CAP PLUG

227-5/8” LEG EXT. CABLE

72-1/4” AB CABLE

103-1/2” LAT CABLE

77-5/8” PEC DEC CABLE

WEIGHTSTACKLABELS

THUMBSCREW

WEIGHT PLATE BUSHING 10CT

BOLT COVER CAP

BOLTCOVERWASHER

3/8” X 1/2” SPACER

KEYHOLECLEVIS

QTY

DESCRIPTION

FRAMESUPPORT

WOLFFSLEEVE

WEIGHTSTACK BASE

LEGCURL/EXTENSION

PULLEYBRACKET

ADJUSTMENTSLIDE

TOPBOOM

PRESSARM

PRESSARMLEVER

BASE

FRONTUPRIGHT

LEVERSTOP

RECEIVINGTUBE

BACKPAD SUPPORT

LEGSUPPORT

REARUPRIGHT

BEARINGHOUSING

PLATE,1/4X2 X 16-1/2”

PECARMRIGHT

PECARMLEFT

CENTERPULLEYBRACKET

FLOATINGPULLEY

SWIVELPULLEYBRACKET

PECCAM

LATBAR

33-1/2 X9-1/2” BACK SEATPAD

15-1/2 X 10-1/2”PEC SEATPAD

15-3/4X15-1/2”LEG SEATPAD

3/4DIA X11” SHAFT

3/4ODX16”TUBE

4X7”ROLLERPAD

PECDECROLLERPAD

3/4X72-3/8”GUIDEROD

WEIGHTSTACKSPACER

3/8X1” BOLT

3/8X1-3/4”BOLT

3/8X2” BOLT

3/8X2-3/4”BOLT

3/8X3” BOLT

3/8X3-3/4" BOLT

3/8X 4" BOLT

1/2X 3" BOLT

1/2X3-1/2" BOLT

1/2X 4" BOLT

1/2X4-1/2" BOLT

3/8X1-1/4”BOLT

1/2X5-1/2”BOLT

3/8”LOCKNUT

1/2”LOCKNUT

1/2”LOWHT.NYLOCKNUT

3/8”WASHER

KEY

100

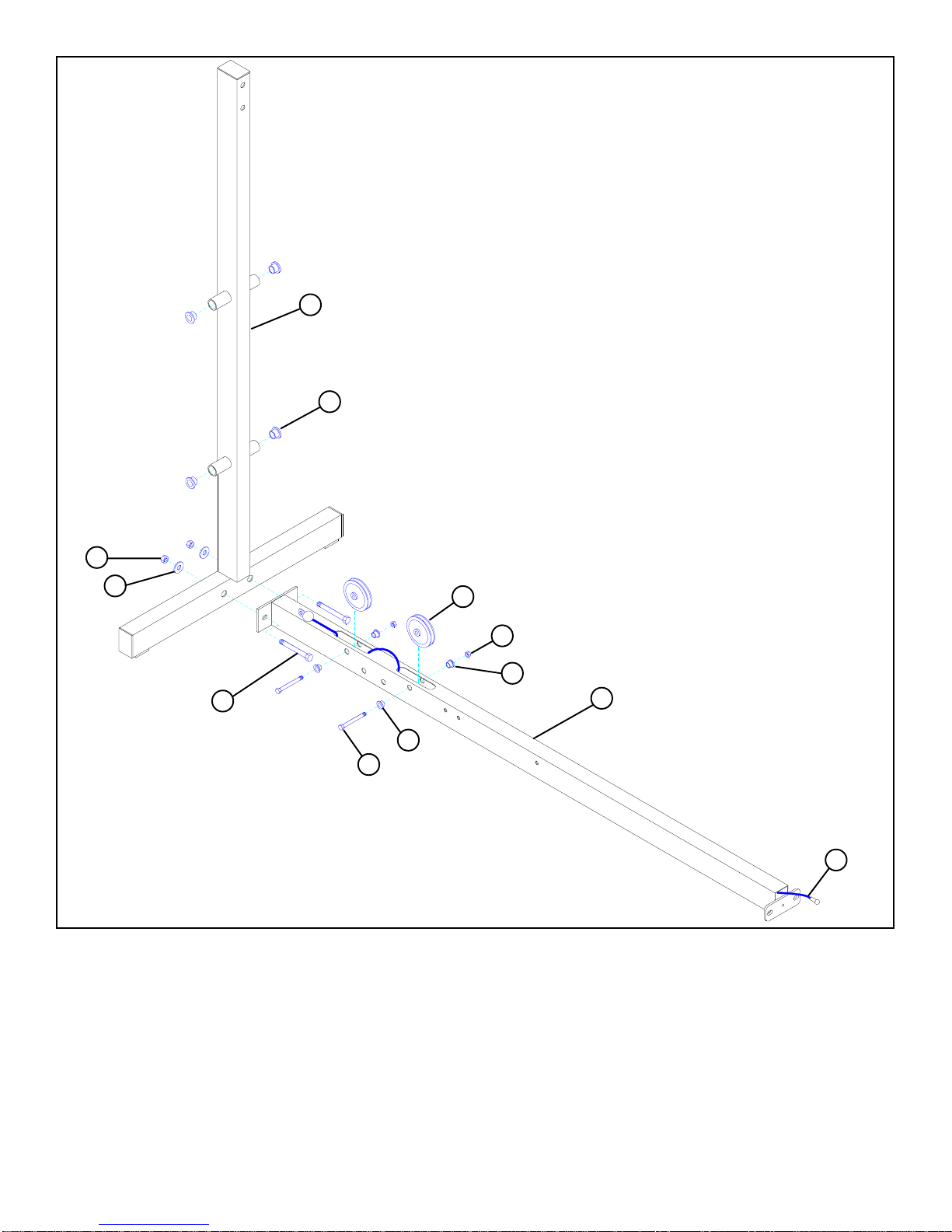

FIGURE 1

STEP1

• Securely assemble REAR UPRIGHT (16 ) to BASE (10) using two 1/2 X 3" BOLTS (42), two 1/2" WASHERS (52), and two

1/2" LOCKNUTS (49).

• SlideLEG EXT.CABLEASSEMBLY(90) through openings in BASE (10) as shown in FIGURE 1.

• Securelyassembe two3-1/2" PULLEYS(79) intoBASE (10)using two 3/8 X 2-3/4" BOLTS (38), four 3/8" FLANGE SPACERS(66),

andtwo3/8"LOCKNUTS (48). (NOTE:MakesureLEGEXT.CABLEASSEMBLY(90)isroutedunderPULLEYSand BOLTS.)

• Insert four 3/4" FLANGE BEARINGS (69) into tubes on REAR UPRIGHT (16) as shown in FIGURE 1

3/8 X 2-3/4” 38

1/2 X 3” 42

• Slide LEG EXT. CABLEASSEMBLY (90) through the opening in the end of the BASE (10) as shown in FIGURE 1.

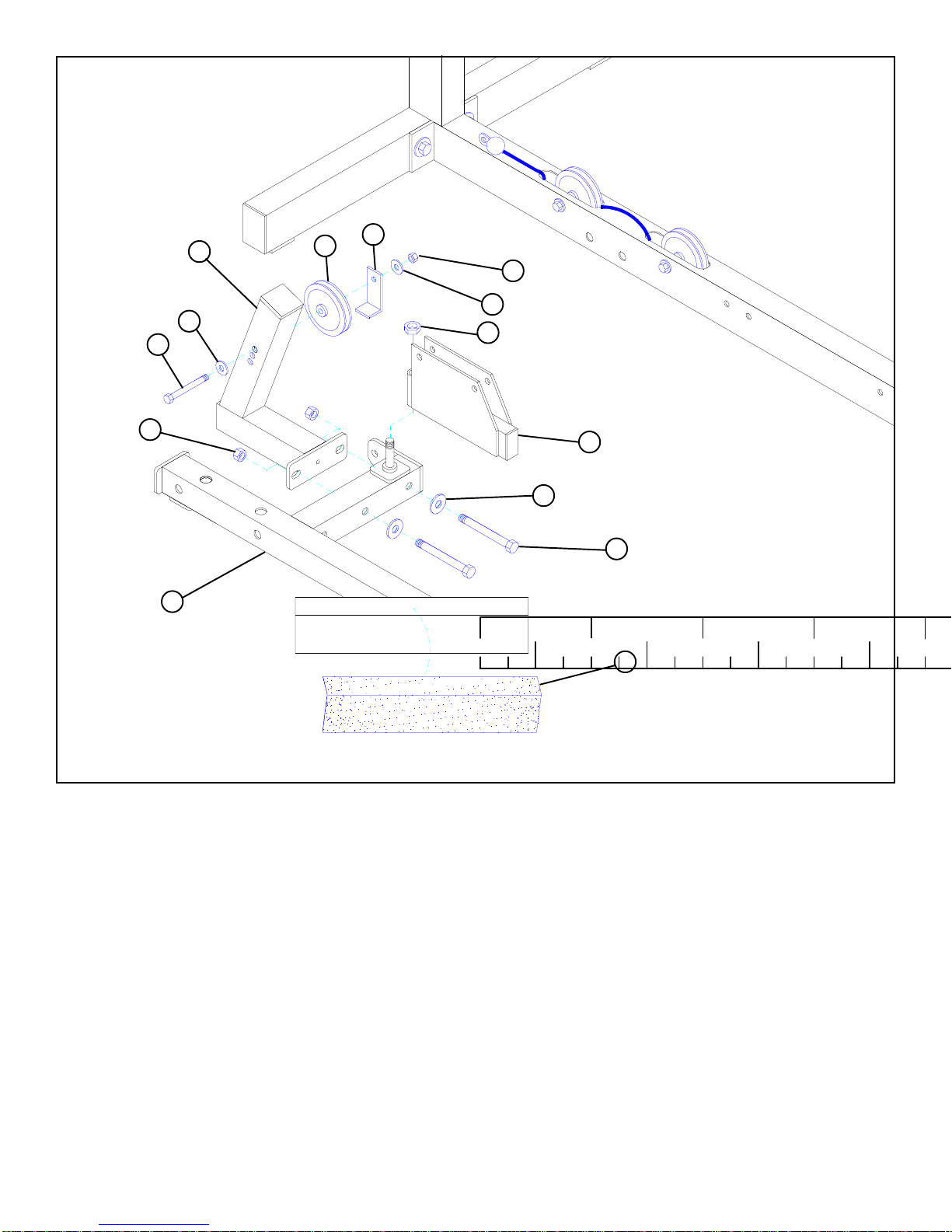

FIGURE 2

• Securely assemble one 3-1/2" PULLEY (79) to the top hole of the LEVER STOP (12) using one 3/8 X 3-3/4" BOLT (40), two 3/8"

WASHERS (51), one 2-3/8" RETAINING CLIP (58), and one 3/8" LOCKNUT (48). The extra holes in the LEVER STOP (12) are

to be used for cable adjustment.

• Securely attach LEVER STOP (12) to WEIGHT STACK BASE (3) using two 1/2 X 3" BOLTS (42), two 1/2" WASHERS (52),

and two 1/2" LOCKNUTS (49).

• Attach SWIVEL PULLEY BRACKET (23) to the WEIGHT STACK BASE (3) using one 1/2" LOW HEIGHT LOCKNUT

(50). (NOTE: Securely tighten, then back nut off 1/4 turn to allow the SWIVEL PULLEY BRACKET (23) to rotate freely.)

• Center 4 X 14" NON SKID STRIP (86) on WEIGHT STACK BASE (3) as shown in FIGURE 2.

01234

1/2 1/2 1/2 1/2

STEP 2

42 1/2 X 3”

3/8 X 3-3/4” 40

79 58

50 1/2” LOW HEIGHT

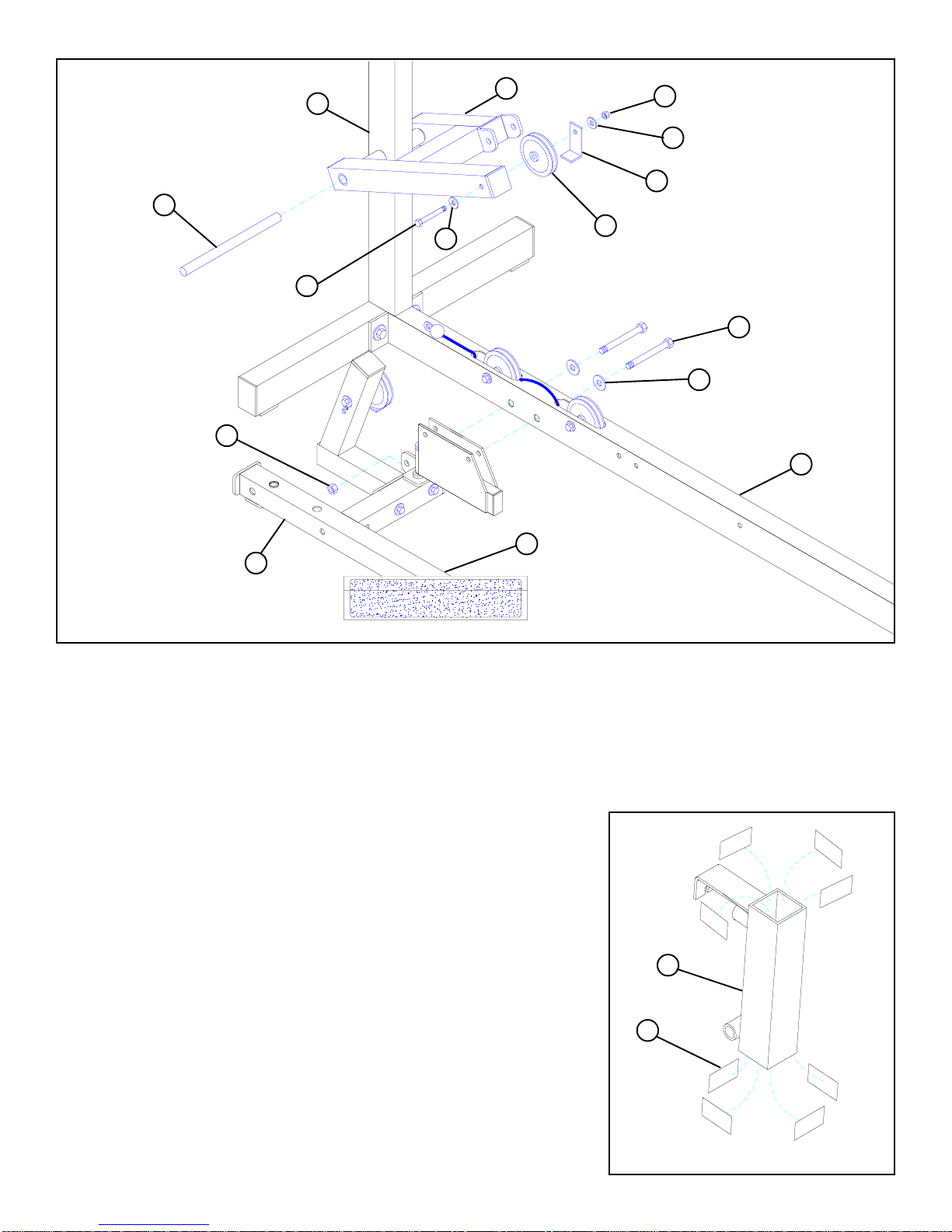

FIGURE 3

6FIGURE 4

STEP 3

• Securely attach WEIGHT STACK BASE (3) to BASE (10) using two 1/2 X 3" BOLTS (42), two 1/2" WASHERS (52), and

one 1/2" LOCKNUT (49).

• Slide one 3/4 DIA X 11" SHAFT (29) through PRESS ARM LEVER (9) & tube on REAR UPRIGHT (16). See FIGURE 3.

• Securely assembe one 3-1/2" PULLEY (79) to PRESS ARM LEVER (9) using one 3/8 X 3-3/4" BOLT (40), two 3/8"

WASHERS (51), one 2-3/8" RETAINING CLIP (58), and one 3/8" LOCKNUT (48).

STEP 4

• Apply eight 1-3/4 x 3/4" PARAGLIDES (70) to the INSIDE of RECEIVING

TUBE (13) as shown in FIGURE 4. (NOTE: Throughly clean the inside

surface before attaching PARAGLIDES.)

42 1/2 X 3”

3/8 X 3-3/4” 40

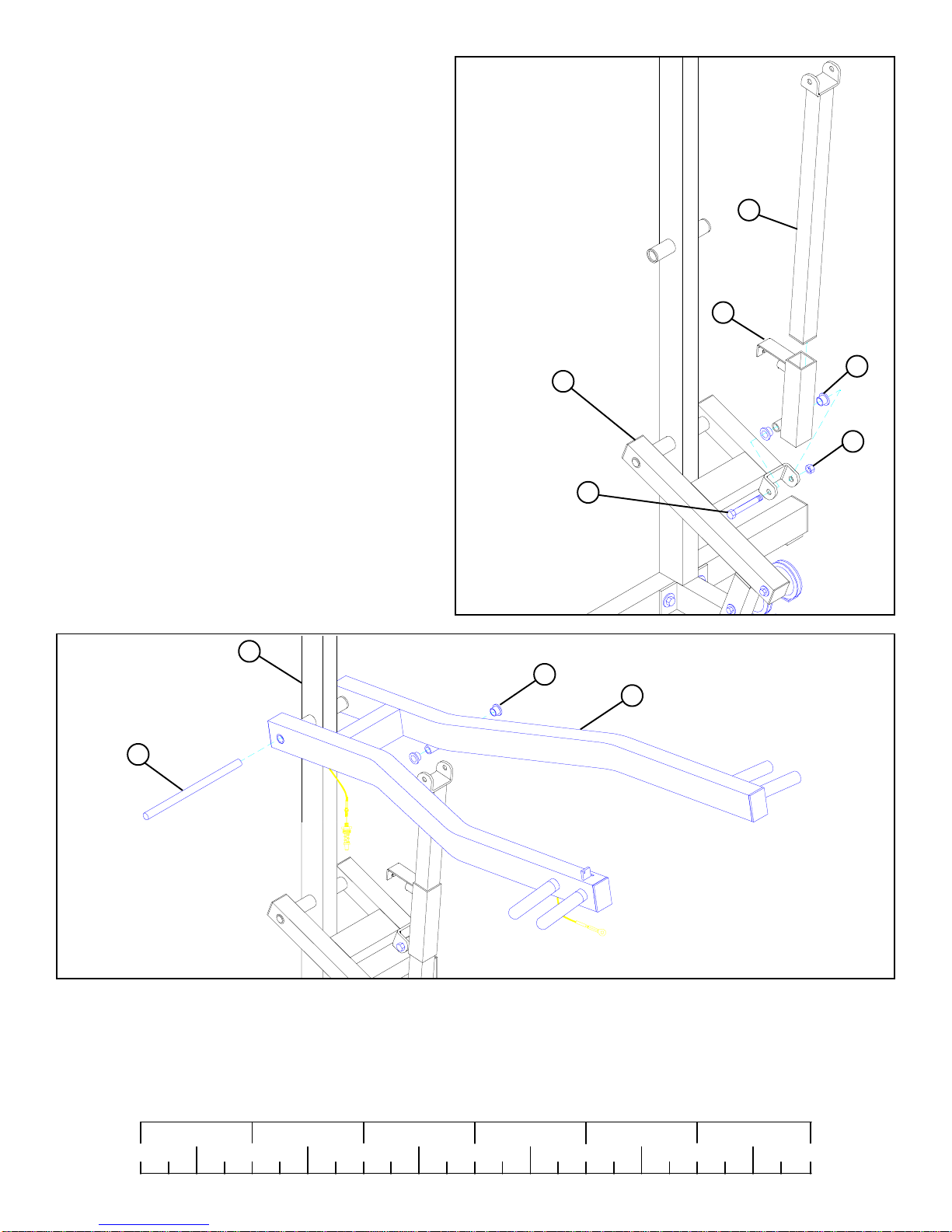

FIGURE 5

FIGURE 6

0123456

1/2 1/2 1/2 1/2 1/2 1/2

STEP 5

• Insert two 1/2" FLANGE BEARINGS (67) into

RECEIVING TUBE (13).

• Attach RECEIVING TUBE (13) to PRESS ARM LEVER

(9) using one 1/2 X 3-1/2" BOLT (43), and 1/2" LOW

HEIGHT LOCKNUT (50). (NOTE: Securely tighten,

then back nut off 1/4 turn to allow the RECEIVING

TUBE (13) to rotate freely.)

• Insert the ADJUSTMENT TUBE (6) into the

RECEIVING TUBE (13) as shown in FIGURE 5.

• Slide one 3/4 DIA X 11" SHAFT (29) through PRESS ARM (8) & tube on REAR UPRIGHT (16). See FIGURE 6.

• Insert two 1/2" FLANGE BEARINGS (67) into PRESS ARM (8).

STEP 6

1/2 X 3-1/2” 43

1/2”

LOW

HEIGHT

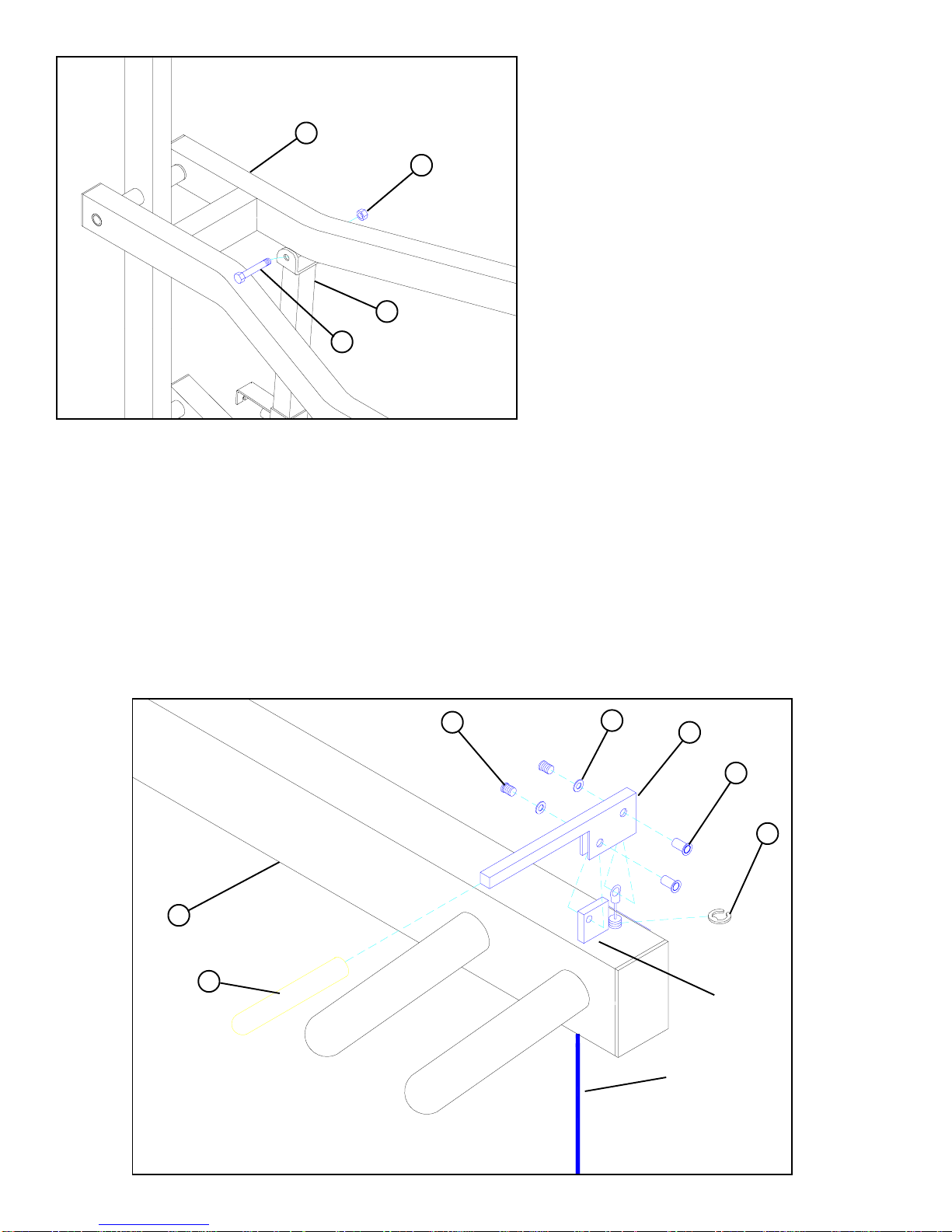

FIGURE 8

FIGURE 7

• Attach ADJUSTMENT SLIDE (6) to PRESS ARM

(8) using one 1/2 X 3-1/2" BOLT (43), and 1/2" LOW

HEIGHT LOCKNUT (50). (NOTE: Securely

tighten, then back nut off 1/4 turn to allow the

PRESS ARM (8) to rotate freely.)

STEP 7

STEP 8

• Insert the PUSH/PULL CABLE through the bottom of the PRESS ARM (8) up to the CONTROL LEVER (59) and hold in place

with one E-RING (62) as shown in FIGURE 8.

• Securely assemble the PUSH/PULL CABLE to the CONTROL LEVER (59) using one 3/8 IN. JOINT CONNECTOR CAP (61),

one #10 FLAT WASHER (63), and one 8-32 X 3/16 IN. SCREW (60) as shown in FIGURE 8.

• Slide one 4” VINYLSLEEVE (64) over the CONTROL LEVER (59). Then SECURELY assemble the CONTROL LEVER (59) to

the TAB on the PRESS ARM (8) using one 3/8” JOINT CONNECTOR CAP (61), one #10 FLAT WASHER (63), and one 8-32 X

3/16 IN. SCREW (60) as shown in FIGURE 8.

43 1/2X 3-1/2”

64 TAB

PUSH/PULL

CABLE

63 59

1/2” LOW

HEIGHT

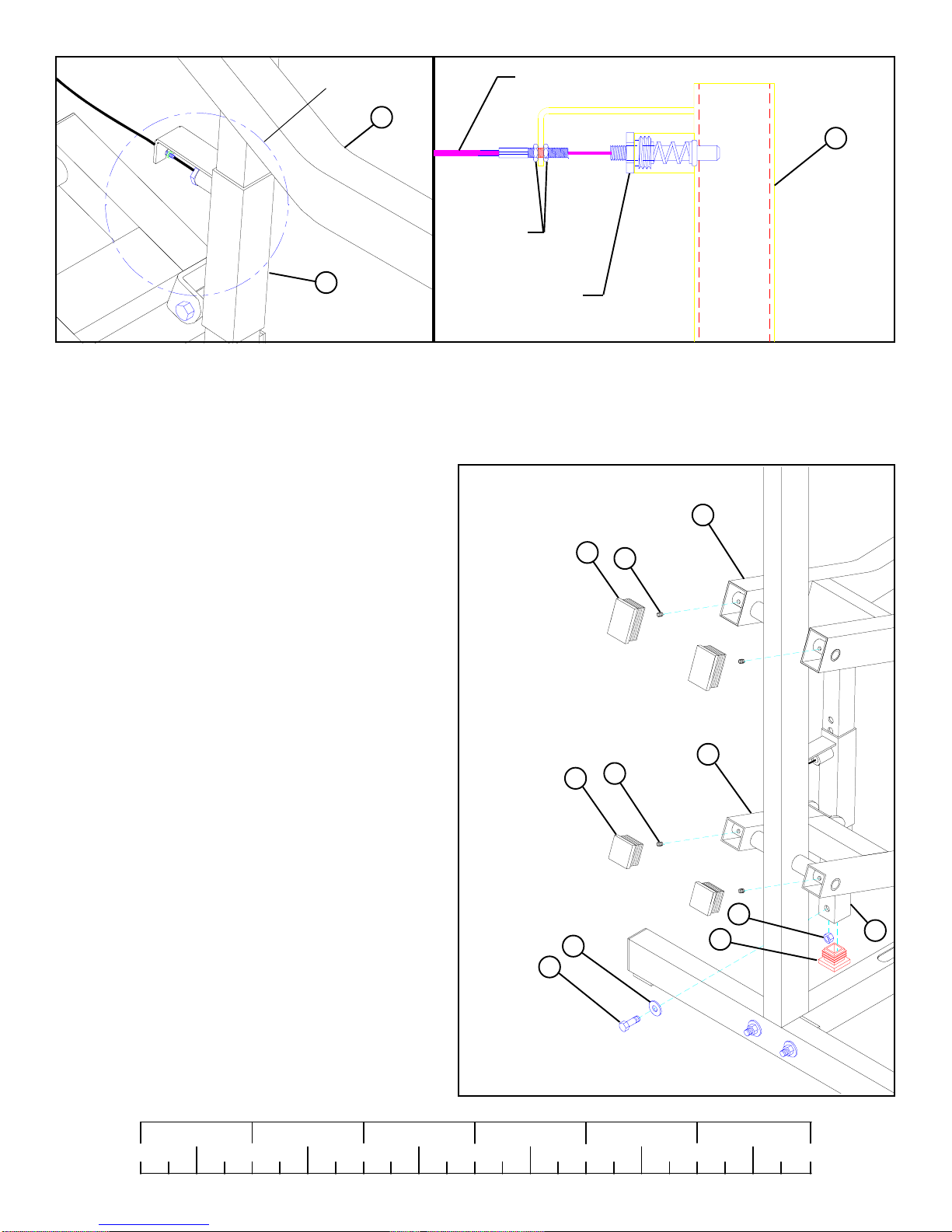

FIGURE 9

0123456

1/2 1/2 1/2 1/2 1/2 1/2

FIGURE 10

DETAIL 9

1/4” NUTS

PUSH/PULL

CABLE

SPRING PIN

ASSEMBLY

DO NOT OVERTIGHTEN!

Assemble the PUSH/PULL CABLE from the PRESS ARM (8) to the SPRING PIN HOUSING and to the L-BRACKET on the

RECEIVING TUBE (13) as shown on FIGURE 9 and DETAIL 9 using the following steps:

STEP 9

·Thread the first 1/4-28 IN. NUT to the bottom of the threaded end of the CABLE. Allow the other 1/4-28 IN. NUT to hang loose

on the exposed CABLE until the SPRING PIN ASSEMBLY is attached.

·Securely assemble the SPRING PIN ASSEMBLY to the

SPRING PIN BARREL. (!!! IMPORTANT !!! TIGHTEN

THE NUT OF THE SPRING PIN ASSEMBLY SE-

CURELY)

·Swing the PRESS ARM (8) up until the SPRING PIN of the

PUSH/PULL CABLE engages in one of the adjustment

holes.

· Thread the second 1/4-28 IN. NUT onto the threaded end of

the CABLE, and cinch the two 1/4-28 IN. NUTS around the

flat.

·Use the extra thread on the end of the CABLE to adjust out

slack. ( !!! DO NOT ADJUST OUT TO FAR !!! AL-

WAYSALLOW SPRINGPIN ASSEMBLYTO FULLY

ENGAGE)

STEP 10

• Securely tighten two 5/32” SET SCREWS (65) and insert

two 3 X 2” END CAPS (75) into the open ends of PRESS

ARM (8) as shown in FIGURE 10.

• Securely tighten two 5/32" SET SCREWS (65) and insert

two 2” SQ. END CAPS (76) into the open ends of PRESS

ARM LEVER (9) as shown in FIGURE 10.

• Securely tighten one 3/8 X 1” BOLT (35), one 3/8” WASHER

(51), and one 3/8” LOCKNUT (48) to the bottom of AD-

JUSTMENT SLIDE (6) as shown in FIGURE 10.

• Insert one 1-3/4” SQ. END CAP (77) into the end of AD-

JUSTMENT SLIDE (6) as shown in FIGURE 10.

3/8 X 1” 35

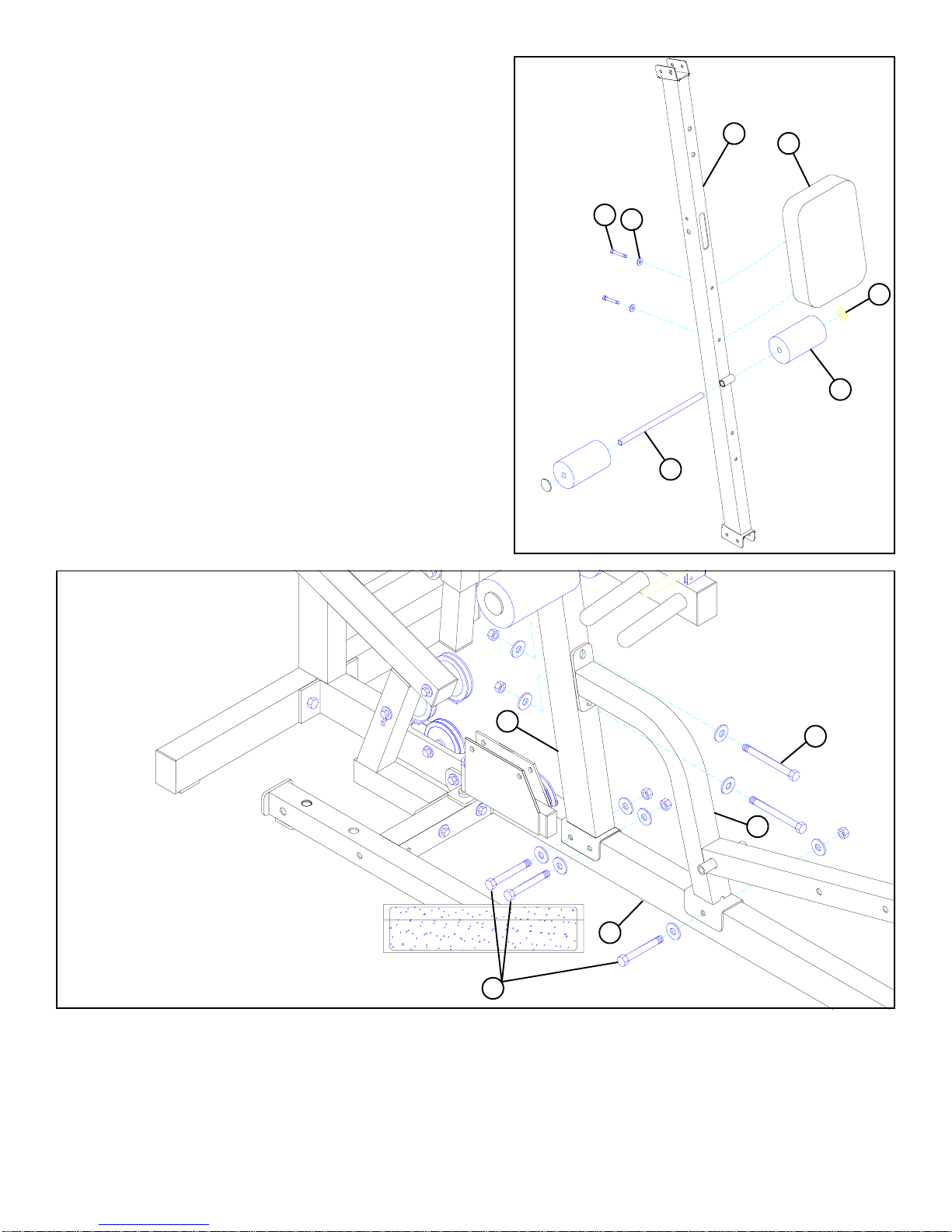

FIGURE 11

STEP 11

• Securely assemble the PEC SEAT PAD (27) to the FRONT UPRIGHT

(11) as shown, using two 3/8 X 4” BOLTS (41), and two 3/8” WASH-

ERS (51) as shown in FIGURE 11.

• Assembletwo ROLLERPADS(31) tothe FRONTUPRIGHT(11)using

one 16” TUBE (30), and two STARLOCK COLLARS (73) as shown in

FIGURE11.

STEP 12

• Loosely attach FRONT UPRIGHT (11) to the BASE (10) using two 3/8 X 3” BOLTS (39), four 3/8” WASHERS (51), and two

3/8” LOCKNUTS (48) as shown in FIGURE 12. (NOTE: Make sure cable is routed under the bolts.)

• Loosely attach FRAME SUPPORT (1) to the FRONT UPRIGHT (11) using two 3/8 X 4” BOLTS (41), four 3/8” WASHERS (51),

and two 3/8” LOCKNUTS (48) as shown in FIGURE 12.

• Loosely attach FRAME SUPPORT (1) to the BASE (10) using one 3/8 X 3” BOLT (39), two 3/8” WASHERS (51), and one 3/8”

LOCKNUT (48) as shown in FIGURE 12. (NOTE: Make sure cable is routed under the bolts.)

FIGURE 12

• All WASHERS & LOCKNUTS

are 3/8” WASHERS (51) & 3/8”

LOCKNUTS (48).

3/8 X 3” 39

41 3/8 X 4”

3/8 X 4” 41

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ParaBody Salle de sport à domicile

ParaBody

ParaBody PBF049A Manuel utilisateur

ParaBody

ParaBody 415101 Manuel utilisateur

ParaBody

ParaBody PBF203B Guide de démarrage rapide

ParaBody

ParaBody 835 Manuel utilisateur

ParaBody

ParaBody PBF005B Manuel utilisateur

ParaBody

ParaBody PBF502 Manuel utilisateur

ParaBody

ParaBody ex 350 Manuel utilisateur

ParaBody

ParaBody 425104 Manuel utilisateur

ParaBody

ParaBody Serious Steel 812102 Manuel utilisateur

ParaBody

ParaBody 843 Manuel utilisateur

ParaBody

ParaBody 874 Manuel utilisateur

ParaBody

ParaBody 94 Manuel utilisateur

ParaBody

ParaBody PBF060 Manuel utilisateur

ParaBody

ParaBody Serious Steel 425104 Manuel utilisateur

ParaBody

ParaBody 913101 Manuel utilisateur

ParaBody

ParaBody 40 Manuel utilisateur

ParaBody

ParaBody 435104 Manuel utilisateur

ParaBody

ParaBody PBF506 Manuel utilisateur

ParaBody

ParaBody 917101 Manuel utilisateur

ParaBody

ParaBody 435101 Manuel utilisateur

ParaBody

ParaBody GS2 Manuel utilisateur

ParaBody

ParaBody 951 Manuel utilisateur

ParaBody

ParaBody 400101 Manuel utilisateur

ParaBody

ParaBody 426103 Manuel utilisateur

Manuels Salle de sport à domicile populaires d'autres marques

Horizon Fitness

Horizon Fitness OXFORD 6 Manuel utilisateur

Energetics

Energetics Multi Trainer 5.1 Manuel utilisateur

Matrix

Matrix MG-PL Series Manuel utilisateur

Reebok

Reebok Tbr2i Manuel d'utilisation et d'entretien

Weider

Weider 8300 Hard Drive Manuel utilisateur

Pure Fitness

Pure Fitness 8526HE Manuel utilisateur

Weider

Weider 8700 I Guide de démarrage rapide

Bowflex

Bowflex Sport 001-6961 Manuel utilisateur

NordicTrack

NordicTrack E8200 Competition Bench Guide de démarrage rapide

Weider

Weider WEMC10161 Manuel utilisateur

Body Solid

Body Solid GHYP-345 Manuel utilisateur

Evo

Evo TAHOE 5105 Manuel utilisateur

cardiobull

cardiobull RA17 Manuel utilisateur

JLL

JLL Ventus Pro Air Power Manuel utilisateur

Trojan

Trojan Colorado 370 Manuel utilisateur

Octane Fitness

Octane Fitness xRide xR650 Manuel utilisateur

Precor

Precor Discovery Series Manuel utilisateur

Insportline

Insportline RW600 Manuel utilisateur
