Assembly and Operating Instructions for Outback®

Dual Fuel 2 Gas & Charcoal BBQ and Dual Fuel 4 Gas & Charcoal BBQ

Drawings are not to scale.

Specifications subject to change

without prior notice.

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• Do not move the appliance during use.

• Turn off the gas supply at the gas bottle after use.

• Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

• Retain these instructions for future reference.

• Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

• For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

CS3200 CS4400

CODE PART QTY Dual Fuel 4 Gas &

Charcoal BBQ

HOOD

A1 Charcoal Hood (Pre-Assembled to Body) 1 

A2 Gas Hood (Pre-Assembled to Body)1 

A3 Stationary warming rack 1

A4 Swing warming rack 1

BODY

B1 Barbecue Body 1 

B2 Burner 4

B3 Gas Control Panel 1 

B4 Knob 4

B5 Hose and Regulator Assembly 1 

B6 Ignition Button 1 

B7 Charcoal Control Panel 1 

B8 Crank Handle 1 

B9 Air Vent Plate 1 

B11 Charcoal Cooking Grill 2 

B12 Lava Rock in Basket 1 

B13 Gas Cooking Grill 1 

B14 Cooking Griddle 1 

TROLLEY

C1 Side Shelf 2 

C2 Left Side Shelf Panel 1 

C3 Right Side Shelf Panel 1 

C4 Rear Support 1 

C5 Front Support 1 

C6 Drip Tray Left Bracket 1 

C7 Drip Tray Middle Bracket 1 

C8 Drip Tray Right Bracket 1 

C9 Drip Tray Handle 2 

C10 Small Drip Tray 1

C11 Big Drip Tray 1

C12 Drip Pan

C13 Left Front Leg 1 

C14 Left Rear Leg 1 

C15 Right Front Leg 1 

C16 Right Rear Leg 1 

C17 Charcoal Bin Slider 2 

C18 Charcoal Bin Lid 1 

C19 Charcoal Bin Back Panel 1 

C20 Charcoal Bin Bottom Panel 1 

C21 Charcoal Bin Left Side Panel 1 

C22 Charcoal Bin Right Side Panel 1 

C23 Charcoal Bin Handle 1 

C24 Charcoal Bin Front Panel 1 

C33 Wheel Hubcap 2 

C30 Lockable Caster 2 

C29 Underframe 1 

C28 Triangle Bracket B 2 

C27 Triangle Bracket A 2 

C26 Front Panel 1 

C25 Front Trim Panel 1 

C32 Wheel 2 

C31 Axle 1 

B10 Grill Lifting Handle 2 

Dual Fuel 2 Gas &

Charcoal BBQ





2



2



















C34 Locknut 2  

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Pre-Assembled Component

Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

B12

B14

B13

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B8B9

B11

A1 A2

A3 A4

C2 C3

C6 C7 C8

C10 C11

C14

C13

C16

C15

C17

C18

C19

C20

C21 C22

C23

C24 C25 C26

C27

C28

C29

C30

C31

C32 C33

C34

B10

CODE PART QTY Outback®

Combi Charcoal/Gas 4 Burner BBQ

HARDWARE

D1 ST4.0x10 Screw 56 

D2 M4x8 Bolt 6 

D3 M4 Nut 6 

D4 M6x15 Step Bolt 4 

D5 M6x15 Bolt 18 

D6 M6x65 Bolt 16 

D7 Ø6 Washer 8 

D8 M6 Nut 8 

D9 Spacer 4 

D10 R-Clip 1 

Hardware Reference Diagram & List

Specifications subject to change without prior notice.

D10 D3

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal component or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

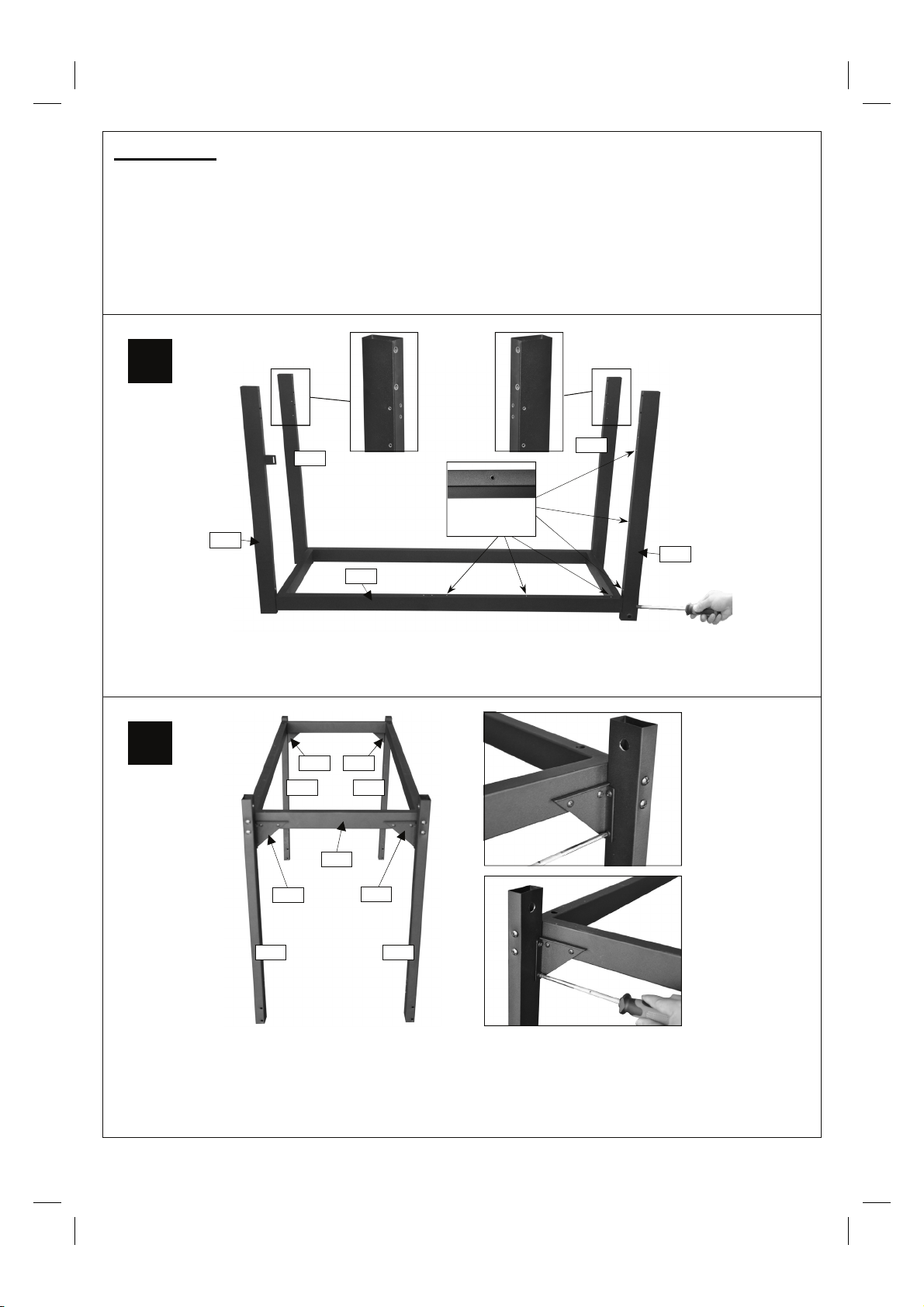

Attach the left leg (C13, C14) and right leg (C15, C16) to the Underframe (C29) using M6x65 Bolts

(D6x8pcs) as shown.

Carefully turn the trolley assembly upside-down.

Attach one Triangle Bracket A (C27) to right front leg and underframe using ST4.0x10 Screws

(D1x4pcs). Repeat above process for fixing the other triangle bracket A to left rear leg and underframe.

Attach one Triangle Bracket B (C28) to left rear leg and underframe using ST4.0x10 Screws (D1x4pcs).

Repeat above process for fixing the other triangle bracket B to right front leg and underframe.

C27

C28

C16 C15

C27 C28

C14 C13

C29

C13

C14 C16

C15

C29

NOTE: Holes to

fix front panel

Unscrew the Locknuts (C34) from both ends of the Axle (C31).

Slide the axle through the corresponding holes in the right legs. Slide the Wheels (C32) over each

end of the axle. Secure the wheels into place with the locknuts. Place the Wheel Hubcaps (C33)

onto the outside of the wheels. And attach the Lockable Casters (C30x2pcs) into the left legs.

Carefully turn the trolley assembly right side up.

Attach the Drip Tray Left Bracket (C6) to the left legs using ST4.0x10 Screws (D1x4pcs). Repeat

above process for fixing the Drip Tray Right Bracket (C8) to right legs.

C31 C32 C33

C30

C34

Attach the Front Support (C5) between the front legs using ST4.0x10 Screws (D1x4pcs) as shown.

Attach the Rear Support (C4) between the rear legs using ST4.0x10 Screws (D1x4pcs) as shown.

Attach the Front Panel (C26) to trolley assembly using ST4.0x10 Screws (D1x12pcs) as shown.

Attach the Front Trim Panel (C25) to the front support and underframe using ST4.0x10 Screws

(D1x4pcs) as shown.

C25

C26C25 C29

C5 C15

Attach Charcoal Bin Left Side Panel (C21) and Charcoal Bin Right Side Panel (C22) onto the Charcoal

Bin Back Panel (C19), as shown. And then insert Charcoal Bin Bottom Panel (C20) into place.

Make sure that each buttonhole coincide, the charcoal bin is stable.

Attach the charcoal bin assembly to the Charcoal Bin Front Panel (C24) using M4x8 Bolts

(D2x6pcs) and M4 Nuts (D3x6pcs) as shown.

C21

C19

C20

C22

C24

C22

C19

C21

C20

Step 1

Step 2



Outside

Inside

Attach the charcoal bin assembly to the Left Front Leg (C13) and Front Trim Panel (C25) using

M6x15 Step Bolts (D4x2pcs) as shown.

Remove the retaining bolts from Charcoal Bin Handle (C23), and then attach it onto Charcoal Bin

Front Panel (C24) using the retaining bolts.

C23

C24

C25

C13
