Assembly and Operating Instructions for Outback®

NEW Saturn 4 Burner and Saturn 6 Burner Gas BBQ

Drawings are not to scale.

Specifications subject to change

without prior notice.

WARNING

 For outdoor use only. Not for commercial use.

 Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

 Warning: accessible parts may be very hot. Keep young children and pets away.

 Do not move the appliance during use.

 Turn off the gas supply at the gas bottle after use.

 Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

 Retain these instructions for future reference.

 Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

 For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

MF4493C MF5693C

CODE PART QTY NEW Saturn 4

Burner Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1 

A2 Hood Handle 1 

A3 Heat Indicator 1 

A4 Warming Rack 1 

BODY

B1 Barbecue Body 1 

B2 Burner  4

B3 Control Panel 1 

B4 Knob  4

B5 Side burner valve, hose and Regulator

Assembly

1 

B6 Flame Tamer  4

B7 Round Grill 1 

B8 Cooking Grill 2 

B9 Drip Tray 1 

B11 Charcoal Basket 1 

TROLLEY

C1 Side Burner Shelf 1 

C2 Side Burner Shelf Panel 1 

C3 Side Shelf 1 

C4 Side Shelf Panel 1 

C5 Tool Hook 1 

C6 Side Burner Grid 1 

C7 Side Burner Knob 1 

C8 Ignition Button 1 

C9 Side Burner 1 

C10 Left Cabinet Panel 1 

C11 Right Cabinet Panel 1 

C12 Upper Support 1 

C13 Door Handle 2 

C14 Left Door 1 

C15 Right Door 1 

C16 Rear Panel 1 

C17 Bottom Panel 1 

C18 Storage Unit 1 

C19 Lockable Caster 2 

C20 Wheel 2 

C21 Wheel Hubcap 2 

C22 Axle 1 

C23 Locknut 2 

C25 Chopping Board 1 

HARDWARE

D1 M6x35 Bolt 8 

D2 ST4.0x10 Screw 15 

D3 M6x15 Bolt 25 

D4 M6 Nut 12 

D5 M4x10 Bolt 3 

NEW Saturn 6

Burner Gas BBQ









6



6



6





















B10 Beer Bottle Opener 1  

C24 Basket 1  

 Pre-Assembled Component

 Quantity varies according to model purchased

Appearance, size, and construction may differ according to model purchased

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Parts Diagram: MF4493C

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

C16

C13

C14 C15

C21 C20

C12

C11

C10

C17

C18

C19

C22

C23

B10

C24

B11

C25

Parts Diagram: MF5693C

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

C16

C13

C14 C15

C21 C20

C12

C11

C10

C17

C18

C19

C22

C23

B10

C24

B11

C25

Hardware Reference Diagram

Specifications subject to change without prior notice.

Assembly

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

 Remove any internal component or packaging from the barbecue body.

 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

 Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the Left Cabinet Panel (C10) and Right Cabinet Panel (C11) to the Bottom Panel (C17)

using M6x35 Bolts (D1x8pcs) and M6 Nuts (D4x8pcs), ST4.0x10 Screw (D2x6pcs) as shown.

C17

Attach the Rear Panel (C16) to the cabinet assembly using ST4.0x10 Screws (D2x7pcs) as

shown.

C16

C10 C11 D1 D4

Attach the Upper Support (C12) to the left/right cabinet panel using M6x15 Bolts (D3x4pcs).

C18

Attach the Storage Unit (C18) onto the Bottom Panel (C17) using M6x15 Bolts (D3x4pcs) as

shown.

Bottom View

C12

Carefully turn the cabinet upside-down.

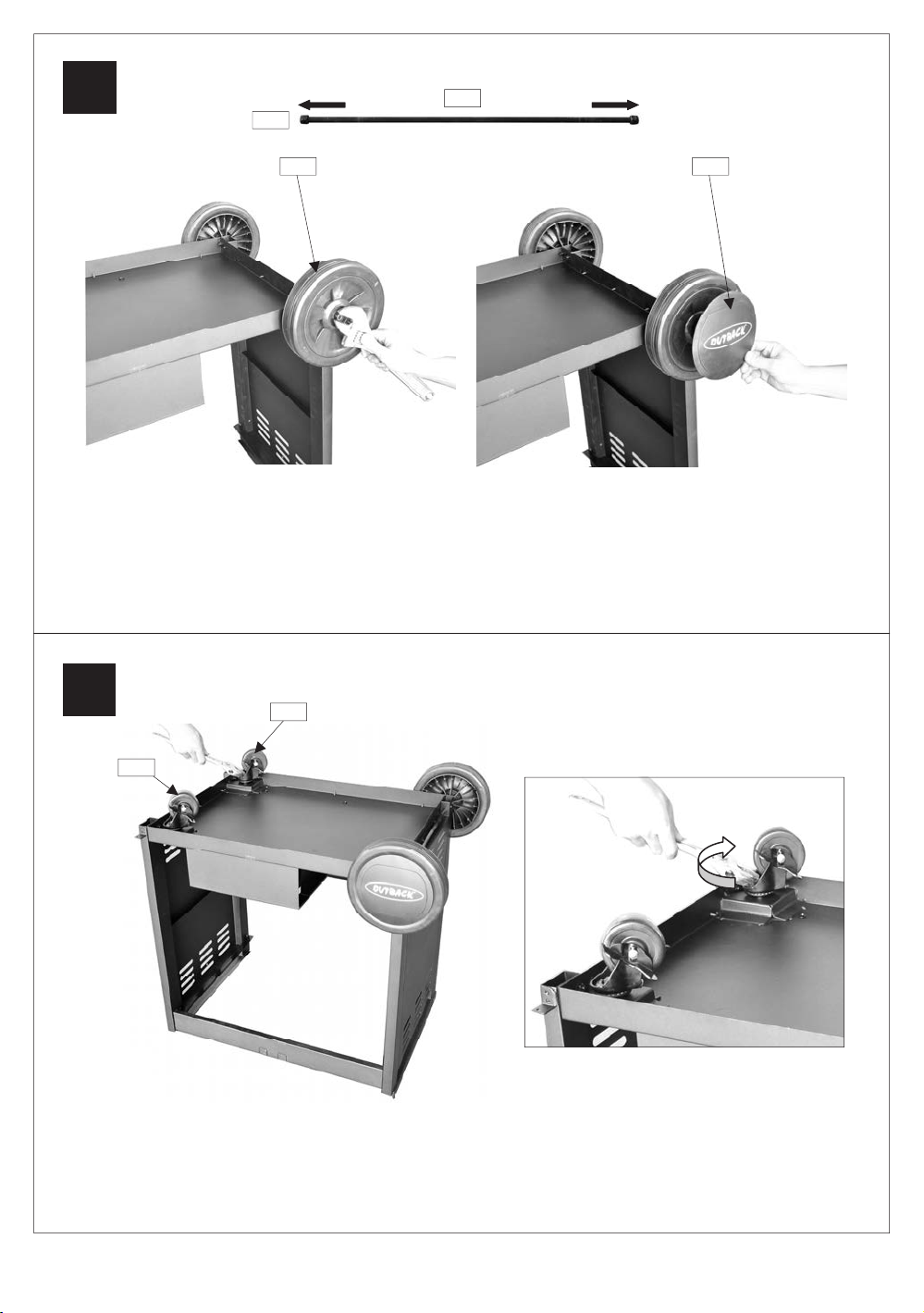

Unscrew the Locknuts (C23) from both ends of the Axle (C22).

Slide the axle through the corresponding holes in the left cabinet panel. Slide the Wheels (C20)

over each end of the axle. Secure the wheels into place with the locknuts. Place the Wheel

Hubcaps (C21) onto the outside of the wheels.

Attach the Lockable Casters (C19x2pcs) into the rear side holes of the right cabinet panel, as

shown.

C20

C19

C22

C23

C21

C19

Carefully place the Barbecue Body (B1) onto the cabinet assembly and fix using M6x15 Bolts

(D3x4pcs) as shown.

Remove the retaining bolts from one Door Handle (C13), and then attach the door handle onto the

Left Door (C14) using the retaining bolts as shown.

C14

C13

Remove the retaining bolts from one Door Handle (C13), and then attach the door handle onto the

Right Door (C15) using the retaining bolts as shown.

Fit the doors to the cabinet by depressing the spring pins and placing into the cabinet.

C15

C13
