Outback Comet Manuel utilisateur

Photographs are not to scale.

Specifications subject to change

without prior notice.

Assembly and Operating Instructions for

Outback® Comet Kettle Charcoal BBQ

K101

WARNING

 For outdoor use only - do not use indoors! Not for commercial use.

 Read instructions before using the appliance. Failure to follow

instructions could result in death, serious bodily injury, and/or

property loss.

 WARNING! Accessible parts may be very hot. Keep children and

pets away!

 WARNING! Do not use spirit or petrol for lighting or re-lighting! Use

only firelighters complying to EN1860-3!

 WARNING! This barbecue becomes very hot. Do not move it during

operation!

 Install this barbecue on a safe and even surface.

 Any modification of the appliance, misuse, or failure to follow the

instructions may be dangerous and will invalidate your warranty.

This does not affect your statutory rights.

 Retain these instructions for future reference.

 Do not use the barbecue in a confined and/or habitable space e.g.

houses, tents, caravans, motor homes, boats. Danger of carbon

monoxide poisoning fatality.

 Do not cook before the fuel has a coating of ash.

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

 Pre-Assembled Component



CODE PART QTY Outback® Comet

Kettle Charcoal BBQ

HOOD

A1 Hood 1 

A2 Outback® Logo Badge 1 

A7 Heat Indicator Bezel 1 

BODY

B1 Barbecue Body 1 

B2 Charcoal Grill 1 

B3 Cooking Grill 1 

B4 Small Cooking Grill 1 

B5 Body Handle 1 

B7 Grill Lifting Handle 2 

TROLLEY

C1 Front Leg 1 

C2 Left Rear Leg 1 

C3 Right Rear Leg 1 

C4 Leg Support Rack 1 

C5 Wheel 2 

C6 Wheel Hubcap 2 



HARDWARE

D1 M6x12 Bolt 8 

D2 M6 Nut 10 

D3 M8 Nut 1 

D4 M6 Washer 10 

D5 M5x12 Bolt 4 

D7 Axle Nut 2 

D6 M5 Nut 4 

B6 Grill Bracket 3 

B9 Ash Tray 1 

A6 Heat Indicator 1 

A5 Air Vent 1 

A3 Hood Hook 1 

A4 Hood Handle 1 

B8 Ash Tray Bracket 1 

D8 Hood Handle Half-moon Bolt, M6x12 2 

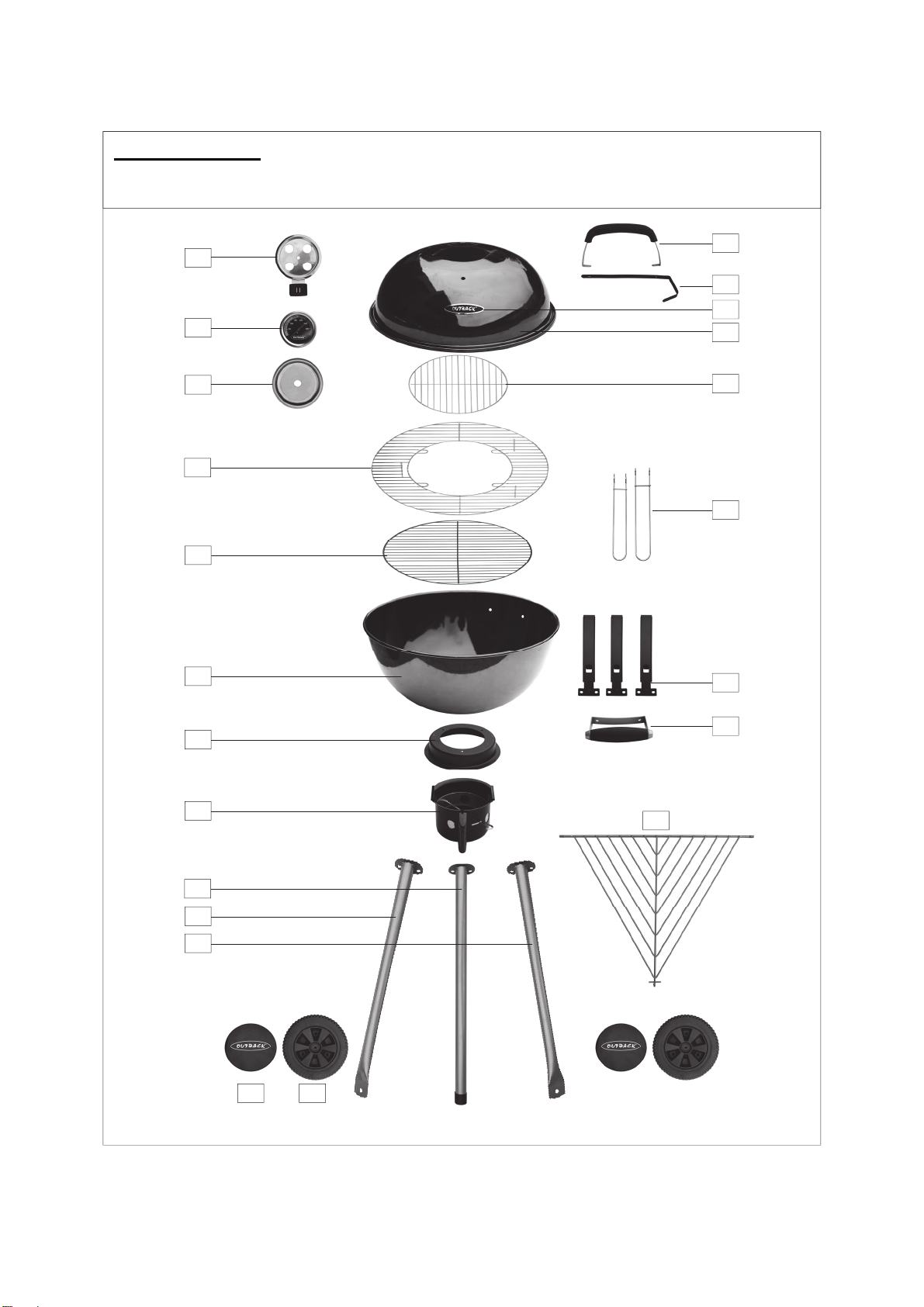

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Assembly

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

 Remove any internal components or packaging from the barbecue body.

 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

 Please read the Important Information section carefully before assembly and use of your

barbecue.

Attach the Front Leg (C1) and the Grill Bracket (B6) onto the Barbecue Body(B1) using the

M6x12 bolts (D1x2pcs), M6 washers (D4X2pcs) and M6 Nuts(D2x2pcs) as shown.

Attach the Body Handle (B5) onto the Barbecue Body (B1) using the M6x12 bolts (D1x2pcs),

M6 washers (D4X2pcs) and M6 Nuts(D2x2pcs) as shown.

B1 B5

Attach the Left Rear Leg (C2) and the Grill Bracket (B6) onto the Barbecue Body(B1) using the

M6x12 bolts (D1x2pcs), M6 washers (D4X2pcs) and M6 Nuts(D2x2pcs) as shown. Repeat the

above process for the Right Rear Leg(C3).

Attach the Leg Support Rack (C4) onto the legs as shown.

Attach the Ash Tray Bracket (B8) onto the Barbecue Body (B1) using the M5x12 bolts

(D5x3pcs) and M5 Nuts (D6x3pcs) as shown.

Slide the Wheels (C5) onto each straight bar of the leg support rack. Secure the wheels into place

with the Axle Nut (D7x2pcs) . Place the Wheel Hubcaps (C6) onto the outside of the wheels.

Place the Ash Tray (B9) into position underneath the Ash Tray Bracket (B8).

Place the Charcoal Grill (B2) onto the lower brackets in the barbecue body. Ensure

the charcoal grill lies level within the body.

Place the Cooking Grill (B3) onto the upper brackets in the barbecue body. Ensure the

cooking grill lies level within the body.

Attach the Hood Handle (A4) and Hood Hook (A3) onto the Hood (A1) using the Hood

Handle Half-moon Bolt, M6x12 (D8x2pcs), M6 washers (D4X2pcs) and M6 Nuts

(D2x2pcs) as shown.

Attach the Air Vent (A5) onto the Hood (A1) using the M5x12 bolt (D5x1pc) and M5

Nut (D6x1pc) as shown.

Attach the Heat Indicator (A6) and Heat Indicator Bezel (A7) onto the Hood (A1) using

the M8 Nut (D3x1pc) as shown.

ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR

INSTRUCTIONS ON OPERATION AND MAINTENANCE.

Grill Lifting Handle usage reference

To remove the cooking grill for adding charcoal.
