Omron NS - REV 04 Manuel utilisateur

Programmable Terminals

Cat. No. V098-E1-04

OPERATION MANUAL

Introduction

This manual describes the configuration and settings required for communicating with the

host devices used by NS-series Programmable Terminals for Host Link communications.

First familiarize yourself with the contents of the manuals related to NS-series

Programmable Terminals (the NS-series Setup Manual, NS-series Programming Manual, and

the CX-Designer online help), and then use this manual for Host Link communications.

1-1 Overview

This section provides an overview of connecting an NS-V1/V2 PT to an OMRON

Programmable Controller that supports Host Link communications.

The NS-V1/V2 PT is connected 1:1 to the CPU Unit or a Host Link Unit of an OMRON PLC.

Host Link communications are used to read and display or write the words and settings in the

host PLC.

NS-V1/V2 PT serial ports A and B can both be connected to a host by means of the Host Link

protocol.

Reference

When an NS-V1/V2 PT and a PLC are connected by

Host Link, it is not possible to change to RUN Mode.

If the PLC is set for RUN Mode, it is automatically

switched to Monitor Mode. For example, if a

compatible Programming Console is connected to

the PLC and the PLC operating mode is switched to

RUN mode, the password display for the Monitor

Mode will be displayed at the Programming Console.

1-2 Connection Configuration

This section describes the system configuration required for connecting to the host by Host

Link communications.

1-2-1 NS-V1/V2 Configuration Required for Connection

 NS-V1/V2 Models

One of the following NS-V1/V2 PTs is required to connect with the host by Host Link

communications.

Model

NS12-TS0@(B)-V1/-V2

NS10-TV0@(B)-V1/-V2

NS8-TV0@(B)-V1/-V2

NS8-TV1@(B)-V1

NS5-SQ@@ (B)-V1/-V2

NS5-TQ@@ (B)-V2

NS5-MQ@@ (B)-V2

Reference

NS-series PTs without the -V1 or -V2 suffix do not

support Host Link communications. One of the above

NS-V1/V2 models must be used.

 NS-V1/V2 System Program

To connect to the host by means of Host Link communications, system program version 6 or

later must be installed in the NS-V1/V2 PT.

System program

Ver. 6 or later

 Communications Ports

Communications

port

Applicable communications method

Serial port A Host Link

1:1 NT link

1:N NT link

Memory link

(Bar-code reader input)

(Temperature controller connection)

(CX-Designer connection)

Serial port B Host Link

1:1 NT link

1:N NT link

Memory link

(Bar-code reader input)

(Temperature controller connection)

(CX-Designer connection)

The following table shows the communications methods that can be used in combination

when serial ports A and B are used at the same time.

Serial port B

Host Link

1:1 NT Link

1:N NT Link

Memory link

Bar-code

reader

Temperature

controller

CX-Designer

connection

Host Link YES YES YES YES YES YES YES

1:1 NT link YES YES YES YES YES YES YES

1:N NT Link YES YES YES YES YES YES YES

Memory link YES YES YES No YES YES YES

Bar-code reader YES YES YES YES No YES YES

Temperature controller YES YES YES YES YES YES YES

Serial port A

CX-Designer connection YES YES YES YES YES YES No

 Communications Setup

The following table shows the communications settings required at the NS-V1/V2 PT and the

host to connect to the host by means of Host Link communications.

Setup

location

Settings (See note 2.)

NS-V1/V2 PT Baud rate: 9,600 or 19,200 bps (See note 1.)

Host Start bits: 1 bit

Data: 7 bits

Stop bits: 2 bits

Parity: Even

Host Link unit number: 0

Baud rate: 9,600 or 19,200 bps (See note 1.)

Note 1: The baud rate settings must be the same for both the NS-V1/V2 PT and the host.

2: Use the 1:N protocol setting.

1-2-2 Applicable PLCs

The OMRON PLCs listed below can be connected as hosts using Host Link communications.

The connection can be made either directly to the built-in serial port on the CPU Unit or to a

Host Link Unit mounted to the PLC.

C Series

C200HS, C200HX/HG/HE(-Z), CQM1, CQM1H, CPM2A/CPM2C, CPM1/CPM1A, C500,

C1000H, C2000H

CV Series

CV500, CV1000, CV2000, CVM1

CS/CJ Series

CS1G/CS1H, CS1G-H/CS1H-H, CJ1G, CJ1G-H/CJ1H-H, CJ1M, CP1H/CP1L, CJ2H

1-3 Connecting to the Host

The types of host that can be connected to a PT by using the serial ports on the NS-series PT

and connecting to an RS-232C port at the host are described here.

1-3-1 Connecting to an RS-232C Port at the Host

 Compatible Host Units

Some models and series of OMRON PLCs have the host link function built in.

In the CS-series or CQM1H PLCs, the host link method can be used by installing a Serial

Communications Board. In addition, some C200HX/HG/HE(-Z)E have an integral CPU Unit

that can be connected in the host link method by installing a Communications Board.

Check the model and series of the PLC, the type of installed Serial Communications Board or

Serial Communications Unit before making a connection.

The PLC Units/Boards that can be connected to an NS-series PT through a Host Link

connection using RS-232C ports on both the PLC Unit/Board and PT are listed in the

following table.

PLC Series CPU Units with Built-in Host Link

Function

CPU Units Connectable with Host

Link Units or Expansion

Communications Board

Host Link Unit/

Communications

Board

CS1G-CPU42/43/44/45-EV1

CS1H-CPU63/64/65/66/67-EV1

CS1G-CPU42/43/44/45-EV1

CS1H-CPU63/64/65/66/67-EV1

CS Series

CS1G-CPU42H/43H/44H/45H

CS1H-CPU63H/64H/65H/66H/67H

CS1G-CPU42H/43H/44H/45H

CS1H-CPU63H/64H/65H/66H/67H

CS1W-SCU21-V1

CS1W-SCB21-V1

CS1W-SCB41-V1

CJ1G-CPU44/CPU45 CJ1G-CPU44/CPU45

CJ1G-CPU42H/43H/44H/45H

CJ1H-CPU65H/66H/67H

CJ1H-CPU65H/66H/67H-R

CJ2H-CPU64/65/66/67/68-EIP

CJ1G-CPU42H/43H/44H/45H

CJ1H-CPU65H/66H/67H

CJ1H-CPU65H/66H/67H-R

CJ2H-CPU64/65/66/67/68-EIP

CJ1M-CPU11/12/13/21/22/23 CJ1M-CPU11/12/13/21/22/23

CJ1W-SCU21/41-V1

CP1H-XA40DR-A/XA40DT-D/XA40D

T1-D/X40DR-A/X40DT-D/X40DT1-D/

Y20DT-D

CJ Series

CP1L-L14DR-A/L14DR-D/L14DT-D/L

14DT1-D/L20DR-A/L20DR-D/L20DT-

D/L20DT1-D/M30DR-A/M30DR-D/M3

0DT-D/M30DT1-D/M40DR-A/M40DR-

D/M40DT-D/M40DT1-D

CP1W-CIF01

C1000H-CPU01-EV1

C2000H-CPU01-EV1

C120-LK201-EV1

C200HS-CPU01/03/21/23/31/33-E

C200HE-CPU11/32/42-E

C200HE-CPU11/32/42-ZE

C200HG-CPU33/43/53/63-E

C200HG-CPU33/43/53/63-ZE

C200HX-CPU34/44/54/64-E

C200HX-CPU34/44/54/64/65/85-ZE

C200H-LK201-EV1

C200HS-CPU21/22/31/33-E

C200HE-CPU42-E

C200HE-CPU42-ZE

C200HE-CPU32/42-E

C200HE-CPU32/42-ZE

C200HG-CPU43/63-E

C200HG-CPU43/63-ZE

C200HG-CPU33/43/53/63-E

C200HG-CPU33/43/53/63-ZE

C Series

C200HX-CPU44/64-E

C200HX-CPU44/64/65/85-ZE

C200HX-CPU34/44/54/64-E

C200HX-CPU34/44/54/64/65/85-ZE

C200HW-COM02/04/

05/06-EV1

PLC Series CPU Units with Built-in Host Link

Function

CPU Units Connectable with Host

Link Units or Expansion

Communications Board

Host Link Unit/

Communications

Board

C1000H-CPU01-EV1

C2000H-CPU01-EV1

C500-LK201-EV1

C1000H-CPU01-EV1

C1000HF-CPUA1-EV1

C2000H-CPU01-EV1

C500-LK203

CPM1-10/20/30CDR-@+CPM1-CIF01

CPM1A-10/20/30/40CD@-@+CPM1-

CIF01

CPM2A-30/40/60CD@@-@+CPM1-

CIF01 (Peripheral port connection)

CPM2C-10/20@@@@@@-@

(See note 1.)

CQM1-CPU21-E

CQM1-CPU41/42/43/44-EV1

C Series

CQM1H-CPU11/21/51/61 (See note 2.) CQM1H-CPU51/61 CQM1H-SCB41

CV500-CPU01-EV1 CV500-CPU01-EV1 CV500-LK201

CV1000-CPU01-EV1 CV1000-CPU01-EV1

CV Series

(See note 3.)

CV2000-CPU01-EV1 CV2000-CPU01-EV1

CVM1 Series

(See note 3.)

CVM1-CPU01-EV2

CVM1-CPU11-EV2

CVM1-CPU21-EV2

CVM1-CPU01-EV2

CVM1-CPU11-EV2

CVM1-CPU21-EV2

CV500-LK201

CompoBus/S

master control

unit

SRM1-C02-V2

Note 1: Use a CPM2C-CN111 or CS1W-CN114/118 Connecting Cable, CPM1-CIF01

RS-232C Adapter, or CPM1-CIF11 RS-422A Adapter to connect.

2: The CQM1H-CPU11 does not have a built-in RS-232C port, so connect to the

peripheral port to the PT with a CS1W-CN118 Connecting Cable.

3: CPU Units of CVM1/CV-series PLCs without the suffix –EV@cannot be connected.

 Settings at the Host

When using the host link method, the settings shown below must be made at the host

(depending on the unit, some of these settings may not be necessary, or settings not shown

here may be necessary).

Item Switch Setting

I/O port RS-232C

Communications speed Set the same baud rate as set at the NS-series PT (See note 1.)

Transfer code ASCII, 7 data bits, 2 stop bits

Parity Even

1-to-1/1-to-N 1-to-N (See note 2.)

Command level Level 1, 2, 3

Unit # 00

Note 1: Set the Host Link communications speed (baud rate) to 9600 bps or 19200 bps with

the Communications Setting menu item in the CX-Designer and the System Menu

for the NS-series PT. For details, refer to 1-4 Settings for Host Link.

2: The 1-to-N setting enables using a BCC (Block Check Character). It is not actually

possible to connect more than one NS-series PT in a single Host Link.

The setting methods for each type of unit are described in the following.

Connecting to a C-series Host Link Unit

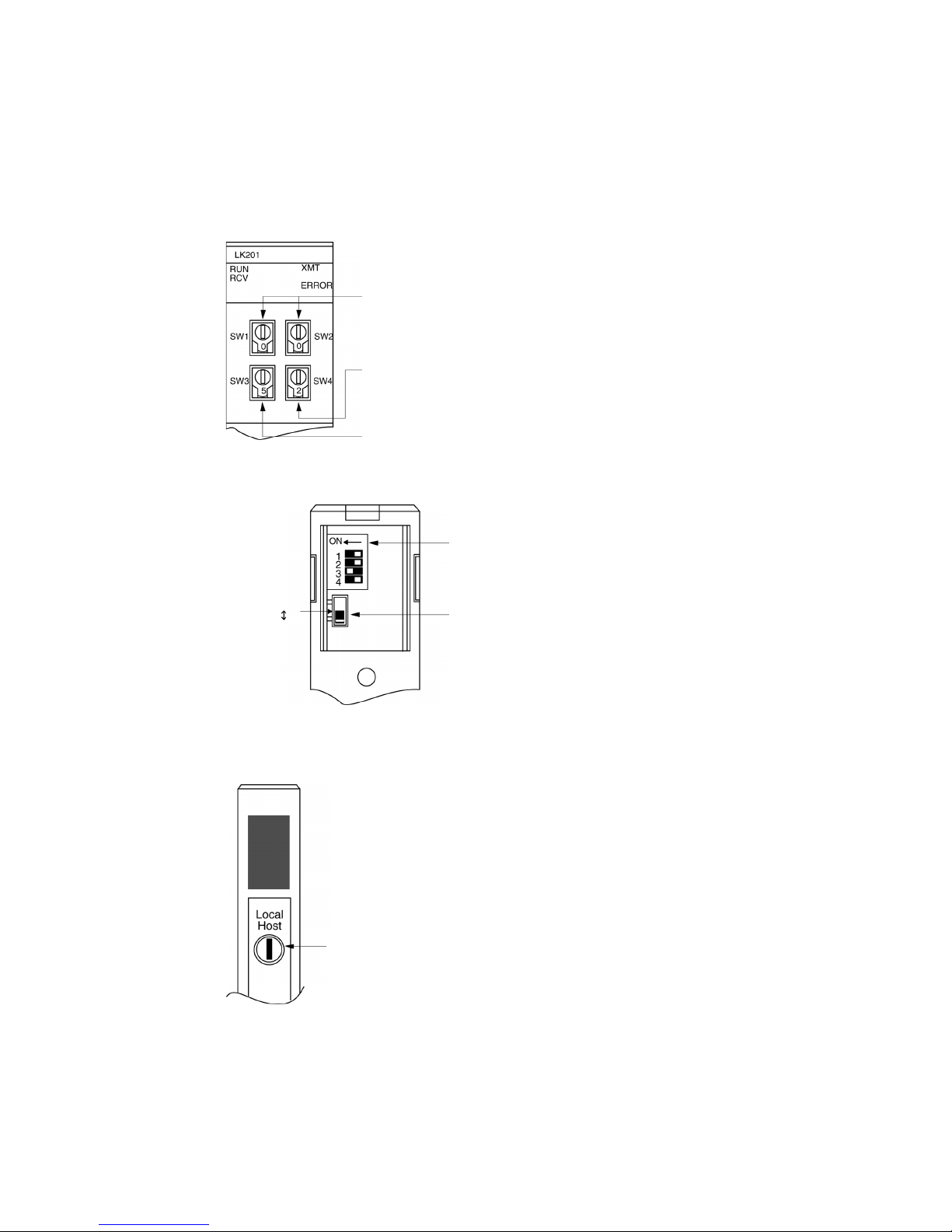

C200H/C200HS/C200HE(-Z)E/C200HG(-Z)E/C200HX(-Z)E Rack-mounted type: C200H-LK201-V1

Setting the Front Switches

Set each switch with a flat blade screwdriver so that the values or symbols in the setting value

window agree with the following.

•Unit # (SW1, SW2)

Set these switches to 0.

•Command level, parity, and transfer code (SW4)

Set this switch to 2.

•Communications speed (SW3)

Set this switch to 5 to select 9600 bps.

Set this switch to 6 to select 19200 bps.

Setting the Rear Switches

•1-to-1/1-to-N selection (DIP switch)

Set #3 to ON.

•CTS selection (selector switch)

Set this always to 0 V (ON).

CTS selector switch

External

0 V (ON)

C1000H/C2000H Rack-mounted type: C500-LK201-EV1

Setting the Front Switches

•Mode control (key switch)

Set this to host link.

Setting the Rear Switches

•I/O port selection (selector switch)

Set this to RS-232C.

•Unit # (DIP SW1)

Set SW1-1 to SW1-5 to OFF (0).

•Synchronization (selector switch)

Set this to Internal.

•Communications speed

(DIP SW2-1 to SW2-4)

Set these switches to 0010 to select

19,200 bps.

Set these switches to 1010 to select

9,600 bps.

(0: OFF 1: ON)

•1-to-1/1-to-N selection (DIP SW2-6)

Set SW2-6 to OFF (0) (1-to-N).

•Command level (DIP SW2-7, SW2-8)

Set these switches to ON (1).

(

Levels 1

and 3 are enabled.

)

•CTS selection (selector switch)

Set this always to 0 V (ON).

I/O

ort

nchronization

Terminato

0 V

C1000H(F)/C2000H Rack-mounted type: C500-LK203

Setting the Rear Switches

•I/O port selection (selector switch)

Set this to RS-232C.

•Unit #, parity, and transfer code

(DIP SW1-1 to SW1-7)

Set SW1-1 to SW1-7 to OFF (0).

•Synchronization (selector switch)

Set this to Internal.

•Communications speed

(DIP SW2-1 to SW2-4)

Set these switches to 0010 to select

19,200 bps.

Set these switches to 1010 to select

9,600 bps.

(0: OFF 1: ON)

•1-to-1/1-to-N selection (DIP SW2-6)

Set SW2-6 to OFF (0) (1-to-N).

•Command level (DIP SW2-7, SW2-8)

Set these switches to ON (1).

(

Levels 1

and 3 are enabled.

)

•CTS selection (selector switch)

Set this always to 0 V (ON).

I/O

ort

nchronization

Terminato

5V su

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Omron Terminal tactile

Omron

Omron NT4S Manuel utilisateur

Omron

Omron NT21 Guide de l'utilisateur

Omron

Omron NA-series Instructions d'utilisation

Omron

Omron NT31 Series Manuel d'installation

Omron

Omron NT612G Series Manuel utilisateur

Omron

Omron NA-series Instructions d'utilisation

Omron

Omron NB3Q-TW00B Guide de l'utilisateur

Omron

Omron NT21 Manuel utilisateur

Omron

Omron NT600M Series Manuel utilisateur

Omron

Omron NT2S-SF122B-E START V1.03 Manuel d'instructions

Omron

Omron NT30 Manuel utilisateur

Omron

Omron Programmable Terminals NT631 Manuel d'installation

Omron

Omron NS10-TV Series Manuel du propriétaire

Omron

Omron NP3 Series Manuel de référence

Omron

Omron DeviceNet DRT2-AD04 Manuel utilisateur

Omron

Omron NS12-TS00 Series Guide de l'utilisateur

Omron

Omron NS - REV 12 Guide de l'utilisateur

Omron

Omron NV3W Series Manuel d'instructions

Omron

Omron DRT2 SERIES DEVICENET SLAVES - OPERATION ... Manuel utilisateur

Omron

Omron PRT1-COM Manuel utilisateur

Omron

Omron NV3Q Series Manuel d'instructions

Omron

Omron NS10-TV Series Guide de l'utilisateur

Omron

Omron NSH5 Series Manuel utilisateur

Omron

Omron NA-series Guide de l'utilisateur

Manuels Terminal tactile populaires d'autres marques

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Manuel utilisateur

Ingenico

Ingenico AXIUM EX4000 Manuel utilisateur

Heisei Electronics

Heisei Electronics Q-POS 815 Manuel utilisateur

Amano

Amano MTX-15 Manuel utilisateur

FLOWBIRD

FLOWBIRD CWT Compact Touch Manuel utilisateur

Demco

Demco SP7 Manuel utilisateur

Lathem

Lathem PC600 Series Manuel utilisateur

Partner

Partner MF-2352 Manuel utilisateur

NCR

NCR RealPOS 7460-2 Manuel

Simrad

Simrad MS50 Instructions de montage

Unitech

Unitech MR350 MKII Guide de démarrage rapide

Jungheinrich

Jungheinrich WMT 210 Manuel utilisateur

Motorola

Motorola MTP850 Manuel utilisateur

YASKAWA

YASKAWA 62H-MDC0 Manuel utilisateur

MVG industries

MVG industries NeptuLink Manuel utilisateur

Price Industries Limited

Price Industries Limited FDC Manuel d'instructions

Honeywell

Honeywell TemaKey Manuel utilisateur

EBN

EBN BPC65-B-A16G Manuel utilisateur
