NXP Semiconductors S32G-VNP-EVB Manuel utilisateur

Part Number Here

QuickStartGuide

S32Gisavehiclenetworkprocessordeliveringhighlevelsof real-timeand

applicationsprocessing,supportingCAN/LIN/FlexRaynetworkingand

GigabitEthernetinterfaceswithhardware accelerationanddeliveringahigh

levelofembeddedsecurityandASILDfunctionalsafetycapabilities.

S32G-VNP-EVB

www.nxp.com

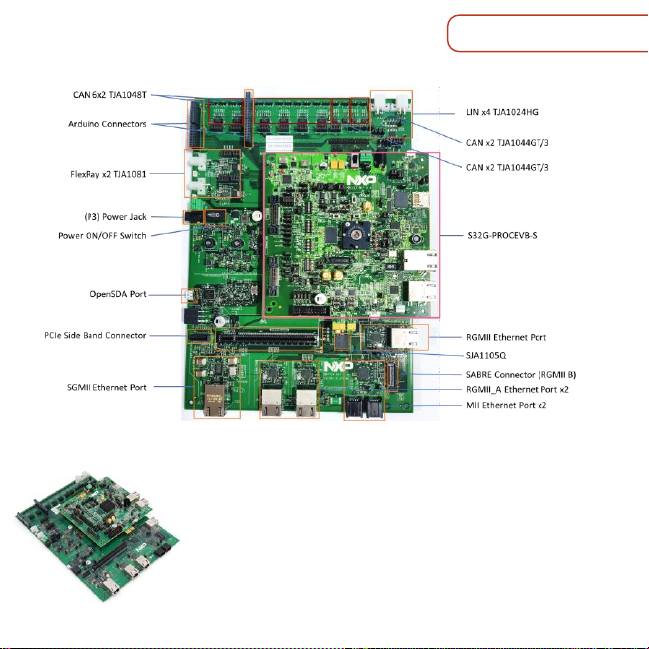

Figure 1: S32G-VNP-EVB

S32G-VNP-EVB

The NXP S32G-VNP-EVB supports development, evaluation

and demonstrations with the NXP S32G274A Vehicle Network

Processor (VNP).

S32G targets applications such as:

• Central gateways, domain controllers, central compute nodes

• Firmware Over-The-Air (FOTA) updates

•Vehicle data analytics

• Secure key management

GET TO KNOW THE S32G-VNP-EVB

Quick Start Guide

GET TO KNOW THE S32G PROCESSOR MODULE

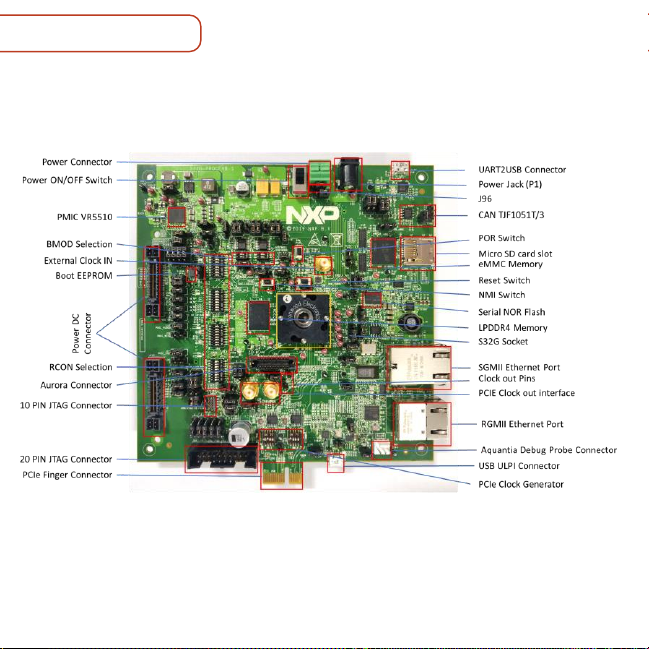

Figure 2: S32G-PROCEVB-S Processor Module

www.nxp.com

S32G-VNP-EVB Block Diagram

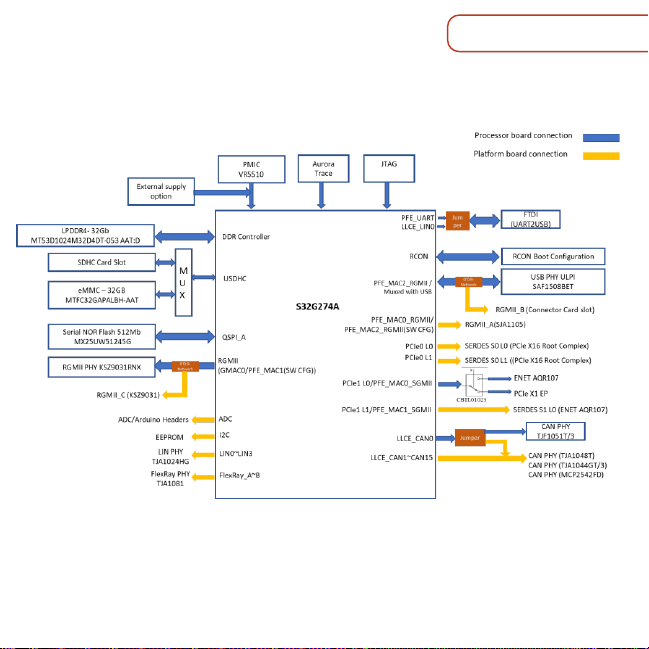

Figure 3 : S32G-VNP-EVB Block Diagram

www.nxp.com

Install S32G and Heatsink

Install the following….

✓Tera Term for console

✓FTDI CDM v2.12.28 WHQL driver

for serial configuration.

✓Win32 Disk Imager

✓Packet Sender Application

Install Software

1 3

STEP-BY-STEP INSTRUCTIONS

Open Tera Term on Windows PC.

Select the serial port to which the micro

USB J58 of the S32G-PROCEVB-Sis

connected and click OK. Go to Setup→

Serial Port and select 115200 as the

baud rate.

Setup Tera Term

Console

Connect the Power

Supply

When the S32G-PROCEVB-S is stacked

on the S32GRV-PLATEVB: Jumper J96

on the S32G-PROCEVB-S shouldbe in

position 1-2, and only the S32GRV-

PLATEVB needsto be powered. Connect

power supply to the 12V power jack P3 on

S32GRV-PLATEVB.

When the S32G-PROCEVB-S is used

standalone: Jumper 96 should be in

position 2-3. Connect power supply to the

12V power jack P1 on S32G-PROCEVB-S.

Follow the instructions in the S32G

Socket and Heat Sink User Guide

to install the S32G and heat sink.

You can watch this video (available

in this directory if video doesn’t play

in browser) to see the installation

process.

www.nxp.com

STEP-BY-STEP INSTRUCTIONS

Power ON the

S32G-VNP-EVB

The Diagnostics Utility is auto-

executed from the SD card. Console

display on Tera Term shows the

status of the diagnostic tests.

Diagnostics Utility

Switch ON the power switch SW1 on the

S32GRV-PLATEVB and power switch

SW10 on the S32G-PROCEVB-S.

www.nxp.com

Reference Links for Useful Documents

1. S32G Socket and Heatsink User Guide

2. Video- Installing the S32G in the EVB Socket

3. S32 VNP EVB Platform Board design details

4. S32G-PROCEVB-S design details

5. S32G Hardware Design Guide

6. S32G Boot Process Application Note

7. S32G-VNP-EVB User Guide

8. SD card program image (in Diagnostics SW deliverable)

9. SD card image logs

www.nxp.com/S32G-VNP-EVB

NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their

SUPPORT

Visit www.nxp.com/support for a list of

phonenumbers within your region.

WARRANTY

Visit www.nxp.com/warranty for complete

warranty information.

Get Started

Download installation software

and documentation under

“Jump Start Your Design” at

nxp.com/S32G-VNP-EVB.

Document Number: S32G-VNP-EVBQSG REV 0
