1．NXP i.MX6ULL chip introduction

i.MX6ULL is designed by NXP, high efficiency, cost effective application processor. With

advanced implementations of single core ARM Cortex-A7 running up to 900MHz. i.MX

6ULL application processor includes an integrated power management module that

reduce the complexity of the external power supply and simplifies power-up sequencing.

Applications include:

⚫Automotive telematics

⚫IoT gateway

⚫HMI human machine interface

⚫Home power management system

⚫Intelligent energy information concentrator

⚫Intelligent industrial control system

⚫Electronic POS equipment

⚫Portable medical equipment

⚫Printer and 2D scanner, etc.

i.MX6ULL block diagram

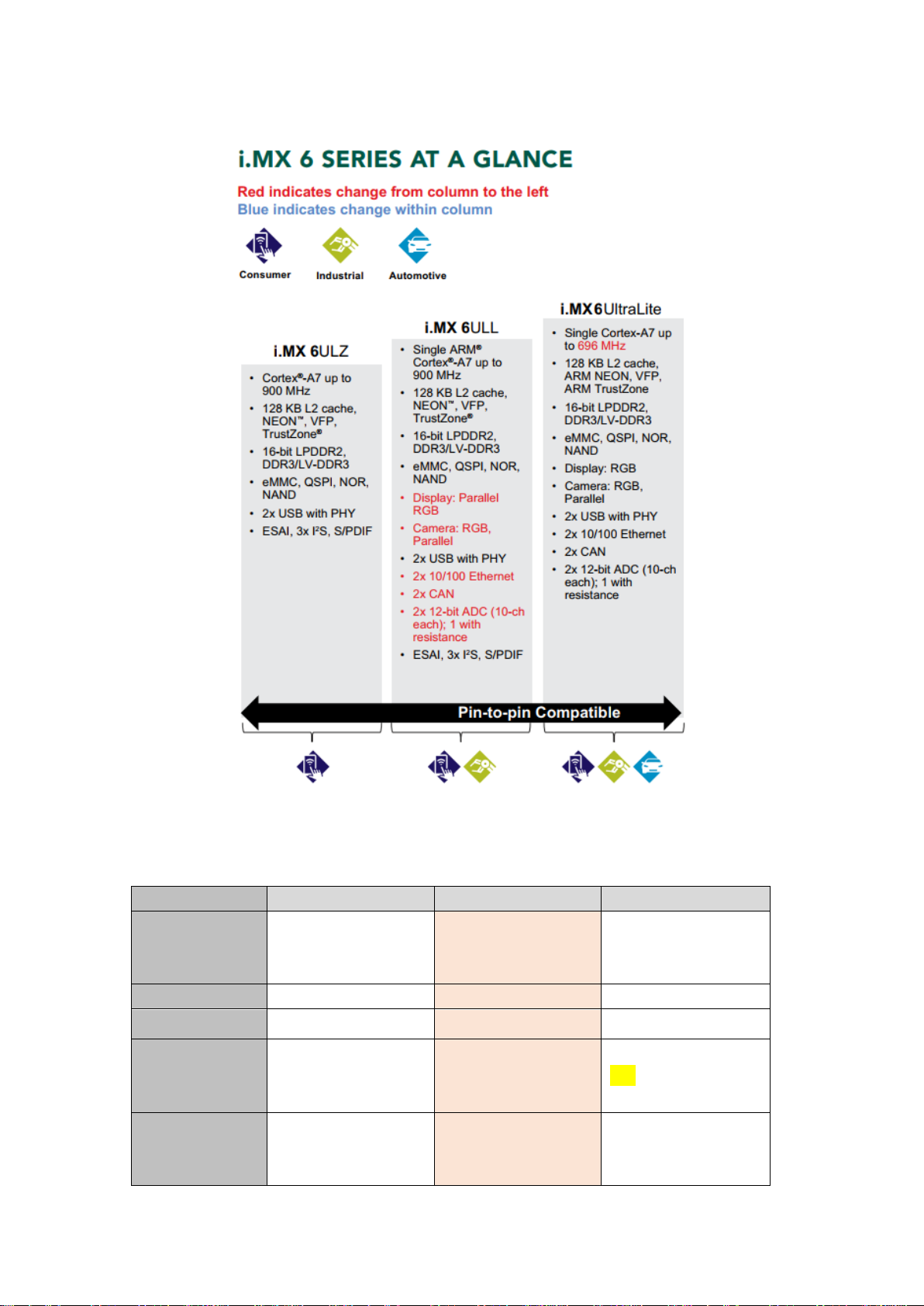

i.MX6ULL Pin-to-Pin compatible chip and difference comparison

i.MX6ULL BGA289 package main chipset’s part number and parameter comparison list:

Parts

MCIMX6Y2CVM05AA

MCIMX6Y2CVM08AB

MCIMX6Y2DVM09AB

Marketing

Description

i.MX 32-bit MPU,

ARM Cortex-A7 core,

528MHz, 289BGA

i.MX 32-bit MPU,

ARM Cortex-A7 core,

800MHz, 289BGA

i.MX 32-bit MPU,

ARM Cortex-A7 core,

900MHz, 289BGA

Package Type

LFBGA289

Core Type

Arm Cortex-A7

Operating

Frequency

[Max] (MHz)

528

800

900

External

Memory

Supported

DDR3 SDRAM, DDR3L

SDRAM, LPDDR2

DRAM

DDR3 SDRAM, DDR3L

SDRAM, LPDDR2

DRAM

DDR3 SDRAM, DDR3L

SDRAM, LPDDR2

DRAM

Video/Display

features

RGB

Ethernet

SPI

I2C

UART

SAI

USB

Controllers

CAN

Work

Temperature

(℃)

-40 ~ 105

0 ~ 95

Camera

Interfaces

CSI

Audio Specific

Modules

SPDIF

WT-SOM6ULX supports i.MX6UltraLite and i.MX6ULL all BGA289 part numbers. Main

production model is i.MX6ULL series MCIMX6Y2CVM08AB, Other models produced by

order.

2. WT-SOM6ULX schematic and test instruction

2.1 WT-SOM6ULX core board block diagram and schematic

For most applications, WT-SOM6ULX designed the smallest system Power Management +

DDR3L + NAND/EMMC+ LAN8720(Ethernet Phy).

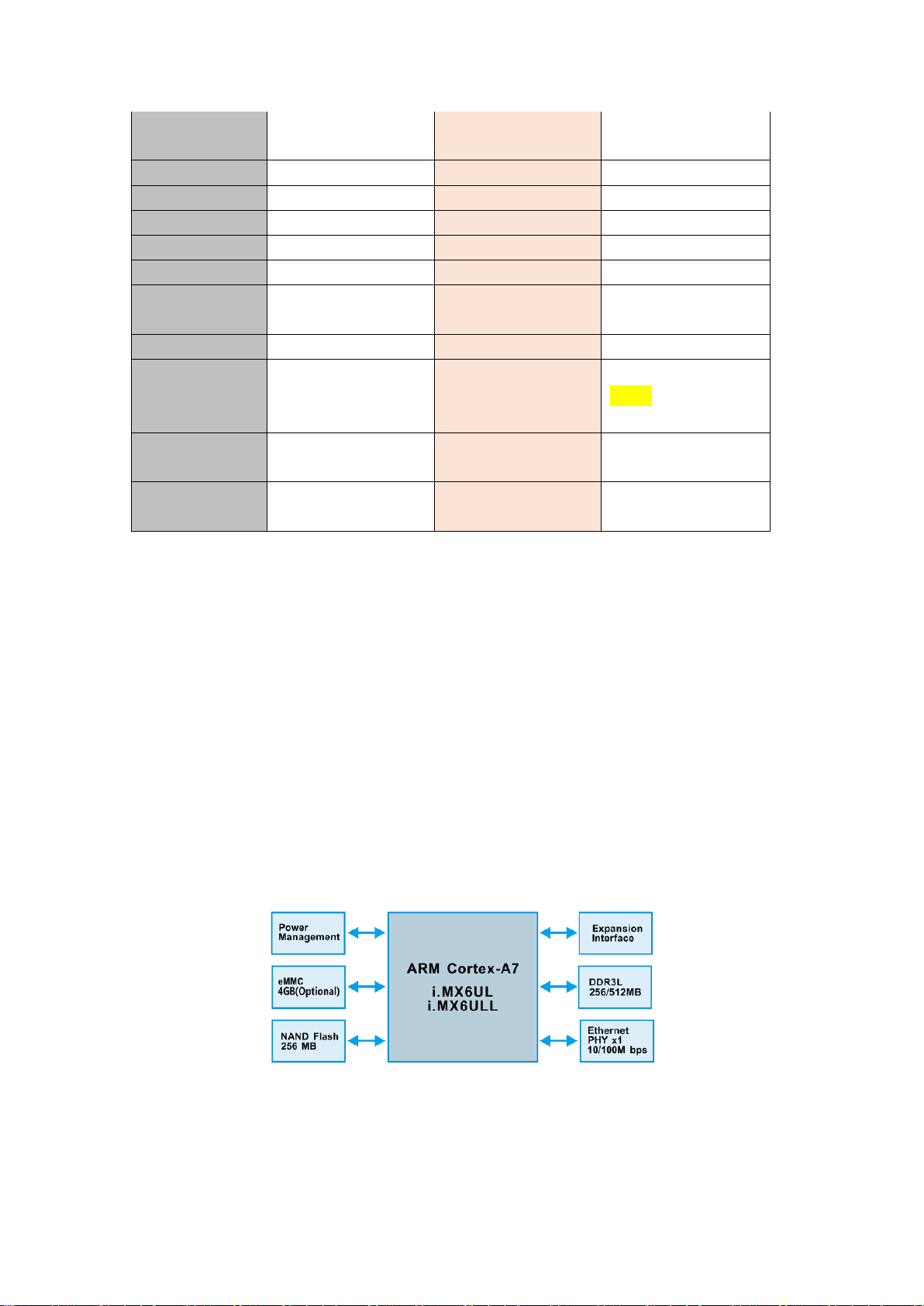

WT-SOM6ULX smallest system block diagram

Core board schematic “wt-som6ulx-sch-v1.pdf”, you can get from sales representative.

2.2 WT-SOM6ULX core board’s power management

According to i.MX6ULL power supply timing requirement, core board layout 4 power supply

pins: VSNVS，VSYS_3V3，USB_OTG2_VBUS，USB_OTG1_VBUS.

VSNVS have to powered first, backup battery power can be used for button ON/OFF switch

control, low power consumption, maintenance internal RTC power supply after

shutdown, only consume 26uA.

VSYS_3V3 is the main power supply for the core board, full load current consumption

<200mA.

USB_OTG2_VBUS and USB_OTG1_VBUS powered after VSYS_3V3. When you don’t need to

use the USB function, you don’t need to supply power.

Power supply pin

Min

Max

Current

Power supply

ripple

requirement

VSYS_3V3

3.2V

3.4V

<200mA(full speed

operation)

<9mA (standby)

<30mVrms

VSNVS

2.8V

3.4V

<500uA

<30mVrms

USB_OTG2_VBUS

4.7V

5.2V

<50mA

<50mVrms

USB_OTG1_VBUS

4.7V

5.2V

<50mA

<50mVrms

2.3 i.MX6ULL related power domain ripple test

WT-SOM6ULX adopts single-sided layout, which performs a lot of power integrity

simulation and optimization in the power supply part, and draws test points in the

CPU-related power domain and performs power supply ripple test.

Test conditions: DDR stress test status,

Test method: oscilloscope, 10X probe, AC coupling, 20mV, 1mS, bandwidth 20M

Test point

Power network

Ripple amplitude

(peak to peak)

Voltage (V)

TP18

VDD_ARM_CAP

29mV

1.272

TP12

VSYS_3V3

24mV

3.3

TP11

VDD_ARM_SOC_IN

22mV

1.348

TP19

DRAM_1V35

30mV

1.351

TP17

VDD_SOC_CAP

20mV

1.273

TP14

VDD_SNVS_CAP

20mV

1.107

TP15

NVCC_PLL_OUT

19mV

1.118

TP13

VDD_SNVS_3V3

24mV

3.297

TP16

VDD_HIGH_CAP

22mV

2.521

TP20

DRAM_VREF

20mV

0.677

3．Based on WT-SOM6ULX’s baseboard power system design

3.1 Core board power sequencing and typical power supply circuit

⚫SNVS should be powered first and can be powered by LDO or backup battery

separately. SNVS should be powered first and can be powered separately by LDO

or backup battery. SNVS can be used for button ON/OFF switch control, low

current consumption, maintenance of internal RTC power supply after shutdown,

only consumes 26uA.

⚫After the SNVS is powered on, the core board pin PMIC_ON_REQ output is used to

control the VSYS_3V3 power switch. When the CPU enters the shutdown state,

PMIC_ON_REQ will be pulled low to turn off the entire board except the other

SNVS part. The 3.3V power supply for the baseboard and core board should use

the same power supply output to avoid potential risks due to level differences or

inconsistent power-up timing.

⚫5V power supply (USB_OTG1_VBUS, USB_OTG2_VBUS, CAN, RS485, etc.) should be

powered after the 3.3V power supply’s stable.

⚫For all IO pins, ensure that there is no high level input before VSYS_3V3 is powered

on.

The above is the power-on timing requirements of the NXP i.MX6ULL chip to ensure

long-term stable operation of the whole circuit board. If the timing requirements are

violated, the power-on behavior of the chip may be affected, resulting in a small

probability of chip damage or startup failure.

WT-SOM6ULX typical power supply scheme

Power/GND pin

Pin number

Description

VSNVS

Have to be powered on first, and have to be powered

on when switch power management is required.

VSYS_3V3

Main power supply. Power supply is enabled via

PMIC_ON_REQ.

It is recommended that the string power supply use a

magnetic bead (such as 120R 3A) and then place a

2x22uF ceramic capacitor near the pin to form an LC

filter. Use low ripple DC/DC power supply. Ripple

<30mVrms.

USB_OTG1_VBUS

The MicroUSB VBUS input can be connected, also can

be disconnected, but it must be powered after

VSYS_3V3 powered on.

USB_OTG2_VBUS

Disconnected if no need to use USB function.

It must be powered after VSYS_3V3 is powered on,

5V.

Add 10uF ceramic capacitors near the pin.

GND

5, 35, 42, 55,

73, 78, 81,

98，115，126

Totally 10 GND pins.

The GND pin must be fully connected to the GND

plane of the baseboard (multiple vias or copper) to

optimize the return path for high speed signals.

3.2 About reset

In PWR_EN network control VSYS_3V3 的DC/DC chip enable pin. The WT-SOM6ULX has a

power-on reset chip on board, and the overall reset of the core board is recommended to

use a power-off reset. Typical mode: the output of the MAX811 is used to control the

VSYS_3V3 supply enable, which can be manually reset by a reset button or watchdog rest.

Refer to the circuit below, where the PWR_EN network controls the VSYS_3V3’s DC/DC chip

enable pin.

3.3 Switch and wake up

i.MX6ULL chip provides the switch of power management function. It is connected to the

touch button through the ONOFF pin. When the VSNVS is powered, press about six seconds

to pull low the ONOFF. The PMIC_ON_REQ will be pulled low through the above circuit.

Connecting PMIC_ON_REQ to the enable of the VSYS_3V3 DC/DC chip will cause VSYS_3V3

to power down. Therefore, the whole board will be powered off except VSNVS. In the off

state, short press the switch button to pull the ONOFF pin low for about 2 seconds,

PMIC_ON_REQ will output a high level, then the whole board is powered on.

Sleep and wake up

Executing commands under Linux can put the system into a sleep state. At this time,

PMIC_STBY_REQ is pulled high. The power management circuit on the core board reduces

the core voltage VDD_SOC_IN to about 1.0V, and the core board VSYS_3V3 consumes

<=9mA. In the standby status, through IO or other interrupt wake-up (requires software

setting), PMIC_STBY_REQ is pulled low, the system will resume normal operation within 1S,

and the core voltage will be adjusted to about 1.3V.

4. Start related circuit design

4.1 start mode and boot device

i.MX6ULx family, the startup mode is determined by the level sampling of the

BOOT_MODE[1:0] pins during a Power-on Reset.

BOOT_MODE[1:0]

Boot Type

Boot From Fuses

Serial Downloader

Internal Boot

Reserved

When BOOT_MODE[1:0] is 00, From i.MX6ULX chip internal FUSE sonfigurartion specified

device and parameters to start

WT-SOM6ULX core board supports both NAND FLASH and EMMC. For regular device

models, FUSE parameters are provided to avoid cumbersome pin configurations. Therefore,

it is recommended to use the “Boot From Fuses” mode in applications that are

mass-produced or not ready to replace storage devices.

When BOOT_MODE[1:0] is 01, you can download and burn system image files including

u-boot, zImage, dtb, rootfs, etc. through the Mfgtools programming tool (installed on

Windows system) provided by NXP official website.

When BOOT_MODE[1:0] is 10, the i.MX6ULx chip samples the level of LCD_DATA[23:0]

during power-on reset to determine the startup device and parameters. The specific

description is as follow:

The relationship between the level of LCD_DATA[23:0] during power-on and the internal

boot eFuse register is as follows:

The startup device and device parameters determined by the eFuse register configuration

are as follows:

Table des matières

Autres manuels NXP Semiconductors Matériel informatique

NXP Semiconductors

NXP Semiconductors PN7150 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors PCA9600 OM6293 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors SLN-VIZNLC-IOT Manuel utilisateur

NXP Semiconductors

NXP Semiconductors UM10694 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors QorIQ LS1028A Manuel utilisateur

NXP Semiconductors

NXP Semiconductors UM10856 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors LPC288 Series Manuel utilisateur

NXP Semiconductors

NXP Semiconductors FRDM-MCXN947 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors FRDM-MCXA153 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors UM11768 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors HVP-56F80748-UM Manuel utilisateur

NXP Semiconductors

NXP Semiconductors MIMXRT1170HDUG Manuel utilisateur

NXP Semiconductors

NXP Semiconductors MPC5775B Manuel utilisateur

NXP Semiconductors

NXP Semiconductors FRDM-K32L2A4S Manuel utilisateur

NXP Semiconductors

NXP Semiconductors AN12398 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors TWR-SB0410-36EVB Manuel utilisateur

NXP Semiconductors

NXP Semiconductors OM13506 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors freescale MC92604 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors RD9Z1-638BJBEVM Manuel utilisateur

NXP Semiconductors

NXP Semiconductors MX93AUD-HAT-UM Manuel utilisateur

NXP Semiconductors

NXP Semiconductors freescale MC9S12G128 MCU Manuel utilisateur

NXP Semiconductors

NXP Semiconductors Freescale TWR-S12G240 Manuel utilisateur

NXP Semiconductors

NXP Semiconductors freescale MED-GLU Manuel utilisateur

NXP Semiconductors

NXP Semiconductors freescale MCF5225X Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

NXP Semiconductors i.MX6ULL Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques
