NXP Semiconductors AN12398 Manuel utilisateur

AN12398

EdgeLock SE05x Quick start guide with Visual Studio project

examples

Rev. 2.5 — 12 September 2022 Application note

534625

Document information

Information Content

Keywords EdgeLock SE05x, EdgeLock SE05x Plug & Trust Middleware, Visual Studio

projects

Abstract This document explains how to get started with EdgeLock SE05x Plug &

Trust middleware using the Visual Studio project examples. It provides

detailed instructions to run the Microsoft Visual Studio projects using the

CMake-based build system included in the EdgeLock SE05x Plug & Trust

middleware.

NXP Semiconductors AN12398

EdgeLock SE05x Quick start guide with Visual Studio project examples

Revision history

Revision

number

Date Description

1.0 2019-06-08 First document release

1.1 2019-06-20 Update of board figures

2.0 2019-11-25 Update of CMake buld system materials

2.1 2019-12-17 Corrected OM-SE05xARD J14 jumper setting

2.2 2020-11-19 Update for EdgeLock SE051

2.3 2020-12-07 Updated to the latest template and fixed broken URLs

2.4 2022-06-02 Add EdgeLock SE050E and EdgeLock A5000 product variants.

Update Table 1, Figure 1, Figure 2, Figure 3, Figure 5, Figure 6, Figure 7, Figure 8,

Figure 9, Figure 10, Figure 11, Figure 12, Figure 13, Figure 14, Figure 15, Figure 16,

Figure 17, Figure 18, Figure 19, Figure 20, Figure 21, Figure 22, Figure 23, Figure 31,

Figure 32, Figure 33, Figure 34, Figure 35, Figure 36, Figure 43, Figure 44 and Figure 45.

Add Section Section 5 Product specific CMake build settings.

Add Section Binding EdgeLock SE05x to a host using Platform SCP Binding EdgeLock

SE05x to a host using Platform SCP.

Update tool versions in Section 7, Section 8 and Section 9.

Moved section "Update FRDM-K64F board with DAPLink firmware" into Section 10.

2.5 2022-07-04 Update to EdgeLock SE Plug & Trust Middleware version 04.02.xx.

Update Section Section 5 Product specific CMake build settings.

Update Section Binding EdgeLock SE05x to a host using Platform SCP Binding EdgeLock

SE05x to a host using Platform SCP.

Revision history

Application note Rev. 2.5 — 12 September 2022

534625 2 / 48

NXP Semiconductors AN12398

EdgeLock SE05x Quick start guide with Visual Studio project examples

1 How to use this document

The Plug & Trust middleware package is delivered with the CMake files that include

the set of directives and instructions describing the project's source files and targets.

The CMake architecture allows developers to build files for their platform and native

build environment and run exactly the same project example on PC/Windows/Linux and

embedded targets.

This document provides detailed instructions to run Visual Studio examples provided in

the Plug & Trust middleware using FRDM-K64F and OM-SE05xARD boards. The main

body of this document should be used in this sequence:

1. Order board samples. Section 2 contains the ordering details of the boards required in

this document

2. Setup your boards. Section 3 describes how to setup the OM-SE05xARD and FRDM-

K64F boards.

3. Run project examples. Go to Section 4 for instructions to import and run EdgeLock

SE05x Visual Studio project examples.

Supplementary material has been provided in the appendices.

Application note Rev. 2.5 — 12 September 2022

534625 3 / 48

NXP Semiconductors AN12398

EdgeLock SE05x Quick start guide with Visual Studio project examples

2 Hardware required

The EdgeLock SE05x works as an auxiliary security device attached to a host controller,

communicating with through an I²C interface. To follow the instructions provided in this

document, you need an EdgeLock SE05x development board and a FRDM-K64F MCU

board, acting as a host controller.

EdgeLock SE05x development boards ordering details

The EdgeLock SE05x and EdgeLock A5000 product support packages are providing

development boards for evaluating EdgeLock SE05x and EdgeLock A5000 features.

Select the development board of the product you want to evaluate. Table 1 details the

ordering details of the EdgeLock SE05x and EdgeLock A5000 development boards.

Part number 12NC Description Picture

OM-SE050ARD-E 9354 332 66598 SE050E Arduino®

compatible

development kit

OM-SE050ARD-F 9354 357 63598 SE050 Arduino®

compatible

development kit

OM-SE050ARD 9353 832 82598 SE050F Arduino®

compatible

development kit

OM-SE051ARD 9353 991 87598 SE051 Arduino®

compatible

development kit

OM-A5000ARD 9354 243 19598 A5000 Arduino®

compatible

development kit

Table 1. EdgeLock SE05x development boards.

Note: The pictures in this guide will show SE050E, but all boards in Table 1 can be used

as well with the same hardware configuration.

FRDM-K64F MCU board ordering details

Table 2 details the ordering details for the FRDM-K64F board.

Application note Rev. 2.5 — 12 September 2022

534625 4 / 48

NXP Semiconductors AN12398

EdgeLock SE05x Quick start guide with Visual Studio project examples

Part number 12NC Content Picture

FRDM-K64F 935326293598 Freedom development

platform for Kinetis

K64, K63 and K24

MCUs

Table 2. FRDM-K64F details

Application note Rev. 2.5 — 12 September 2022

534625 5 / 48

NXP Semiconductors AN12398

EdgeLock SE05x Quick start guide with Visual Studio project examples

3 Boards setup

This section explains how to prepare the OM-SE05xARD boards and FRDM-K64F board

to run the Plug & Trust middleware project examples. This consists of:

1. OM-SE05xARD jumper configuration.

2. OM-SE05xARD and FRDM-K64F board connection.

Note: If your FRDM-K64F board does not already contain the DAPLink firmware, you

need to update the FRDM-K64F board as described in Section 10.

3.1 OM-SE05xARD jumper configuration

The OM-SE05xARD boards have jumpers that allow you to configure the I2C interface of

EdgeLock SE05x secure elements via the Arduino header. Configure the jumper settings

as shown in Figure 1 to enable this option.

Note: For more information about the jumper settings, refer to AN13539 OM-SE05xARD

hardware overview.

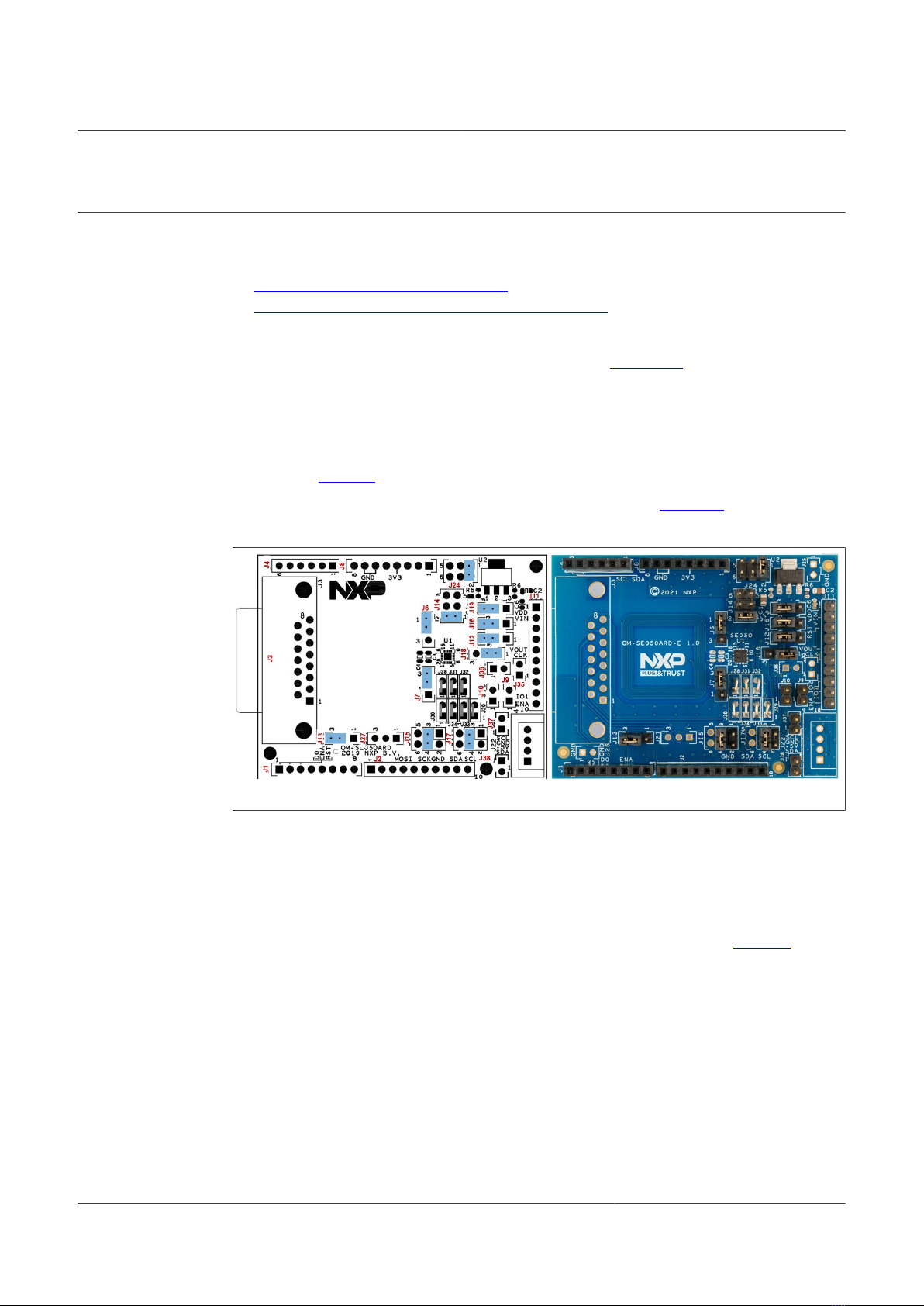

Figure 1. Jumper configuration for FRDM-K64F

3.2 OM-SE05xARD and FRDM-K64F board connection

The OM-SE05xARD boards and FRDM-K64F board can be directly connected using the

Arduino connectors. The OM-SE05xARD boards come with male connectors while the

FRDM-K64F board comes with female headers.

Mount any OM-SE05xARD board on top of the FRDM-K64F as shown in Figure 2:

Application note Rev. 2.5 — 12 September 2022

534625 6 / 48

NXP Semiconductors AN12398

EdgeLock SE05x Quick start guide with Visual Studio project examples

Figure 2. Arduino connectors of OM-SE05xARD and FRDM-K64F boards

Double check that the two boards are connected as shown in Figure 3:

Figure 3. OM-SE05xARD mounted in FRDM-K64F board

Note: Refer to Figure 1 for OM-SE05xARD jumper configuration.

3.3 Flash FRDM-K64F with VCOM software

The VCOM software allows the FRDM-K64F board to be used as a bridge between the

Windows machine and the EdgeLock SE05x and enables the execution of the EdgeLock

SE05x ssscli tool and other utilities from the laptop. To flash the VCOM software into

the FRDM-K64F, follow these steps:

Application note Rev. 2.5 — 12 September 2022

534625 7 / 48

NXP Semiconductors AN12398

EdgeLock SE05x Quick start guide with Visual Studio project examples

1. Unplug and plug again the USB cable to the openSDA USB port as shown in Figure 4:

Figure 4. Unplug and plug OpenSDA port

2. When you plug the board, your laptop should recognize the board as an external drive

as shown in Figure 5:

Figure 5. FRDM-K64F drive

Application note Rev. 2.5 — 12 September 2022

534625 8 / 48

NXP Semiconductors AN12398

EdgeLock SE05x Quick start guide with Visual Studio project examples

3. Flash the VCOM software to FRDM-K64F. The VCOM software binary can be found

in the Plug & Trust middleware package, inside the simw-top\binaries folder as

shown in Figure 6:

Figure 6. VCOM binary folder

4. Drag and drop or copy and paste the a7x_vcom-T1oI2C-frdmk64f-SE050x.bin

file into the FRDM-K64F drive from your computer file explorer as shown in Figure 7:

Figure 7. Drag and drop VCOM binary

5. The serial and VCOM ports should be recognized by your Device Manager. To check

that the ports are recognized, follow the steps indicated in Figure 8:

a. Unplug the USB cable from the OpenSDA USB port.

b. Plug the USB cable to the OpenSDA USB port.

c. Check that the serial port is recognized in the category Ports (COM & LTP). In

this document, it is recognized as USB Serial Device (COM7) but this naming

Application note Rev. 2.5 — 12 September 2022

534625 9 / 48

NXP Semiconductors AN12398

EdgeLock SE05x Quick start guide with Visual Studio project examples

might change depending on your computer. Therefore, it is important that you

identify which device is recognized at the moment you plug the SDA USB port to

the computer.

d. Plug the USB cable to the K64F USB port.

e. Check that the VCOM port is recognized in the category Ports (COM & LTP).

In this document, it is recognized as Virtual Com Port (COM8) but this naming

might change depending on your computer (e.g. It could also appear named as

USB Serial Device). Therefore, it is important that you identify which device is

recognized at the moment you plug the K64F USB port to the computer.

Figure 8. Check VCOM and serial ports

Application note Rev. 2.5 — 12 September 2022

534625 10 / 48
