Nvidia TESLA K20 Manuel utilisateur
BD-06499-001_v02 | November 2012
Board Specification
TESLA K20 GPU ACTIVE
ACCELERATOR
Tesla K20 GPU Active Accelerator BD-06499-001_v02 | ii
DOCUMENT CHANGE HISTORY
BD-06499-001_v02
Version Date Authors Description of Change
01 October 9, 2012 MC, GG,
SM Preliminary Information (Information contained
within this document is subject to change)
02 November 9, 2012 GG, SM •Removed “Preliminary Information” as this board
specification is no longer preliminary
•Removed “NVIDIA confidential”
•Updated Table 1
•Updated “Power Specifications” section
Tesla K20 GPU Active Accelerator BD-06499-001_v02 | iii
TABLE OF CONTENTS
Overview ........................................................................................... 1
Key Features..................................................................................... 2
Configuration .................................................................................... 3
Mechanical Specifications....................................................................... 4
PCI Express System ............................................................................. 4
Tesla K20 Active Bracket ...................................................................... 5
Power Connectors............................................................................... 6
Auxiliary 6-Pin PCI Express Power Connector ............................................ 6
Extenders ........................................................................................ 7
Power Specifications............................................................................10
Power by Rail...................................................................................10
Energy Star Report.............................................................................11
Thermal Specifications .........................................................................12
Cooling Solution................................................................................12
Support Information.............................................................................14
Certificates and Agencies.....................................................................14
Agencies......................................................................................14
Languages.......................................................................................15
Tesla K20 GPU Active Accelerator BD-06499-001_v02 | iv
LIST OF FIGURES
Figure 1. Tesla K20 Active GPU Accelerator Board ......................................... 1
Figure 2. Tesla K20 GPU Active................................................................ 4
Figure 3. Tesla K20 Active Bracket............................................................ 5
Figure 4. Auxiliary 6-Pin PCI Express Power Connector .................................... 6
Figure 5. Long Extender with Offset .......................................................... 8
Figure 6. Flat Extender ......................................................................... 8
Figure 7. Short Extender with Offset ......................................................... 9
Figure 8. Active Fan Sink ......................................................................12
LIST OF TABLES
Table 1. Board Configuration.................................................................. 3
Table 2. 6-Pin PCI Express Power Connector Pinout ....................................... 7
Table 3. PCI Express Power Connectors.....................................................10
Table 4. Power by Rail ........................................................................10
Table 5. Energy Star Report ..................................................................11
Table 6. Fan Environmental Specifications and Conditions ..............................12
Table 7. Languages Supported ...............................................................15
Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 1
OVERVIEW
The NVIDIA®Tesla®K20 graphics processing unit (GPU) active accelerator board is a
PCI Express, dual-slot full height (4.376 inches by 10.5 inches) form factor computing
module comprising of a single GK110 GPU. The Tesla K20 active accelerator is designed
for workstations and offers a total of 5 GB of GDDR5 on-board memory and supports
PCI Express Gen2.
The Tesla K20 can be configured by the OEM or by the end user to enable or disable
ECC that can fix single-bit errors and detect double-bit errors. Enabling ECC will cause
some of the memory to be used for the ECC bits, so the user available memory will
decrease by 10%. On the Tesla K20, the register files, cache, and DRAM are ECC
protected.
Figure 1. Tesla K20 Active GPU Accelerator Board
Overview
Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 2
KEY FEATURES
GPU
Number of processor cores: 2496
Processor core clock: 706 MHz
Package size: 45 mm × 45 mm 2397-pin flip chip ball grid array (S-FCBGA)
Board
PCI Express Gen2 ×16 system interface
Physical dimensions: 4.376 inches × 10.5 inches, dual-slot
Display Connectors
None
Power Connectors
Two 6-pin PCI Express power connectors
Memory
Memory clock: 2.6 GHz
Memory bandwidth: 208 GB/sec
Interface: 320-bit
●Total board memory: 5 GB
●20 pieces of 128M × 16 GDDR5, SDRAM
BIOS
2Mbit Serial ROM
Overview
Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 3
CONFIGURATION
The Tesla K20 GPU active accelerator board is available in the following configuration
(Table 1).
Table 1. Board Configuration
Specifications Tesla K20
Generic SKU reference 699-22081-0204-xxx
Chip GK110
Package size GPU 45 mm × 45 mm 2397-pin S-FCBGA
Processor clock 706 MHz
Memory clock 2.6 GHz
Memory size 5 GB
Memory I/O 320-bit GDDR5
Memory configuration 20 pieces of 128M ×16 GDDR5 SDRAM
Display connectors None
Power connectors Two 6-pin PCI Express power connectors
Board power ~225 W
Thermal cooling solution Active fan sink
Form factor Tesla Form Factor B (10.5 in length)
Weight without extender 826 grams
Available extenders •Long Extender with Offset
•Short Extender with Offset
•Flat Extender (short)
Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 4
MECHANICAL SPECIFICATIONS
PCI EXPRESS SYSTEM
The Tesla K20 GPU active accelerator board (Figure 1) conforms to the PCI Express full
height (4.376 inches by 10.5 inches) form factor.
Figure 2. Tesla K20 GPU Active
10.5 inches
4.376 inches
Mechanical Specifications
Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 5
TESLA K20 ACTIVE BRACKET

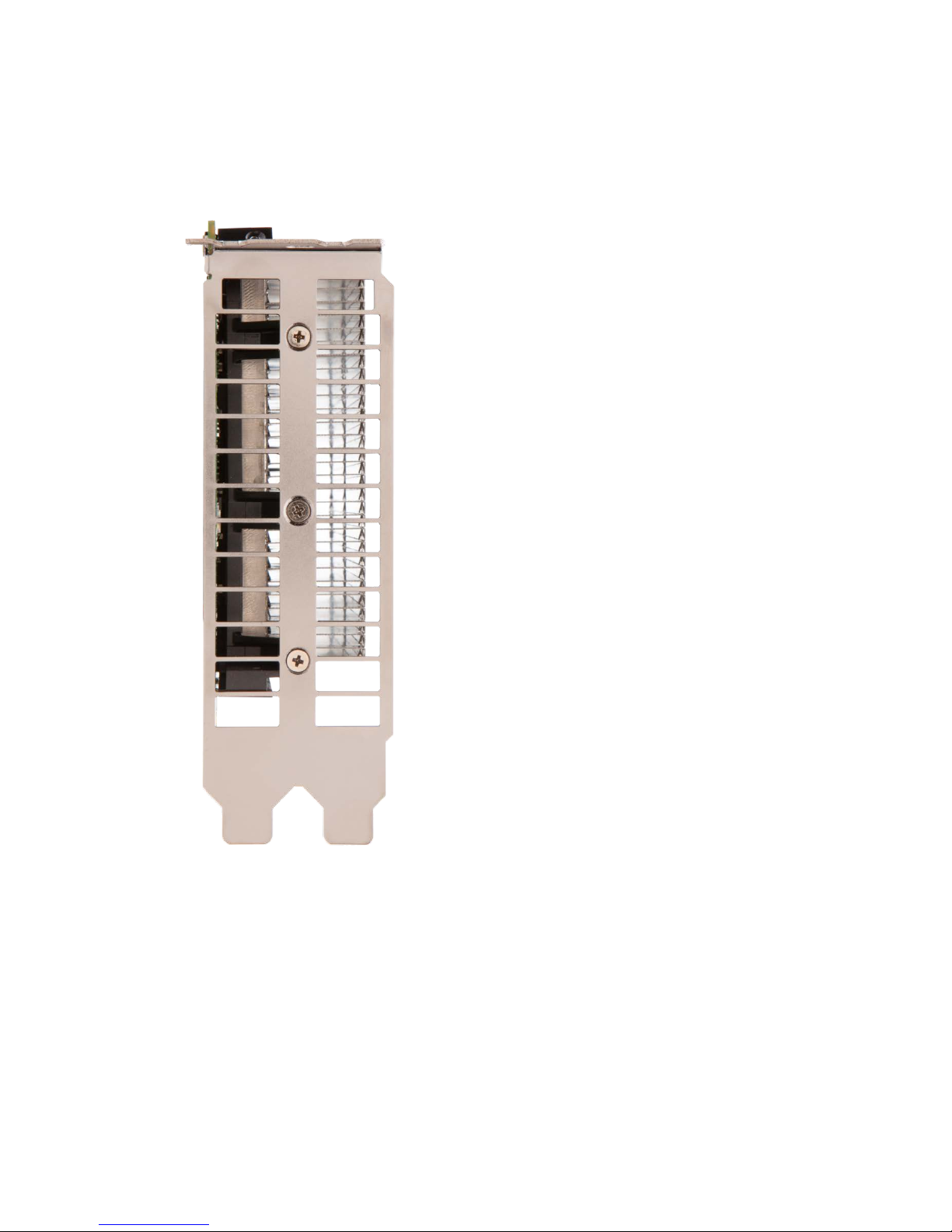

As shown in Figure 3, the Tesla K20 includes a vented bracket.
Figure 3. Tesla K20 Active Bracket
Mechanical Specifications
Tesla K20 GPU Active Accelerator BD-06499-001_v02 | 6
POWER CONNECTORS
The Tesla K20 GPU active accelerator board supports two 6-pin PCI Express power
connectors on the "east end" of the board.
Auxiliary 6-Pin PCI Express Power Connector
The Tesla K20 GPU active accelerator board is a high powered board solution and it
utilizes power from the PCI Express connector as well as the external power (a single 6-
pin PCI Express power connector is required for the Tesla K20). Figure 4 shows the
specification, and Table 5 shows the pinouts for the 6-pin external PCI Express power
connector.

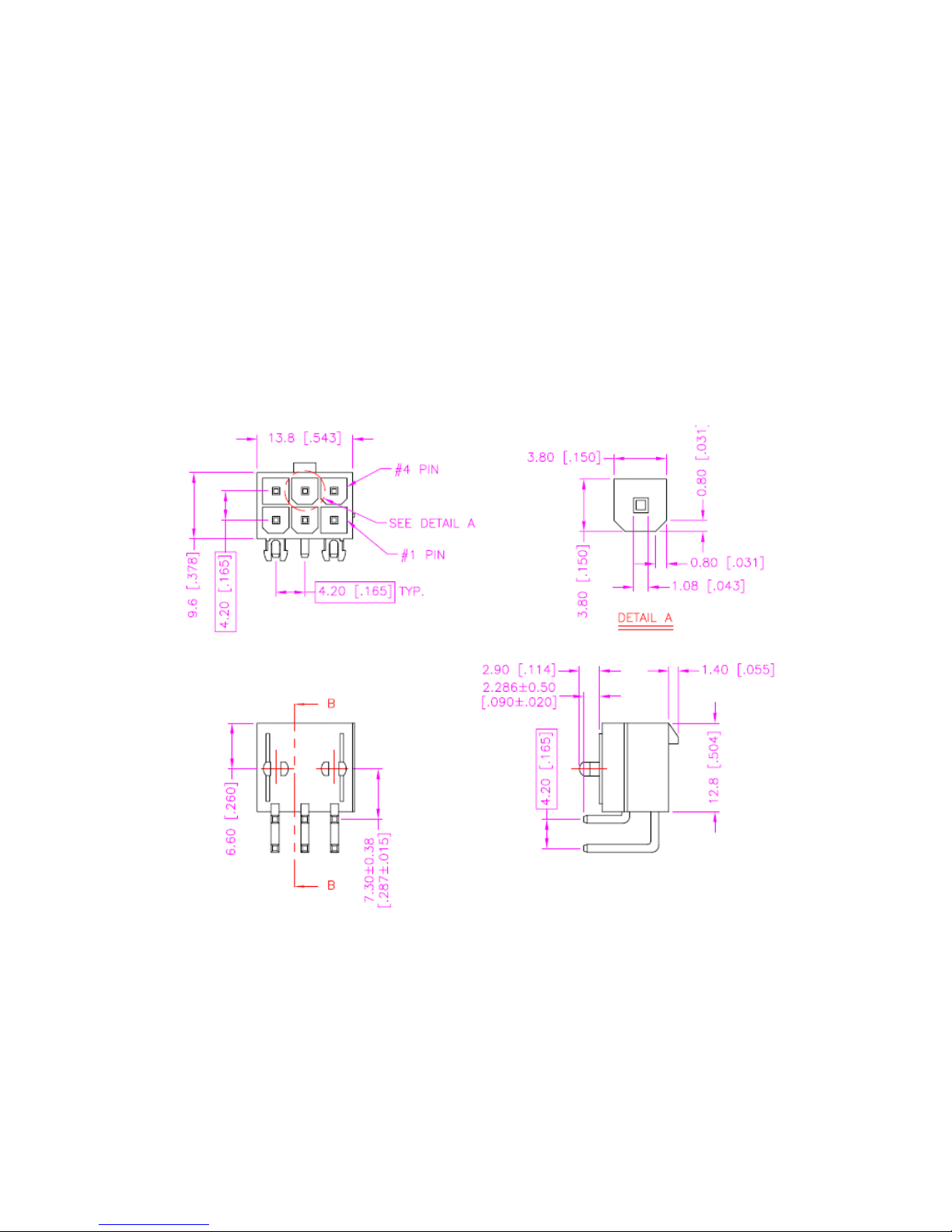

Figure 4. Auxiliary 6-Pin PCI Express Power Connector
