Numatic floorcare tt 1840 Manuel utilisateur

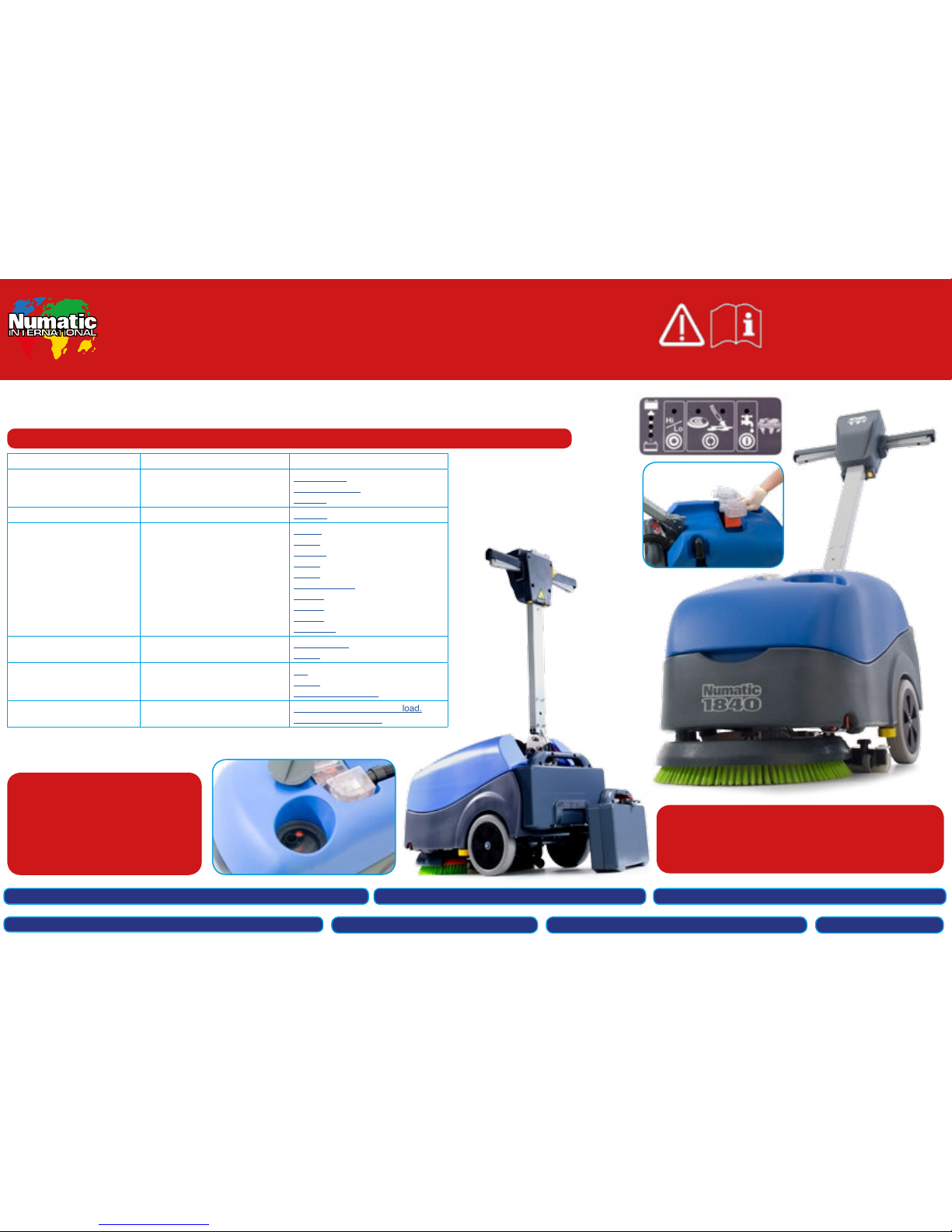

Trouble Shooting and Help Guide
TT / TTB 1840
FloorCare
PROBLEM CAUSE SOLUTION
Machine will not operate. Missing or blown fuses.
Battery not connected.
Low battery charge.
Replace fuse.
Connect Battery.
Charge.
Vacuum will not operate. Vacuum not turned on. Turn on.
Poor water pick-up. Waste-water tank full.
Blocked vacuum hose.
Loose hose.
Basket lter blocked.
Separator lter blocked.
Poor separator seal.
Damaged separator seal.
Damaged vacuum hose.
Damaged oor-tool blades.
Low battery charge.
Empty.
Clean.
Tighten.
Clean.
Clean.
Clean and ret.
Renew.
Renew.
Renew.
Recharge.
No brush / Scrub function. No brushes tted.
Brush overloaded.
Check and t.
Reset.
Little or no water ow. Clean-water tank empty.
Clean-water tank lter blocked.
Incorrect water ow setting.
Fill.
Clean.
Adjust tap as desired
Machine just ‘stops’ while
operating.
To much load on the brush system.
Blown fuse in battery pack.
Reset, decrease the brush load.
Replace 40 Amp fuse.
The 1840 has been designed to scrub and dry a variety of hard oors.
This machine has not been designed to pick up large objects, make sure you pre-sweep the oor before use.
For optimum performance make sure you keep the lters, hoses and oor tool blades clean and free from debris.
Disconnect from the power supply or remove the battery BEFORE commencing cleaning or maintenance.
After every time the machine is used.
The machine should be left in a clean and tidy state, drain
all uids, clean all lters, pipes and place the
battery on charge.
It is recommended you strip and
thoroughly clean the machine and its
components regularly.
At least weekly to avoid operating
troubles and machine breakdowns.
Fitting Brush, Filling Machine, Water Tap, Raising the Floor Tool Using Machine, Brush Overload, Battery Fuse Storage, Cleaning Floor tool and Inlet tube
Draining Top Tank, Draining Bottom Tank, Clean Water Filter Clean Separator, Removing Top Tank Remove Bottom Tank, Re-assembling Machine Battery Care
Make sure you read and fully
understand your 1840 manual
before using the machine.
Fitting brush, Filling machine, Clean water tap and Raising oor tool...
Clean Water Tap...
Fitting the brush...
Located on the left of the machine is the clean
water tap, make sure the tap has been turned
on before use.
Index page...
The machine uses a 400mm brush or a
360mm pad drive.
Fit the brush pad onto the Nulock drive and
twist to lock in place.
Filling tank...
Remove the ller cap and ll using a hose,
bucket or suitable container.
Fill the clean water tank to a maximum of 18
litres including chemical if required.
Fill gauge...
Fitted to the clean water inlet
is a red plastic ll gauge, this
shows the tank full.
Moving when full...
When the clean water tank is full the machine
can be tilted to a maximum of 450 without
spillage.
Take care to make sure that contaminants (leaves, hair, dirt, etc.) are not allowed to enter the clean water tank.
Ideally set the tap to 45% this enables the
cleaning solution to last the same time as a
fully charged battery..
On
Off
45%
Raising and lowering the Floor Tool...
To raise and lower the oor tool make sure the
oor tool is central to the machine.
Lift the handle near the base of
the handle to raise the oor tool
and lock in position.
Fitting Brush, Filling Machine, Water Tap, Raising the Floor Tool Using Machine, Brush Overload, Battery Fuse Storage, Cleaning Floor tool and Inlet tube
Draining Top Tank, Draining Bottom Tank, Clean Water Filter Clean Separator, Removing Top Tank Remove Bottom Tank, Re-assembling Machine Battery Care
Operating Switches and Overload / Fuses
Operating Switches...
Hi - Lo Setting
The 1840 machine provides a choice of both high and low speeds.
To activate the control panel: press the Mode select button or press a trigger on the handle.
The battery pack comes tted with a 40 amp fuse, replace the fuse using Numatic approved part (208526) if required.
Index page...
Battery Pack Fuse...
Press the mode select button again to get vacuum only.
The On / Off Switch and triggers are not required in this mode. (g 3)
Press the mode select button to switch this mode off and return to default mode.
The panel if unused will automatically turn off after 60 seconds.
1
4
3
2
Brush Overload...
The brush motor will cut out and the Hi / Lo light will ash if the brush motor has been overloaded (g 4).
Releasing the handle triggers will allow the machine to reset.
Mode Button
To start: hold down either trigger and press the yellow On / Off switch once.
Whilst the brush motor is running press the water ow On / Off button for uid control (g 1), the clean water On / Off tap must be open.
When the Triggers are released the brush motor and the cleaning solution pump will switch off, the vacuum motor will continue for 10 seconds.
Press the mode select button to operate the brush only (g 2).
The start sequence is required in this mode.
The water ow On / Off button will operate in this mode.
If the brush motor keeps overloading consider using a different type of brush.
Heavy brush load decreases the available battery run time.
Fitting Brush, Filling Machine, Water Tap, Raising the Floor Tool Using Machine, Brush Overload, Battery Fuse Storage, Cleaning Floor tool and Inlet tube
Draining Top Tank, Draining Bottom Tank, Clean Water Filter Clean Separator, Removing Top Tank Remove Bottom Tank, Re-assembling Machine Battery Care
Index page...
Make sure the oor tool inlet is not blocked
(g 1).
Brushes, Floor tool and Inlet tube...
Storage ...
Numatic recommend you leave your 1840 resting on the brush if leaving for machine for
short periods of time.
This saves distorting the squeeze blades.
Remove the brush and oor tool if you are leaving the machine for extended periods of
time.
Floor tool and inlet tube...
1 3
The oor tool can also be stripped and cleaned.
Clean the oor tool blades, replace if damaged and clean the castors.
Replace is a reverse of the removal procedure, making sure the slotted blade goes to the front of the machine.
The oor tool can be removed by swinging it to
the right side of the machine (g 2)...
2
And undoing the retaining knobs (g 3).
It is important to make sure the oor tool is properly maintained for reliable water pick up.
After every time your machine is used, we recommend you drain all uids, clean all
lters, pipes and place the battery on charge.
The machine should be left in a clean and tidy state.
Fitting Brush, Filling Machine, Water Tap, Raising the Floor Tool Using Machine, Brush Overload, Battery Fuse Storage, Cleaning Floor tool and Inlet tube
Draining Top Tank, Draining Bottom Tank, Clean Water Filter Clean Separator, Removing Top Tank Remove Bottom Tank, Re-assembling Machine Battery Care
Drain Top (Waste) Tank
Use the drain hose to empty the top tank and ush the tank through with clean water, it is
advisable to let the tank air dry, by removing the separator, if leaving your machine for extended
periods of time.
Drain Bottom (Clean Water) Tank
Located on the left of the machine is the yellow bottom tank drain cap.
Drain the clean water tank if leaving your machine for a extended period.
Note... Do not over tighten the yellow drain cap, this can not only cause the
plastic to split, but make it extremely hard to remove the next time you want to
drain the tank. The cap has a rubber seal and might require a spanner to remove.
Index page... Regular Maintenance...
*Note:- Machine side cut away for clarity.
Located under the clean water inlet is the clean water lter.
Cleaning chemicals residue can cause the lter to become blocked causing
poor water ow.
Remove the clean water inlet (g 1).
On the bottom of the tank is the clean water lter, clean the lter regularly
(g 2).
(Clean Water) Tank Filter...
1 2
If you require further training or
assistance contact your supervisor
Fitting Brush, Filling Machine, Water Tap, Raising the Floor Tool Using Machine, Brush Overload, Battery Fuse Storage, Cleaning Floor tool and Inlet tube
Draining Top Tank, Draining Bottom Tank, Clean Water Filter Clean Separator, Removing Top Tank Remove Bottom Tank, Re-assembling Machine Battery Care
Remove and clean the separator...
Index page... Regular Maintenance...
The separator has a sealing rubber which should be cleaned and inspected at every cleaning of the machine (g 1).
Also remove the two lters clipped into the separator and ush with clean water.
Replace by tting the rear of the lter rst then clipping the front to lock in place (g 2).
If you are leaving the machine for a long period leave the separator off, allowing the machine to air dry. Replace before commencing cleaning.
1 2
Remove the top (dirty water) tank...
Disconnect and remove the battery before proceeding with tank removal.
Once emptied the top (dirty water) tank can be simply lifted off the machine.
If you require further training or
assistance contact your supervisor
Fitting Brush, Filling Machine, Water Tap, Raising the Floor Tool Using Machine, Brush Overload, Battery Fuse Storage, Cleaning Floor tool and Inlet tube
Draining Top Tank, Draining Bottom Tank, Clean Water Filter Clean Separator, Removing Top Tank Remove Bottom Tank, Re-assembling Machine Battery Care
Index page...
Removing the bottom (clean water) tank...
Once the Bottom (clean water)Tank has been emptied the tank can be removed, this involves rstly disconnecting the water feed pipe from the
clean water tap.
Note which way the clean water pipe and the black suction pipes are routed as they will have to be re-routed the same way on re-assembling.
Lift the bottom tank making sure the black suction hose passes through the tank. Remove the suction hose from the inlet tube.
Once the machine is stripped you can clean all tubes, pipes and lters.
It is recommended that you carry out this procedure once a week.
Re-assembling the machine...
Ret the oor tool vacuum hose and feed the hose through the bottom tank, place the bottom tank onto the base.
Make sure the water feed pipe locates in the channel moulded into the base of the tank.
Connect the water feed pipe to the tap.
Place the oor tool vacuum hose as shown and ret the top tank. Ret the Separator and reconnect the vacuum and separator hoses.
If you require further training or
assistance contact your supervisor
Regular Maintenance...
Fitting Brush, Filling Machine, Water Tap, Raising the Floor Tool Using Machine, Brush Overload, Battery Fuse Storage, Cleaning Floor tool and Inlet tube
Draining Top Tank, Draining Bottom Tank, Clean Water Filter Clean Separator, Removing Top Tank Remove Bottom Tank, Re-assembling Machine Battery Care
Battery Care...
Battery charging...
Index page...
Use recommended PPE as required...
Please comply with your company’s COSHH risk assessments
(Make sure you wear the appropriate safety clothing).
Leave the machine empty and clean...
Open the separator and let the machine air dry...
Only leave the machine resting on the brush and oor tool for short periods of time...
If you require further training or
assistance contact your supervisor
Manufactured by
Numatic International
Chard, Somerset. TA20 2GB
01460 68600
We have had cases where operatives have plugged the charger into the machine (g 1) instead of the battery (g 2), this will not charge the battery, but will cause damage to the
machine.
Disconnecting the Charger.
Make sure you use the connector handles tted to the grey plug when disconnecting the machine, avoid pulling on the electrical cables, as this can cause damage to the cable
(g 3).
Recharge the battery fully after its last use.
Do not leave the battery in a discharged state.
1 32
MED-000610 08/15 (A01)
