Norac UC5 Topcon X30 Manuel utilisateur

Spray Height Controlle

Generic Unit

(Fixed Geometry)

sta

n M

GN02

Printed in Canada

Reorder P/N: UC5-BC-GN02-INST Rev A (Generic Unit Fixed Geometry)

NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without

the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information contained in this

manual. The technical information in this manual was reviewed at the time of approval for publication.

Contents

1Introduction.............................................................................................................. 1

2General UC5 System Layout .................................................................................. 2

3Kit Parts.................................................................................................................... 3

4Pre-Install Checklist ................................................................................................ 5

5Ultrasonic Sensor Installation................................................................................. 6

6Module Installation................................................................................................ 10

7Connecting the Sensors to the CAN-Bus ............................................................. 13

8Software Setup ....................................................................................................... 14

9Cable Drawings ...................................................................................................... 15

1 Introduction

Congratulations on your purchase of the NORAC UC5 Spray Height Controller. This system is

manufactured with top quality components and is engineered using the latest technology to

provide operating reliability unmatched for years to come.

When properly used the system can provide protection from sprayer boom damage, improve

sprayer efficiency, and ensure chemicals are applied correctly.

Please take the time to read this manual completely before attempting to install the system. A

thorough understanding of this manual will ensure that you receive the maximum benefit from

the system.

Your input can help make us better! If you find issues or have suggestions regarding the parts

list or the installation procedure, please don’t hesitate to contact us.

Phone: 1 800 667 3921 Canada (Toll Free)

1 866 306 6722 United States (Toll Free)

0 800 404 8389 United Kingdom (Toll Free)

(+1) 306 664 6711 All other regions

E-mail: [email protected]

Web: www.norac.ca

Every effort has been made to ensure the accuracy of the information contacted in this

manual. All parts supplied are selected to specially fit the sprayer to facilitate a complete

installation. However, NORAC cannot guarantee all parts fit as intended due to the

variations of the sprayer by the manufacturer.

Please read this manual in its entirety before attempting installation.

2 General UC5 System Layout

Figure 1 and Figure 2 illustrate the general layout of the UC5 system components:

Figure 1: General UC5 System Layout (Self Propel Type)

Figure 2: General UC5 System Layout (Pull Type)

3 Kit Parts

The following diagrams illustrate the GN02 kit specific parts of the NORAC UC5 system.

Interface cables (C21) and power cables (C30) are shown in this manual and may not be

included. Cables are available separately from NORAC. Please refer to the UC5 Generic Cable

Ordering Guide (P/N: UC5-BC-CABLE-GUIDE), for cable ordering information.

3.1 Kit Overview

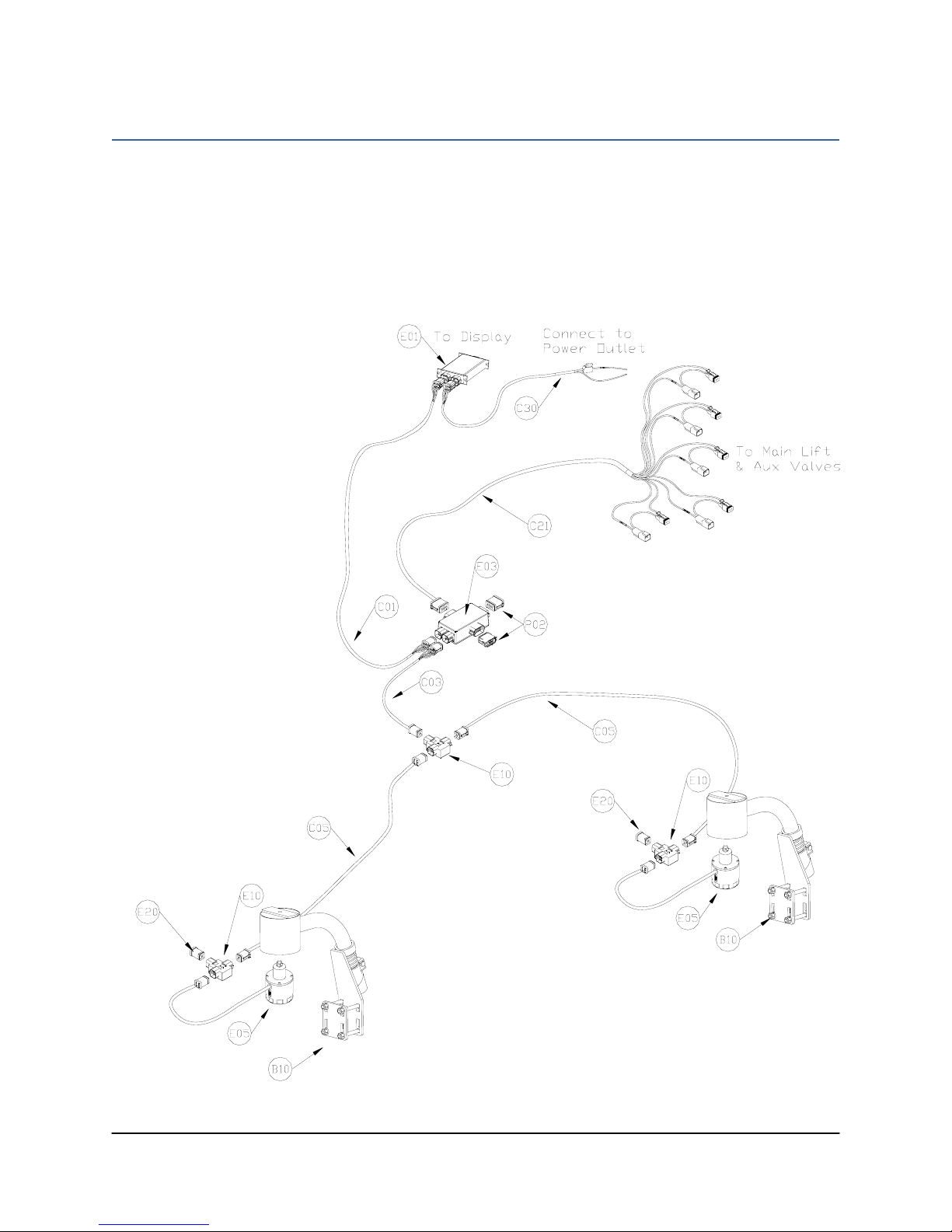

Figure 3: GN02 System Parts

3.2 List of Parts

Item Part Number Name Quantity

B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1

B10 44728 MOUNTING BRACKET COMPLETE UC4 BREAKAWAY EXTENDED 2

C01 43220-10 CABLE UC5 NETWORK 14 AWG 10M 1

C03 43210-01 CABLE UC5 NETWORK 18 AWG 1M 1

C05 43210-20 CABLE UC5 NETWORK 18 AWG 20M 2

E01 43710 UC5 CONTROLLER MODULE 1

E03 43732 UC5 INPUT MODULE PASS THRU 1

E05 43750 UC5 ULTRASONIC SENSOR 2

E10 43760 UC5 NETWORK COUPLER 3-WAY 3

E20 43780 UC5 NETWORK TERMINATOR PLUG 2

M01 UC5-BC-MANUAL MANUAL OPERATORS UC5 1

M02 UC5-BC-GN02-INST MANUAL INSTALLATION UC5 GENERIC UNIT (FIXED BOOM) 1

P02 106035 UC5 NETWORK 12 PIN PLUG (A-KEY) 2

4 Pre-Install Checklist

The pre-install checklist is necessary to check the existing sprayer functionality before the

installation.

1. Unfold the sprayer over a flat, unobstructed area (i.e. no power lines…etc.).

2. Ensure all boom-fold operations are functional (place a check mark in boxes below).

3. Bring engine to field-operational RPM and record below.

4. Record the time (seconds) it takes for a full stroke for all boom functions. To ensure

repeatable measurements, take the average of 3 trials.

5. Not all sprayers will have the functions listed below in Figure 4.

Ensure the boom has sufficient travel so it does not contact the ground during these tests.

Figure 4: Pre-Install Boom Speeds

5 Ultrasonic Sensor Installation

5.1 Bracket Assembly

Assemble the breakaway sensor bracket as illustrated in Figure 5, following the instructions

below.

Figure 5: Breakaway Bracket Assembly

1. Compress the spring and insert it together with the collar into the base.

2. Slide the tube through the assembled part.

3. Using the bolt and nut, tighten the collar to the tube with the sensor tube centered.

4. Apply a small amount of grease to the rotating surfaces of the bracket.

5.2 Ultrasonic Sensor Serial Number Arrangement

When installing the UC5 sensors, start with the smallest serial number on the left-hand side, and

proceed to the largest serial number on the right hand side. Each UC5 sensor has a serial number

stamped on the sensor housing.

Figure 6: Sensor Serial Number Arrangement
