Norac UC4+ Manuel utilisateur
John Deere 30 Series Main Lift Option
Installation Manual
Spray Height Controller
Improving the competitiveness of Industry and
griculture through Precision Measurement
Printed in Canada
Copyright 2008 by NORAC Systems International Inc.
Reorder P/N: UC4+BC+JD9-INST Rev C (John Deere 30 Series Main Lift Kit)
NOTICE
NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the
requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information contained
in this manual. The technical information in this manual was reviewed at the time of approval for publication.
TABLE OF CONTENTS
1
INTRODUCTION..................................................................................................................................1
2
GENERAL SYSTEM DESCRIPTION ..................................................................................................2
3
PARTS LISTS ......................................................................................................................................3
4
HYDRAULIC INSTALLATION.............................................................................................................5
5
ELECTRICAL INSTALLATION ...........................................................................................................8
6
COMPLETING THE INSTALLATION..................................................................................................9
7
ELECTRICAL REFERENCE – CABLE DRAWINGS........................................................................10
7.1
VALVE CABLE MAIN LIFT .............................................................................................................10
8
APPENDIX A – VALVE CONNECTOR CHANGE.............................................................................11
1
1
INTRODUCTION
Congratulations on your purchase of the NORAC UC4+ Spray Height Controller. This system is
manufactured with top quality components and is engineered using the latest technology to
provide operating features and reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
YOUR INPUT CAN HELP MAKE US BETTER! If you find issues or have suggestions
regarding the parts list or the installation procedure, please don’t hesitate to contact us via
the information given below:
Phone: 1-800-667-3921 Canada (Toll Free)
1-866-306-6722 United States (Toll Free)
0-800-404-8389 United Kingdom (Toll Free)
1-306-664-6711 all other regions
E-mail: [email protected]
Website: www.norac.ca
2
2
GENERAL SYSTEM DESCRIPTION
Figure 1 depicts the general system layout of the UC4+ Spray Height Control system.
Figure 1 – System Components and General Location
NOTICE:
Every effort has been made to ensure the
accuracy of the information contained in this
manual. All parts supplied are selected
specially to fit the sprayer to facilitate a
complete installation. However, NORAC
cannot guarantee all parts fit as intended due
to the variations of the sprayer by the
manufacturer. Please read this manual in
its entirety before attempting installation.
ATTENTION:
When installing the UC4+ Spray Height
Control system please be aware that at a
point in the installation your sprayer booms
will be inoperative until the installation is
complete. Any installation procedure
requiring boom movement will need to be
done first. Once the hydraulics have been
disconnected you must complete the
electrical installation before the booms
become operative.
3
3
PARTS LISTS
The parts that come with your UC4+ Sprayer Boom System are listed in Table 1. The item number on
the left side of this table references each part.
Please ensure that all parts in your kit are present before proceeding with your installation.
Table 1 – UC4+ Spray Height Control System Parts (Rev A)
Item Part Number Name Quantity
C17 44658-45D CABLE VALVE UC4 BC MAIN LI T DT 1
H03 44863-23 HOSE ASSEMBLY 122R2-06 32 IN L 6 ORX 6 ORX 1
H21 44865-37 HYDRAULICS ITTING KIT - JD9 1
M10 UC4+BC+JD9-INST MANUAL INSTALLATION UC4+ JOHN DEERE 30 SERIES MAIN LI T KIT 1
V01 44952D VALVE ASSEMBLY EXPANSION DPC PROP DT 1
4
Table 2 - 44865-37 (Rev B) - Hydraulics Fittings Kit Details
Item Part Number Name Quantity
03 104586 TEE ADAPTER - 6 ORXR 6MORT 1
05 44917 MALE ADAPTER - 6MB 6MOR 1
08 44926 ORI ICE INSERT 3/64" 1
09 104369 PLUG - 6MBP 1
6 M B - 6 M OR X 90
SIZE IN
1/16TH'S
GENDER: MALE
OR FEMALE
90
°
ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
5
4
HYDRAULIC INSTALLATION
WARNING!
The hydraulic system creates very high
pressure. Before disconnecting any
hydraulic lines ensure all pressure has
been bled from the system. When
changing the boom hydraulic hoses leave
the booms in TRANSPORT POSITION.
IMPORTANT:
Component failure due to oil
contamination is not covered under the
UC4+ Spray Height Control system
warranty. It is recommended that a
qualified technician does the hydraulic
installation.
1. On a clean surface remove all plastic
plugs from the NORAC expansion valve
block (V01).
2. Install the 6MBP (F09) into the A port
of the expansion block (Figure 2).
3. Insert the orifice (F08) into the B port of
the expansion block (Figure 2).
4. Install the 6MB 6MOR fitting (F05) into
the B port of the expansion block
(Figure 2).

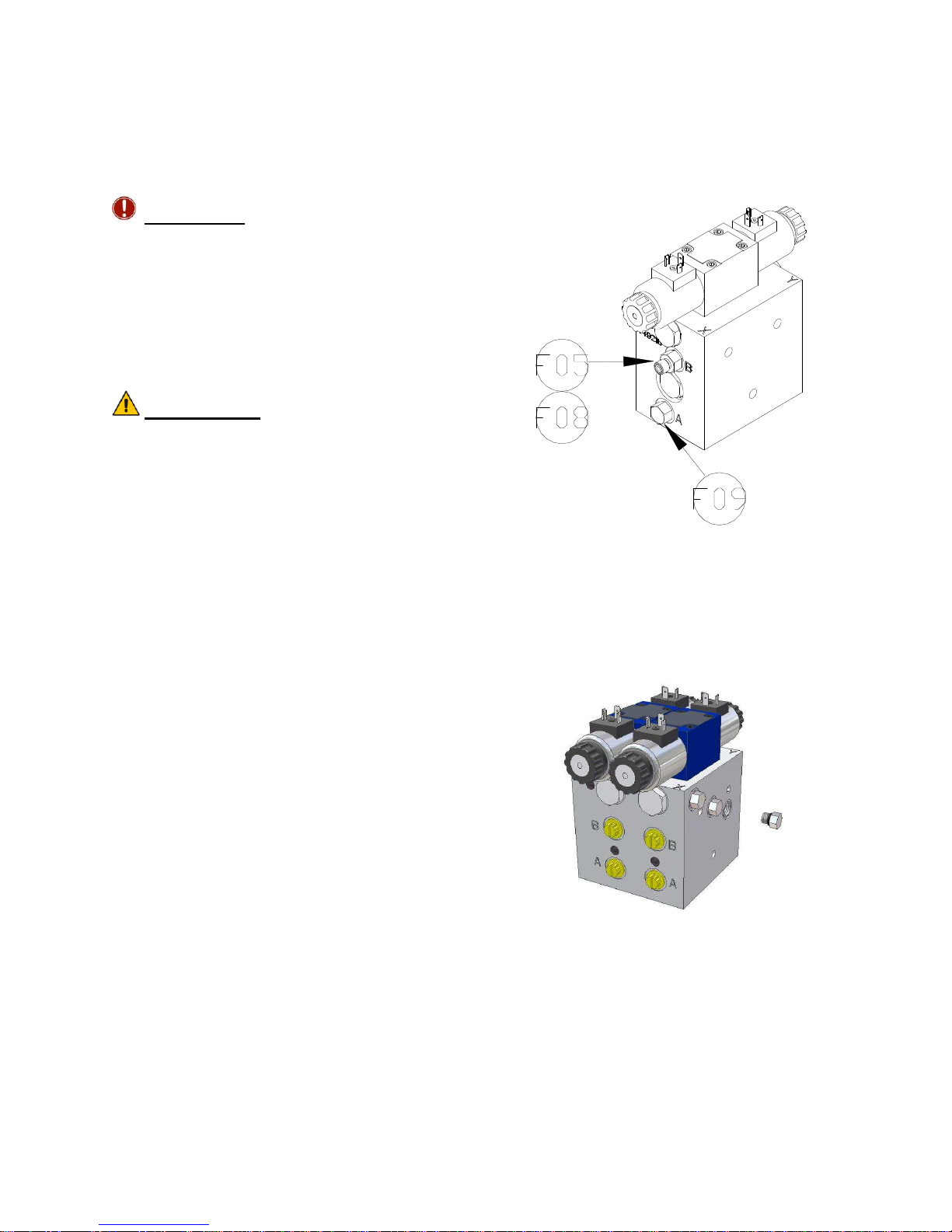

Figure 2 - Third station expansion block
assembly
5. Remove the three 4MBP plugs from the
UC4+ 2 station valve block.
Figure 3 - 2 Station valve block plug
removal
6. Coat the three o-rings in hydraulic oil
and install them into the expansion
block.
6
Make sure the o-rings are properly
seated.
Figure 4 - Expansion valve O-ring
placement
7. If this is the only expansion block
attached to the two station valve block,
thread the 4.5” studs into the UC4+
block.
Bolts (3.5”) may be included in
your kit as a substitution for the
studs.
Figure 5 - Expansion valve stud insertion
8. If two expansion blocks are installed, 7”
long studs are provided.
Bolts (6”) may be included in your
kit as a substitution for the studs.
Figure 6 - Attaching two expansion valves
9. Attach the expansion block to the UC4+
block using the included spring washers
and nuts.
10. Tighten the nuts on the studs to 31 ft-lbs
Torque.
Figure 7 - Expansion valve final assembly
11. If the valve block is not already installed
on the sprayer, install it as outlined in
the UC4+ Spray Height Control kit
installation manual.
7
12. Attach hose H03 to port B on the
expansion block. Route the free end of
the hose (H03) to the John Deere main
lift tee, which is located on the right
hand end of the John Deere valve block
(Figure 8).
Figure 8 - Main Lift Tee Location
13. Disconnect the John Deer main lift tee
and insert the supplied 6FORXR
6MORT tee fitting (F03), shown in
Figure 8.
14. Attach the hose (H03) to the 6FORXR
6MORT tee fitting (F03).
You must ensure no hydraulic
components will interfere with any
sprayer parts or be pulled tight at
any time.
Figure 9 - Main lift tee fitting installed
Main Lift Tee
F03
H03
