Spray Height Controlle
r
Summers
(Main Lift & Enhanced Stability)
Installation Manual
SM03-4B
Printed in Canada
Copyright 2009 by NORAC Systems International Inc.
Reorder P/N: UC5-SM03-4B-INST Rev C (Summers Main Lift & Enhance Stability Option –
44962D)
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and
without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information
contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.
Contents
1Introduction.....................................................................................................1
2Kit Parts ...........................................................................................................2
3Hydraulic Installation .....................................................................................5
4Roll Sensor Installation ..................................................................................7
5Electrical Installation......................................................................................9
6Software Setup............................................................................................. 11
7Cable Drawings ............................................................................................ 12
1
1Introduction
Congratulations on your purchase of the NORAC UC5 Spray Height Controller. This system
is manufactured with top quality components and is engineered using the latest technology to
provide operating reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
Every effort has been made to ensure the accuracy of the information contained in
this manual. All parts supplied are selected to specially fit the sprayer to facilitate
a complete installation. However, NORAC cannot guarantee all parts fit as
intended due to the variations of the sprayer by the manufacturer.
Please read this manual in its entirety before attempting installation.
2
2Kit Parts
2.1 Hydraulic Plumbing
Figure 1: SM03 Hydraulic Plumbing
3
2.2 List of Parts
The following tables list the Summers main lift and enhanced stability kit (SM03) specific parts of
the NORAC UC5 system. This kit is to be used when installing the proportional main lift
option with existing Summers installations that have a valve block that was purchased after
December of 2010. These valve blocks require a 4-bolt expansion block.
Item Part Number Name Quantity
C03 43210-01 CABLE UC5 NETWORK 18 AWG 1M 1
C04 43210-03 CABLE UC5 NETWORK 18 AWG 3M 1
C10 43230-04 CABLE UC5 VALVE 2PIN DT TO 2PIN DT 2
E04 43741* UC5 ROLL SENSOR VER. 2 1
E10 43760 UC5 NETWORK COUPLER 3-WAY 1
E12 43764 UC5 NETWORK COUPLER 2-WAY 1
H01 44863-01 HOSE ASSEMBLY 122R2-06 36 IN L 6FJX 6FJX 1
H10 44865-50 HYDRAULICS FITTING KIT - SM3 1
M01 UC5-SM03-4B-INST MANUAL INSTALLATION UC5 MAIN LIFT OPTION SUMMERS - 44962D 1
V01 44962D VALVE ASSEMBLY EXPANSION DPOC PROP DT 4 BOLT 1
* For systems purchased BEFORE October 1, 2011, the roll sensor part number is 43740.
4
2.3 Hydraulic Fitting Kit Details (P/N: 44865-50)
Item Part Number Name Quantity Picture
F02 103839 TEE - 6FJXR 6MJT 1
F03 104369 PLUG - 6MBP 1
F04 103312 MALE ADAPTER - 6MB 6MJ 1
6 M B - 6 M OR X 90
SIZE IN
1/16TH'S
GENDER: MALE
OR FEMALE
90° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
The use of dielectric grease is not recommended on any NORAC electrical
connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of
the supplied Permatex Anti-seize grease to all threaded parts upon installation.
Permatex Anti-seize lubricant is preferred, but other similar anti-seize products
may be used.
5
3Hydraulic Installation
Ensure all pressure has been bled from the system before disconnecting any lines
or fittings. Hydraulic pressure will exist on the main lift circuit unless the main lift
is all the way down.
Component failure due to oil contamination is not covered under the NORAC UC5
system warranty. It is recommended that a qualified technician perform the
hydraulic installation.
1. Use Figure 1 as a reference for installing the hydraulics.
2. Loosen the existing 2-station valve block so that it can be moved and/or twisted for the
installation of the expansion block.
3. Remove the four 4MBP plugs from the 2 station valve block (Figure 2).
4. Coat the four o-rings in hydraulic oil and install them into the expansion block. Ensure the
o-rings are seated properly.
5. Attach the expansion block to the 2 station block using the included spring washers and
bolts.
6. Tighten the bolts to 31 ft-lbs.

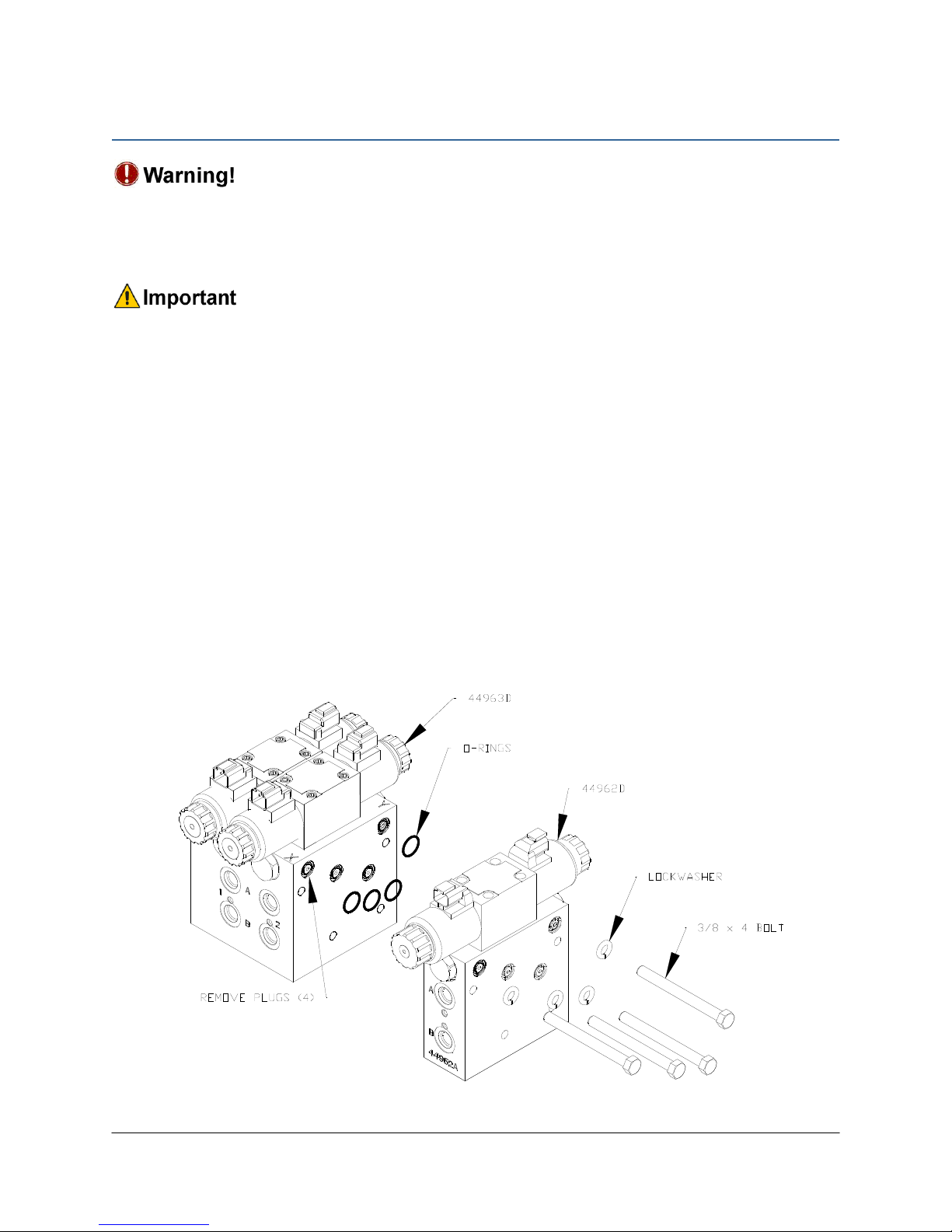

Figure 2: NORAC Expansion Block Assembly
6
7. Remove all plastic plugs from the NORAC expansion valve block (V01).
8. Install the 6MB 6MJ fitting (F04) into the “B” port of the expansion block.
9. Install the 6MBP plug (F03) into the “A” port of the expansion block.
10. If the valve block is not already installed on the sprayer, install it as outlined in the UC5
Spray Height Control installation manual.
11. Attach hose H01 to the “B” port on the expansion block. Route the free end of the hose
to the Summers valve block.
12. Tee in H01 to the existing main lift line on the Summers valve block, using the tee fitting
(F02).
You must ensure no hydraulic components will interfere with any sprayer parts or
be pulled tight at any time.
7
4Roll Sensor Installation
All roll sensors must be part number 43741. If the previously installed roll sensors
are part number 43740, they must be replaced by 43741 before proceeding with
this installation.
1. Securely mount the roll sensor to the included roll sensor bracket using the #6 machine
screw and nylon lock-nuts.
2. The orientation of the mounted roll sensor to the roll sensor bracket will depend on the
bracket mounting. The roll sensor CAN-bus connector must be pointing towards the right
side of the sprayer (when looking from the rear of the sprayer).
Figure 3: Mounting Roll Sensor to Bracket
Figure 4: Roll Sensor Orientation - Connector Facing Right Wing
