Norac UC4.5 Manuel utilisateur
Generic Unit
Fixed (Non-VG) Boom with Slant Control
Installation Manual
GN2
Printed in Canada
Copyright 2012 by NORAC Systems International Inc.
Reorder P/N: UC4.5-BC-GN2-INST Rev B (Generic Unit – Fixed (Non-VG) Boom with Slant
Control)
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and
without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information
contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.
Contents
1Introduction................................................................................................................. 1
2General UC4.5 System Layout.................................................................................. 2
3Kit Parts ....................................................................................................................... 3
4Ultrasonic Sensor Installation ................................................................................... 5
5Electrical Installation .................................................................................................. 9
6Software Setup..........................................................................................................12
7Calibrating the Slant Valve ......................................................................................13
8Cable Drawings .........................................................................................................16
1
1Introduction
Congratulations on your purchase of the NORAC UC4.5 Spray Height Control System. This
system is manufactured with top quality components and is engineered using the latest
technology to provide operating reliability unmatched for years to come.
When properly used the system can provide protection from sprayer boom damage, improve
sprayer efficiency, and ensure chemicals are applied correctly.
Please take the time to read this manual completely before attempting to install the system. A
thorough understanding of this manual will ensure that you receive the maximum benefit from
the system.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
Every effort has been made to ensure the accuracy of the information contained in
this manual. All parts supplied are selected to specially fit the sprayer to facilitate
a complete installation. However, NORAC cannot guarantee all parts fit as
intended due to the variations of the sprayer by the manufacturer.
Please read this manual in its entirety before attempting installation.
2
2General UC4.5 System Layout
Figure 1 and Figure 2 illustrate the general layout of the UC4.5 system components:
Figure 1: General UC4.5 System Layout (Self Propel Type)
Figure 2: General UC4.5 System Layout (Pull Type)
3
3Kit Parts
The following diagrams illustrate the GN2 kit specific parts of the NORAC UC4.5 system.
Interface and power cables are shown in this manual and may not be included. Cables are
available separately from NORAC. Please refer to the UC4.5 Generic Cable Ordering Guide
(P/N: UC4.5-BC-CABLE-GUIDE), for cable ordering information (available at www.norac.ca).
3.1 Kit Overview
Figure 3: GN2 System Parts
NOTE: Parts shown in blue are NOT included in this kit and must be ordered
separately.
4
3.2 List of Parts
Item Part Number Name Quantity
B05 44706-01 KIT CABLE TIE BLACK 10 PCS 21 IN 150 PCS 7.5 IN 1
B20 44971 SENSOR MOUNTING BRACKET LOW PROFILE 16GA 2
C05 43210-20 CABLE UC5 NETWORK 18 AWG 20M 2
E01 45100 UC4.5 BOOM CONTROL PANEL 1
E05 43750 UC5 ULTRASONIC SENSOR 2
E10 43760 UC5 NETWORK COUPLER 3-WAY 1
E20 43764T UC5 NETWORK COUPLER 2-WAY WITH TERMINATOR 2
M01
UC4.5-BC-MANUAL-
OPERATOR
OPERATOR MANUAL UC4.5 SPRAY HEIGHT CONTROL 1
M02 UC4.5-BC-GN2-INST MANUAL INSTALLATION UC4.5 GENERIC FIXED BOOM 1
M03
UC4.5-BC-GN2-INSTE
MANUAL INSTALLATION UC4.5 END USER GENERIC FIXED BOOM 1
M06
45015
ANTI-SEIZE LUBRICANT KIT 1
The use of dielectric grease is not recommended on any NORAC electrical
connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of
the supplied Permatex Anti-seize grease (M06) to all threaded parts upon
installation. Permatex Anti-seize lubricant is preferred, but other similar anti-seize
products may be used.
5
4Ultrasonic Sensor Installation
4.1 Ultrasonic Sensor Serial Number Arrangement
When installing the UC5 sensors, start with the smallest serial number on the left-hand side,
and proceed to the largest serial number on the right hand side. Each UC5 sensor has a serial
number stamped on the sensor housing.
Apply a light coating of the supplied Permatex Anti-seize grease (M06) to all
threaded parts upon installation.
Figure 4: Sensor Serial Number Arrangement
6
4.2 Ultrasonic Sensor Mounting Guidelines
The following guidelines will ensure optimal sensor performance and prevent sensor
measurement error. These rules should be followed for both the wing sensors and the main
lift (middle) sensor.
1. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground.
2. Ensure that there are no obstructions within a 12-inch diameter circle projected directly
below the center of the sensor.
3. The sensor should be approximately vertical at normal operating heights.
Figure 5: Sensor Mounting Guidelines
7

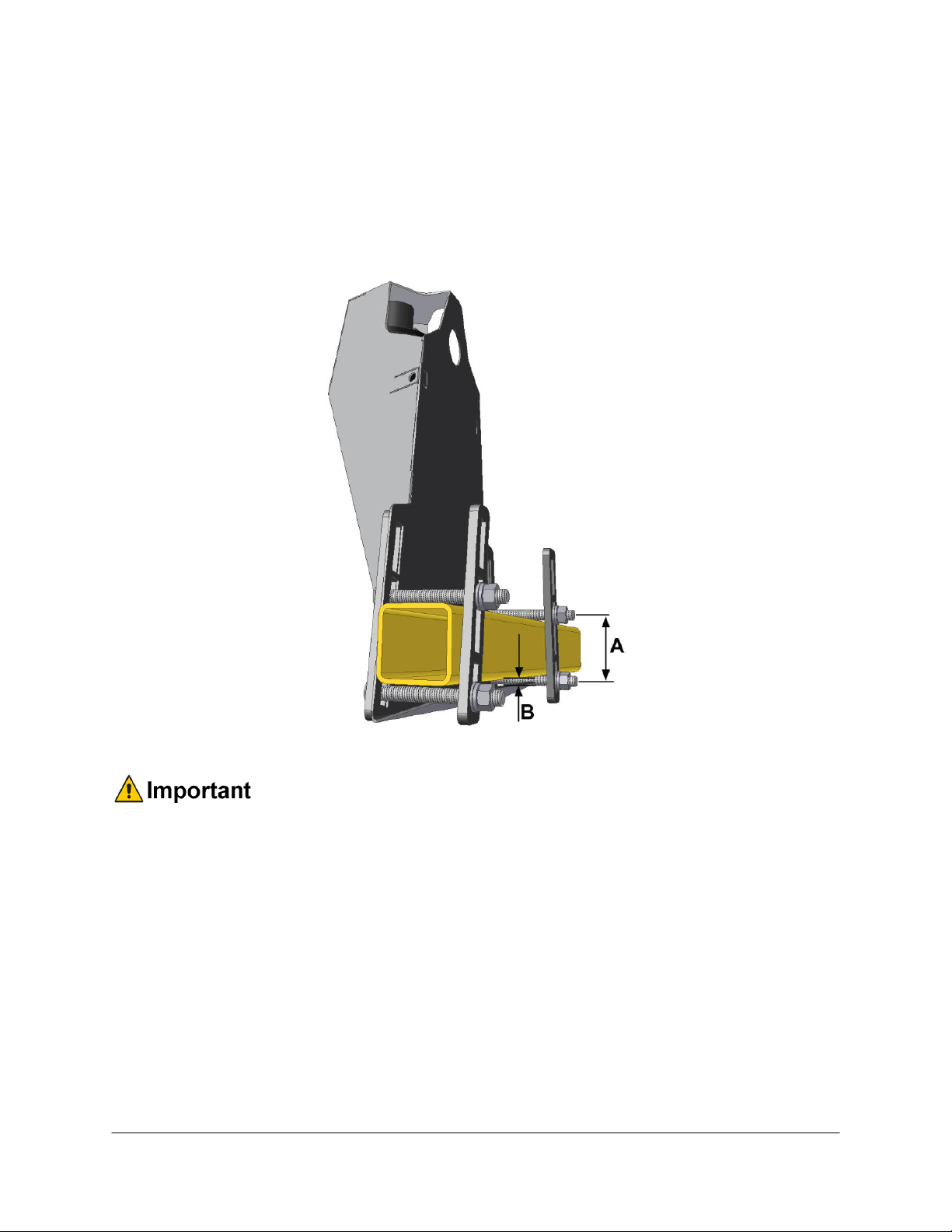

4.3 Low Profile Bracket Mounting Guidelines
1. Minimize the distance between the bolts to prevent bending the bracket and prevent the
bracket from loosening over time.
2. Ensure the bracket is mounted tight against the bottom of the boom, minimizing the
distance between the boom structure and the angled flange.
Figure 6: Bracket Mounting Guidelines
A problem can arise if a sensor is not mounted correctly. It is possible for the
sensor to read off of the boom instead of the ground. This may only become
apparent once the control system is switched from soil to crop mode.
Also be careful that the sensor bracket does not collide with any other part of the
boom when the boom is folded to transport position. If possible, mount the sensor
brackets while the booms are folded to ensure they will not cause interference.
