PULSE
Display Kit -
Hagie
Installation Manual
PULSE-HG06-HG07
Printed in Canada
Copyright 2015 by NORAC Systems International Inc.
Reorder P/N: Pulse-HG06-HG07-INST Rev D (PULSE Display Kit - Hagie)
NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and
without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information
contained in this manual. The technical information in this manual was reviewed at the time of approval for publication.
1
Contents
1INTRODUCTION..................................................................................................... 2
1.1List of Parts..........................................................................................................................................................................2
2INSTALLATION........................................................................................................ 3
3CABLE DRAWINGS ................................................................................................. 4
3.1Item C01: 43220-01 - Cable UC5 Network 14 AWG - 1M.....................................................................................4
3.2Item C02: 43220-0.5 - Cable UC5 Network 14 AWG – 0.5M................................................................................4
2
1Introduction
The PULSE™ Display Kit Manual is intended to be used in conjunction with the UC5™ Spray
Height Control Installation Manual. This manual provides instructions to interface the UC5
Control Module to the PULSE Display. For installation of the rest of the UC5 Spray Height
Control System please refer to the sprayer specific manual provided with the kit.
Your input can help make us better! If you find issues or have suggestions regarding the parts
list or the installation procedure, please don’t hesitate to contact us.
1.1 List of Parts
Item Part Number Name Quantity
B01 105728 RAM-233 RAIL MOUNT ADAPTER KIT FOR RAM-202 BASE 1
C01 43220-01 CABLE UC5 NETWORK 14 AWG 1M 2
C02 43220-0.5 CABLE UC5 NETWORK 14 AWG 0.5M 1
D01 43800-HG UC5 PULSE DISPLAY PANEL - HAGIE 1
E12 43764 UC5 NETWORK COUPLER 2-WAY 1
E20 43764T UC5 NETWORK COUPLER 2-WAY WITH TERMINATOR 2
M01
UC5-BC-MANUAL-OPERATOR
MANUAL UC5 OPERATORS 1
M04 PULSE-HG06-HG07-INST MANUAL UC5 PULSE DISPLAY KIT - HAGIE 1
If this kit is being installed with an existing system with control module serial
number lower than 3200, the following cable is required:
Item Part Number Name Quantity
C30 43250-17 CABLE UC5 POWER RETROFIT FOR ECHO SWITCH FUSED 1
3
2Installation
Ensure the PULSE power switch is OFF for the remainder of the installation
(Bottom of switch pressed IN).
1. Install the PULSE™ display in the cab of the sprayer where it will be clearly visible and
within easy reach of the operator.
When installing the PULSE, it is recommended to install it no closer than 1
(one) meter (40 inches) from 2-way radio antennas. Older 2-way radio
antennas can cause interference.
2. Connect cable C01 between the terminators (E20). Connect one terminator to the cable
from the PULSE display (D01) and the other to the remaining cable C01.
3. Connect the 2-way coupler (E12) between the free end of cable C01 and cable C02.
4. Connect the free end of the network cable (C02) to the Display Bus connector on the
control module (E01). This is the end of the control module that only has one Deutsch
connector.
Figure 1: PULSE Display Kit Parts
4

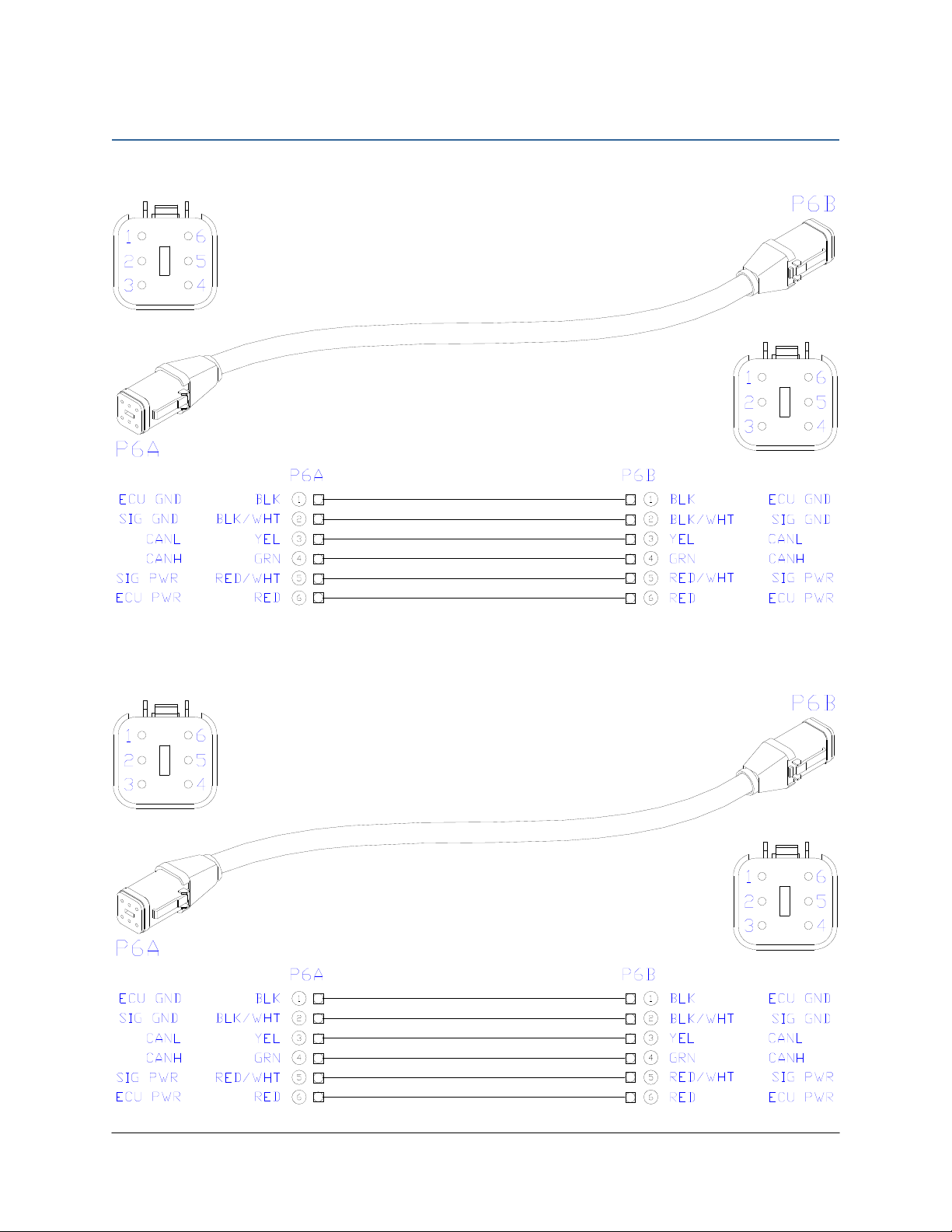

3Cable Drawings
3.1 Item C01: 43220-01 - Cable UC5 Network 14 AWG - 1M
3.2 Item C02: 43220-0.5 - Cable UC5 Network 14 AWG – 0.5M
TOPCON Agriculture Canada
3702 Kinnear Place
Saskatoon, SK S7P 0A6
TOPCON Agriculture Americas
W5527 Hwy 106
Fort Atkinson, WI 53538
TOPCON Precision Agriculture Europe
Avenida de la industria,
35, Tres Cantos, España
Spain
Support
Phone: 888 979 9509
Web: www.norac.ca
