Nibe SMO 40 Guide de l'utilisateur
Installer manual
LEK
SMO 40
Control module
IHB EN 1746-5
231760
Quick guide
Navigation
Ok button (confirm/select)
Back button (back/undo/exit)
Control knob (move/increase/reduce)
A detailed explanation of the button functions can be found on page 32.
How to scroll through menus and make different settings is described on page 33.
Set the indoor climate
2X
MY INSTALLATION
INDOOR CLIMATE HOT WATER
INFO
The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start mode
in the main menu.
Increase hot water volume
2X
1X INDOOR CLIMATE HOT WATER
MY INSTALLATION INFO
To temporarily increase the amount of hot water (if a hot water heater is installed to your SMO 40), first turn the
control knob to mark menu 2 (water droplet) and then press the OK button twice.
Table of Contents
41 Important information
4Safety information
72 Delivery and handling
7Wall installation
7Supplied components
83 The Control Module Design
8Component positions
8Electrical components
94 Pipe connections
9General
9Compatible NIBE air/water heat pumps
9Symbol key
10Temperature sensor installation on pipe
10Docking alternatives
155 Electrical connections
15General
16Accessibility, electrical connection
17Cable lock
18Connections
22Optional connections
29Connecting accessories
306 Commissioning and adjusting
30Preparations
30
Commissioning with NIBE air/water heat
pump
30Commissioning with additional heating only
30Check the reversing valve
30Check AUX socket
30Cooling mode
31Start guide
327 Control - Introduction
32Display unit
33Menu system
368 Control
36Menu 1 - INDOOR CLIMATE
37Menu 2 - HOT WATER
37Menu 3 - INFO
38Menu 4 - MY SYSTEM
39Menu 5 - SERVICE
499 Service
49Service actions
5210 Disturbances in comfort
52Troubleshooting
53Additional heating only
5411 Accessories
5712 Technical data
57Dimensions
58Technical specifications
59Energy labelling
60Electrical circuit diagram
66Item register
71Contact information
3Table of Contents |SMO 40
Safety information
This manual describes installation and service procedures
for implementation by specialists.
The manual must be left with the customer.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and under-
stand the hazards involved. Children shall
not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
Rights to make any design or technical
modifications are reserved.
©NIBE 2017.
NOTE
SMO 40 must be installed via an
isolator switch with a minimum
breaking gap of 3 mm.
NOTE
If the supply cable is damaged,
only NIBE, its service representat-
ive or similar authorised person
may replace it to prevent any
danger and damage.
Symbols
NOTE
This symbol indicates danger to person or ma-
chine .
Caution
This symbol indicates important information
about what you should observe when maintain-
ing your installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE mark is obligatory for most products sold
in the EU, regardless of where they are made.
CE
Classification of enclosure of electro-technical
equipment.
IP21
Danger to person or machine.
!
Read the User Manual.
SMO 40Chapter 1 | Important information4
1 Important information
Serial number
The serial number can be found on the top of the cover
for the control module and in the info menu (menu 3.1).
LEK
Serial number
Caution
You need the product's (14 digit) serial number
for servicing and support.
Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type of
service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current legis-
lation.
5Chapter 1 | Important informationSMO 40
Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person. Fill in the page for information about installation data in the User
manual.
DateSignatureNotesDescription
✔
Electricity (page 15)
Communication, heat pump
Connected supply 230 V
Outside sensor
Room sensor
Temperature sensor, hot water charging
Temperature sensor, hot water top
Temperature sensor, external flow line
Temperature sensor, external return line
Charge pump
Shuttle valve
AUX1
AUX2
AUX3
AUX4
AUX5
AUX6
AA3-X7
Dipswitch
Miscellaneous
Checking additional heater
Checking the function of the reversing
valve
Checking charge pump function
Completed installation check of heat
pump and associated equipment
SMO 40Chapter 1 | Important information6

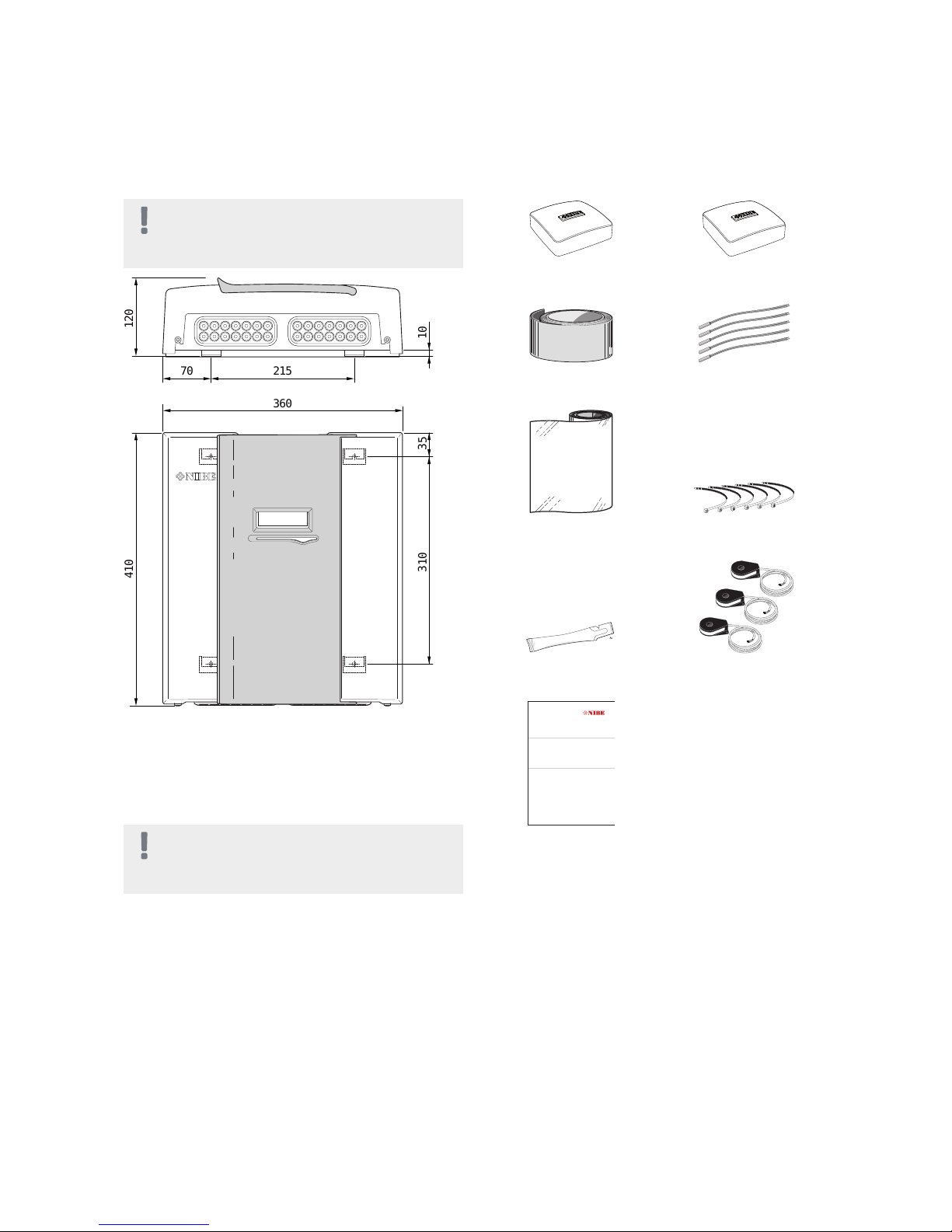

Wall installation
NOTE
For wall mounting, use screws suitable for the
surface.
120
10
310 35
410
360
215
70
120
Use all mounting points and install SMO 40 upright flat
against the wall without any part of the control module
protruding out beyond the edge of the wall.
Leave at least 100 mm free space around the control
module to facilitate access and cable routing on installa-
tion and service.
NOTE
Screws for removing the front cover are
reached from underneath.
Supplied components
Room sensorOutside sensor
LEK
Temperature sensorInsulation tape
LEK
Cable tiesAluminium tape
LEK
LEK
LEK
Current sensorHeating pipe paste
Installatörshandbok
SMO 40
Tillbehörskort
Tillbehör
IHBSE 1345-1
331075
IHB SMO 40 Accessory board
7Chapter 2 | Delivery and handlingSMO 40
2 Delivery and handling
Component positions
L N 1 1 0 2 3 4PE
1 2 3 4
LEK
AA2
AA4-XJ3
X1
SF1
AA5
PF3 AA4
AA3
X2
AA7
AA4-XJ4
L N 1 1 0 2 3 4PE
1 2 3 4
LEK
1
2
3
4
AA2
X1
K2
FA1
X2
AA7
UB2UB1
Electrical components
Base cardAA2
Input circuit boardAA3
Display unitAA4
AA4-XJ3 USB socket
AA4-XJ4 Service outlet (No function)
Accessory cardAA5
Extra relay circuit boardAA7
Miniature circuit breaker, 10 AFA1
Emergency mode relayK2
Terminal block, incoming electrical supplyX1
Terminal block, AUX4 - AUX6X2
SwitchSF1
Serial number platePF3
Cable grommet, incoming supply electricity,
power for accessories
UB1
Cable gland, signalUB2
Designations in component locations according to
standard IEC 81346-1 and 81346-2.
SMO 40Chapter 3 | The Control Module Design8
3 The Control Module Design
General
Pipe installation must be carried out in accordance with
current norms and directives. See manual for compatible
NIBE air/water heat pump for installation of the heat
pump.
Compatible NIBE air/water heat
pumps
Compatible NIBE air/water heat pumps must be
equipped with a control card that has at least the soft-
ware version given in the following list. The control card
version is displayed in the heat pump's display (if applic-
able) upon start-up.
Software versionProduct
55F2015
55F2016
118F2020
55F2025
55F2026
all versionsF2030
all versionsF2040
all versionsF2120
55F2300
all versionsNIBE SPLIT HBS 05:
AMS 10-6 + HBS 05-6
AMS 10-8 + HBS 05-12
AMS 10-12 + HBS 05-12
AMS 10-16 + HBS 05-16
Symbol key
MeaningSymbol
Shut-off valve
Tapping valve
Trim valve
Shunt / reversing valve
Safety valve
Temperature sensor
Expansion vessel
Pressure gauge
P
Circulation pump
Particle filter
Auxiliary relay
Compressor
Heat exchanger
Radiator system
Domestic hot water
Under floor heating systems
Cooling system
9Chapter 4 | Pipe connectionsSMO 40
4 Pipe connections
Temperature sensor installation
on pipe
LEK
LEK
The temperature sensors are mounted with heat con-
ducting paste, cable ties (the first cable tie is secured to
the pipe in the middle of the sensor and the other cable
tie is mounted approx. 5 cm beyond the sensor) and
aluminium tape. Then insulate with supplied insulation
tape.
NOTE
Sensor and communication cables must not be
placed near power cables.
Docking alternatives
SMO 40 can be connected with other products from
NIBE in several different ways, some of which are shown
below (accessories may be required).
Further option information is available at www.nibe.eu
and in the respective assembly instructions for the ac-
cessories used. See page 54 for a list of the accessories
that can be used with SMO 40.
Installations with SMO 40 can produce heating and hot
water. Cooling can also be produced, depending on
which heat pump is used.
On cold days of the year when the access to energy from
the air is reduced the additional heating can compensate
and help to produce heat. The additional heating is also
good to have as assistance if the heat pump ends up
outside its working range or if it has been blocked for
any reason.
NOTE
The heating medium side and the hot water
side must be fitted with the necessary safety
equipment in accordance with the applicable
regulations.
This is the outline diagram. Actual installations
must be planned according to applicable
standards.
SMO 40Chapter 4 | Pipe connections10
