Netvox R313K Manuel utilisateur

Model：R313K

Wireless Tilt Sensor

R313K

User Manual

This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in

strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX

Technology. The specifications are subject to change without prior notice.

Table of Content

1. Introduction..............................................................................................2

2. Appearance ...............................................................................................2

3. Main Feature ............................................................................................3

4. Set up Instruction.....................................................................................4

5. Data Report ..............................................................................................5

6. Installation ................................................................................................9

7. Important Maintenance Instruction ....................................................10

1. Introduction

R313K is a long-distance tilt detection device which is a Class A device based on the LoRaWAN open protocol of Netvox and is

compatible with LoRaWAN protocol. The device is a title detection sensor. When the device is tilted greater than or equal to 45

degrees in any direction, it will send a tipping signal.

LoRa Wireless Technology:

LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other

communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance. Widely

used in long-distance, low-data wireless communications. For example, automatic meter reading, building automation equipment,

wireless security systems, industrial monitoring. Main features include small size, low power consumption, transmission distance,

anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure interoperability between devices and

gateways from different manufacturers.

2. Appearance

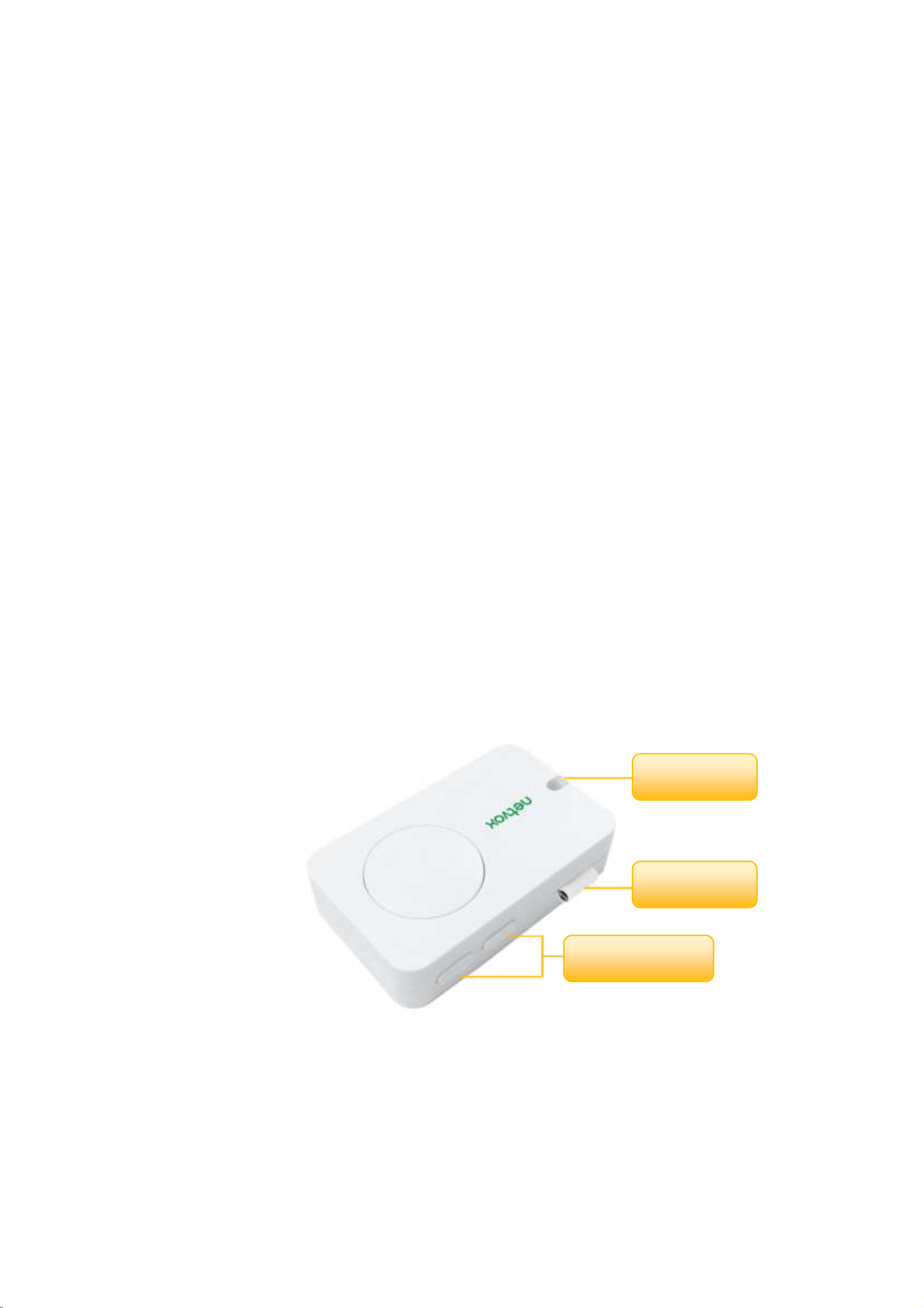

Indicator

Function Key

Antenna

3. Main Feature

2 x 3V CR2450 button batteries

Compatible with LoRaWAN

Detect voltage and tilt status of the device

Easy set up and installation

Protection level IP30

Compatible with LoRaWANTM Class A

Frequency hopping spread spectrum technology

Configurable parameters via third-party software platform, reading data and setting alarms via SMS text and email (optional)

Applicable to the third-party platforms: Actility/ ThingPark/ TTN/ MyDevices/ Cayenne

The product has low power consumption and supports longer battery life.

Note: Battery life is determined by sensor reporting frequency and other variables.

Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html

In this website, users can find battery lifetime for various models at different configurations.

4. Set up Instruction

On/Off

Power on

Insert 2 x 3V CR2450 button batteries into the battery slot in the correct direction and

close the back cover. (user may need a screwdriver to open)

Note: Require 2 button batteries to supply power at the same time.

Turn on Press any one of the function key and the green and red indicator flashes once.

Turn Off (Restore to Original Setting)

Press simultaneously and hold two buttons for 5 seconds, and then the green indicator

flashes 20 times and the device will turn off automatically.

Power off Remove Batteries

Note:

1. Remove and reinsert the battery: the device will remember the previous on/off status

by default.

2. If insert batteries and press the button at the same time, the device will be in

engineering testing mode.

3. On/off interval is suggested to be about 10 seconds to avoid the interference of

capacitor inductance and other energy storage components.

Network Joining

Never Join the Network

Turn on the device to search the network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Had Joined the Network

(Not restore to the original setting)

Turn on the device to search the previous network to join.

The green indicator stays on for 5 seconds: success

The green indicator remains off: fail

Fail to Join the Network

Suggest to check the device verification information on the gateway or consult your

platform server provider

Function Key

Press and Hold for 5 Seconds

Restore to the original setting / Turn off

The green indicator flashes 20 times: success

The green indicator remains off: fail

Press once

The device is in the network: the green indicator flashes once and sends a report

The device is not in the network: the green indicator remains off

Sleeping Mode

The device is turn on and join in the

network

Sleeping period: Min Interval.

When the reportchange exceeds the default or the state of the device changes: send a data

report according to Min Interval.

Low Voltage Warning

Low Voltage 2.4V

5. Data Report

After power on, the device will immediately send a version packet report and an attributes report.

The device sends data according to the default configuration before any other configuring.

Default setting:

Report MaxTime：Max Interval ----3600s

Report MinTime：Min Interval ----3600s (Default: Every Min Interval will detect the state of the dry contact one time)

BatteryVoltageChange ---- 0x01(0.1V)

Triggering the tilt detection:

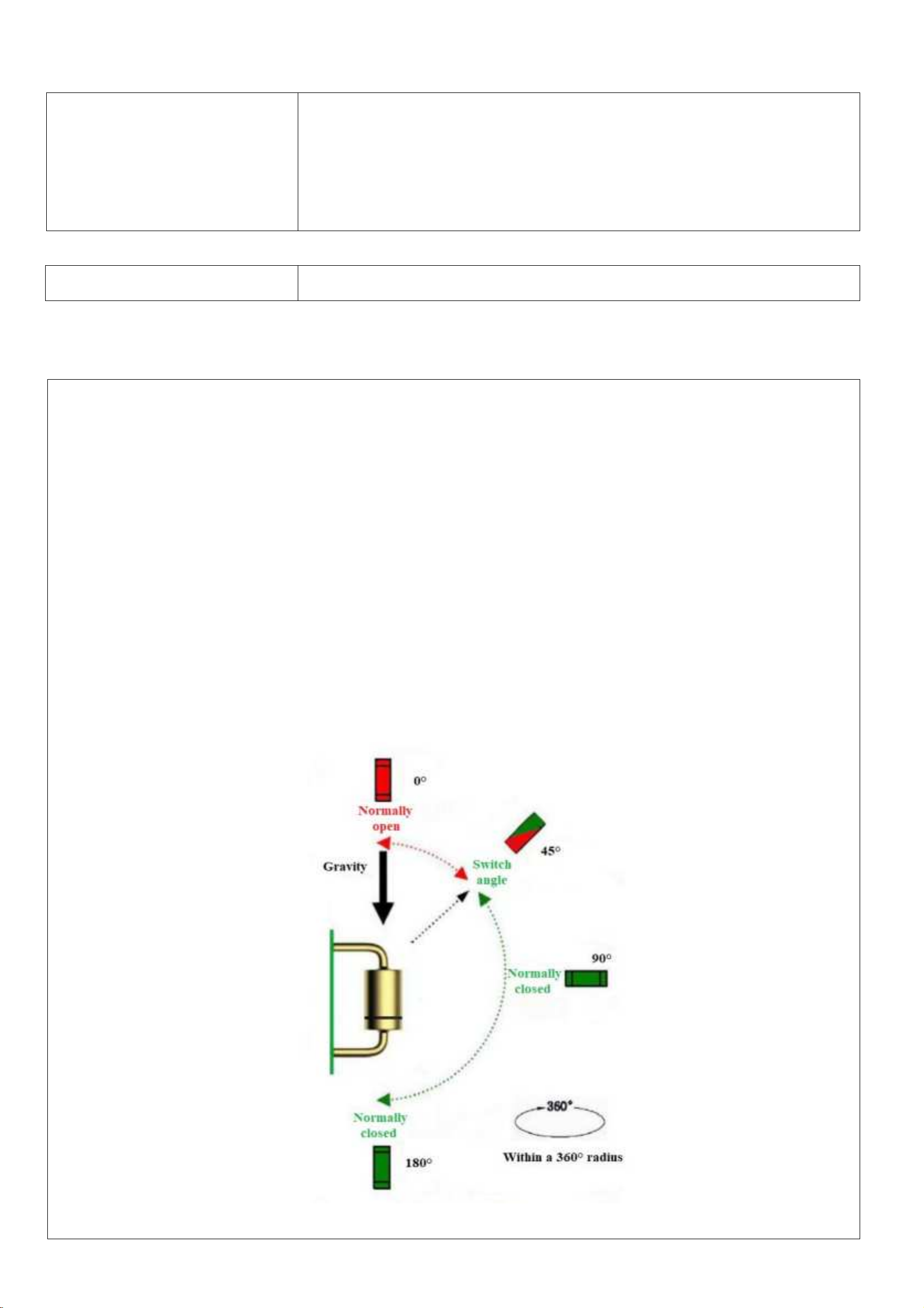

The device adopts 45° tilt detection around the entire circumference. The initial state of the device is vertical placement.

When the tilt angle (any direction) changes more than 45° (45°~180°), an tipping alarm will be issued immediately.

Device Tilt: 1, Device Recovery: 0

Note:

1. The cycle of the device sending the data report is according to the default.

2. The interval between two reports must be the MinTime.

3. If there are special customized shipments, the settings will be changed according to customer’s requirement.

The device reported data parsing please refer to

Netvox LoraWAN Application Command document and Netvox Lora Command Resolver

http://www.netvox.com.cn:8888/page/index

Data report configuration and sending period are as following：

Min Interval

(Unit: second)

Max Interval

(Unit: second)

Reportable Change

Current Change ≥

Reportable Change

Current Change ＜

Reportable Change

Any number between

1~65535

Any number between

1~65535

Can not be 0 Report per Min Interval Report per Max Interval

Example of ConfigureCmd

FPort：0x07

Bytes 1 1 Var (Fix =9 Bytes)

CmdID DeviceType NetvoxPayLoadData

CmdID– 1 byte

DeviceType– 1 byte – Device Type of Device

NetvoxPayLoadData– var bytes (Max=9bytes)

Description Device CmdID

Device

Type

NetvoxPayLoadData

ConfigReport

Req

R313K

0x01

0x9E

MinTime

(2bytes Unit: s)

MaxTime

(2bytes Unit: s)

BatteryChange

(1byte Unit:0.1v)

Reserved

(4Bytes, Fixed 0x00)

ConfigReport

Rsp

0x81

Status

(0x00_success)

Reserved

(8Bytes, Fixed 0x00)

ReadConfigR

eportReq

0x02

Reserved

(9Bytes, Fixed 0x00)

ReadConfigR

eportRsp

0x82

MinTime

(2bytes Unit:s)

MaxTime

(2bytes Unit: s)

BatteryChange

(1byte Unit:0.1v)

Reserved

(4Bytes, Fixed 0x00)

(1)Configure R313K device parameter MinTime = 1min、MaxTime = 1min、BatteryChange = 0.1v

Downlink：019E003C003C0100000000

Device return：

819E000000000000000000 (configuration success)

819E010000000000000000 (configuration failure)

(2)Read R313K device parameter

Downlink：029E000000000000000000

Device return：

829E003C003C0100000000 (device current parameter)

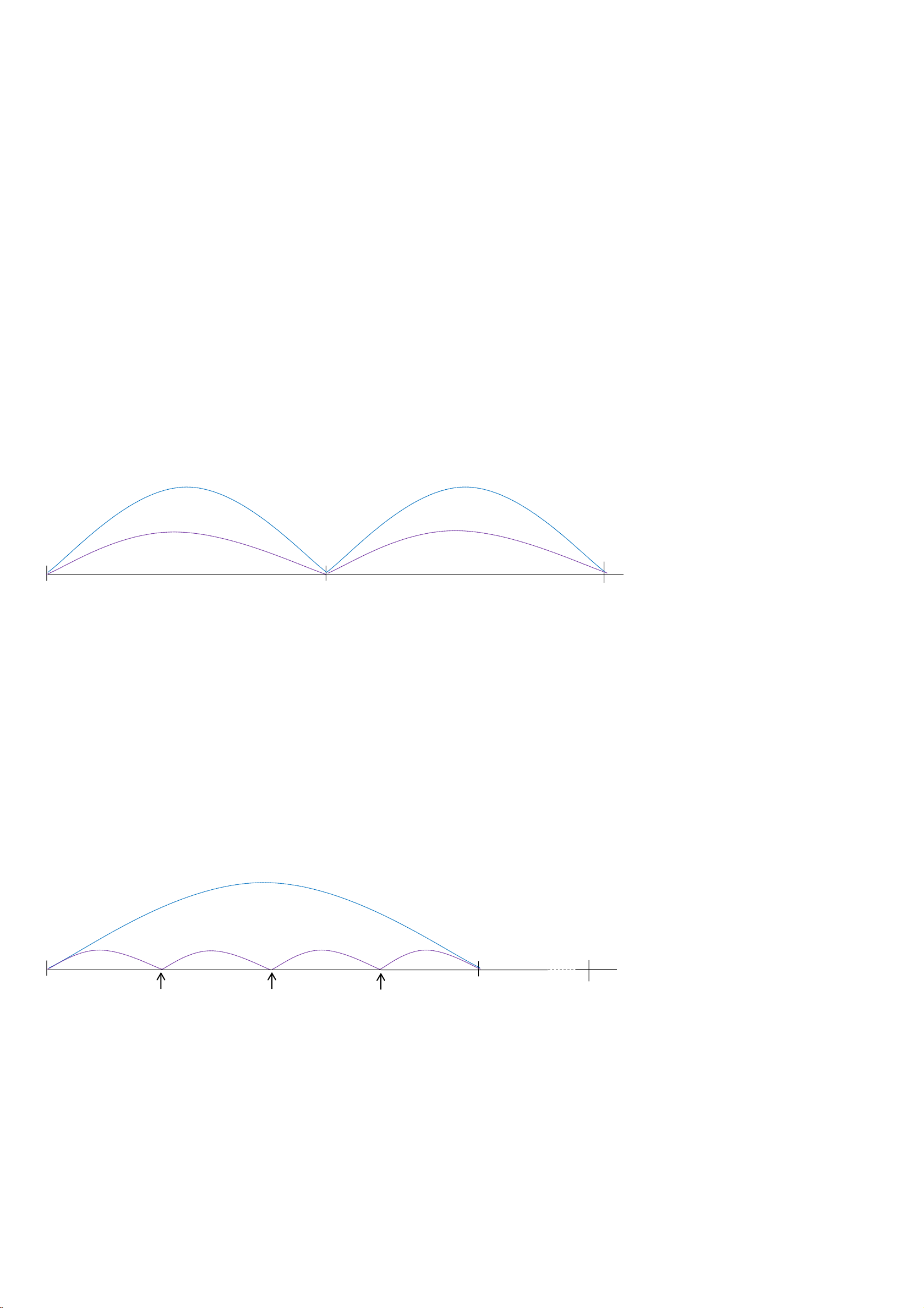

Example#1 based on MinTime = 1 Hour, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange=0.1V

MaxTime MaxTime

Sleeping(MinTime) Sleeping(MinTime)

Note: MaxTime=MinTime. Data will only be report according to MaxTime (MinTime) duration regardless BtteryVoltageChange

value.

Example#2 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

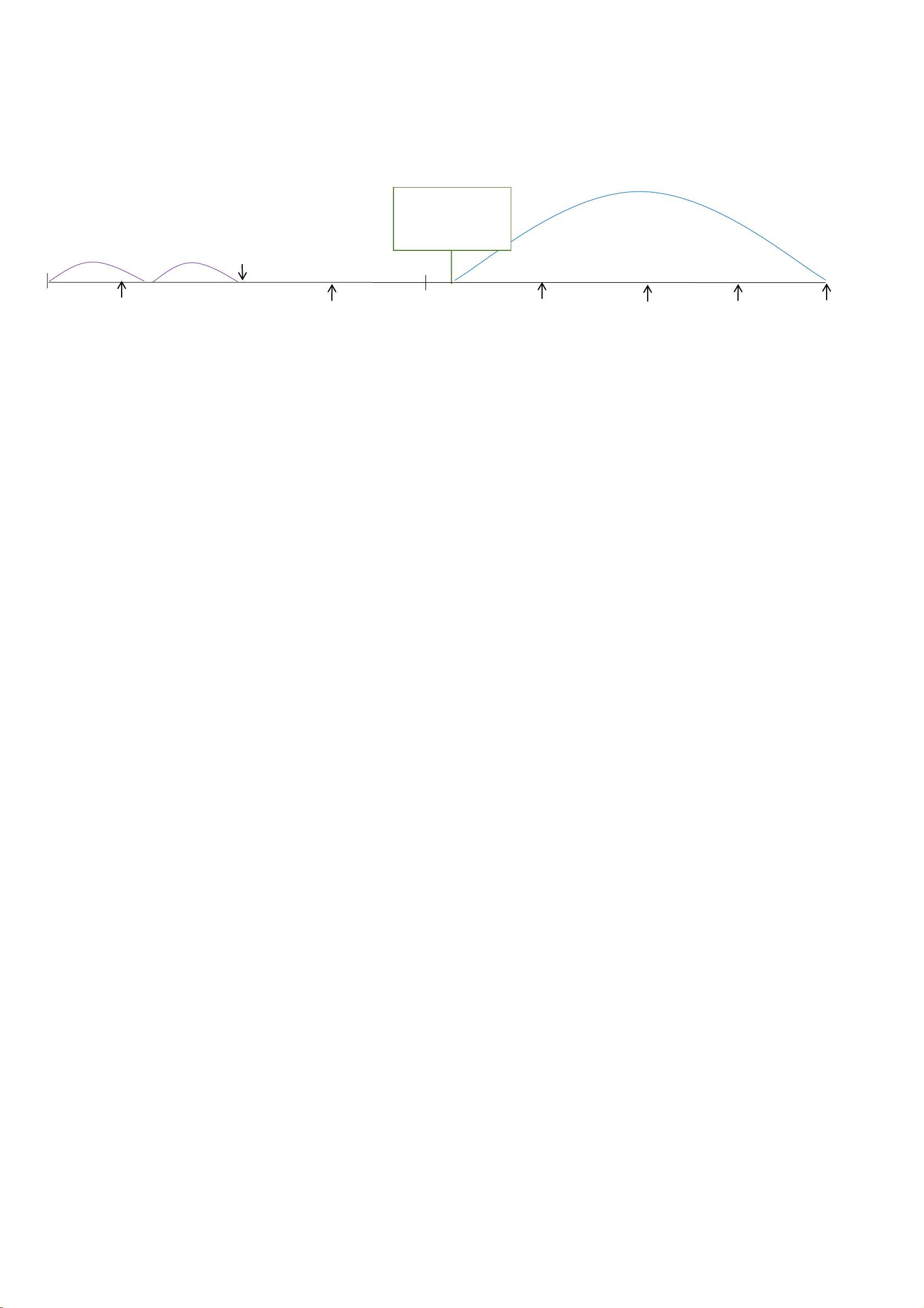

MaxTime

Sleeping(MinTime) sleeping sleeping sleeping

0H 15th M 30th M 45th M 1H 2H

Wake up and collects data

REPORTS 2.8V

Wakes up and collects data

REPORTS 2.8V

Wakes up and collects data

REPORTS 2.8V

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

REPORT 2.8V

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

REPORT 2.8V

Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V.

MaxTime

sleeping sleeping

0H 15th M 30th M 45th M 1H 1H 10th M 1H 25th M

Notes:

(1) The device only wakes up and performs data sampling according to MinTime Interval. When it is sleeping, it does not

collect data.

(2) The collected data is compared with the last reported data. If the variation of the data is greater than the value of

ReportableChange, the device will report according to MinTime interval. If the data variation is not greater than the last

reported data, the device will report according to MaxTime interval.

(3) We do not recommend setting the MinTime Interval value too low. If the MinTime Interval is too low, the device will wake

up frequently and the battery will be drained soon.

(4) When the device sends a report, no matter the data changes, button is pushed or MaxTime interval comes, another cycle of

MinTime / MaxTime calculation starts.

Wakes up and collects

data

2.7V |2.7-2.8|=0.1

REPORTS 2.7V

Wakes up and

collects data 2.7V

Does not report

Users push the button,

REPORTS 2.7V.

Recalculate MaxTime.

Wakes up and

collects data

2.8V

Does not report

Wakes up and

collects data

REPORT 2.8V

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

2.7V

Does not report

Wakes up and

collects data

REPORT 2.7V

6. Installation

(1) The device does not have a waterproof function. After the configuration of joining the network is completed,please place it

indoors.

(2) The dust at the installation location should be wiped clean before paste the device.

1. Remove the 3M release paper on the back of the device

and attach the device to the smooth wall (please do not stick

it to the rough wall to avoid falling off after a longtime

usage).

Note

Wipe the wall surface before installation to avoid dust on

the wall surface that affect the effect of the paste.

Do not install the device in a metal shielded box or other

electrical equipment around it to avoid affecting the

wireless transmission of the device.

1. When installing, the device must be installed vertically,

as the right figure.

2. When the tilt angle of the device in any direction changes

more than 45° (45°~180°), a tipping alarm will be issued

immediately. If the device tilts, the state will be “1”. If the

device returns to normal, the state will be “0”.

3. When the status of the detected object does not change,

the status will be reported regularly for a certain period of

time. (The default is 1 hour that is modifiable.)

Note:

The interval of sending data can be configured by referring

the instruction document. But it is recommended that the

interval should not be too short, so as not to affect the battery

life.

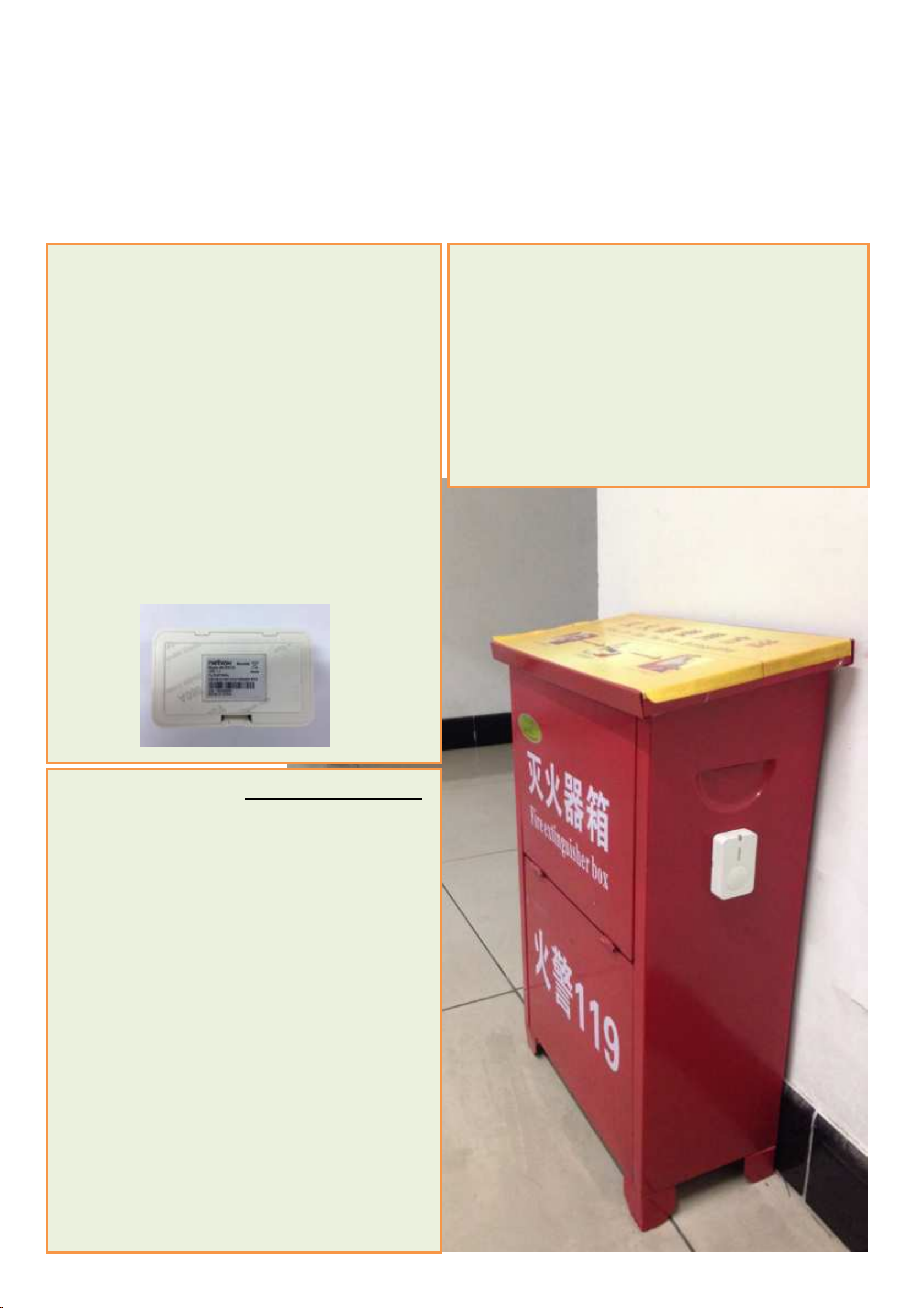

The device is suitable for the following applications:

The dumping household appliances link to the protection of

powering off socket.

Various tilt sensing, such as pillars and utility poles

Angle detection, direction identification

Where it is necessary to detect whether the object is tilted

Table des matières

Autres manuels netvox Accessoires

netvox

netvox R718IJK Manuel utilisateur

netvox

netvox R72632A Manuel utilisateur

netvox

netvox R718PA9 Manuel utilisateur

netvox

netvox R718UBD Series Manuel utilisateur

netvox

netvox R311CA Manuel utilisateur

netvox

netvox R718DB Manuel utilisateur

netvox

netvox R311B Manuel utilisateur

netvox

netvox R718LB2 Manuel utilisateur

netvox

netvox R718VA Manuel utilisateur

netvox

netvox R72615A Manuel utilisateur

netvox

netvox R718PA2 Manuel utilisateur

netvox

netvox R718PB15A Manuel utilisateur

netvox

netvox R809A Manuel utilisateur

netvox

netvox RA0716 Manuel utilisateur

netvox

netvox R72616A Manuel utilisateur

netvox

netvox RA0716A Manuel utilisateur

netvox

netvox R718CN2 Manuel utilisateur

netvox

netvox ZigBee Z801WLS Manuel utilisateur

netvox

netvox R718UBB Series Manuel utilisateur

netvox

netvox RB11E Manuel utilisateur

netvox

netvox RA0716 Manuel utilisateur

netvox

netvox R313DA Manuel utilisateur

netvox

netvox ZigBee ZB11B Manuel utilisateur

netvox

netvox R72632A01 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur

netvox R313K Manuel utilisateur

Manuels Accessoires populaires d'autres marques
