Netvox R718PA5 Manuel utilisateur

Model:R718PA9

Wireless NO

Sensor

Model: R718PA5

Wireless NO2 Sensor

R718PA5

User Manual

This document contains proprietary technical information which is the property of NETVOX Technology. It

shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without

written permission of NETVOX Technology. The specifications are subject to change without prior notice.

Table of Content

1. Introduction....................................................................................................................................... 2

2. Appearance........................................................................................................................................ 2

3. Main Feature..................................................................................................................................... 3

4. Set Up Instruction............................................................................................................................. 4

5. Data Report....................................................................................................................................... 5

6. Installation ........................................................................................................................................ 6

7. Important Maintenance Instruction................................................................................................... 7

1. Introduction

R718PA5 is a Class A device based on the LoRaWANTM protocol of Netvox and is compatible with

LoRaWAN protocol.

R718PA5 can be connected with an NO2sensor (RS485), and report the NO2concentration collected

by the device to the corresponding gateway. The device is compatible with LoRaWAN protocol.

LoRa Wireless Technology:

LoRa is a wireless communication technology dedicated to long distance and low power

consumption. Compared with other communication methods, LoRa spread spectrum modulation

method greatly increases to expand the communication distance. Widely used in long-distance,

low-data wireless communications. For example, automatic meter reading, building automation

equipment, wireless security systems, industrial monitoring. Main features include small size, low

power consumption, transmission distance, anti-interference ability and so on.

LoRaWAN:

LoRaWAN uses LoRa technology to define end-to-end standard specifications to ensure

interoperability between devices and gateways from different manufacturers.

2. Appearance

3. Main Feature

Adopt SX1276 wireless communication module

12V DC power supply

NO2sensor detection

The base is attached with a magnet that can be attached to a ferromagnetic material object

Protection level IP65 / 67

Compatible with LoRaWANTM Class A

Frequency hopping spread spectrum technology

Configuring parameters and reading data via the third-party software platforms, and set alarms

via SMS text and email (optional)

Applicable to the third-party platforms: Actility/ ThingPark/ TTN/ MyDevices/ Cayenn

Note:

Battery life is determined by the sensor reporting frequency and other variables, please refer to

http://www.netvox.com.tw/electric/electric_calc.html

On this website, users can find battery lifetime for varied models at different configurations.

4. Set Up Instruction

On/Off

Power On DC12V adapter

Turn On

DC12V power supply, the green indicator flashing once means

turn on successfully.

Turn Off

(Restore to factory setting)

Press and hold the function key for 5 seconds, and the green

indicator flashes 20 times

Power Off Remove DC12V adapter

Note

1. On/off interval is suggested to be about 10 seconds to avoid the

interference of capacitor inductance and other energy storage

components

2. The first five seconds after power on, the device will be in

engineering test mode

Network Joining

Never Join the Network

Turn on the device to search the network

The green indicator keeps on for 5 seconds: success

The green indicator remains off: fail

Had Joined the Network

(Not restore to the factory setting)

Turn on the device to search the previous network

The green indicator keeps on for 5 seconds: success

The green indicator remains off: fail

Fail to Join the Network

Suggest to check the device verification information on the

gateway or consult your platform server provider

Function Key

Press and Hold for 5 Seconds

Restore to the factory setting / turn off

The green indicator flashes 20 times: success

The green indicator remains off: fail

Press once

The device is in the network: the green indicator flashes once and

the

device sends a data report

The device is not in the network: the green indicator remains off+

5. Data Report

After power on, the device will immediately send a version packet report, and then send another

report with the data of NO2concentration after 20 seconds.

The device sends data according to the default configuration before any other configuring.

MaxTime: Max Interval=180s (3min)

MinTime: The MinTime configuration is not available.

*But the software has restriction, MinTime must be configured a number greater than 0.

Note: 1. Report interval is based on the factory default.

2. R718PA5 reports the NO2concentration value.

The device reported data parsing please refer to

Netvox LoraWAN Application Command document and Netvox Lora Command Resolver

http://loraresolver.netvoxcloud.com:8888/page/index

Report Configuration

(1) Configure R718PA5 device parameter MaxTime = 1min (The MinTime configuration is useless,

but it needs to be set greater than 0 because of the software limitation.)

Downlink: 0157000A003C0000000000

Device Return:

8157000000000000000000 (configuration success)

8157010000000000000000 (configuration failure)

(2) Read R718PA5 device parameter

Downlink: 0257000000000000000000

Device Return:

8257000A003C0000000000 (device current parameter)

Description Device Cmd

ID Device

Type NetvoxPayLoadData

ConfigReportR

R718PA5

0x01

0x57

MinTime

(2bytes Unit: s) MaxTime

(2bytes Unit: s) Reserved

(5Bytes, Fixed 0x00)

ConfigReportR

sp 0x81 Status

(0x00_success) Reserved

(8Bytes, Fixed 0x00)

ReadConfigRe

portReq 0x02 Reserved (9Bytes, Fixed 0x00)

ReadConfigRe

portRsp 0x82 MinTime

(2bytes Unit: s) MaxTime

(2bytes Unit: s) Reserved

(5Bytes, Fixed 0x00)

6. Installation

2. R718PA5 regularly reports data that is

NO2 concentration according to MaxTime.

The default Max Time is 3 min.

Note:

MaxTime can be modified by the downlink

command, but it is recommended not to set

the interval too short.

R718PA5 can be applied to the scene of

detecting the NO2concentration.

Example:

Underground parking lot

Environmental protection monitoring

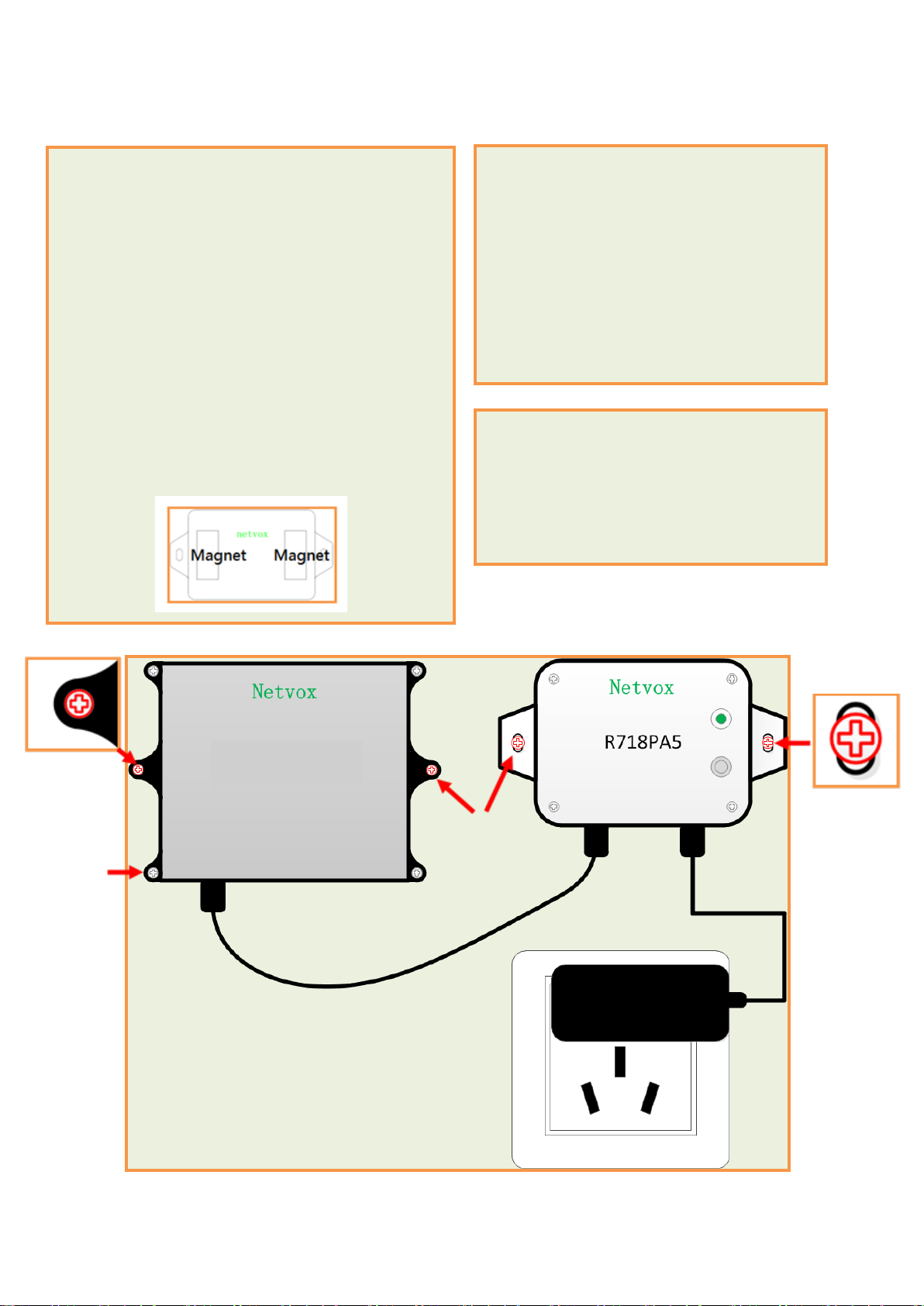

1. R718PA5 has the built-in magnet (as the figure

below) which can be attached to the surface of an

iron object during installation, which is convenient

and quick.

In order to make the installation firmer, please use

screws (purchased separately) to fix the device to

the wall or other surface (as Figure below).

NO2Sensor is fixed by screws that needs two

screws (purchased separately) in the middle.

Note: Do not install the device in a metal shielded

box or in an environment surrounded by other

electrical equipment to avoid affecting the wireless

transmission of the device.

NO2Sensor

Adapter 12V

Traditional socket

Screw

Fixation

Screw

Fixation

Screw

Fixation

Housing

Screw

7. Important Maintenance Instruction

Kindly pay attention to the following in order to achieve the best maintenance of the product:

•Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that

can corrode electronic circuits. In case the device is wet, please dry it completely.

•Do not use or store in dusty or dirty areas. This way can damage its detachable parts and

electronic components.

•Do not store in excessive heat place. High temperatures can shorten the life of electronic devices,

destroy batteries, and deform or melt some plastic parts.

•Do not store in excessive cold place. Otherwise, when the temperature rises to normal temperature,

moisture will form inside which will destroy the board.

•Do not throw, knock or shake the device. Treating equipment roughly can destroy internal circuit

boards and delicate structures.

•Do not wash with strong chemicals, detergents or strong detergents.

•Do not paint the device. Smudges can make debris block detachable parts up and affect normal

operation.

•Do not throw the battery into the fire to prevent the battery from exploding. Damaged batteries

may also explode.

All the above suggestions apply equally to your device, batteries and accessories.

If any device is not operating properly, please take it to the nearest authorized service facility for

repairing.
