KIT INSTRUCTIONS

RealPOS

XR7

Integration Tray

7702-K304

Issue D

The product described in this book is a licensed product of NCR Corporation.

NCR is a registered trademark of NCR Corporation. NCR RealPOS is a trademark of NCR Corporation in the United States

and/or other countries. Other product names mentioned in this publication may be trademarks or registered trademarks of their

respective companies and are hereby acknowledged.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks

of HDMI Licensing LLC in the United States and other countries.

Where creation of derivative works, modifications or copies of this NCR copyrighted documentation is permitted under the terms

and conditions of an agreement you have with NCR, NCR's copyright notice must be included.

It is the policy of NCR Corporation (NCR) to improve products as new technology, components, software, and firmware become

available. NCR, therefore, reserves the right to change specifications without prior notice.

All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances,

photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR

office for information that is applicable and current.

To maintain the quality of our publications, we need your comments on the accuracy, clarity, organization, and value of this book.

Please use the link below to send your comments.

EMail: FD230036@ncr.com

By NCR Corporation

Duluth, GA U.S.A.

Revision Record

Issue Date Remarks

AJun 2014 First Issue

BMar 2016 Tray Support Bracket changed from 497-0507954 to 497-0511268

CFeb 2018 Added 7199 Printer

DJune 2018 Removed 7459-K316 Printer Skirt

RealPOS XR7 Integration Tray

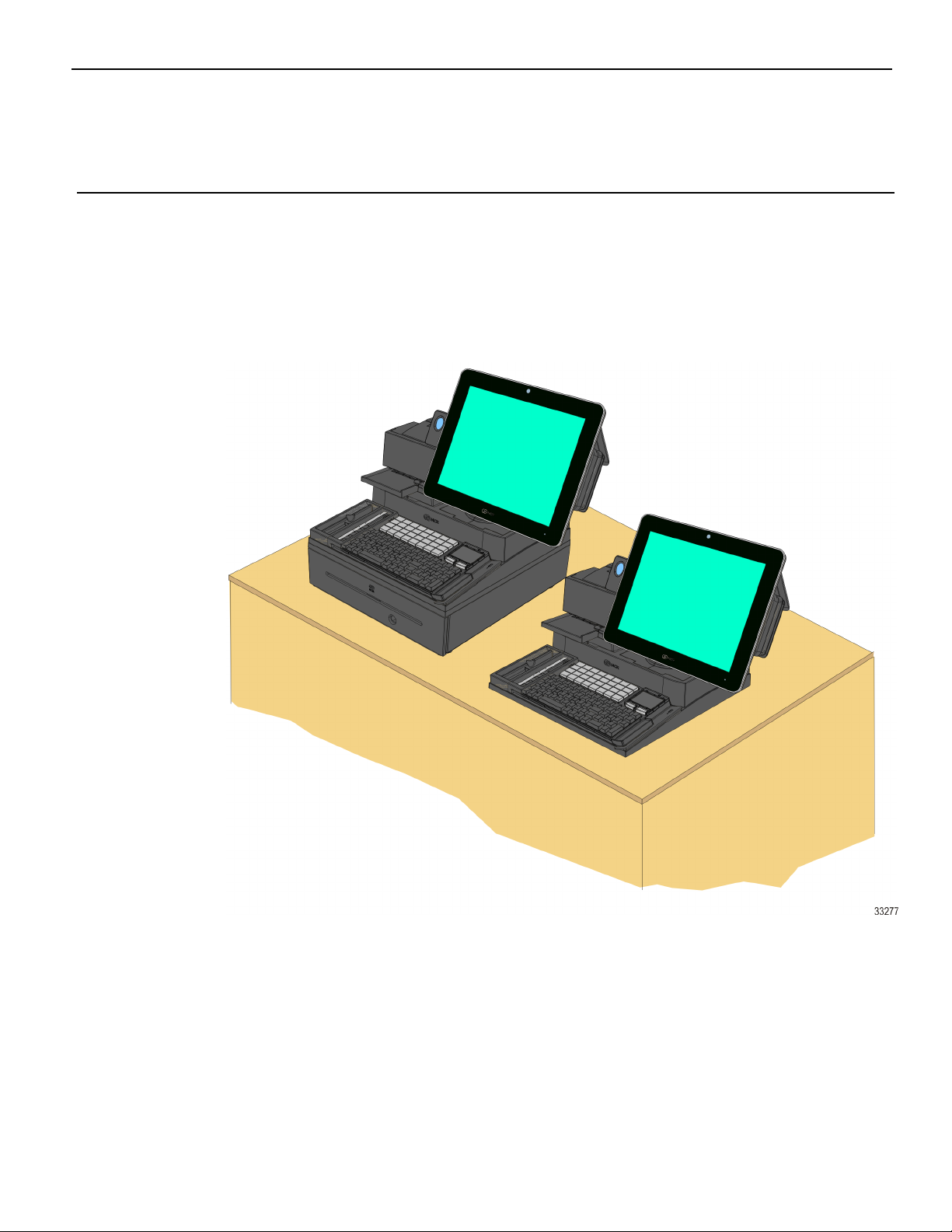

Introduction

The Integration Tray kit provides the necessary components for integrating a printer,

keyboard, and Customer Display with the RealPOS XR7 terminal. It can be mounted on

a flat surface or on a cash drawer.

2 RealPOS XR7 Integration Tray Kit Instructions

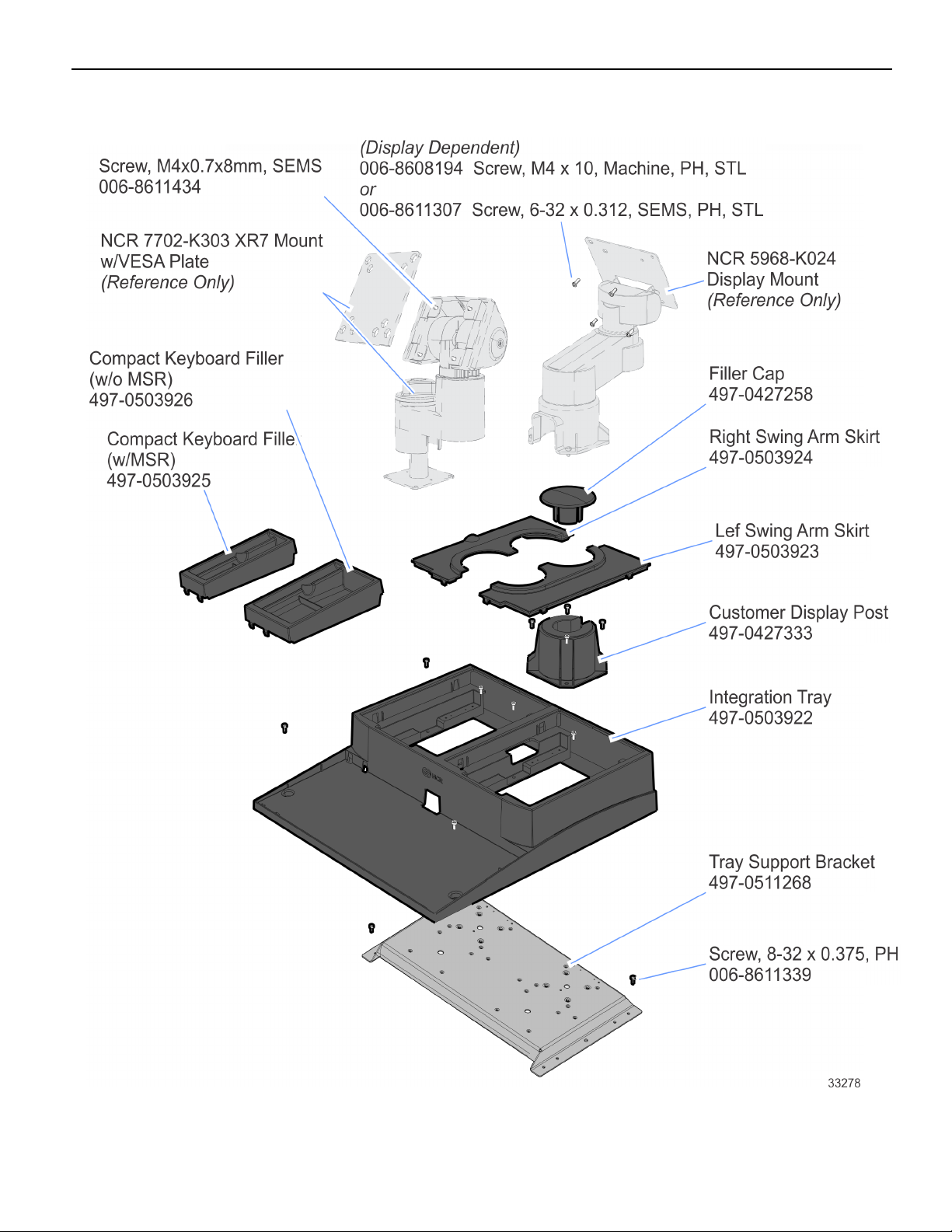

Components

RealPOS XR7 Integration Tray Kit Instructions 3

Installation Procedures

The Integration Tray can be installed on an NCR 2181 Cash Drawer or it can be installed

directly onto a counter top.

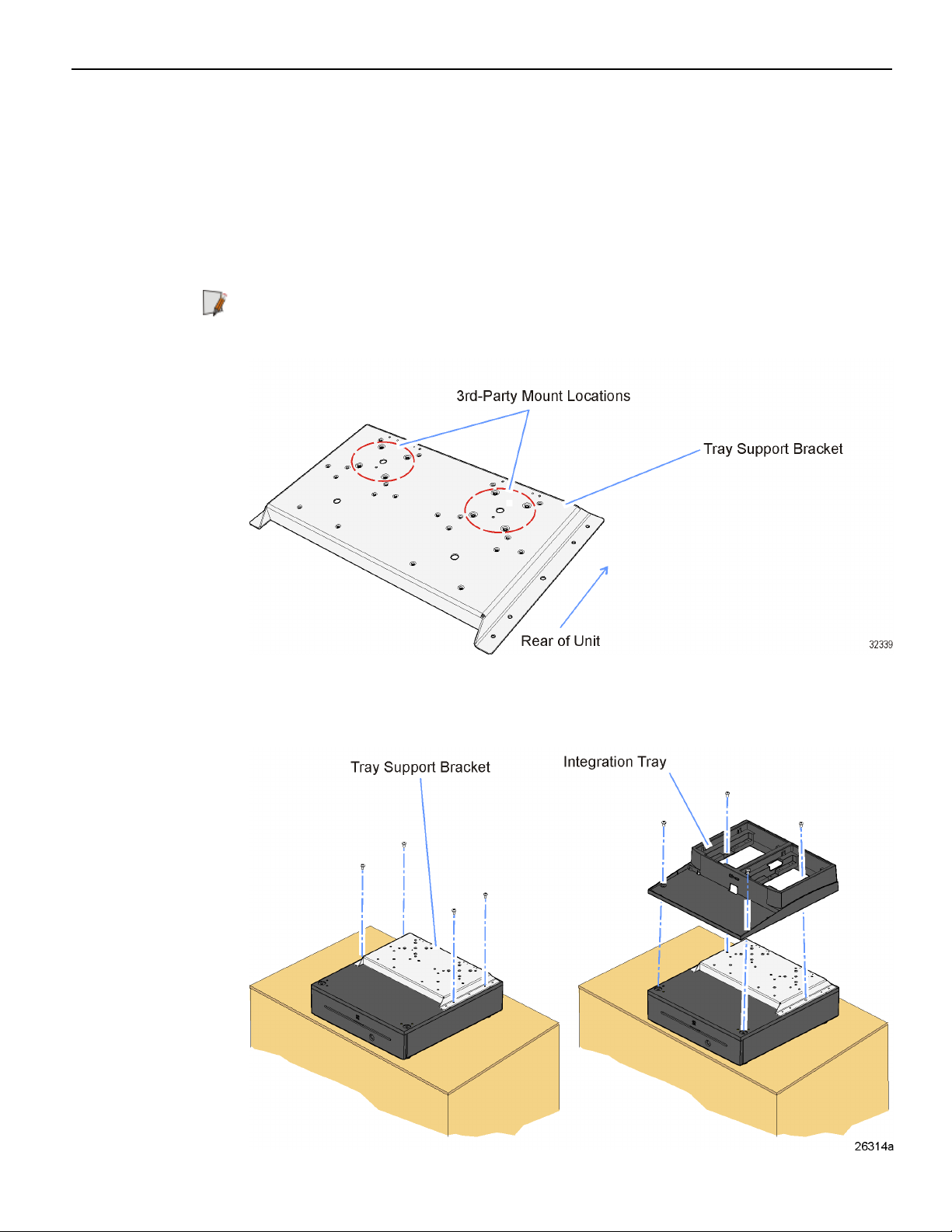

Installing on a Cash Drawer

1. Position the Tray Support Bracket on a Cash Drawer and secure it using the supplied

screws (4).

Note: The mounting holes for the 3rd-party mount much be located toward the

rear of the unit.

2. Position the Integration Tray on top of the Tray Support Bracket and secure it with

screws (4).

4 RealPOS XR7 Integration Tray Kit Instructions

Installing on a Counter Top

1. Position the Tray Support Bracket on the counter top and secure it with screws (4)

that are appropriate for the surface type.

Note: The mounting holes for the 3rd-party mount much be located toward the

rear of the unit.

2. Position the Integration Tray on top of the Tray Support Bracket. Secure the tray to

the Tray Support Bracket with screws (2). Secure the front of the tray to the counter

top with screws (2) that are appropriate for the surface type

RealPOS XR7 Integration Tray Kit Instructions 5

Installing the Keyboard

Note: If a keyboard is not used, insert the Integration Tray Plug into the opening

where the keyboard cable would normally be routed.

1. Install the keyboard in the Integration Tray.

2. Route the cable through the opening in the Integration Tray. It will be routed up

through the XR7 Mount later when the XR7 is installed.

Compact Keyboard: Install the Keyboard Tray Insert beside the keyboard.

Note: There are two Keyboard Tray Inserts. The narrow tray is used in all cases except

when using the 5932 65xx PS/2 model without an MSR.

6 RealPOS XR7 Integration Tray Kit Instructions

Installing the Transaction Printer

The NCR 7167, 7168, 7197, 7198, or 7199 printer can be located on either side of the

Integration Tray.

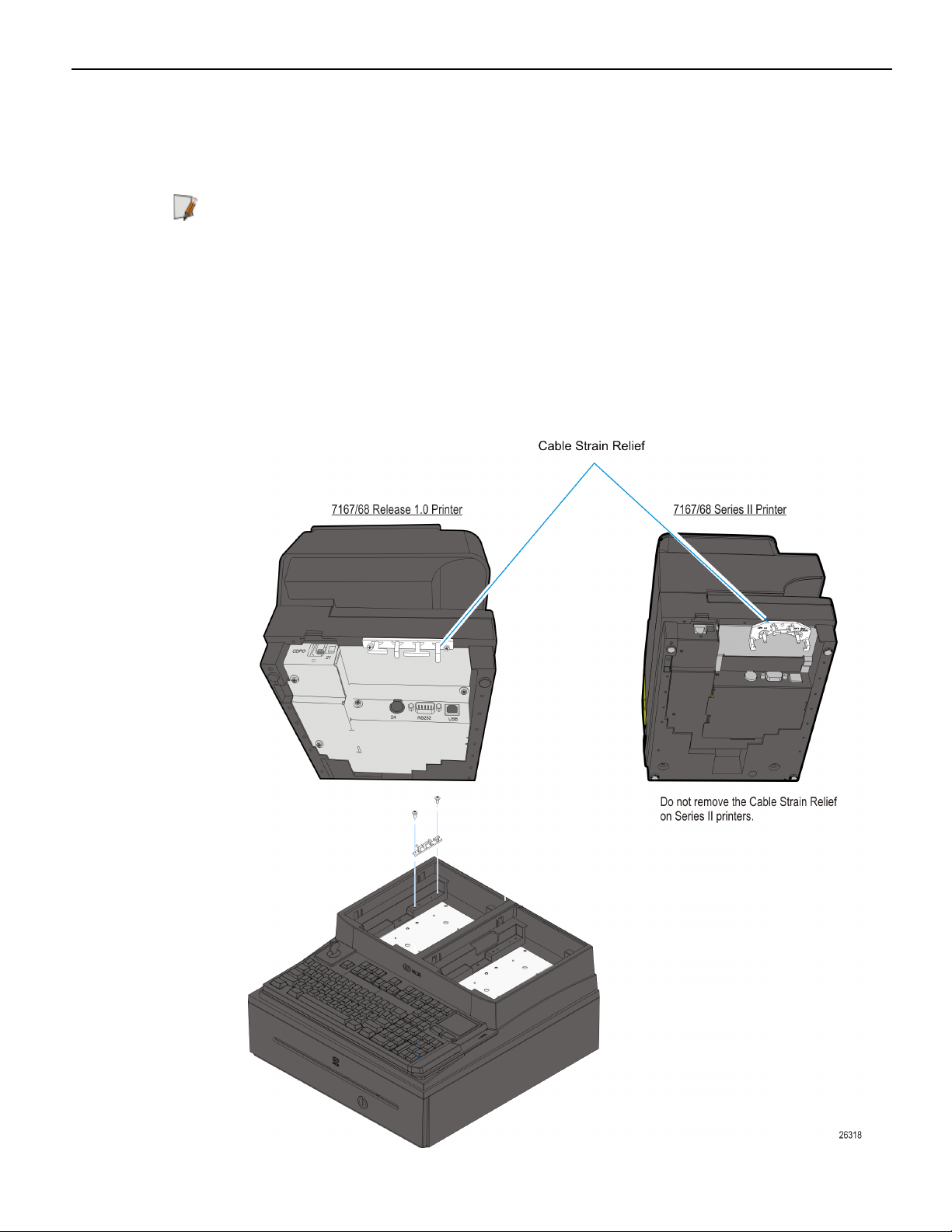

Note: The Printer Cable Strain Relief is different on the Release 1.0 and the Series II

printers. The Cable Strain Relief on Release 1.0 printers prevents the printer from sitting

properly in the Integration Tray and must be removed from the printer and installed in

the Integration Tray.

NCR 7167/7168 Release 1.0 Printers Only:

1. Remove the Cable Strain Relief from the back of the printer (2 screws). The printer

will not sit properly in the tray with it installed.

2. Install the Cable Strain Relief on the Integration Tray using the same screws.

RealPOS XR7 Integration Tray Kit Instructions 7

3. Connect the Printer Cable to the USB and Power connectors.

4. Series II Printers Only: Route the cable through the Cable Strain Relief on the

printer as shown.

8 RealPOS XR7 Integration Tray Kit Instructions

5. Route the printer cable through the openings in the Integration Tray as shown below

and then position the printer in the tray. It will be routed up through the XR7

Mount later when the XR7 is installed.

NCR 7197/7198/7199 Only:Install the 7607-K324 Printer Skirt.

NCR 7167/7168 Release 1.0 Printers Only:Secure the cable in the Cable Strain Relief

in the Integration Tray as shown.
