MT5600BR-V92

Intelligent Data/Fax

Rack Mounted Modem

Quick Start Guide

MT5600BR-V92 Intelligent Data/Fax Modem

RackMountedModem

82100026LRevB

This publication may not be reproduced, in whole or in part, without prior

Multi-Tech Systems, Inc.makes no representations or warranties with respect to

the content hereof and specifically disclaims any implied warranties of

merchantability or fitness for any particular purpose. Furthermore, Multi-Tech

Systems, Inc. reserves the right to revise this publication and to make changes

from time to time in the content hereof without obligation of Multi-Tech Systems,

Inc. to notify any person or organization of such revisions or changes.

Record of Revisions

Revision Date Description

A 04/14/06 Manualreleased.

B04/19/07 Update theTechnical Support contact list.

Trademarks

Trademarks of Multi-Tech Systems, Inc. are as follows: MultiModem, Multi-Tech,

and the Multi-Tech logo. Windows XP is a trademark of Microsoft. All other

trademarks are owned by their respective companies.

Technical Support

Country By Email By Phone

France support@multitech.fr +(33) 1-64 61 09 81

Europe,Asia,Africa support@multitech.co.uk +(44) 118 959 7774

U.S.,Canada, all others support@multitech.com (800)972-2439or

(763)785-3500

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112 U.S.A.

(763)785-3500or(800)328-9717

Fax(763) 785-9874

http://www.multitech.com

MT5600BR-V92 Quick Start Guide

Product Description

The Multi-Tech Intelligent Data/Fax modem, model MT5600BR-V92 is

designed to mount in Multi-Tech’s modem rack, model CC1600.The

CC1600 modem rack is a EIA-standard 19-inch wide by 7-inch high rack

that mounts in a standard computer cabinet.

Unpacking

Package contains:

· One MT5600BR-V92 modem.

· One telephone cable.

· One MT5600BR-V92 CD

· This Quick Start Guide.

· One brochure with a warranty card.

If any item is missing, please contact Multi-Tech Systems or your dealer/

distributor.

Safety Warnings

1. Never install telephone wiring during a lightning storm.

2. Never install a telephone jack in wet locations unless the jack is

specifically designed for wet locations.

3. This product is to be used with UL and cUL listed computers.

4. Never touch uninsulated telephone wires or terminals unless

the telephone line is disconnected at the network interface.

5. Use caution when installing or modifying telephone lines.

6. Avoid using a telephone (other than a cordless type) during an

electrical storm.There may be a remote risk of electrical shock.

7. Do not use the telephone near a gas leak to report the leak.

8. To reduce the risk of fire, use only 26 AWG or larger

telecommunications line.

9. The telephone cord is to be disconnected before accessing the

inside of the equipment.

Multi-Tech Systems, Inc.

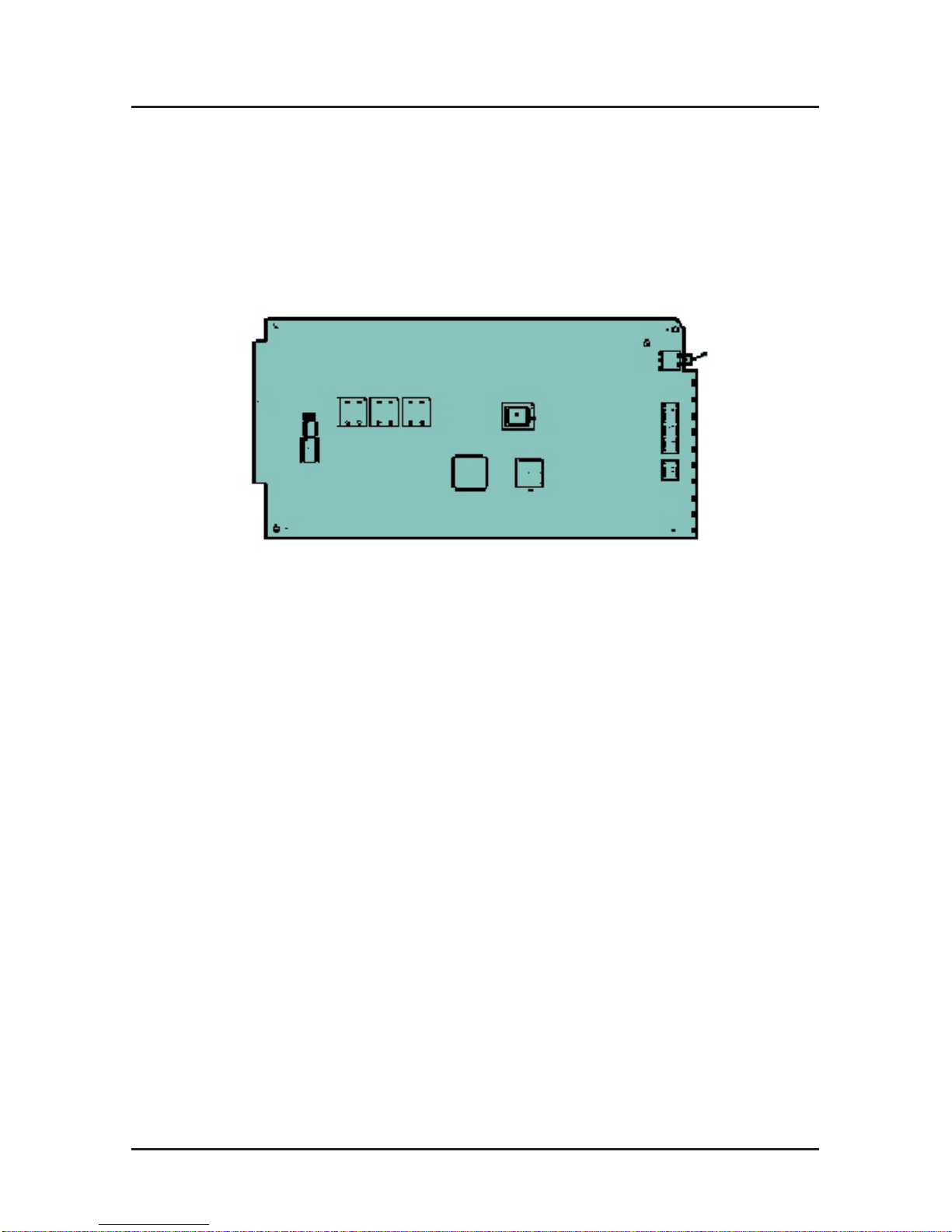

PC Board Controls

The MT5600BR-V92 board contains sixteen DIP-Switches. There is a

two-position

"Out of Service"

(OOS) toggle switch that extends from the

front of the modem circuit card. There is also a two-position TEST/OOS

berg jumper located towards the back and center of the card.

The sixteen DIP-Switches and berg jumper control various modem

options or set default values for the MT5600BR-V92 Command mode.

There is a difference in how several of the switches operate depending

on whether you are in synchronous or asynchronous mode (DIP-Switch #12).

Most communications software packages have installation procedures of

their own, which call for certain modem DIP-Switch settings. If you are

using such a package, follow the software's instructions.

MT5600BR-V92 Quick Start Guide

DIP-Switch Settings

The vast majority of installations are similar, with the MT5600BR-V92 being

used to dial up a remote installation where the call is automatically

answered. The factory default DIP-Switch settings are based on this

assumption.The following is a brief description and summary of the

MT5600BR-V92's DIP-Switch options:

Switch Function Position Effect

#1 DTR Forced/ UP* DTR dependent on

interface

DTR from Interface * DOWN DTR forced on all

time

#2 Flow Control &E4* UP* Hardware flow control

(Async/Dial-Up-Leased Line) DOWN Sofrtware flow control

#2 SDLC*/BSC (Sync) UP* SDLC mode

DOWN BSC mode

#3 Result Codes Enabled* UP Q1 Disable Response

(Async Dial-up) DOWN* Q0 Enable Response

#3 DbM Transmit -15dB/-11dB* UP Lease Line

(Async/Sync/Leased Line) DOWN* transmits at -11dB

#4 No affect in async

#4 AS/400 Mode Disabled* UP* AS/400 Mode OFF

(Sync Dial-Up/Leased Line) DOWN AS/400 Mode ON

#5 Auto-Answer Enabled* UP* Enable Auto-Answer

(Async/Sync/Dial-Up) DOWN Disable Auto-Answer

#5 Answer/Originate* UP* Answer mode

(Async/Sync/Leased Line) DOWN Originate mode

#6 Max-Throughput Enabled* UP* Modem set-up to

(Async/Dial-Up/Leased) DOWN operate at highest

efficiency level

#6 Slave Clock Disabled* UP* Slave Clock OFF

(Sync/Dial-Up/Leased) DOWN Slave Clock ON

*Factory default setting.

Multi-Tech Systems, Inc.

Switch Function Position Effect

#7 RTS/Normal/Forced* UP RTS dependent on

interface

(Sync/Async/Dial/Leased) DOWN* RTS forced ON

#8 Command Mode Enabled* UP Disable Command Mode

(Sync/AsyncDial/Leased) DOWN* Enabled Command Mode

#9 No affect

#10 Dial-Up*/Leased-Line UP* Dial-Up Operation

DOWN Lease Line Operation

#11 No affect in async

#11 Internal*/External Clocking UP External Clock

(Synchronous) DOWN* Internal Clock

#12 Sync/Async Mode* UP Sync Operation

DOWN* Async Operation

Dip Switch Settings #13 - 16

Switch Position Effect

13/14 UP/UP* V.92 Operation (Default)

13/14 DOWN/UP V.34 Operation

13/14 UP/DOWN V.32b Operation

13/14 DOWN/DOWN V.22b Operation

#15 UP* CD/DSR from Interface

#15 DOWN CD/DSR Forced On

#16 UP 2-Wire Opeation

#16 DOWN 4-Wire Operation

* Factory default setting

MT5600BR-V92 Quick Start Guide

Installation

Perform the following procedure to install modem cards into the CC1600

rack. The installation process involves:

1. Verify that the DIP-Switch settings conform to your application

(dial-up or lease line).

2. Slide a modem card into one of sixteen available modem slots.

Start by inserting a modem into the left-most channel (slot #1) of

the rack.The toggle switch should be at the bottom of the card,

with the component side of the card facing the right. The modem’s

gold edge connector is offset so that the modem cannot be

inserted incorrectly. Continue installing modem cards as necessary.

3. Connect one end of an RS232C Cable to the appropriate modem

slot (DB25/25-pin connector-female) at the rear of rack.The other

end of the RS232C cable is connected to the serial port of the

computer.

Note: Any cables connected to the computer must be shielded to

reduce interference.

4. Plug one end of the RJ11 cable provided with the modem into the

rack's RJ11 connector (located on the back plane of the modem

rack) and the other end into the phone-company-provided RJ11 or

RJ11W modular phone jack.

5. Verify the remote modem's current configuration settings with your

MT5600BR-V92 in terms of data compression, error correction,

transmission rate, etc. Refer to the AT commands Reference

Guide on the product CD.

6. Make sure modem and computer/terminal serial port baud rates

are adjusted.

7. Proceed to Chapter 3 in the User Guide, or to your data

communications software manual for additional modem

configuration.

82100026L

Patents

This device is covered by one or more of the following patents: 6,031,867;

6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534;

5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; D394,250; 5,724,356;

5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649;

5,592,586; 5,577,041; 5,574,725; D374,222; 5,559,793; 5,546,448; 5,546,395;

5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289; 5,450,425;

D361,764; D355,658; D355,653; D353,598; D353,144; 5,355,365; 5,309,562;

5,301,274. Other patents pending.
