MultiModemII

Data/Fax Modem

MT5600BA and MT5600BL Series

MT5600BA – V.92

MT5600BA – V.90

MT5600BL – V.90

Quick Start Guide

MultiModemII Quick Start Guide

MT5600BA–V.92, MT5600BA–V.90, MT5600BL–V.90

P/N 82080254 Revision E

without prior expressed written permission from Multi-Tech Systems, Inc.

Multi-Tech Systems, Inc. makes no representations or warranties with respect to

the contents hereof and specifically disclaims any implied warranties of

merchantability or fitness for any particular purpose. Furthermore, Multi-Tech

Systems, Inc. reserves the right to revise this publication and to make changes in

the content hereof without obligation of Multi-Tech Systems, Inc. to notify any

person or organization of such revisions or changes.

Record of Revisions

Revision Date Description

A10/3/02 Initial release of MT5600BA-V.92. In addition, replaces old

MT5600BA/BL Quick Start Guide Rev. B - 82086201.

B02/17/03 Changed the cover page; performed minor edits.

C07/30/03 Added country configuration using the LCD panel. Added

PhoneTools software paragraph.

D05/28/04 Change the word

country

country or region

E12/09/04 Add Web site location of the country/region code list.

Trademarks

MultiModemII, Multi-Tech, and the Multi-Tech logo are trademarks of Multi-Tech

Systems, Inc. Adobe and Acrobat are trademarks of Adobe Systems Incorporated.

Microsoft, Windows, and Windows NT are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other countries.

PhoneTools is a trademark of BVRP Software.

Technical Support

Country By Email By Phone

France: [email protected] +(33) 1-64 61 09 81

India: [email protected] +91 (124) 6340778

U.K.: [email protected] +(44) 118 959 7774

U.S and Canada: [email protected] (800) 972-2439

Rest of the World: s[email protected]

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, MN 55112 U.S.A.

(763) 785-3500 or (800) 328-9717

Fax (763) 785-9874

Internet

http://www.multitech.com

MultiModemII Quick Start Guide

Getting Started

This

Quick Start Guide

will help you install and set up your modem. A

User Guide

containing detailed configuration information and a separate

AT Commands reference guide can be found on the MultiModemII CD

shipped with your modem.

Safety Warnings

•Use this product only with UL- and CUL-listed computers (US).

•Never install phone wiring during a lightning storm.

•Never install a phone jack in a wet location unless the jack is

specifically designed for wet locations.

•Never touch uninsulated phone wires or terminals unless the phone

line has been disconnected at the network interface.

•Use caution when installing or modifying phone lines.

•Avoid using a phone during an electrical storm; there is a risk of

electrical shock from lightning.

•Do not use a phone in the vicinity of a gas leak.

•To reduce the risk of fire, use only 26 AWG or larger telephone line

cord.

Modem Installation

Step 1: Connect the Modem to Your System

Turn off your computer. Placing the modem in a convenient location,

connect it to your computer’s serial port, to the telephone line, to your

leased line, to AC power, and, optionally, to your telephone.

VOLUME

EIA RS232C

LEASEDLINE

POWER

PHONE

MultiModemII connections with V.92 transformer. Also shown: V.90 transformer

MultiModemII Quick Start Guide

Connect the Modem to Your PC

Plug one end of the serial cable into the RS-232 connector on the

modem and plug the other end into a serial port connector on your

computer, such as COM1 or COM2.

Connect the Modem to the Telephone Line (Dialup Connection)

Plug one end of the modular phone cable into the modem’s LINE

jack, and the other end into a public switched telephone network

(PSTN) wall jack.

Important: The LINE jack and PHONE jack are not

interchangeable. Do not plug the phone into the LINE jack. Do not

plug the line cable into the PHONE jack.

Note: Regulatory agencies may impose certain restrictions on

equipment connected to public telephone systems.

Connect the Two-Wire Leased Line

MT5600BA – Plug one end of a two-wire phone cable into the

modem’s LINE jack; connect the other end to a leased line wall jack

or terminals.

MT5600BL –Plug one end of a two-wire phone cable into the

modem’s LEASED jack; connect the other end to a leased line wall

jack or terminals.

Connect the Four-Wire Leased Line

MT5600BL Only – Plug one end of a four-wire phone cable into

the modem's LEASED jack; connect the other end to a four-wire

leased line wall jack or terminals.

Modems with a leased-line jack support the dial backup feature. For

dial backup operation, plug one end of your dialup modular phone

cable into the modem’s LINE jack and the other end into a PSTN

wall jack.

Connect the Phone to the Modem (Optional)

For voice-only calls, plug a telephone into the modem’s PHONE

jack.

Connect the Modem to the AC Power Outlet

Plug the transformer module into an AC power outlet or power strip.

Plug the transformer module’s cable into the modem's POWER jack.

Note: Use only the transformer module supplied with the modem.

Use of any other module voids the warranty and can damage the

modem.

MultiModemII Quick Start Guide

Power-OnTest

Test the modem by turning it on (a power switch is located on the

front panel). When you turn it on, the modem performs a diagnostic

self-test, indicated by the TM indicator lighting for a few seconds,

after which the LCD should light. If this does not happen, check that

the power switch is on, the transformer module supply is solidly

connected, and the AC outlet is live.

Step 2: Install the Modem Driver

If you use Windows 98/Me/NT/2000/XP, you must install the modem

driver. When operating the modem under Windows, the modem driver

can be installed by using the Plug-and-Play feature. If you use an

operating system that does not support Plug-and-Play, see the User

Guide.

Modem Driver Installation for Windows 98/Me/2000/XP

1. Make sure your modem is connected properly, and then turn on

your computer. Windows should detect your new modem and

open the Install New Modem wizard.

Note: If Windows cannot find a modem, see the

“Troubleshooting” chapter of the User Guide.

For Windows NT, the Install New Modem wizard presents one

additional prompt before Step 2. At this prompt, select Don't

detect my modem, I will select it from a list. Then click Next. A

dialog box with a list of manufacturers and a list of modem

models appear. Select your modem.

2. Insert the MultiModemII CD into your CD-ROM drive. Click OK.

3. Windows installs and configures the modem.

4. Click Finish to exit.

MultiModemII Quick Start Guide

Step 3: Set Country or Region Code (MT5600BA-V.92 Only)

The MT5600BA-V.92 is a global modem. However, countries or regions

vary in their requirements for how a modem functions. Therefore, you

must configure yours to match the defaults of the country or region in

which you are using it. Choose one of three methods:

Using the LCD Panel to Set Your Country or Region Code

Using the Global Wizard to Set Your Country or Region Code

Using AT Commands to Set Your Country or Region Code

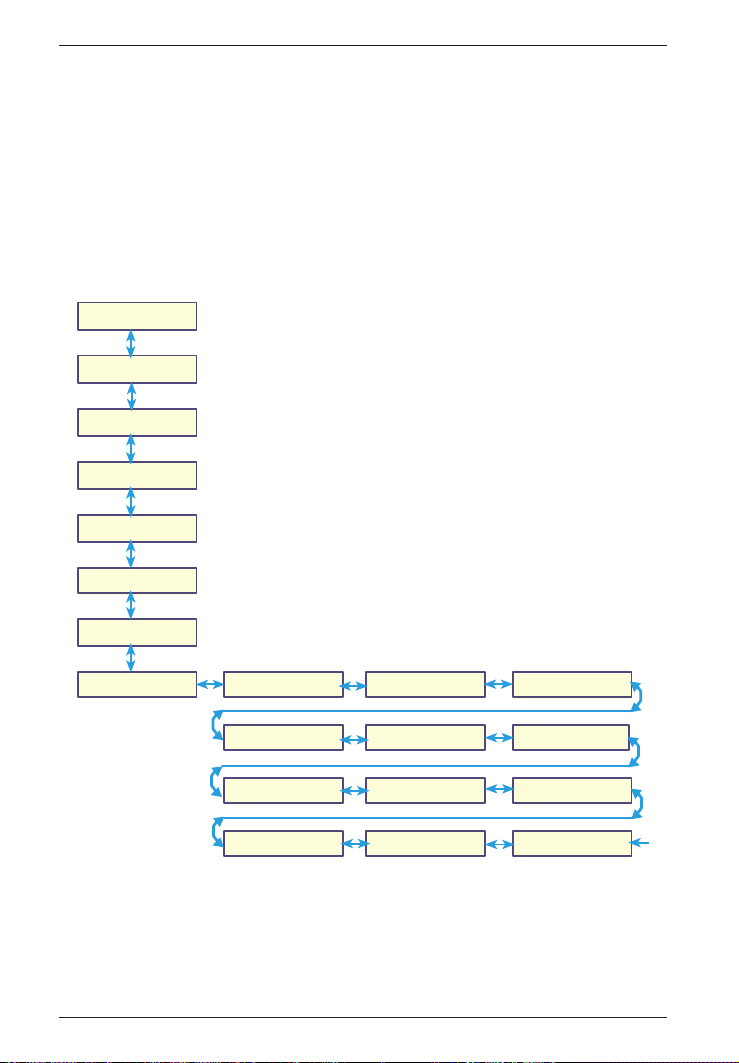

Using the LCD Panel to Configure Your Modem

Region Profile

question mark represents the question Is this the region

not the one you want, arrow across until you see the code

Region Profile

Status

Basic Options

Advanced

Options

Remote Config

Diagnostics

Phone Number

Memory

Region Select

Caller ID

Region Setting

Options B5?

Region Profile

99? Region Profile

01? 02?

Region Profile

03? Region Profile

04?

1. Start at the Status LCD and use the down arrow to

move down the menu tree to the Region Select LCD.

4.When you reach the region code you want, press

Enter. After pressing Enter, you will see the message

Option Set.

2. Use the right arrow to move from the Region Select

LCD, across the Region Setting Options LCD, to the

Current Setting LCD.

3. If the current setting shown is not the one for your

region, arrow across to the Region Profile LCD. The

you want? If B5 is the one you want, press Enter; if it s

you desire. See the list of Region Codes on the back of

this card.

Current Setting

5. After setting the region profile, you can re-power the

modem or use the arrows to move back and up the menu

tree to return to the Status LCD.

00?

Region Profile

09? Region Profile

6C? 9F?

MultiModemII Quick Start Guide

Using the Global Wizard to Configure Your Modem

The Global Wizard configuration utility is recommended for computers

running in Windows.

1. Insert the MultiModemII CD into the CD-ROM drive. The Autorun

dialog box appears.

2. Click Initial Setup and Region Selection. The Global Wizard dialog

box appears. Click Next.

3. The Global Wizard searches for your modem and identifies it. Click

Next after your modem is identified.

4. Select the country or region in which the modem will be used. Click

Next.

5. Review your choice. If it is correct, click Next.

6. When the Global Wizard announces that the parameters have been

set, click Finish to exit.

Using AT Commands to Configure Your Modem

If you are comfortable using AT commands, you can use them to

configure your modem. You must enter these commands in your

communication program's terminal window. You can use a

communication program such as PhoneTools. See Step 4 below.

To change the country/region code, the initialization string must contain

the AT command for your specific country/region.

1. View the list of available country/region codes and find your

code by executing the command AT +GCI? <CR>

Note: A list of country/region codes is also available on the

Multi-Tech Web site at:

http://www.multitech.com/PRODUCTS/Categories/Modems/

global/configuration.asp#chart

2. Set and save the code by executing the command

AT+GCI=

<CR> (where

is the country/region code).

3. OK displays.

4. The code then displays.

For details and examples, see the MT5600BA/BL User Guide.

Step 4: Install PhoneTools

Note: PhoneTools may or may not be included on the MultiModemII CD

according to your company's preference.

PhoneTools is a data communications software program. To install

PhoneTools, insert the MultiModemII CD into your CD-ROM drive, click

the PhoneTools icon. You will be asked to choose your language. The

software automatically loads onto your PC.

82080254

Patents

This device is covered by one or more of the following patents: 6,031,867;

6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534;

5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; D394,250; 5,724,356;

5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649;

5,592,586; 5,577,041; 5,574,725; 5,559,793; 5,546,448; 5,546,395; 5,535,204;

5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289; 5,450,425; D353,598;

5,355,365; 5,309,562; 5,301,274. Other patents pending.

Autres manuels pour MultiModem II MT5600BA-V.90

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Multitech Modem

Multitech

Multitech MultiModem MTCBA?H3?U1 Manuel utilisateur

Multitech

Multitech MultiModem MTCBA-G-U-F4 Manuel utilisateur

Multitech

Multitech MultiConnect Adapter Manuel utilisateur

Multitech

Multitech MT5656ZDX Series Manuel utilisateur

Multitech

Multitech MultiConnect microCell Manuel utilisateur

Multitech

Multitech MultiModemDSVD Manuel utilisateur

Multitech

Multitech MultiModem MTCBA-G-F4 Manuel utilisateur

Multitech

Multitech MT9234ZBA-USB Manuel utilisateur

Multitech

Multitech MTD100U Manuel utilisateur

Multitech

Multitech MultiModem ZPX MT5634ZPX-PCI Series Manuel utilisateur

Multitech

Multitech SocketModem MT2456SMI-22 Mode d’emploi

Multitech

Multitech MultMobile MT9234MU Manuel utilisateur

Multitech

Multitech MultiModem iCell MTCMR-E1 Manuel utilisateur

Multitech

Multitech Dragonfly MTQ-L4G1 Manuel utilisateur

Multitech

Multitech MultiConnect microCell MTCM2-L6G1 Manuel utilisateur

Multitech

Multitech MultiModem Manuel utilisateur

Multitech

Multitech MultiModem ZBA MT9234ZBA Manuel utilisateur

Multitech

Multitech Multimobile MT10100ZL-X/E Manuel utilisateur

Multitech

Multitech BA-Series Manuel utilisateur

Multitech

Multitech MultiModem MT5634ZBA-V-V92 Manuel utilisateur

Multitech

Multitech Modem Module MT3334SMI Mode d’emploi

Multitech

Multitech MT2834BA Manuel utilisateur

Multitech

Multitech MT56DSU-S Manuel utilisateur

Multitech

Multitech MT202TD Manuel utilisateur

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur
