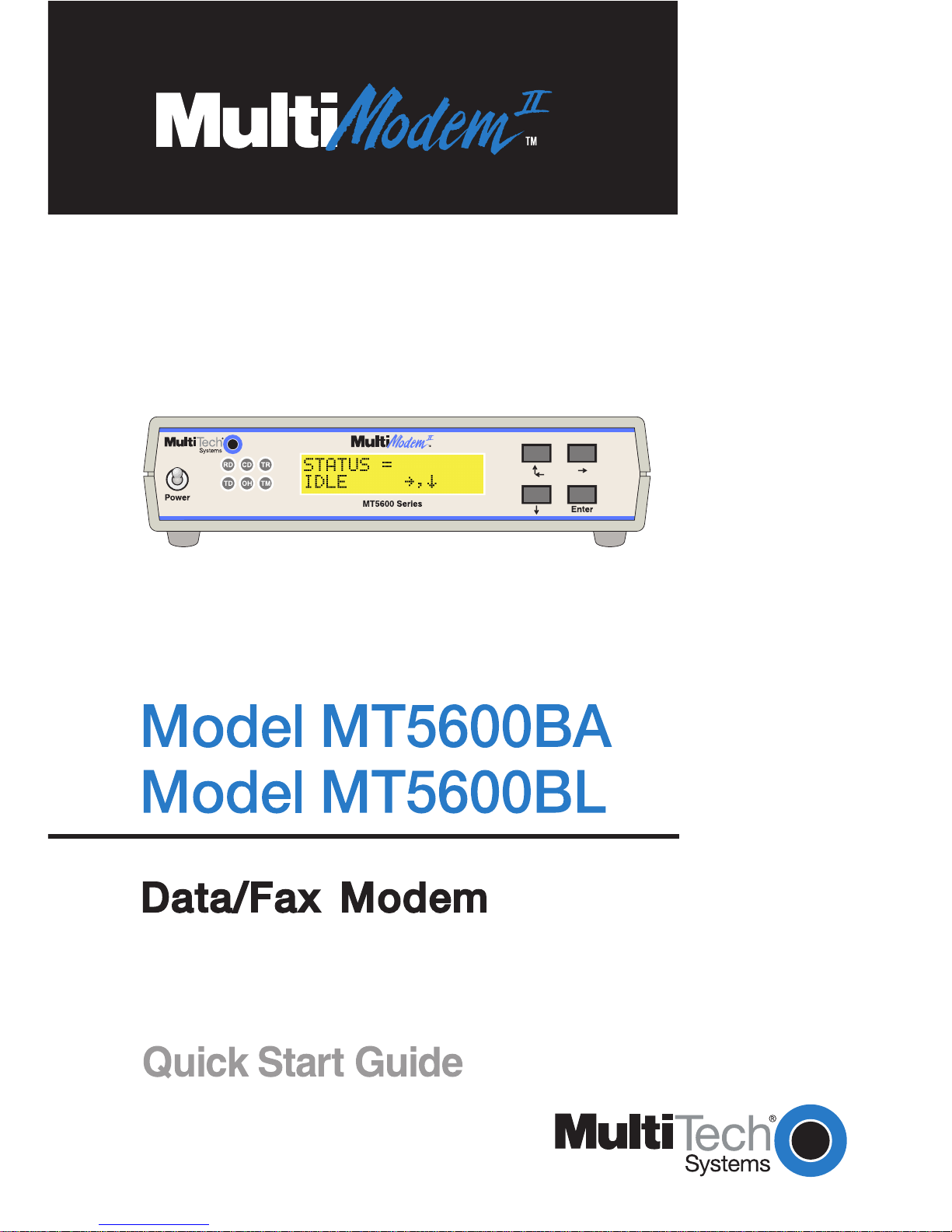

MultiModemII Quick Start Guide

Models MT5600BA and MT5600BL

P/N 82086201 Revision B

prior expressed written permission from Multi-Tech Systems, Inc.

Multi-Tech Systems, Inc. makes no representations or warranties with respect to the con-

tents hereof and specifically disclaims any implied warranties of merchantability or fitness

for any particular purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right to

revise this publication and to make changes in the content hereof without obligation of

Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes.

Record of Revisions

Revision Date Description

B6/1/01 Updated phone numbers, added patent list and system CD,

deleted BBS and fax-back references, and revised Chapter 2.

Trademarks

MultiModemII, Multi-Tech, and the Multi-Tech logo are trademarks of Multi-Tech

Systems, Inc. Adobe and Acrobat are trademarks of Adobe Systems Incorporated. MNP

and Microcom Network Protocol are trademarks of Microcom Incorporated. K56flex is a

registered trademark of Rockwell International Corporation and Lucent Technologies

Corporation. Microsoft, Windows, Windows 95, and Windows NT are either registered

trademarks or trademarks of Microsoft Corporation in the United States and/or other

countries. PhoneTools is a trademark of BVRP Software.

Patents

This device is covered by one or more of the following patents: 6,031,867; 6,012,113;

6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532;

5,764,628; 5,764,627; 5,754,589; D394,250; 5,724,356; 5,673,268; 5,673,257; 5,644,594;

5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; D374,222;

5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986;

5,452,289; 5,450,425; D361,764; D355,658; D355,653; D353,598; D353,144; 5,355,365;

5,309,562; 5,301,274. Other patents pending.

Notice

Though these modems are capable of 56K bps download performance, line impairments,

public telephone infrastructure and other external technological factors currently prevent

maximum 56K bps connections.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, MN 55112 U.S.A

(763) 785-3500 or (800) 328-9717

Fax (763) 785-9874

Technical Support (800) 972-2439

Internet http://www.multitech.com

MultiModemII Quick Start Guide

iii

Contents

Introduction ....................................................................................................... 1

What Is in Your Modem Package? ................................................................. 1

What You Will Need ........................................................................................ 2

Safety Warnings ................................................................................................ 2

Step 1: Connect the Modem to Your System ................................................ 3

RS232 Connection .................................................................................. 3

Dialup Connection ................................................................................. 4

Two-Wire Leased Line Connection ..................................................... 4

Four-Wire Leased Line Connection .................................................... 4

Phone Connection .................................................................................. 4

Power Connection.................................................................................. 5

Power-On Test ........................................................................................ 5

Step 2: Install the Modem Driver ................................................................... 5

Step 3: Install and Configure Your Software ................................................ 6

How to Get a Copy of the User Guide .......................................................... 8

MultiModemII Quick Start Guide

Introduction

Congratulations on your purchase of the MultiModemII mo-

dem. You have acquired one of the finest data/fax dialup and

leased line modems available today from one of the world’s

oldest modem manufacturers: Multitech Systems, Inc.

This Quick Start Guide will help you install and set up your

modem. A full User Guide containing detailed configuration

information, a command reference, a troubleshooting chapter,

and an index, can be found on one of the disks in the modem

package. The User Guide, which is in Adobe Acrobat 4.0 for-

mat, can be viewed on your monitor or printed out for easy

reference.

What Is in Your Modem Package?

Your modem package has several components. Make sure you

have them all before trying to operate your modem. Your

package should include:

An MT5600BA or MT5600BL modem

An external transformer module

One (MT5600BA) or more (MT5600BL) modular telephone

cables

This Quick Start Guide

A CD containing data communications and other programs

An installation CD containing modem drivers and a User

Guide

If any of these items are missing, please contact Multi-Tech

Systems or your dealer/distributor (see Appendix D of the User

Guide for information about contacting Multi-Tech via telephone,

fax, or the Internet).

MultiModemII Quick Start Guide

What You Will Need

In addition to the contents of the MultiModemII package, you

will need the following items:

A computer with an unused serial port

A shielded RS-232 serial cable with a male DB-25 connec-

tor on one end and a connector to match your computer’s

serial port on the other end

A nearby AC power outlet

A nearby telephone line

A nearby leased line jack or terminals (optional)

Safety Warnings

•Use this product only with UL- and CUL-listed computers.

•To reduce the risk of fire, use only 26 AWG or larger tele-

phone wiring.

•Never install telephone wiring during a lightning storm.

•Never install a telephone jack in a wet location unless the

jack is specifically designed for wet locations.

•Never touch uninsulated telephone wires or terminals

unless the telephone line has been disconnected at the

network interface.

•Use caution when installing or modifying telephone lines.

•Avoid using a telephone (other than a cordless type) dur-

ing an electrical storm; there is a risk of electrical shock

from lightning.

•Do not use a telephone in the vicinity of a gas leak.

MultiModemII Quick Start Guide

Step 1: Connect the Modem to Your System

Turn off your computer. Placing the modem in a convenient

location, connect it to your computer’s serial port, to the tele-

phone line, to your leased line, to AC power, and, optionally, to

your telephone.

VOLUME

EIA RS232C

LEASEDLINE

POWER

PHONE

Figure 1. MT5600BL connections.

RS232 Connection

Plug one end of the serial cable into the RS232 connector on

the modem, and the other end into a serial port connector on

your computer, such as COM1 or COM2.

MultiModemII Quick Start Guide

Dialup Connection

Plug one end of the modular phone cable into the modem’s

LINE jack, and the other end into a public switched telephone

network (PSTN) wall jack.

Note: The LINE jack is not interchangeable with the PHONE

jack. Do not plug the phone into the LINE jack or the line cable

into the PHONE jack.

Note: Regulatory agencies may impose certain restrictions on

equipment connected to public telephone systems. For more

information, see Appendix A of the User Guide.

Two-Wire Leased Line Connection

MT5600BA Plug one end of a two-wire phone cable into the

modem’s LINE jack, and connect the other end to a leased line

wall jack or terminals.

MT5600BL Plug one end of a two-wire phone cable into the

modem’s LEASED jack, and connect the other end to a leased

line wall jack or terminals.

Four-Wire Leased Line Connection

On an MT5600BL only, plug one end of a four-wire phone ca-

ble into the modem’s LEASED jack, and connect the other end

to a four-wire leased line wall jack or terminals. For dial back-

up operation, plug one end of the modular phone cable into the

modem’s LINE jack, and the other end into a PSTN wall jack.

Phone Connection

For voice-only calls, plug a telephone into the modem’s

PHONE jack (optional).

MultiModemII Quick Start Guide

Power Connection

Plug the transformer module into an AC power outlet or power

strip. Plug the transformer module’s cable into the POWER

jack on the modem.

Note: Use only the transformer module supplied with the

modem. Use of any other module voids the warranty and can

damage the modem.

Power-On Test

Test the modem by turning it on (a power switch is located on

the front panel). When you apply power, the modem performs

a diagnostic self-test, indicated by the TM indicator lighting

for a few seconds, after which the LCD should light. If this

does not happen, check that the power switch is on, the trans-

former module supply is solidly connected, and the AC outlet

is live. If these measures do not work, see Chapter 8 of the

User Guide, “Solving Problems.”

Step 2: Install the Modem Driver

If you use Windows 95, Windows 98, Windows Me, Windows

NT 4.0, or Windows 2000, you must install the modem driver.

(If you use Windows 3.1 or another operating system, skip this

step and go to Step 3.)

1. Make sure your modem is connected properly, and then

turn on your computer. Windows should detect your new

modem and open the Install New Modem wizard.

Note: If Windows cannot find a modem, your modem may

be turned off, it may be plugged into the wrong connector

on your computer, or the serial cable may be faulty. See

“None of the LEDs Light When the Modem Is Turned On”

and “The Modem Does Not Respond to Commands”in

Chapter 5 of the User Guide, “Solving Problems.”

MultiModemII Quick Start Guide

2. In the Install New Modem wizard, select Don’t detect my

modem; I will select it from a list, and then click Next. A

dialog box with a list of manufacturers and a list of modem

models appears.

3. Insert the installation CD into your CD-ROM drive, and

then click Have Disk.

4. In the Install from Disk dialog box, select the drive the CD

is in, and then click OK.

5. A list of modems appears. Select your modem from the list,

and then click Next.

6. Select the port the modem is connected to, and then click

Next.

7. Windows installs and configures the modem.

8. Click Finish to exit.

Step 3: Install and Configure Your Software

You may use either the communication program included

with your modem or a third-party program. Communication

programs designed for Windows 95/98/Me and Windows

NT/2000 normally do not need to be manually configured,

since they use the Plug and Play configuration of the Win-

dows modem driver. Communication programs designed for

DOS and other operating systems, however, may need to be

manually configured to work with your modem. Though each

communication program is different, the following procedure

should work with most of them.

1. Install and run your communication program.

2. Find the dialog box or menu that lets you select your mo-

dem. (In Windows Terminal select Settings | Modem

Commands; in HyperTerminal select File | Properties |

Phone Number; and in PhoneTools select Configure |

General Configuration |Communication |Change

Modem.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Multitech Modem

Multitech

Multitech MultiModem MT5634ZPX-PCI-U-NV Manuel utilisateur

Multitech

Multitech MultiMobile MT5634ZLX Manuel utilisateur

Multitech

Multitech MTCBA-G-EN-F4-NAM Manuel utilisateur

Multitech

Multitech MultiConnect Cell MTC-G3 Manuel utilisateur

Multitech

Multitech MultiModem MT5600ZDXV Manuel utilisateur

Multitech

Multitech MultiModem MTCBA-C-N1 Manuel utilisateur

Multitech

Multitech BA-Series Manuel utilisateur

Multitech

Multitech MultiModem MT5634ZBA-V.92 Manuel utilisateur

Multitech

Multitech SocketModem Guide d'application

Multitech

Multitech MultiMobile V.34/33.6K Manuel utilisateur

Multitech

Multitech MultiModem MT9234ZPX-UPCI Manuel utilisateur

Multitech

Multitech MultiModem MTCBA-G-UF1 Manuel utilisateur

Multitech

Multitech MTD-H5 Manuel utilisateur

Multitech

Multitech MultiConnect microCell MTCM-LNA3 Manuel utilisateur

Multitech

Multitech MultiModem iCell Manuel utilisateur

Multitech

Multitech Multimodem RJ-45 Manuel utilisateur

Multitech

Multitech MTCBA-C-U-N1 Manuel utilisateur

Multitech

Multitech Dragonfly Nano MTQN-MNG1-B02 Guide d'application

Multitech

Multitech MultiConnect MicroCell MTCM-LAT3 Manuel utilisateur

Multitech

Multitech MultiModem II MT5600BA-V.92 Manuel d'installation

Multitech

Multitech MT2834MR Manuel technique

Multitech

Multitech MMCModem GPRS (MTMMC-G) Manuel utilisateur

Multitech

Multitech MTSMC-G2 Instructions d'installation

Multitech

Multitech MultiModem MT5600ZDX Manuel utilisateur

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur
