MultiModemZBA Quick Start Guide

Model MT5634ZBA-V92

P/N 82090150 Revision A (9/7/01)

without prior expressed written permission from Multi-Tech Systems, Inc.

Multi-Tech Systems, Inc. makes no representations or warranties with respect to

the contents hereof and specifically disclaims any implied warranties of

merchantability or fitness for any particular purpose. Furthermore, Multi-Tech

Systems, Inc. reserves the right to revise this publication and to make changes in

the content hereof without obligation of Multi-Tech Systems, Inc. to notify any

person or organization of such revisions or changes.

Trademarks

MultiModemZBA, Multi-Tech, and the Multi-Tech logo are trademarks of Multi-Tech

Systems, Inc.

Adobe and Acrobat are trademarks of Adobe Systems Incorporated. Microsoft,

Windows, Windows 95, Windows 98, Windows Me, Windows NT, and Windows

2000 are either registered trademarks or trademarks of Microsoft Corporation in

the United States and/or other countries. All other brand and product names

mentioned in this publication are trademarks or registered trademarks of their

respective companies.

Notice

Though the MT5634ZBA-V92 modem is capable of 56K bps download perfor-

mance, line impairments, public telephone infrastructure, and other external

technological factors may prevent maximum 56K bps connections.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, MN 55112

U.S.A

Telephone (763) 785-3500 or (800) 328-9717

Fax (763) 785-9874

Technical Support (800) 972-2439

Internet

http://www.multitech.com

MultiModemZBA Quick Start Guide

Getting Started

Congratulations on your purchase of the MT5634ZBA-V92

modem. You have acquired one of the finest V.92 data/fax

modems available today from one of the world’s oldest modem

manufacturers: Multitech Systems, Inc.

This

Quick Start Guide

will help you install and set up your

modem. A full

User Guide

containing instructions on how to

use the V.92 Modem on Hold feature, detailed configuration

information, a command reference, a troubleshooting chapter,

and an index can be found on the MultiModemZBA CD. The

User Guide

, which is in Adobe Acrobat 4.0 format, can be viewed

on your monitor or printed out for easy reference.

What Is in Your Modem Package?

Your modem package has several components. Please make

sure you have them all before trying to operate your modem.

The MT5634ZBA-V92 package should contain:

An MT5634ZBA-V92 data/fax modem

A set of four self-adhesive plastic feet

This

Quick Start Guide

A MultiModemZBA CD containing modem drivers and the

User Guide

A CD containing data communications and other programs

A universal power supply

A 9-pin to 25-pin serial cable

MultiModemZBA Quick Start Guide

A localization kit is included with the modem in some countries

and purchased separately in others. The kit can include any or

all of the following items:

An RJ-11 telephone cable

An adapter to connect the RJ-11 cable to your local telephone

service

A country-specific power cord

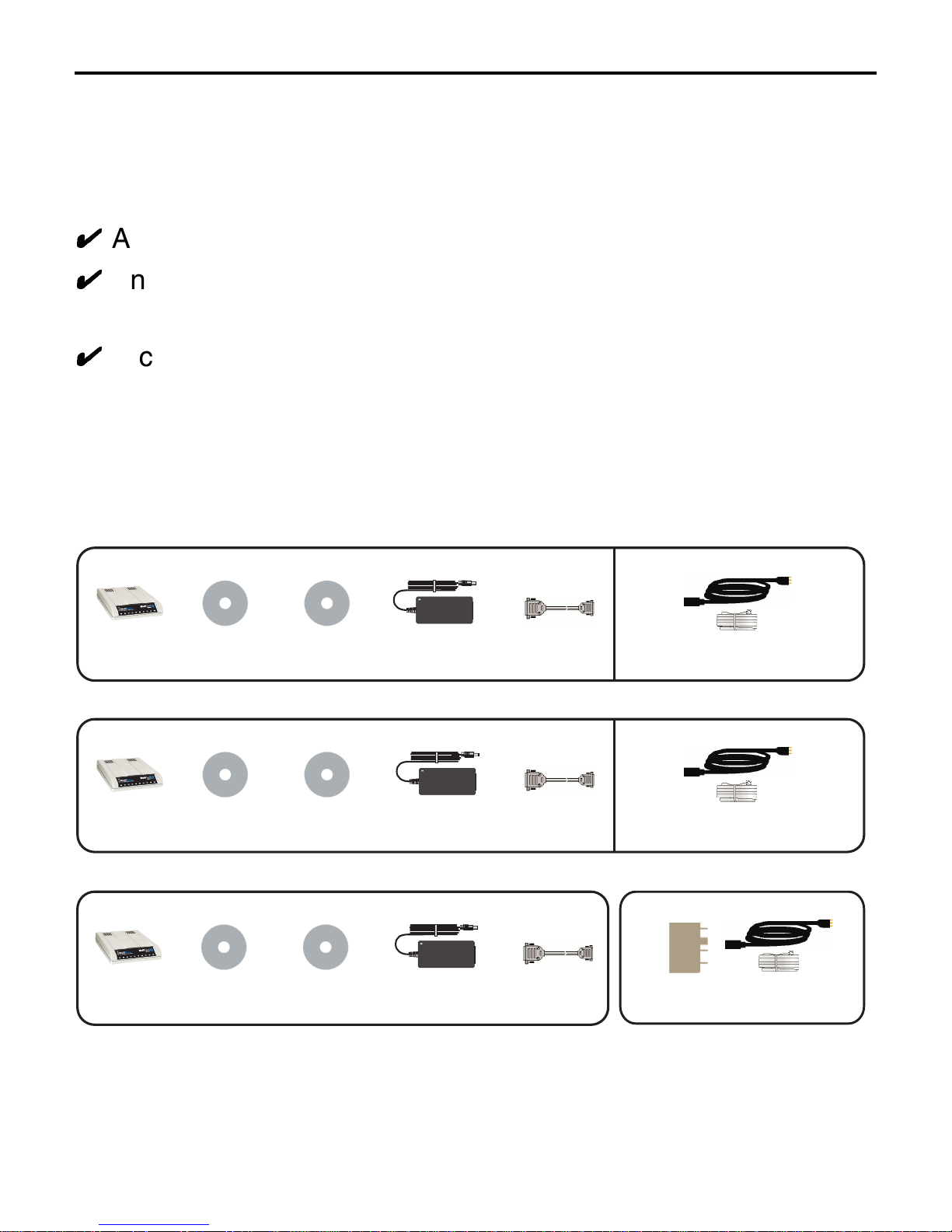

The following illustration shows how the modem is packaged

for different counties. Please use this information to check the

contents of your package.

(Ordered separately)

Telco adaptor, power cord

and RJ-11 phone cable

LK-ZBA-XXXX

odem Installation

Program

Universal

power supply

RS-232

cable

T5634ZBA-V92

U.S.-style power cord

and RJ-11 phone cable

LK-ZBA-US/NA

odem Installation

Program

Universal

power supply

RS-232

cable

T5634ZBA-V92

Euro-style power cord

and RJ-11 phone cable

LK-ZBA-Euro

odem Installation

Program

Universal

power supply

RS-232

cable

T5634ZBA-V92

Figure 1. Localization kits

MultiModemZBA Quick Start Guide

The localization kit order number for your country can be found

http://www.multitech.com/GlobalModem/order/localkits.asp

If any item is missing, please contact Multi-Tech Systems or your

dealer/distributor (see Appendix D of the User Guide for informa-

tion on contacting Multi-Tech via telephone, fax, or the Internet).

What You Will Need

In addition to the contents of the MultiModemZBA package,

you will need the following items:

A computer with an unused serial port

A nearby AC power outlet

A nearby telephone line

A nearby two-wire leased line jack or terminals (optional)

Safety Warnings

•Use this product only with UL- and CUL-listed computers.

•To reduce the risk of fire, use only 26 AWG (.41mm) or

larger telephone wiring.

•Never install telephone wiring during a lightning storm.

•Never install a telephone jack in a wet location unless the

jack is specifically designed for wet locations.

•Never touch uninsulated telephone wires or terminals unless

the telephone line has been disconnected at the network

interface.

•Use caution when installing or modifying telephone lines.

MultiModemZBA Quick Start Guide

•Avoid using a telephone during an electrical storm; there is

a risk of electrical shock from lightning.

•Do not use a telephone in the vicinity of a gas leak.

Step 1: Mount the Feet

The modem comes with a strip of self-adhesive plastic feet,

which you can optionally mount on the modem. To install the

feet, simply peel them from their paper strip and press them

into the recesses on the bottom of the modem.

Figure 2. Mounting the feet

Step 2: Change the Internal Jumpers

This step is required only if you intend to use the modem on a

leased line. For leased line instructions, see the

User Guide

MultiModemZBA Quick Start Guide

Step 3: Connect the Modem to Your System

Turn off your computer. Placing the modem in a convenient

location, connect it to your computer’s serial port, to the tele-

phone line or leased line, to AC power, and, optionally, to your

telephone.

PWR RS232 PHONE LINE

Figure 3. MultiModemZBA connections

MultiModemZBA Quick Start Guide

RS232 Connection

Plug one end of the serial cable into the RS232 connector on

the modem, and the other end into a serial port connector on

your computer, such as COM1 or COM2.

Dial-Up Connection

Plug one end of the modular telephone cable into the modem’s

LINE jack, and the other end into a standard telephone wall jack.

Note: The LINE jack is not interchangeable with the PHONE

jack. Do not plug the telephone into the LINE jack or the line

cable into the PHONE jack.

Note: Regulatory agencies may impose certain restrictions on

equipment connected to public telephone systems. For more

information, see Appendix A in the

User Guide

Two-Wire Leased Line Connection

Plug one end of a two-wire telephone cable into the modem’s

LINE jack, and connect the other end to a two-wire leased line

wall jack or terminals.

Note: Before you can use the modem on a leased line, you

must first change the internal jumpers. See “Step 2: Change

the Internal Jumpers”in the

User Guide

MultiModemZBA Quick Start Guide

Telephone Connection

If you want to connect a telephone to the same line as the

modem, plug it into the modem’s PHONE jack.

Note: The PHONE jack is not interchangeable with the LINE

jack. Do not plug the telephone into the LINE jack or the line

cable into the PHONE jack.

Power Connection

The power switch is located on the right side of the modem.

Make sure it is set to OFF. Plug the the universal power supply

into the PWR jack on the modem. Then plug one end of the

country-specific power supply cord into the universal power

supply and the other end into a power outlet or power strip.

Note: Use only the power supply supplied with the modem.

Use of any other power supply voids the warranty and can

damage the modem.

Power-On Test

Test the modem by turning it on. When you turn it on, the mo-

dem performs a diagnostic self-test, after which the 56 indica-

tor should light. If this does not happen, check that the power

switch is on, the power supply is solidly connected, and the AC

outlet is live. If these measures do not work, see Chapter 8 of

the

User Guide

, “Solving Problems.”

MultiModemZBA Quick Start Guide

Step 4: Install the Modem Driver

If you use Windows 95 or above, you must install the modem

driver. The MTMoh Modem on Hold program is installed at the

same time (see Chapter 7 in the

User Guide

). If you use another

operating system, please see the

User Guide

1. Make sure your modem is connected properly, and then

turn on your computer. Windows should detect your new

modem and open the Install New Modem wizard.

Note: If Windows cannot find a modem, your modem may

be turned off, it may be plugged into the wrong connector

on your computer, or the serial cable may be faulty. See

“None of the LEDs Light When the Modem Is Turned On”

and “The Modem Does Not Respond to Commands”in

Chapter 8 of the

User Guide

, “Solving Problems.”

2. In the Install New Modem wizard, select Don’t detect my

modem; I will select it from a list, and then click Next. A

dialog box with a list of manufacturers and a list of modem

models appears.

3. Insert the MultiModemZBA compact disc into your CD-ROM

drive, and then click Have Disk. (If the disc menu appears,

you may either close it or ignore it for now.)

4. In the Install from Disk dialog box, select the drive the

disc is in, and then click OK.
