UPort™ 400A Series

Quick Installation Guide

Version 1.0, November 2022

Technical Support Contact Information

www.moxa.com/support

- 2 -

Overview

The UPort™ 400A Series Industrial-grade USB 3.2 Gen 1 hubs expand 1

USB port to 4 or 7 ports. The hubs are designed to provide true USB

3.2 SuperSpeed 5 Gbps data transmission through each port, even for

heavy-load applications. As USB-IF certified products, the UPort™

400A Series has passed SuperSpeed compliance testing and is eligible

to bear the USB logo. Besides providing ESD level 4 protection from

static damage and surge protection level 3 for power input, the UPort™

400A Series offers a power jack and terminal block dual power input

solution for industrial environments.

The following models comprise the UPort™ 400A Series:

UPort™ 404A

4-port industrial-grade USB hub, standard

temperature 0 to 60°C (32 to 140°F), adapter

included

UPort™ 407A

7-port industrial-grade USB hub, standard

temperature 0 to 60°C (32 to 140°F), adapter

included

UPort™ 404A

-T

-port industrial grade USB hub, wide

temperature

-40 to 85°C (-40 to 185°F), adapter

excluded

UPort™ 407A-T

7-port industrial grade USB hub, wide

temperature

-40 to 85°C (-40 to 185°F), adapter

excluded

Features

•SuperSpeed USB 3.2 Gen 1 for up to 5 Gbps USB transmission

•USB-IF certification (TID: 7623, 7624)

•Provides level 4 ESD protection and level 3 surge protection for

power input

•USB cable with latch

•Comprehensive diagnostic LEDs

•Dual power input supply (power jack and terminal block)

•Rugged metal housing

•Side-mount DIN Rail and wall mountable

Package Checklist

The UPort™ 400A Series package should contain the following items. If

any of these items is missing or damaged, please contact Moxa for

replacement.

•UPort 400A USB hub

•USB cable with latch: CBL-USB3-BA-G-120, 1.2 m, with hook and

screw

•100 to 240 VAC, 0 to 40°C (32 to 104°F) power adapter suitable for

your region (excluding -T models)

•Wall-mounting kit: Wall-mounting kit for the bottom side of the

UPort 400A with 2 plates (43 x 30 x 2 mm/1.69 x 1.18 x 0.08 in)

and 6 screws (M3 x 5 mm)

•Quick installation guide (printed)

•Warranty card

- 3 -

Optional Accessories (can be purchased separately)

•Standard USB cable (without latch): CBL-USB3-BA-BK-120, 1.2 m

•USB cable with latch: CBL-USB3-BA-G-120, 1.2 m

•WK-UP400A-BAK-BK: Wall-mounting kit for the back side of the

UPort 400A with 2 plates (60 x 27 x 2 mm/2.36 x 1.06 x 0.08 in)

and 6 screws (M3x5mm)

•DK-UP-42A: Side-mount DIN Rail (107 x 29 mm/4.21 x 1.14 in)

with 4 screws.

NOTE

The operating temperature of the power adapter in the box is

from

0 to 40°C (32 to 104 °F). If your application is not in this

range, please use a power adapter supplied by UL Listed

External Power Supply (The power output meets ES1/SELV and

LPS and rated 12

-48 VDC, 4.75 A @ 12 VDC 1 A @ 48VDC

minimum for the UPort 407A models, 2.8 A @ 12 VDC minimum

for the UPort 404A models).

Hardware

An example of the UPort™ 404A front panel:

Front View

Side View—Power Input 12 to 48 VDC

Installation Guide

Power Input Supply

The UPort 400A comes with self-power, minimum required 12-48 V

input, 4.75 A @ 12 VDC, 1 A @ 48 VDC minimum for the UPort 407A

models, 2.8 A @ 12 VDC minimum for the UPort 404A models.

- 4 -

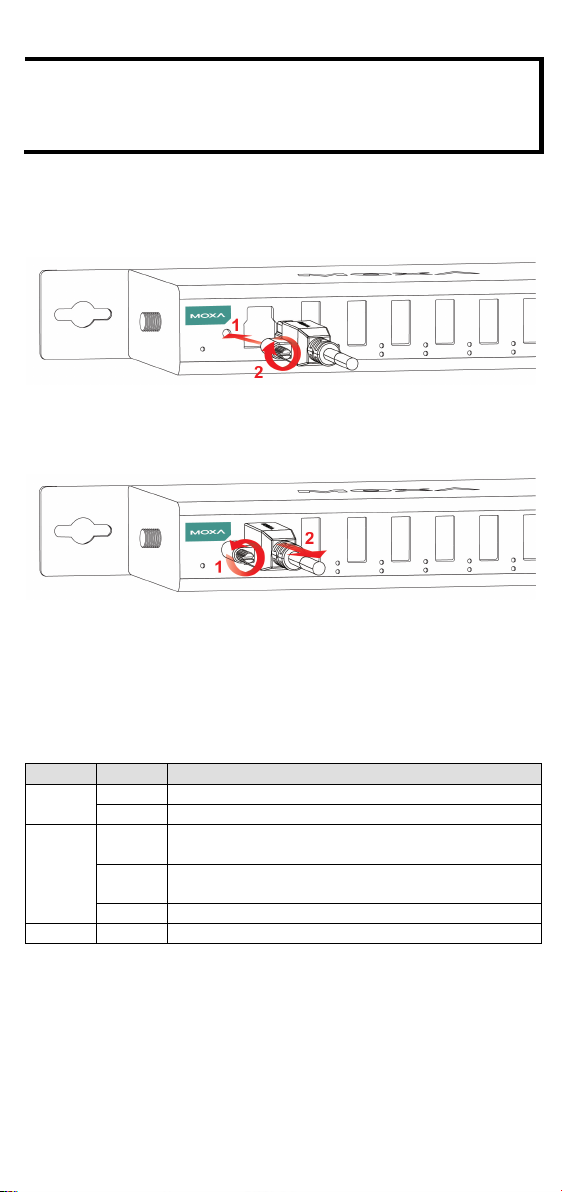

How to have Moxa’s USB cable plugged into the hub and

computer securely

The Moxa new latch USB cable comes with a latch on each side of the

Type-A connector and a screw on the Type-B connector.

Every time you plug in and plug out the cable from the host computer,

always press both latches and then plug the connector into the USB

sockets on your computer or vice versa.

Plugging in the cable to the host computer:

Step 1: Press both latches.

Step 2: Plug in.

Plugging out the cable from the host computer:

Step 1: Press both latches.

Step 2: Plug out.

- 5 -

NOTE

The latch is designed to lock to most of the computer USB

sockets

; however, some sockets may be designed with a slight

margin difference

, which may cause the latch not to lock to

properly to those USB sockets.

Plugging in the USB cable to the UPort 400A hub:

The bolt on the side of Type-B connector is for fixing the cable firmly to

the UPort 400A USB hub. Remember to swivel the bolt after plugging in

and before pulling out the connector.

Step 1: Plug the USB cable type-B plug into the type-B socket.

Step 2: Turn the bolt on the type-B plug clockwise for about 5 turns.

Plugging out the USB cable from the UPort 400A hub:

Step 1: Turn the bolt on the type-B plug anti-clockwise until the bolt is

loose.

Step 2: Pull out the USB cable type-B plug from the type-B socket.

LED Indicators

The LED indicators on the front panel are used to display status as

follows:

Type

Color

Definition

Power

Green

Power on

Off

Unit is not powered or out of operation

Status

Blue

Downstream USB device is recognized and

connected with SuperSpeed

Green Downstream USB device is recognized and

connected with high speed or full speed

Off

Device not connected or out of operation

Fault

Red

Device over current is detected

- 6 -

Wall Mounting

The UPort™ 400A Series comes with two options of wall mounting, and

both have metal attachment plates to allow installation on a wall.

Option 1 – Bottom-mounting with WK-UP400A-BOT-BK

UPortTM 407A

Unit: mm (inches)

UPortTM 404A

The mounting kit is 2 mm in height,

and the two centers of the mounting

kit on each plate is

163 mm (UPort

407A) and 123 mm (UPort 404A)

apart.

First, attach the brackets at the

bottom of the UPort™ 400A with

the

screws, as the circles

indicate.

The recommended

screw tightening torque: 4.5

kgf

-cm +/- 0.5, screw type:

type F, PH2. Next, mount the

unit to a wall with the screws.

- 7 -

The wall screws should use the M3

type

, and the length should no less

than 7 mm.

Option 2 – Rear-mounting With WK-UP400A-BAK-BK

UPortTM 407A

Unit: mm (inches)

UPortTM 404A

First, attach the brackets at the

rear of the UPort™ 400A with the

screws,

as the circles indicate.

The r

ecommended screw

tightening torque: 4.5 kgf

-cm

0.5, screw type: type F, PH2.

Next, mount the unit to a wall

with the screws.

The wall screws should use the M3 type, and

the

length should no less than 7 mm.

The mounting kit is 2 mm in height, and the two centers of mounting

kit on each plate is 168 mm (for UPort 407A) and 128 mm (for UPort

404A) apart.

- 8 -

UPortTM 407A

Unit: mm (inches)

UPortTM 404A

DIN-Rail Mounting

The UPort™ 400A Series has a DIN-rail kit option (DK-UP-42A) to allow

installation on a DIN Rail. DIN-rail attachments can be purchased

separately to attach the product to a DIN Rail. The DIN-rail

attachments should be oriented with the metal springs on top.

First, attach the DIN-rail attachments to the rear of the UPort™ 400A

with screws, indicated by the circles. The recommended screw

tightening torque: 4.5 kgf-cm +/- 0.5, screw type: type F, PH2.

UPort™ 407A

UPort™ 404A

Next, mount the UPort™ 400A onto the mounting rail.

STEP 1: Insert the upper lip of

the DIN

-rail kit into the mounting

rail.

STEP 2: Press the UPort™ 400A

towards the mounting rail until it

snaps into place.

- 9 -

To remove the UPort™ 400A from the DIN Rail, do the following:

STEP 1:

Pull down the latch on

the DIN-

rail kit

with a screwdriver.

STEP 2 & 3:

Slightly pull the

UPort™ 400A

forward

and lift it up to remove it from the

mounting rail.

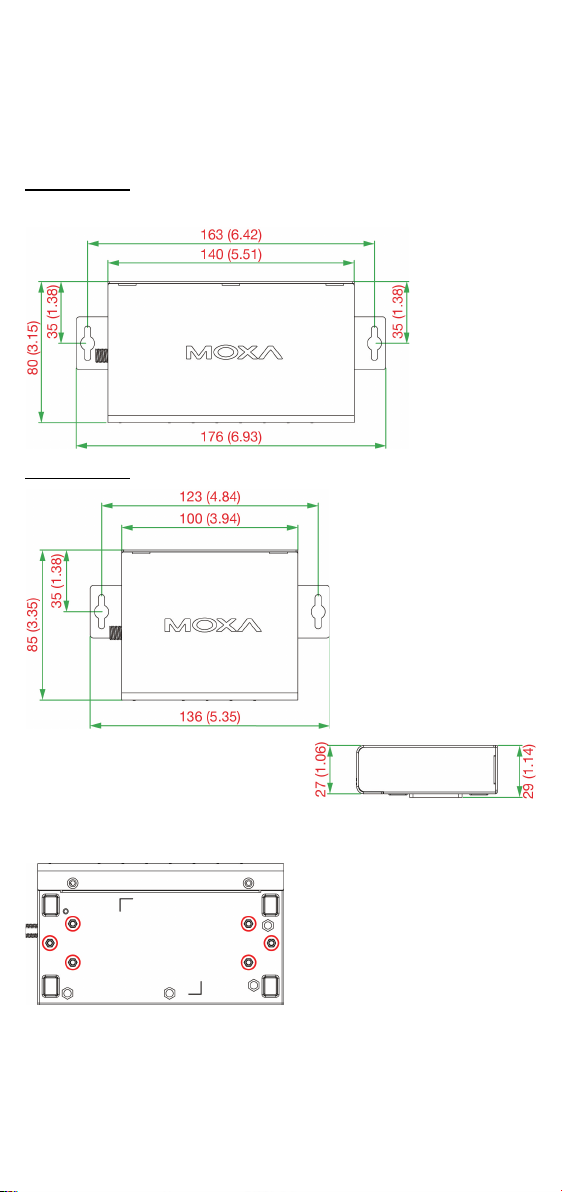

Dimensions

UPortTM 407A

- 10 -

UPortTM 404A

Specification

USB Interface

Compliance

USB 3.2/2.0/1.1, BC 1.2 compliant

Upstream

1 USB Type-B port

Downstream

UPort™ 404A: 4 USB Type-A ports

UPort™ 407A: 7 USB Type-A ports

Speed 5 Gbps (SuperSpeed USB), 480 Mbps (Hi-speed

USB) and 12 Mbps (Full-speed USB)

Physical Characteristics

Housing

Aluminum

Dimensions UPort™ 404A/404A-T: 85 x 27 x 100 mm (3.35 x

1.06 x 3.94 in)

UPort™ 407A/407A-T: 80 x 27 x 140 mm (3.15 x

1.06 x 5.51 in)

Environmental Limits

Operating

Temperature

Standard Models: 0 to 60°C (32 to 140°F)

Wide Temp. Models: -40 to 85°C (-40 to 185°F)

Operating

Humidity

5 to 95% RH

(For use in Pollution Degree 2 environments)

Storage

Temperature

Standard Models: -20 to 75°C (-4 to 167°F)

Wide Temp. Models: -40 to 85°C (-40 to 185°F)
