MRC-1002 Series

Quick Installation Guide

Moxa Remote Connect Gateway

Edition 3.0, September 2020

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The MRC-1002 Series is the gateway part of the Moxa Remote Connect

Solution, which connects remote Ethernet-based industrial equipment

to the Moxa Remote Connect Server. This allows service engineers to

access the equipment on the local network remotely.

Package Checklist

Before installing the MRC-1002 Series, please verify that the package

contains the following items:

•MRC-1002 series gateway x 1

•Wireless Antenna x 2 (LTE model only)

•Quick installation guide (printed)

•Moxa product warranty statement

MRC-1002 and MRC-1002-LTE Panel Layout

The following figures show the panel layouts of the MRC-1002 Series.

Top and Bottom View

Top View

Bottom View

Front View

MRC-1002

MRC-1002-LTE

- 3 -

LED Indicators

LED

Symbol

LED

Name

Color Function

USB

Green

Steady On: The USB device is connected

and working

Steady Off: The USB device is not

connected

Power

Green

Steady On: The gateway is powered on

Steady Off: The gateway is powered off

Internet

Green

Blinking: Testing the Internet

connectivity

Steady On: Internet is available

Cloud

Server

Green

Steady Off: WAN configuration is not

available

Blinking: Testing the connectivity of the

MRC Server

Steady On: The MRC Server is connected

Activation

Key

Green Steady Off: There is no activation key

inside the gateway

Blinking: The activation key is not valid

Steady On: The activation key is valid

and the gateway is activated

Connection

Green

Blinking: The gateway is trying to

establish the VPN tunnel

Steady On: T

he gateway has successfully

established the VPN tunnel

SIM

Green

Steady Off: No SIM card

Blinking: SIM card error

Steady On: SIM card is ready

Cellular

Signal

Green

There are three LEDs to display the

signal strength of the cellular.

3 LEDs On: Highest strength signal

2 LEDs On: Normal strength signal

1 LED On: Signal quality is poor (possibly

no Internet connection)

0 LED On: No Internet connection

Ethernet

Speed

Ethernet port is connected with a speed

of 10 Mbps / 100M speed

- 4 -

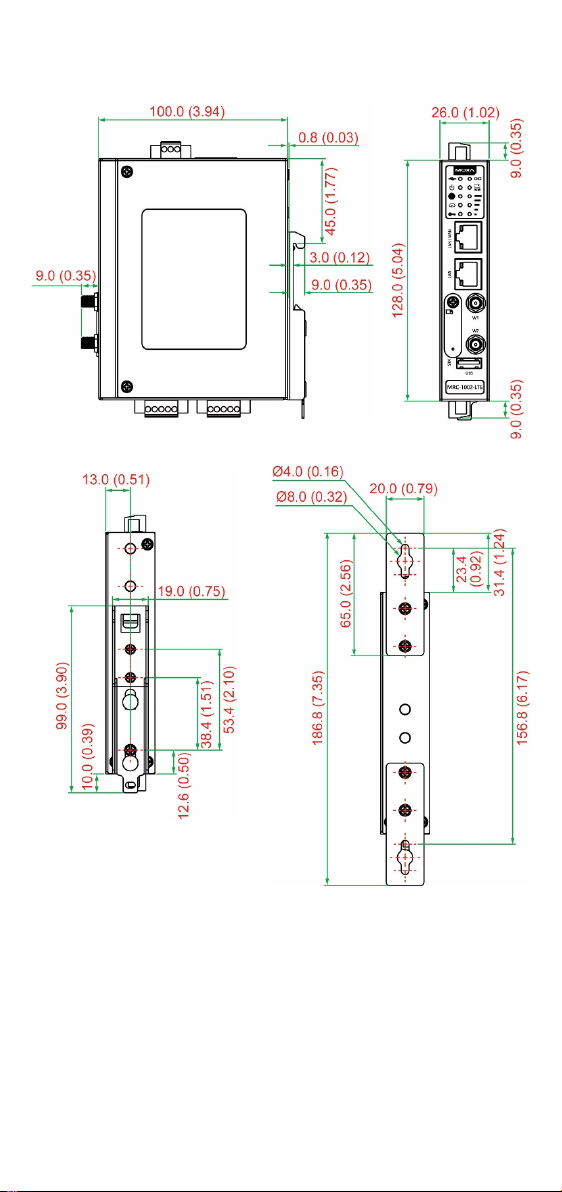

Mounting Dimensions (unit: mm [inch])

DIN-rail mounting

Wall-mounting

- 5 -

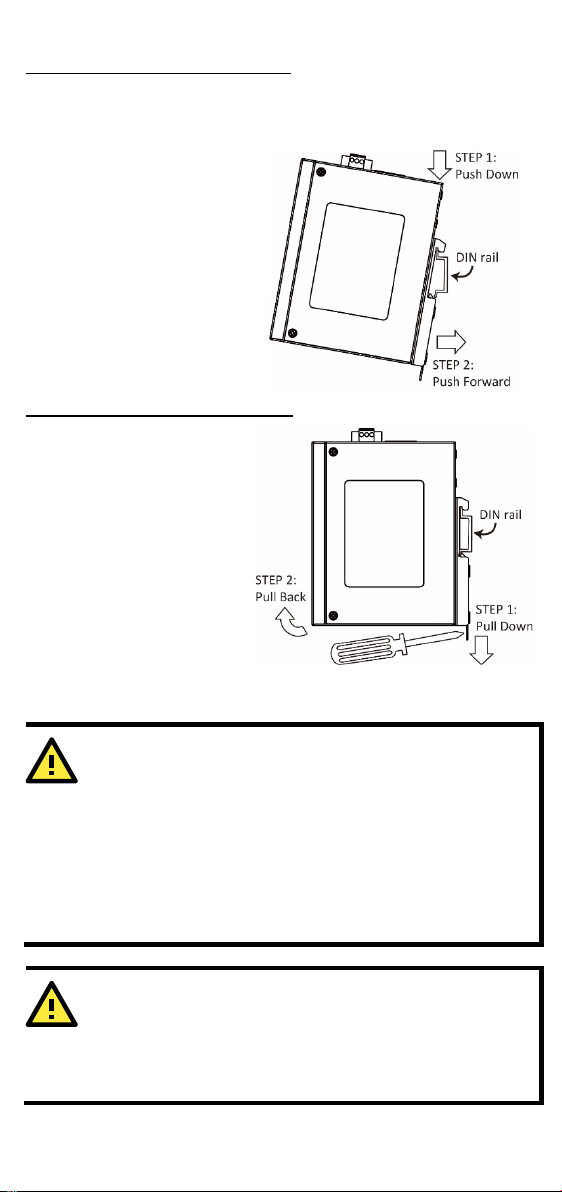

Installing the MRC-1002 Gateway

The metal DIN-rail kit is fixed to the back panel of the MRC-1002

gateway when you take it out of the box. Mount the MRC-1002 gateway

on corrosion-free mounting rails that meet the EN 60715 standard.

STEP 1:

Click on the DIN rail and push

down into the mounting rail.

STEP 2:

Push the MR

C-1002 gateway

forward

until it snaps into

place.

Removing the MRC-1002 Gateway

STEP 1:

Use a flat

-type screwdriver to

pull down the spring of the DIN

rail kit.

STEP 2:

Pull back the MRC

-1002

gateway until it

releases from

the mounting rail.

Wiring Requirement

WARNING

Do not disconnect modules or wires unless

the power has been

switched off or the area is known to be non

-hazardous. The

devices may only be connected to the supply voltage shown on

the type plate. The dev

ices are designed for operation with a

Safety Extra

Low Voltage. Thus, they may only be connected to

the supply voltage connections and to the signal contact with

the Safety Extra

-Low Voltages (SELV) in compliance with

IEC950/ EN 60950/VD E0805/IEC 61010 c

lass 2.

ATTENTION

This unit is a built

-in open type. When the unit is installed in

another piece of equipment, the equipment enclosing the unit

must comply with fire enclosure regulation IEC 60950/EN60950

(or similar regulation).

- 6 -

ATTENTION

Safety First!

Be sure to disconnect the power cord before in

stalling and/or

wiring your MRC

-1002 gateway.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size. If the current

goes above the maximum rating,

the wiring could overheat,

causing serious damage to your equipment.

Please read and follow these guidelines:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point. NOTE: Do not run signal or

communications wiring and power wiring through the same wire

conduit. To avoid interference, wires with different signal

characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb

is that wiring that shares similar electrical characteristics can be

bundled together.

•You should separate input wiring from output wiring.

•We advise that you label the wiring to all devices in the system.

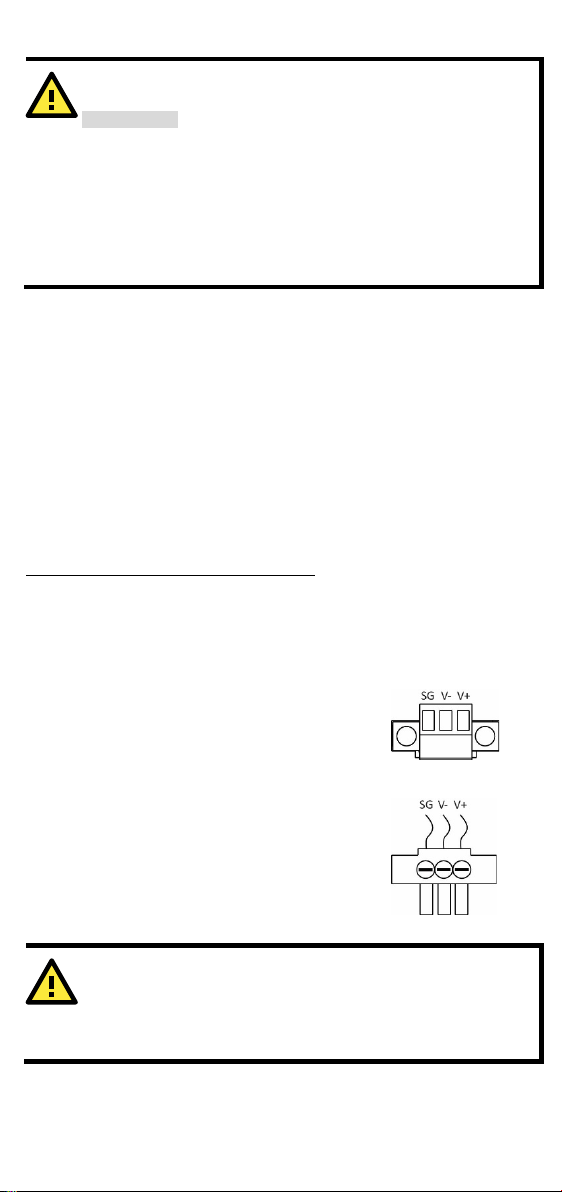

Wiring the Power Input (12-36V DC)

Connect the power adapter with the 3-pin terminal block on the top

panel of the MRC-1002 gateway and push the power terminal block into

the terminal block socket. When the system boots up, the system is

ready, and the Power LED will light up.

STEP 1:

Insert the negative/positive DC wires

into the V

-/V+ terminals, respectively.

STEP 2:

To keep the DC wires from pulling loose,

use a small flat

-blade screwdriver to tighten the

wire

-clamp screws on the front of the terminal

block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block receptor

located

on the top panel of the MRC-1002

gateway.

STEP 1 / STEP 2:

STEP 3:

ATTENTION

Before connecting the MRC

-1002 gateway to the DC power

input, make sure the DC power source voltage is stable. The

wire must be able to withstand at least 105°C.

- 7 -

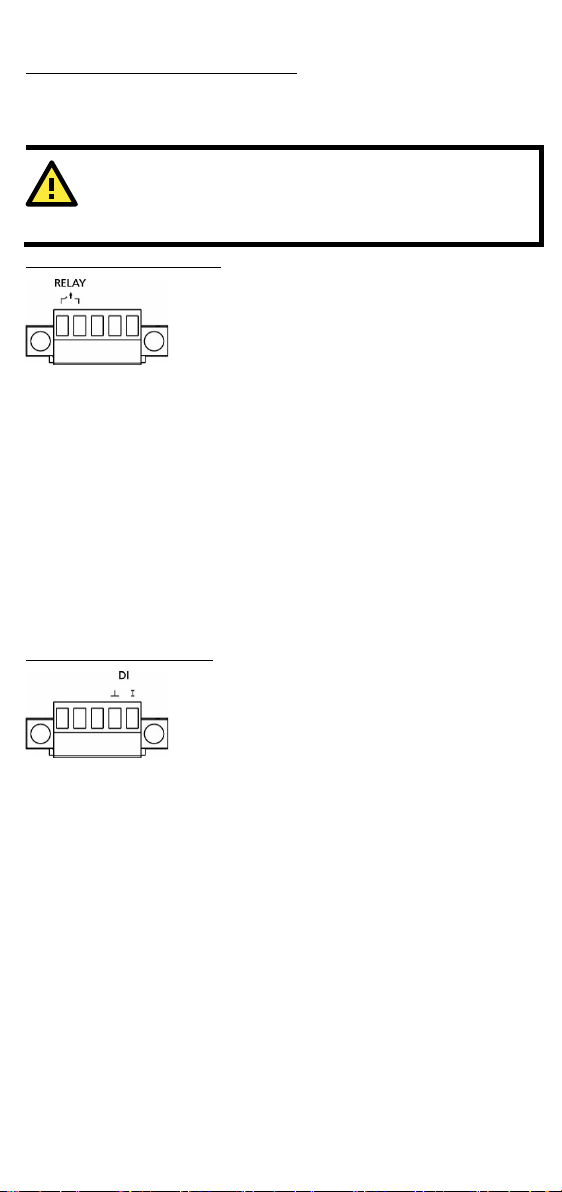

Grounding the MRC-1002 Gateway

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from

the terminal block to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface such as a metal panel.

Wiring the Relay Contact

The MRC-1002 Series has one relay output. This relay contact uses two

contacts of the terminal block on the bottom panel of the MRC-1002

gateway. Refer to the next section for detailed instructions on how to

connect the wires to the terminal block connector, and how to attach

the terminal block connector to the terminal block receptor. In this

section, we illustrate the meaning of the two contacts used to connect

the relay contact.

FAULT:

The two contacts of the 5-pin terminal block connector are used to

detect user-configured events. The two wires attached to the fault

contacts form an open circuit when a user-configured event is

triggered. If a user-configured event does not occur, the fault circuit

remains closed.

Wiring the Digital Input

The MRC-1002 gateway has one digital input (DI). The DI consists of

two contacts of the 5-pin terminal block connector on the MRC-1002

bottom panel, which are used for the DC input. The top view of the

terminal block connectors is shown above.

STEP 1: Insert the negative (ground)/positive DI wires into the ┴/I

terminals, respectively.

STEP 2: To keep the DI wires from pulling loose, use a small flat-blade

screwdriver to tighten the wire-clamp screws on the front of the

terminal block connector.

STEP 3: Insert the plastic terminal block connector prongs into the

terminal block receptor, which is located on the bottom panel of the

MRC-1002 gateway.

- 8 -

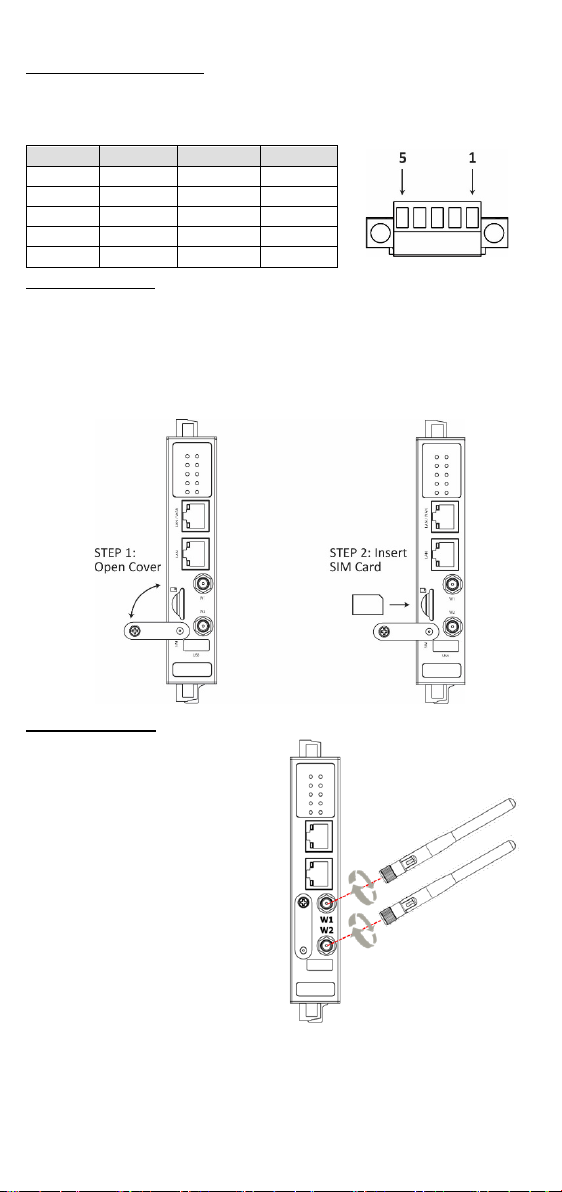

Wiring the Serial Ports

The MRC-1002 gateway has one serial port. Each port can be

configured by software for RS-232, RS-422, or RS-485. The pin

assignments for the ports are shown in the following table.

RS-232

RS-422

RS-485

TXD

TXD+

–

RXD

TXD-

–

RTS

RXD+

D+

CTS

RXD-

D-

GND

SIM Card Socket

The MRC-1002 gateway LTE version comes with a SIM card socket

(normal SIM size) for cellular communications. The SIM card socket is

located at the lower part of the front panel. To install them, remove the

screw and the protection cover to access the socket, and then plug the

SIM card into the socket directly. You will hear “click” when finished.

Push the SIM card again to release it from the socket.

Cellular Antenna

The MRC-1002 gateway cellular

version has two antennas in the

package. Screw

the antennas into

the cellular sockets marked as W1

and W2 on the front panel.

- 9 -

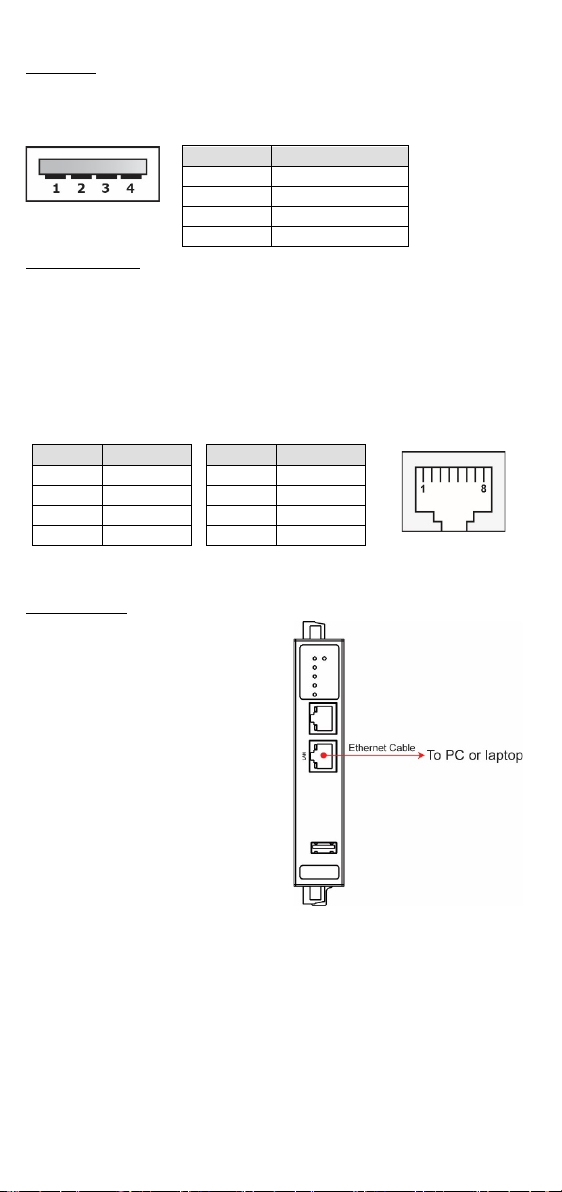

USB Port

The USB 2.0 port (type A connector) is located at the lower part of the

front panel, and supports a USB storage device driver for FAT, FAT32

and NTFS. The pinout of the USB port is as below.

Description

VCC (+5V)

D- (Data-)

D+(Data+)

GND (Ground)

Ethernet Ports

The 10/100BaseT(X) ports located on the front panel of the MRC-1002

gateway are used to connect to Ethernet-enabled devices. The ports

are at “Auto MDI/MDI-X” mode by default, which is suitable for

straight-through or cross-over Ethernet cables. In what follows, we give

pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type)

ports. We also give cable wiring diagrams for straight-through and

cross-over Ethernet cables.

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Tx-

Rx+

Rx-

Signal

Rx+

Rx-

Tx+

Tx-

Connecting to a PC

Web Console

The MRC-1002 gateway provides

local HTTP web console for users to

configure the settings from

the

LAN

port. The web console is also

available for the remote Moxa

Remote Connect Clients within the

same device group in the same

Moxa Remote Connect Server. The

default network configuration, login

account, and password are shown

below.

•

Management LAN IP:

192.168.127.254

•

Administration login /

password: admin / moxa

- 10 -

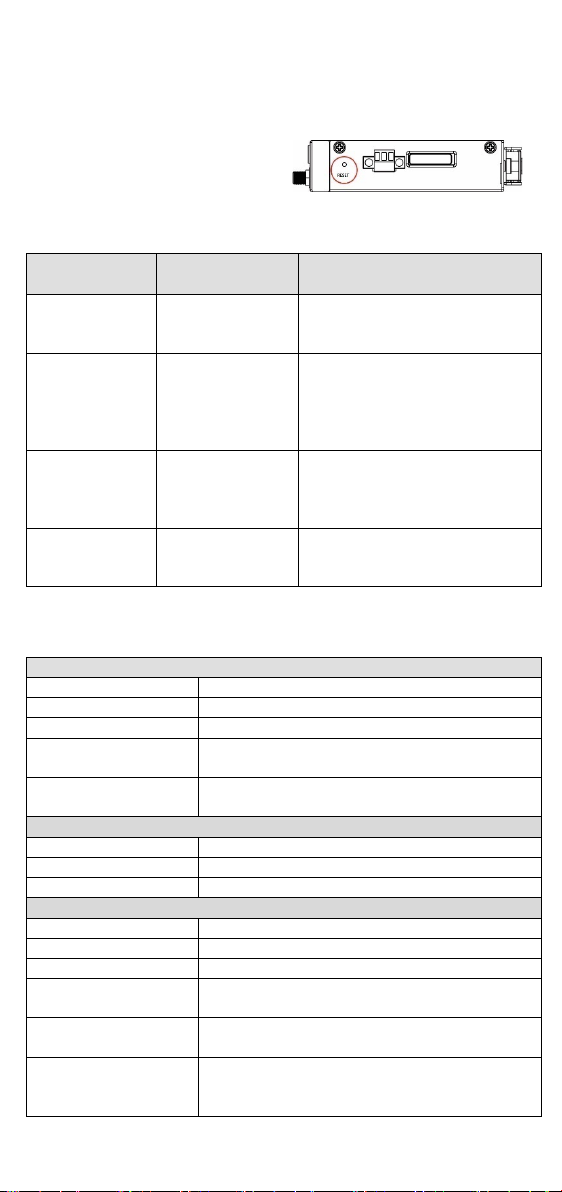

Reset Button

The MRC-1002 gateway has a reset

button on the top of the panel.

Push down the button with a pin

and the gateway will reset to

default.

Pressing and releasing the

button for different durations has

different actions as listed below.

Operation LED (Blinking) Action

Press and release

within 1 to 5

seconds

Internet LED

Reboot MRC Gateway

Press and release

within 6 to 10

seconds

Internet LED +

Cloud Server LED

Reset login account and

password to default (admin /

moxa)

Reset to default LAN interface

192.168.127.254

Press and release

within 11 to 15

seconds

Internet LED +

Cloud Server LED

+ Activation Key

LED

Reset all configurations,

activation key, and certificate

Press longer than

15 seconds and

release

N/A Cancel the reset operation

Specifications

Power

Input Voltage

12-36 VDC

Input Current

0.62 A (max.) @ 12 VDC

Connection

1 removable 3-contact terminal block

Overload Current

Protection

Supported

Reverse Polarity

Protection

Supported

Physical Characteristics

Housing

Metal, IP30 protection

Dimensions

101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)

Installation

DIN-rail mounting, wall mounting (optional kit)

Interface

RJ-45 Port

10/100BaseT(X): 2 ports

USB Port

Button

RESET button

LED Indicator

USB, Power, Internet, Cloud Server, Activation

Key, Connection, SIM Card, Cellular Signals

Alarm Contact

1 relay output with current carrying capacity of

1 A @ 24 VDC

Digital Input

1 input with the same ground, but electrically

isolated from the electronics.

•+13 to +30 V for state “1”

Autres manuels pour MRC-1002 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Moxa Technologies Porte

Moxa Technologies

Moxa Technologies MGate MB3280 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5101-PBM-MN Manuel utilisateur

Moxa Technologies

Moxa Technologies OnCell G3110 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate EIP3000 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5134 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies AIG-301 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5101-PBM-MN Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate MB3170 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5118 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies OnCell G3111 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate MB3180 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5121 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate MB3170I Manuel utilisateur

Moxa Technologies

Moxa Technologies OnCell G3100 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5105-MB-EIP Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5102-PBM-PN Manuel utilisateur

Moxa Technologies

Moxa Technologies NPort Z3150 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5119 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate MB3480 Manuel utilisateur

Moxa Technologies

Moxa Technologies OnCell Series Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate MB3270I Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5109 Manuel utilisateur

Moxa Technologies

Moxa Technologies OnCell G3110 Manuel utilisateur

Moxa Technologies

Moxa Technologies MGate 5121 Series Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
