Business Class ADSL and ADSL2+ and Ethernet Broadband

Routers for Enterprise Applications

DATA SHEET

Netopia®3300 Enterprise Series

ADSL / ADSL2+ and Ethernet Routers

HIGHLIGHTS

Delivers routing, security,

and VPN features designed

for distributed enterprise

applications

Configured to support VoIP,

IPTV, and Video-on-Demand

(VOD) functionality

Wireless models include 3D

Reach®Extreme technology

for increased range and

performance

Turns any cable modem

or ADSL connection into a

manageable end-point for

managed service providers

and distributed enterprises

(3386, 3387WG)

Dial Backup for mission

critical deployment;

automates recovery (3366C)

Cost-effective design

increases service provider

profitability for mass-

deployment scenarios

and 802.11b/g wireless standards, delivering superior

wireless range and indoor coverage.

Support for Wi-Fi®Multimedia (WMM) assures

advanced Quality of Service (QoS) for wireless

delivery of VoIP, IPTV, or streaming video.

The 3300 Enterprise Series gives service providers

the opportunity to deliver business-class functionality

that can help distributed enterprises attain top-line

growth and bottom line savings. Built-in security

protects data, applications, and gateways without

the need to purchase separate software or hardware.

Ease of use, comprehensive management, and

high reliability improve customer satisfaction while

reducing operational and support cost.

The Motorola Netopia 3300 Enterprise Series is a

family of full-featured ADSL, ADSL2+, and Ethernet

routers that combine business-class functionality in

a compact device that is ideal for retail, small-branch-

office, and home-office environments.

The 3300 Enterprise Series supports the main access

technologies for today’s small office environment.

Business-critical features are embedded into this

family of routers, such as a built-in firewall and VPN

features, robust wireless security features, self-install

capabilities, and a rich set of remote management

options, including menu-driven, Command Line

Interface (CLI), and Simple Network Management

Protocol (SNMP) interfaces. From installation to

ongoing support, the 3300 Enterprise Series keeps

remote offices and teleworkers secure, while allowing

remote access for management and troubleshooting

purposes.

Broadband models with Ethernet WAN interfaces link

to any cable modem or ADSL connection for a secure

and remotely manageable end-point, while ADSL and

ADSL2+ models combine the modem and router into

an all-in-one solution. The ADSL models interoperate

with all the major DSLAM platforms, enabling broad

geographic deployment. Wireless LAN models

feature Motorola’s 3-D Reach Extreme technology

DATA SHEET

Netopia®Enterprise 3300 Series

ADSL / ADSL2+ and Ethernet Routers

3341-ENT ADSL GATEWAY

The 3341-ENT provides an ADSL modem for a single-PC user and is equipped with

the standard 3300 Enterprise business-class features and functionality. There are

two LAN options — a 10/100 Ethernet port or USB 1.1 port —for connecting your PC

or laptop.

3346N-ENT ADSL2+ GATEWAY

The 3346N-ENT combines an ADSL2+ modem and a four-port Ethernet switch,

allowing the user to set up a small network of computers or connect other Ethernet-

enabled devices.

3347-02-10ENT ADSL2+ GATEWAY

The 3347-02-10ENT includes an internal wireless access point with 3-D Reach

Extreme for Internet access anywhere in your retail or office environment. The four-

port Ethernet switch is used to set up a home network to share the Internet from

one IP address, or to hook up network peripherals like printers or external storage

devices.

3366C-ENT ADSL GATEWAY

The 3366C-ENT combines an ADSL modem, four-port Ethernet switch and a console

port for dial backup for mission critical deployment and automated recovery.

3386-ENT ADSL ROUTER

The 3386-ENT is a four-port Ethernet LAN model that serves as an extension to any

broadband modem, allowing the user to create a network of multiple computers or

Ethernet-enabled devices, such as a network printer or external storage device. The

3386-ENT is RoHS Compliant.

3387WG-ENT ADSL ROUTER)

The 3387WG-ENT is a four-port Ethernet LAN extension with internal wireless access

point that connects to any broadband modem, giving the user the ability to set up

a network of multiple computers or a shared network printer or external storage

device. It’s equipped with 3-D Reach for superior wireless range and coverage.

DATA SHEET

Netopia®Enterprise 3300 Series

ADSL / ADSL2+ and Ethernet Routers

HARDWARE FEATURES

WAN Interface

3341 ADSL

3346N ADSL2+

3337-02-10ENT ADSL2+

3366C-ENT ADSL and V.92 Dial Backup

3386-ENT 10/100 Ethernet

3387WG-ENT 10/100 Ethernet

LAN Interface

3341 One port 10/100 Ethernet

(RJ-45); Single USB port

3346N Four port 10/100 Ethernet

switch (RJ-45)

3347-02-ENT Built-in 802.11 b/g wireless;

four-port 10/100 Ethernet

switch (RJ-45)

3366C-ENT Four-port 10/100 Ethernet

switch (RJ-45)

3386-ENT Four-port 10/100 Ethernet

switch (RJ-45)

3387WG-ENT Built-in 802.11 b/g wireless;

Four-port 10/100 Ethernet

switch (RJ-45)

LEDs Power, Link, Status, and

Activity Indicators

ENCODING AND LINE SPEED

ANSI T1.413 Issue 2

ITU G.992.1 (G.dmt) Annex A and B, G.992.3 ADSL2, G.992.5

ADSL2+

NETWORK PROTOCOL SUPPORT

ATM Adaptation Layer 5

(AAL5) Eight Permanent Virtual Circuits

(PVCs); UBR, CBR, VBRnrt,

VBRrt; ITU-T I.610 (F4, F5)

OAM

RFC 2516 PPP over Ethernet (PPPoE)

RFC 2364 PPP over ATM (PPPoA)

RFC 1483/2684 Bridged Ethernet

RFC 1483/2684 Routed IP

PPP (PAP, CHAP, IPCP, LCP)

IPoE

LAYER 2 BRIDGING

IEEE 802.1d MAC layer bridging

MAC address learning (up to 512 MAC addresses) and aging

Multicast groups

Configurable maximum packet size

IEEE 802.1Q VLAN tagging

Bridge and routing mode selection

ROUTING FUNCTION

Static routingPPP over Ethernet Gateway

Default route

Numbered or unnumbered WAN interface

ROUTING FUNCTION, CONT.

Up to eight subnets on the LAN, with DHCP server

associations

Transparent bridging option

Virtual router interfaces (ALAN)

Variable length subnet mask

RFC 1058 RIP V1 on LAN/WAN

RFC 2453 RIP V2 on LAN/WAN

RFC 792 ICMP redirects

DHCP client, server and relay agent

Extensive DHCP Option support and Filter Rules

DNS relay

Netbios proxy

BootP

PPP Dial on demand

HeartBeat capabilities

IGMP Multicast Forwarding (LAN)

IGMP Multicast Forwarding (WAN)

IGMP Snooping

IGMP Fast Leave

RFC 1112 IGMP v1

RFC 2236 IGMP v2

RFC 3376 IGMP v3

Multiple Primary LAN Subnets

IEEE 802.11B/G WIRELESS LAN (3347-02-10ENT AND

3387WG-ENT ONLY)

High Power Radio 400 mW (26 dBm) transmit

power on all channels (100

mW EMEA)

Antenna diversity (omni-directional)

Optional reverse-SMA for external antenna support

Supported Data Rates 1, 2, 5.5, 6, 9, 11, 12, 18, 24,

36, 48, and 54 Mbps with

auto-rate fallback

IEEE 802.11e WMM Best Effort, Background, Video, Voice

Multiple SSID

Voice-over-Wi-Fi

Wi-Fi–certified (WPA2-Personal and WMM)

WIRELESS LAN SECURITY (3347-02-10ENT AND

3387WG-ENT ONLY)

IEEE 802.1X

WEP64, WEP128, WPA, WPA-PSK, IEEE 802.11i, WPA2

Block wireless bridging

Closed system mode

Transmit power control

HIGH AVAILABILITY

Backup default gateway through an external router

Schedule connections

RFC 2338 VRRP

Specifications

SECURITY

Built-in firewall, packet filtering on source/destination address,

service, and protocol; up to 255 rules in up to 8 filter sets

Policy-based routing

SPI (Stateful Packet Inspection) Firewall

Denial of Service attacks (DoS)

Distributed DoS (DDoS)

Filter on source and/or destination IP/port value

Filter on SYN, ACK flags and ICMP

IPSec VPN Gateway, Tunnel Mode Hardware

accelerated; DES

and 3DES

encryption; manual

key and IKE; AH and

ESP: MD5 and

SHA1

Tiered Admin access

4 management users profiles

RFC 2865 RADIUS (AAA) management authentication support

RFC 1492 TACACS+ Authentication

MANAGEMENT

Management via menu-driven or CLI interfaces with console or

Telnet access

Easy setup with menu-driven interface

Console Tiered Access, 2 levels of configuration access

Configuration Management, up to 3 backup user-defined

configurations

System diagnostics and logs

TFTP or X-Modem download/upload of new firmware and

configuration files

Utilities: ICMP ping, trace route, Telnet client, and Syslog client

LEDs: power, WAN, and Ethernet; link, status, activity

indications

CLI (full featured scriptable with integrated help)

Internal Dial-in console mgmt

Configurable console timeout

Management port reassignment

Device and WAN event logs

Logging and scripting

SNMP v1 & 2 support with enterprise MIBs

Persistent configuration storage during power down

Firmware updates via TFTP

Time/date set via NTP

Motorola, Inc. 101 Tournament Drive, Horsham, Pennsylvania 19044 U.S.A. www.motorola.com

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Netopia and 3-D Reach are registered trademarks of Netopia, Inc., a wholly-

owned subsidiary of Motorola, Inc. Wi-Fi and the Wi-Fi Alliance logo are registered marks and Wi-Fi Certified are trademarks of the Wi-Fi Alliance. All other product or

554449-001-a 04/08 5902 - 0K

REGULATORY

FCC Part 68, Part 15, Class B

UL Listed, CSA Approval

European EMC and Immunity

CE Mark

DSL Forum TR-067 Compliant

Industry Canada

ENVIRONMENTAL

Operating Temperature 0 °C to +40 °C (32 °F to 104 °F)

Storage Temperature 0 °C to +70 °C (32 °F to 158 °F)

(20 – 80% non-condensing

Power Power: External, 12 VDC,

minimum of 450mA, maximum

of 1000mA, depending on

model

WEIGHT AND DIMENSIONS

Wired (3341-ENT, 3366C-ENT,

3346N-ENT, 3386-ENT)

Weight 3 lb (1361 g) (unit carton)

Dimensions 1.4 in H x 5.3 in W x 5.4 in L

(3.5 cm x 13.5 cm x 13.7 cm)

Wireless (3347-02-10ENT,

3387WG-ENT)

Weight 4 lb (1814 g) (unit carton)

Dimensions 1.5 in H x 7.7 in W x 6.7 in L

(3.9 cm x 19.6 cm x 17.1 cm)

DATA SHEET

Netopia®3300 Enterprise Series

ADSL / ADSL2+ and Ethernet Routers

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Motorola Routeur réseau

Motorola

Motorola Netopia 4686-XL Manuel utilisateur

Motorola

Motorola MD1600 Manuel utilisateur

Motorola

Motorola Netopia 3397GP Manuel utilisateur

Motorola

Motorola Netopia 2247NWG Manuel utilisateur

Motorola

Motorola MC92603 Manuel utilisateur

Motorola

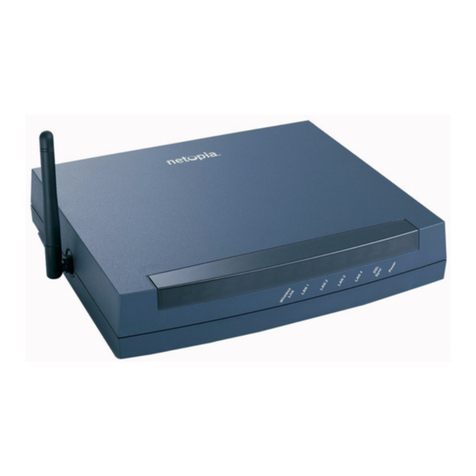

Motorola Netopia Embedded Software Manuel utilisateur

Motorola

Motorola MH7021 Manuel utilisateur

Motorola

Motorola MG7315 Manuel utilisateur

Motorola

Motorola BSR 2000 Manuel de programmation

Motorola

Motorola PTP 600 Series Manuel utilisateur

Motorola

Motorola Netopia R910 Manuel utilisateur

Motorola

Motorola Netopia 7000 Manuel utilisateur

Motorola

Motorola BR700 - EN Broadband Router Mode d'emploi

Motorola

Motorola MH7021 Manuel utilisateur

Motorola

Motorola BSR 2000 Manuel utilisateur

Motorola

Motorola 2108-N9 Manuel utilisateur

Motorola

Motorola HMDC5025 Manuel utilisateur

Motorola

Motorola MotoWI4 PTP 600 Series Mode d’emploi

Motorola

Motorola VL-RISC MCF5202 Manuel utilisateur

Motorola

Motorola WE800G - Wireless EN Bridge Manuel utilisateur

Motorola

Motorola BSR 2000 Manuel utilisateur

Motorola

Motorola RFS6000 - Wireless RF Switch Manuel utilisateur

Motorola

Motorola BSR 64000 Manuel utilisateur

Motorola

Motorola 7640-47 Manuel

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité

LevelOne

LevelOne FBR-1416 Manuel utilisateur
