Motorola PTP 300 Series Guide de référence rapide

PTP 300/500 Series

Deployment Guide

Contents

Protect Your Installation ....................................................................2

Checklist, Site Survey and Tools ......................................................4

Bench Test and Configuration - Pre and Post-Power Checks...........5

Bench Test and Configuration - Configuration Checks......................6

Hoist & Safety Loop...........................................................................7

Mast Installation Instructions.............................................................8

Wiring Diagram..................................................................................9

Recommended Cable Specification ................................................10

Cable and Gland Installation Notes.................................................12

Pre-Power Testing...........................................................................13

Pre-Power Testing - Recording Resistance Values.........................14

Post-Power Testing and Fault Finding.............................................15

Installation and Commissioning.......................................................16

Registration Warranty and Ordering Information.............................19

License Keys and Regulatory Information.......................................20

Attention

ElectroMagnetic Discharge (Lightning)

Protect Your Installation!

EMD (Lightning)damage is not covered under warranty

The recommendations in this section and in the user manual, when followed correctly,

give the installation the best protection from the harmful effects of EMD

However 100% protection is not implied or possible

The recommended components for protecting an installation are:

• Solid screen Ethernet cable: Superior Essex type BBDGE.

• Surge Arrestor: Type PTP-LPU - 2 per link – Part Number 2978

• Grounding Stake (if no suitable grounding point can be found).

• Minimum 8 AWG Grounding Cable

NB: There may be a local regulatory requirement to cross bond the CAT 5e cable to

the mast at intervals as regular as every 10 metres (33 feet). This can be achieved

using an Andrew grounding assembly type 223158 or similar.

We recommend that the practices and procedures detailed in the Motorola manual R56 "STANDARDS AND

GUIDELINES FOR COMMUNICATION SITES" (68P81089E50) be applied to all new site build activities. For a

copy on the manual please see your local Motorola representative. The manual can be downloaded from the

Motorola Intranet site http://compass.mot.com/go/190860869

Protect Your Installation

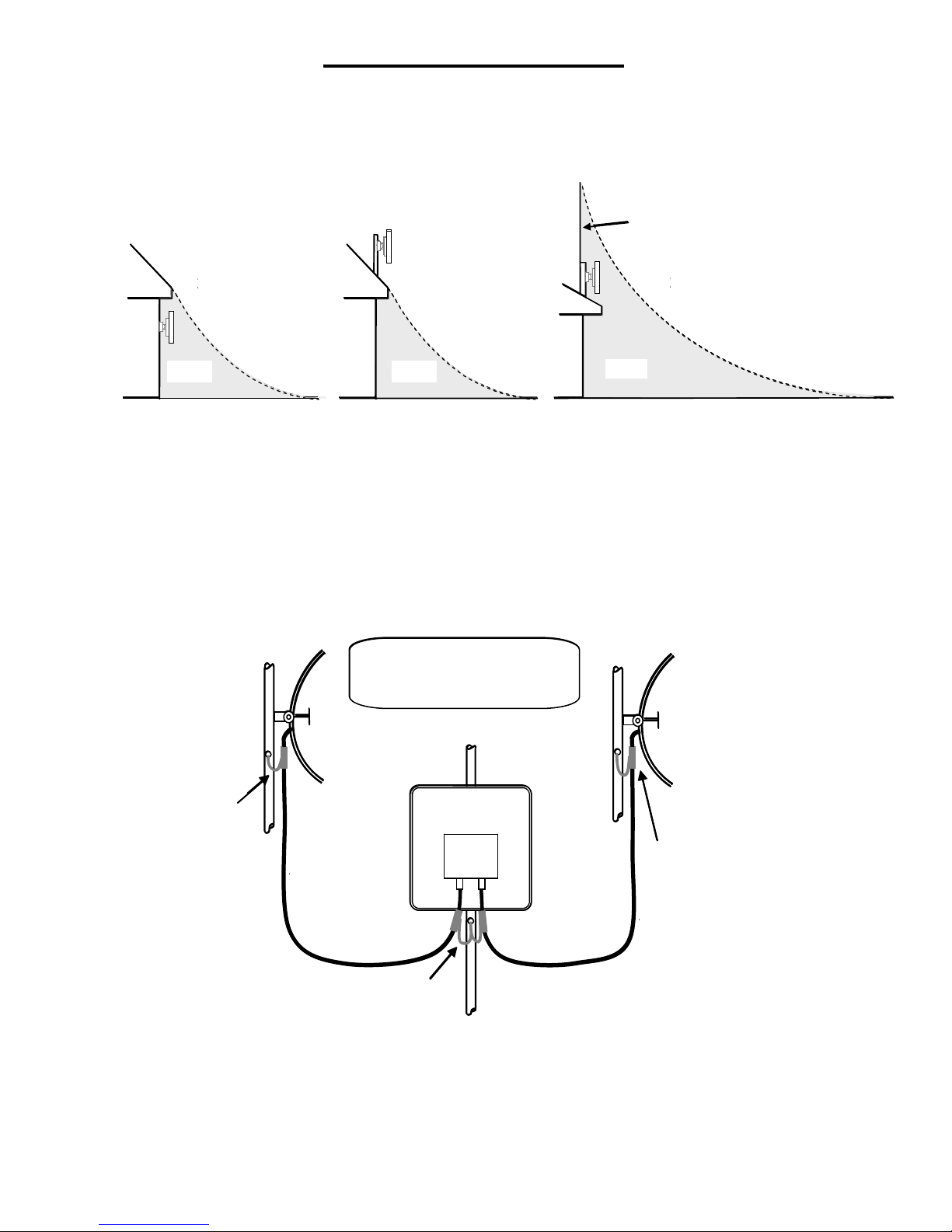

Protection Requirements

• Zone A – A direct strike is possible, mounting the ODU in this zone is not recom-

mended.

• Zone B –Indirect EMD (Lightning) effects are still possible, however, mounting within

Zone B significantly reduces the possibility of a direct strike

For further explanation and connection details see User Guide section - Lightning Protection

Zone AZone A

Recommended NOT Recommended

Zone BZone B

Zone A

Finial

Recommended

Zone B

Connectorized ODU

ntenna Cable

Antenna Cable

Grounded to Tower

Antenna Cables

Grounded to Tower

Antenna Cable Grounded

to Tower.

Antenna cables should be grounded

within 0.3 metres (1 foot) of the ODU

and Antennas

Additional Grounding Requirements for Connectorized ODU

Note: Antenna cables grounded using

an Andrew grounding assembly type

223158 or similar.

Connectorized ODU

ntenna Cable

Antenna Cable

Grounded to Tower

Antenna Cables

Grounded to Tower

Antenna Cable Grounded

to Tower.

Antenna cables should be grounded

within 0.3 metres (1 foot) of the ODU

and Antennas

Additional Grounding Requirements for Connectorized ODU

Note: Antenna cables grounded using

an Andrew grounding assembly type

223158 or similar.

Zone AZone A

Recommended NOT Recommended

Zone BZone B

Zone A

Finial

Recommended

Zone B

Protect Your Installation

Checklist

• Check the contents of all packages against the packing list.

• Check the Web site for the latest software load.

List of special tools required

• 13mm wrench and 22mm wrench for use with the glands.

• RJ45 Crimp Tool (Ensure you have the correct tool for the type of RJ45 being used).

• Personal Computer (PC) with 10, 100 or 1000BaseT Ethernet interface.

• Internet Explorer 6 or higher (recommended), or Firefox 2.0 or higher.

• Ethernet patch cables.

• Crimp tool for grounding lugs (only required when installing connectorized ODU).

• LINKPlanner report for this link.

Pre-installation – Site Survey— Link Planning

A site survey must be performed to identify all the obstructions (trees, buildings, etc) in the

path and to assess the risk of interference. This information is important if you are to achieve

an accurate link feasibility assessment.

The PTP 300 and the PTP 500 Series are designed to operate in Non-Line-of-Sight (NLoS)

and Line-of-Sight (LoS) environments. Link planning enables a link of known quality to be in-

stalled. This involves the acquisition of path profile data (using Motorola’s free LINKPlanner

utility). The LINKPlanner predicts data rates and reliability over the path. It allows the user to

try different antenna heights and RF power settings. When the link is installed the mean path

loss can be checked to confirm that the predicted data rate and link reliability is achievable.

Motorola LINKPlanner is available to download from http://www.motorola.com/ptp/support

Pre-installation – License Keys and Regulatory Conformity

If the units have been purchased as a pair (link) then the License Keys (at the end of this guide

or printed on a separate card in the box) will show how the units have been pre-configured to

work as a link. Software, license key, unit’s IP address, subnet mask, gateway address, target

address, master/slave and arming state are pre-configured.

Check that the Link is configured with the correct region Code, otherwise you will need

to re-configure the units with Alternative License Keys before installing and commis-

sioning the link. Please refer to Page 6, Step 12 for details on how to change the License

Key.

Before performing an installation of a Motorola PTP 300 or a PTP 500 Series sys-

tem, ensure that you have read this entire guide and taken note of any safety in-

formation contained.

Checklist, Site Survey and Tools

Bench Testing (Optional) - Connect and Power Up

Step 1: Connect the RJ45 at

one end of a cable to the

ODU.

Step 2: Undo the retaining

screw of the PIDU Plus and

hinge back the cover.

Step 4: Put the cover back

and tighten the screw.

Step 3: Plug in the ODU to

PIDU Plus Cable ensuring

that it snaps home.

Step 5: Plug in power lead

using a cable appropriate for

the installation.

Step 6: Connect a second

Ethernet cable (shown in yel-

low) to the “LAN” socket of

the PIDU Plus.

Step 7: 30 seconds after powering, the Ethernet LED

should be observed to flash slowly 10 times. If the Ethernet

LED does not illuminate (Orange), then either the PIDU

Plus or the cable to the ODU may be faulty. Replace cable

and/or PIDU Plus and repeat from Step 1.

NOTE - If the power LED

does not illuminate, re-

move the power cable

and the ODU connection

from the PIDU Plus. Re-

connect the power lead

and check the power

LED illumination (Green).

If the power LED still

does not light then check

the power source.

Step 8: Ensure PC is set to

correct IP address 169.254.1.x,

where 2 < x < 254. Connect

the LAN cable to the PC

(shown here in yellow).

Step 9: Check that the Ethernet

LED is now ON. Refer to the

Troubleshooting section in this

guide if the LED does not show

any activity when accessing

web pages.

It is advised that the link be configured and tested on a bench before the final installation of the

units on a pole or a mast. The following steps give details of how to connect an ODU to a PC in

order to check the configuration details, change the IP settings or modify the license key. For

the purpose of these tests, normal off-the-shelf Ethernet cables can be used.

Step 13: Access the ‘Installation

Wizard’, ’Wireless Configuration’

page . Confirm the target MAC Ad-

dress, Master Slave Mode and other

configuration choices. Reboot the

unit.

If testing connectorized ODUs, con-

nect them together.

Repeat steps 1-13 for the paired unit

and check that the status of the link

shows UP on the ‘Status Page’.

Step 11: You may wish to upgrade the software. If so, select ‘Software Upgrade’ and follow

the on-screen instruction. Latest software is available from our web site:

(http://motorola.motowi4solutions.com/software/#ptp)

Bench Testing (Optional) - Configuration Checks

Step 12: Check the License Key informa-

tion and ensure you are using the correct

Region Code. Otherwise, select ‘License

Key’ and replace with the alternative key

supplied and reboot the unit.

Step 10: Use a web browser to connect to IP

address http://169.254.1.1 for Slave and

http://169.254.1.2 for Master units. Select

‘System Administration’ and ‘Login’. (The

password will be empty for new units). We

recommend that you change the password by

selecting ‘Change Password’ in the Menu

bar.

Use the integral safety loop for hoisting the ODU up a mast or building. When the ODU is in

position, use the safety loop as a fixing point to secure a permanent lanyard from the tower/

building to the ODU, as a precaution against mounting failure.

Warning! The safety lanyard must not exceed 1 m (approx 3 ft) in length. The lan-

yard must be made from a material which does not degrade in an outdoor environ-

ment.

Warning! The safety lanyard must be fixed to a separate fixing point which is not

part of the direct mounting system for the ODU.

Warning! If the safety loop or its fixing is damaged in any way or has been ex-

posed to a shock loading due to a fall, replace it with a new one before undertak-

ing any further operations.

Hoist & Safety Loop

Attach free end (large

tag M10) to Tower Metal

work – NB On no ac-

count must this be at-

tached to the mount-

ing bracket bolts!!

Step 1: Your equipment will already have the

mounting bracket fitted.

Do notremove pre-fitted mounting

bracket.

The pre-fitted earth bonding lead is secured

after the unit is mounted.

Step 2: Attach the Bracket mount to the pole

using the bracket strap and either M8

x 40mm or M8 x 70mm bolts, as required, M8

flat washers and M8 coil washers as shown.

Tighten to ensure the assembly grips but

can be adjusted. For poles between

1” (26mm) and 2”(50mm) reverse the

bracket.

Step 3: Offer up the unit to the bracket

mount and affix using the captive M8 bolt.

Tighten to ensure the assembly grips but can

be adjusted on the pole.

Step 4: Adjust the elevation and azimuth of

the unit before tightening to the required

torque settings of 14Nm

(11lbft) for both bolts.

Warning ! Do not over tighten.

Earth bonding

lead

Mast Installation Instructions

Note the numbering

of the pins in this

diagram.

Motorola PTP 300/500 Series Installation Wiring

Lightning protection

built into PTP xx500

or PTP xx300

Caution! Check that the correct crimp tool is being used for the RJ45 con-

nector utilized.

Correct cable preparation for the recommended cable

Autres manuels pour PTP 300 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Motorola Routeur réseau

Motorola

Motorola PTP 300Series Guide de référence rapide

Motorola

Motorola WE800G - Wireless EN Bridge Mode d'emploi

Motorola

Motorola BSR 64000 Manuel utilisateur

Motorola

Motorola ML2410 Manuel utilisateur

Motorola

Motorola MT7711 Manuel utilisateur

Motorola

Motorola Netopia 2247NWG Manuel utilisateur

Motorola

Motorola MR1700 Manuel utilisateur

Motorola

Motorola WE800G - Wireless EN Bridge Manuel utilisateur

Motorola

Motorola CPEI 890 Manuel utilisateur

Motorola

Motorola PTP 300 Series Manuel utilisateur

Motorola

Motorola MG7315 Manuel utilisateur

Motorola

Motorola AT&T NVG589 Manuel utilisateur

Motorola

Motorola Netopia R910 Manuel utilisateur

Motorola

Motorola 110502USM001 - Vanguard 60 Router Manuel utilisateur

Motorola

Motorola Viadux 2000 Manuel utilisateur

Motorola

Motorola CPEI 775 Series Manuel utilisateur

Motorola

Motorola PTP 48600 Manuel utilisateur

Motorola

Motorola 68384 - Vanguard 320 Router Manuel utilisateur

Motorola

Motorola BR700 - EN Broadband Router Mode d'emploi

Motorola

Motorola WE800G - Wireless EN Bridge Manuel utilisateur

Motorola

Motorola POWERBROADBAND 45101 Manuel utilisateur

Motorola

Motorola BSR 2000 Manuel de programmation

Motorola

Motorola 49901 - Vanguard 340 Router Manuel utilisateur

Motorola

Motorola MH7021 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité

LevelOne

LevelOne FBR-1416 Manuel utilisateur
