Motorola 2108-N9 Manuel utilisateur

User Manual

Gigabit Ethernet Router with HPNA and 802.11n / 2108-N9

Gigabit Ethernet Router with 802.11n / 2108-D9

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS – POWER SUPPLY INSTALLATION.

Connect the power supply

cord to the power jack on the Motorola Netopia

Gateway. Plug the power supply into an appropriate electri-

cal outlet.

CAUTION:

Depending on the power supply provided with the product, either the direct plug-in power supply

blades, power supply cord plug or the appliance coupler serves as the mains power disconnect. It is impor-

tant that the direct plug-in power supply, socket-outlet or appliance coupler be located so it is readily acces-

sible.

TELECOMMUNICATION INSTALLATION.

When using your telephone equipment, basic safety precau-

tions should always be followed to reduce the risk of fire, electric shock and injury to persons, including

the following:

• Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink or laundry

tub, in a wet basement or near a swimming pool.

• Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote

risk of electrical shock from lightning.

• Do not use the telephone to report a gas leak in the vicinity of the leak.

PRODUCT VENTILATION.

The Motorola Netopia

Gateway is intended for use in a consumer's

home. Ambient temperatures around this product should not exceed 104°F (40°C). It should not be used in

locations exposed to outside heat radiation or trapping of its own heat. The product should have at least one

inch of clearance on all sides except the bottom when properly installed and should not be placed inside

tightly enclosed spaces unless proper ventilation is provided.

SAVE THESE INSTRUCTIONS

Motorola Part Number:

578175-001-00 revision a

work (such as translation, transformation or adaptation) without written permission from Motorola, Inc. Motorola reserves the

right to revise this publication and to make changes in content from time to time without obligation on the part of Motorola to

provide notification of such revision or change. Motorola provides this guide without warranty of any kind, either implied or

expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Motorola

may make improvements or changes in the product(s) described in this manual at any time. MOTOROLA and the Stylized M

Logo are registered in the US Patent & Trademark Office. Microsoft, Windows, Windows Me, and Windows NT are either

trademarks or registered trademarks of Microsoft Corporation in the U.S and/or other countries. Macintosh is a registered

trademark of Apple, Inc. Firefox is a registered trademark of the Mozilla Foundation. All other product or service names are the

property of their respective owners.

Safety Information

ENGLISH

Thank you for selecting the Motorola Netopia

2108-D9 or -N9 Gigabit Ethernet Gateway. This

guide will help you set up and configure your network.

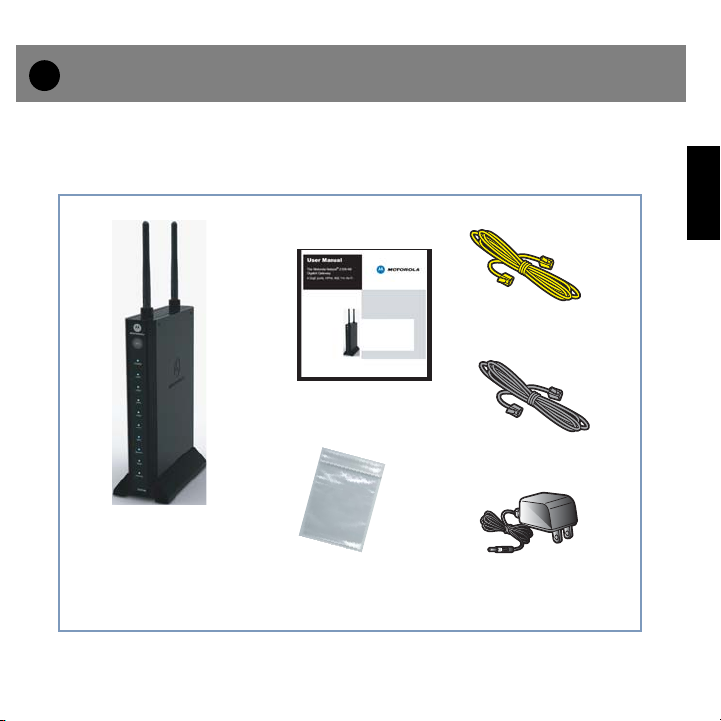

Check your package contents. It should contain the items shown here:

If you don’t have everything, contact your supplier immediately.

Checklist

User Manual

Motorola Gateway

Power

Supply

1 Gray RJ-45

Ethernet Cable

1 Yellow RJ-45

Ethernet Cable

Wallmounting Kit

(2 screws + 2 anchors)

Wallmounting

Kit

ENGLISH

Select a suitable place on the network to install the Wireless Gateway.

You can stand it up in its stand; lay it flat on a desktop; or mount it on a wall using the

included wall mounting kit hardware (see “Wall Mounting instructions (optional)” on

page 15).

Use standard Cat5 Ethernet cables to connect PCs to the LAN ports on the

rear of the Wireless Gateway.

One is supplied with your Gateway (yellow cable).

Connect the DSL or Cable modem to the gray WAN port on the Wireless Gate-

way.

Use the cable supplied with your DSL/Cable modem. If the cable is missing, a standard

Cat5 Ethernet cable can be used.

Connect the supplied power adapter to the Wireless Gateway.

Use only the power adapter provided. Using a different one may cause hardware dam-

age. Turn the power ON with the ON/OFF Power Switch.

Check the LEDs:

• The Power LED should be ON.

• The LAN LED(s) that have a cable connected should be ON when the connected device

is also on.

• The Wireless LED should be ON only when a wireless client is connected to this

Gateway.

• (

2108-N9 HPNA model only

) The HPNA LED should be ON only when an HPNA

device(s) is connected via coaxial cable.

• The WAN LED should be ON when the WAN Port is connected via Cat5 cabling.

Connections

ENGLISH

• The Internet LED may initially be OFF. After proper configuration, it should come ON

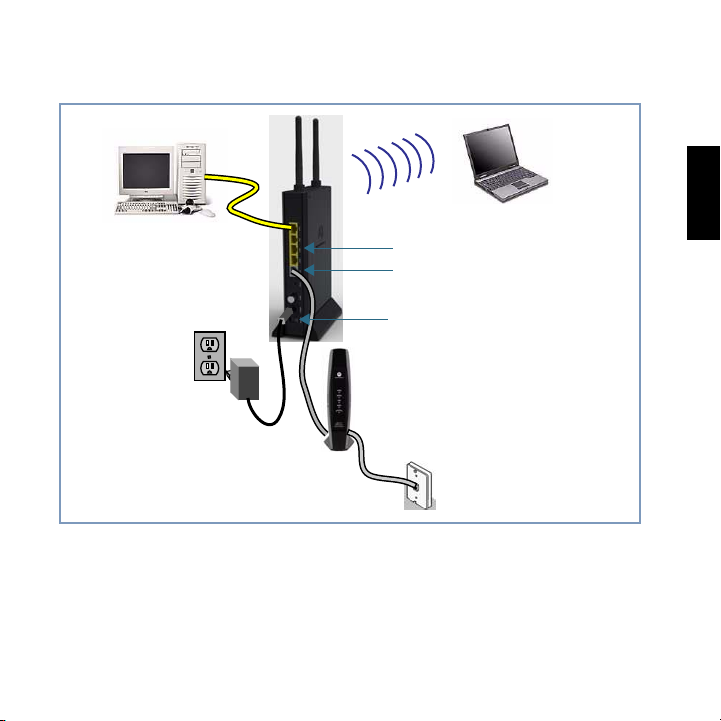

When all of your connections are made, your network may look like this:

DC Power

Rear View

LAN

Ports

WAN Port

Power Switch

ENGLISH

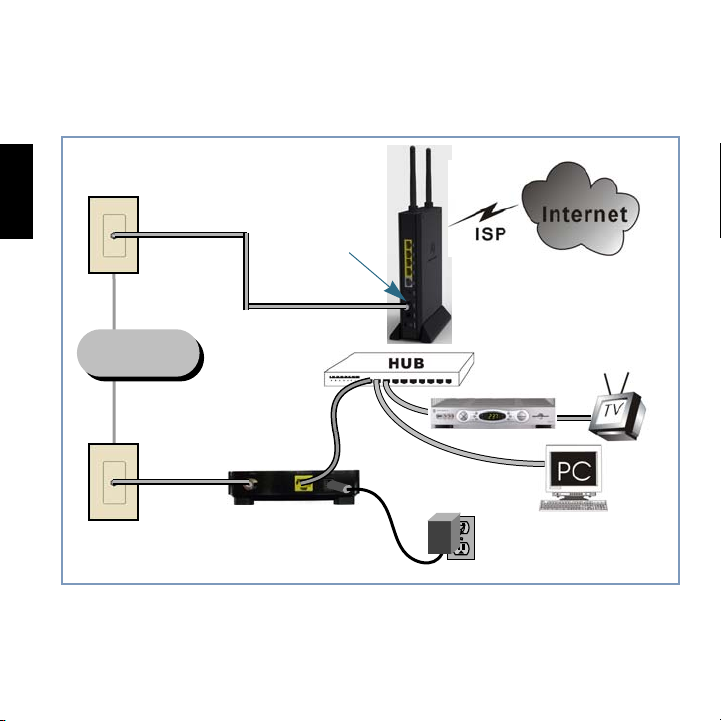

The figure below shows how to connect a Motorola 2108-N9 HPNA-enabled Gateway to

a home coaxial cable network using a Motorola HPNA Adaptor (purchased separately).

Follow the same steps to connect any Ethernet device such as a hub or printer to a coax-

ial cable network.

Enable Wireless devices.

In order to use the Access Point in the Wireless Gateway, other Wireless devices must

use the same SSID and Wireless Security settings as the Wireless Gateway.

In-House

Coax Wiring

Ethernet

wall jack

Motorola HPNA Adapter

settop box

Motorola 2108-N9 Gateway

HPNA port

ENGLISH

The Wireless Gateway's default settings are as follows.

Ensure the Wireless Gateway and the other Wireless Stations are using the same set-

tings.

• Use the Wireless setup screen to configure the Wireless Access Point in the Wireless

Gateway.

• Configure the Wireless stations (PCs) using your normal method for configuring their

Wireless interface.

• Wireless clients must also be set to use Infrastructure mode.

Setting Wireless Gateway

SSID

Default value:

unique to your Gateway

This may be changed on the Wireless screen, on the Wireless Gateway's main

menu.

Wireless

Default Broadcast SSID:

Disabled

Default Security:

WEP128

Use the Wireless screen on the main menu to change this as required.

ENGLISH

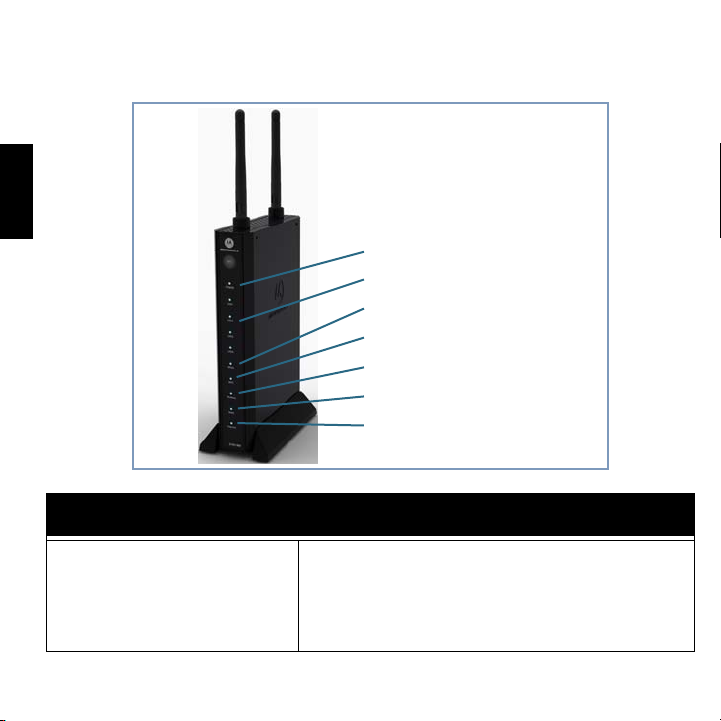

When all of your connections are complete, the status LEDs on the front of your Motorola Neto-

pia

Gateway will light, in accordance with the following diagram:

LED Definition

Power (Green, Red)

Off = Power Off

Green = Power On

Red = either power supply had become unstable or POST

failed

Blinking Red = Posting

Blinking Green = FW upgrading

Front View

Power

Internet

WAN

LAN 1~4

HPNA (2108-N9 model only)

Wireless

WPS

ENGLISH

Internet

Off = No IP connection

Solid Green = IP connection exists

Blinking Green = IP level traffic

WAN

Off = No connection

Solid Green = Connection

Blinking Green = traffic

LAN 1~4

Off = No connection

Solid Green = Connection

Blinking Green = traffic

HPNA

(2108-N9 model only)

Off = No connection

Solid Green = Connection

Blinking Green = traffic

Wireless

Off = No connection

Solid Green = Connection

Blinking Green = traffic

WPS (Green, Yellow, Red)

Off = No action

Solid Green = WPS Success

Blinking Yellow = WPS in progress

Blikng Red = WPS Error or session overlap

LED Definition

ENGLISH

You can access the configuration pages at any time as follows:

Run a Web browser, such as Firefox, Safari, or Microsoft Internet Explorer, and

enter

http://192.168.1.254

in the URL Address text box.

Press Return.

When prompted, enter the Username and Password supplied by your ISP, if

required.

Some ISPs do not require Username and Password. Refer to your ISP.

Refer to the data from your ISP, and the table below, to ensure your choices

are correct.

Enter the information supplied by your Internet Service Provider.

Device Configuration

Connection Type Data Required

Dynamic IP Address (DHCP) Usually, none.

Specified (Static) IP Address IP Address allocated to you, and related information.

PPPoE Login name and password.
