Quick Start

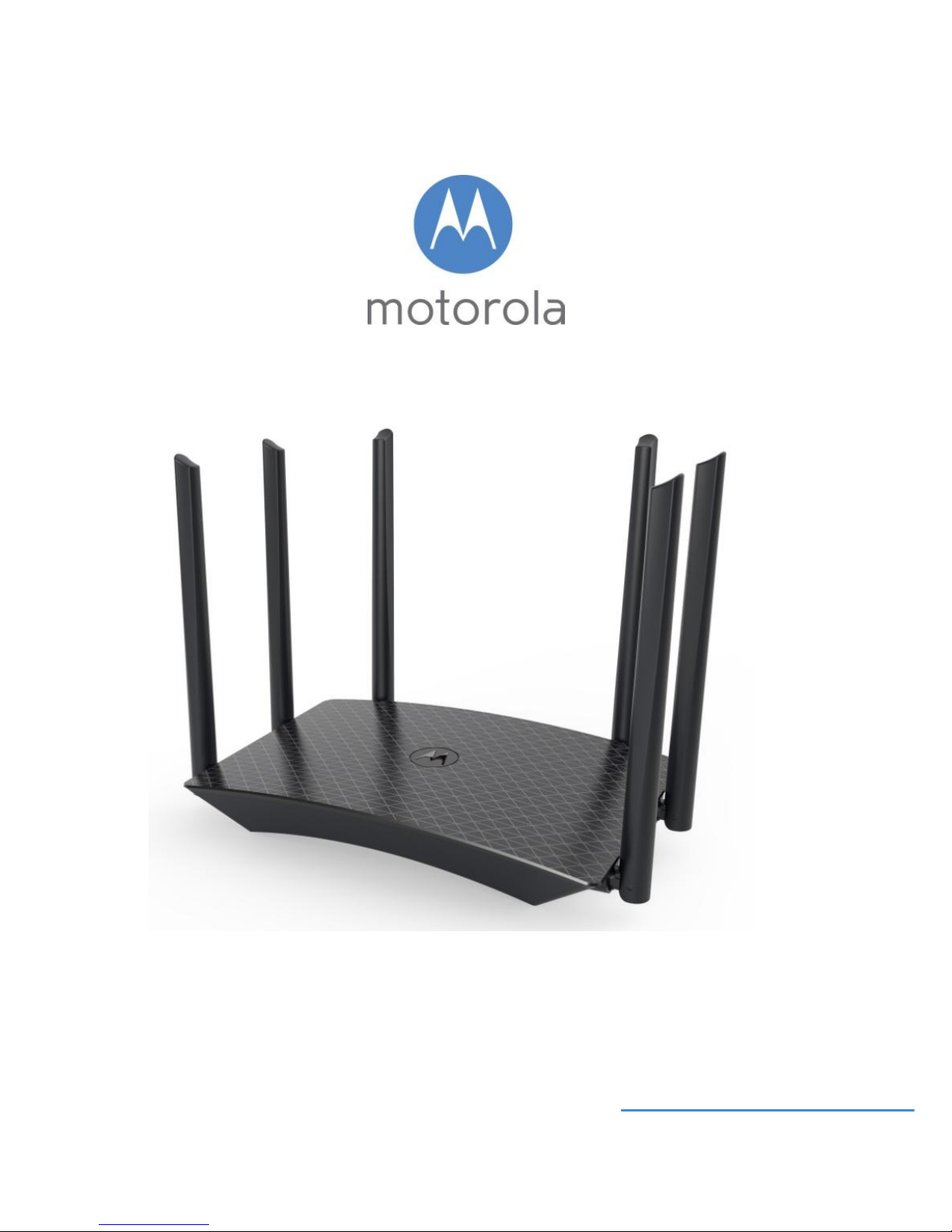

AC1700 Router

Model MR1700

Packaged with your MR1700 router

Power Cube

(varies by country)

Ethernet Cable

Para una Guía de Inicio Rápido en español, por favor vaya a

www.motorolanetwork.com/MR1700IR

Let’s get started

First connect the MR1700’s yellow Ethernet cable between the

MR1700’s WAN port and the Ethernet port of a cable modem, DSL

modem, fiber optic modem, or an in-building network used for Internet

access.

If you are using a modem, turn it off now. For some modems, this

requires you to remove the power backup battery. After the modem is

off for at least 10 seconds, turn it back on. (If it has a backup battery,

replace that first.)

Power up your MR1700

Connect the supplied power cube between the MR1700’s power jack

and a working electrical outlet.

Most users will plug the MR1700 into their cable or DSL modem and

use the MR1700’s default settings. In the unlikely event that you are

using a static IP address or want to terminate a PPPoE connection,

see the full-length User Manual at

www.motorolanetwork.com/MR1700manual for further assistance.

If you do not know that you need these settings, then most likely you

do not.

Connect Your Devices

Wireless

You can connect wirelessly by using the Wi-Fi SSID/Network Name

and Wi-Fi Password/Key printed on the label on the bottom of the

MR1700 router.

Wired

You can also connect your computer, game station, or other device

with an Ethernet cable between the computer and one of the Ethernet

LAN jacks on the router.

Try to browse the Web using a device connected via Ethernet or Wi-Fi

to the MR1700. If browsing works, Congratulations! Your MR1700 is

working.

If your MR1700 is NOT working, see Troubleshooting Tips below.

Configuration Manager

You may not need to use the Configuration Manager. Here are some

reasons for using it:

You want to change the wireless router setup. For instance, maybe

you’re replacing a router and want to use your existing Wi-Fi

SSID/Network Name and/or Wi-Fi Password/Key instead of the unique

ones that come with the MR1700.

You want to set up special Internet gaming settings.

You want to set up parental controls to control when children or other

users can access the Internet.

You want to get performance information about the MR1700 router.

This can be helpful in optimizing wireless performance.

If you need to access the MR1700 Configuration Manager, open your

Web browser. Type http://192.168.1.1 in the address bar and press

Enter.

In the login dialog box, type the following User Name and Password in

lower case, then click OK.

User Name: admin

Password: motorola

The first time you log into the MR1700, you will be asked to configure

your router. Click on the Configure your Router button to go to the

Basic Settings page. Most users should click Save to accept the

default configuration. If you need to make changes to the default

configuration please see the full length manual at

www.motorolanetwork.com/MR1700manual. If you have already

logged in to your router you will be taken to the Home page. If the

home page doesn’t appear, please see the Troubleshooting Tips

below.

For details about the Configuration Manager please see

www.motorolanetwork.com/MR1700manual

Improving Wireless Performance

As noted before, the MR1700 has a unique Wi-Fi SSID/Network Name

and Wi-Fi Password/Security Key printed on the MR1700’s bottom

label. If you don’t change these, you should set up your wireless

devices to work with this SSID and password.

Note that wireless performance depends on a number of factors.

Please keep these things in mind:

Where possible, put the MR1700 in a central place so that it’s not too

far away from your other wireless devices.

Try to avoid interference from other wireless devices such as

Bluetooth headsets and stereos, microwave ovens, and 2.4 GHz

cordless phones and base stations. Don’t put the MR1700 close to

these interfering devices.

Sometimes it helps to change the MR1700 wireless channel frequency

to reduce interference with neighbors’ wireless networks. This is

discussed in the Troubleshooting section of this Quick Start.

The MR1700 router provides a powerful wireless signal that can help

reach many corners of your house. However, many devices, such as

phones, that you may use to connect to the MR1700 do not have as

powerful a wireless signal. Although the MR1700’s advanced wireless

technology can help improve the performance and range of the

devices, often the weaker signal of your other devices can be a

limiting factor. If this happens in your home, you may want to add a

Range Extender to help boost your wireless signal for these devices.

For more information, please see

www.motorolanetwork.com/extenders

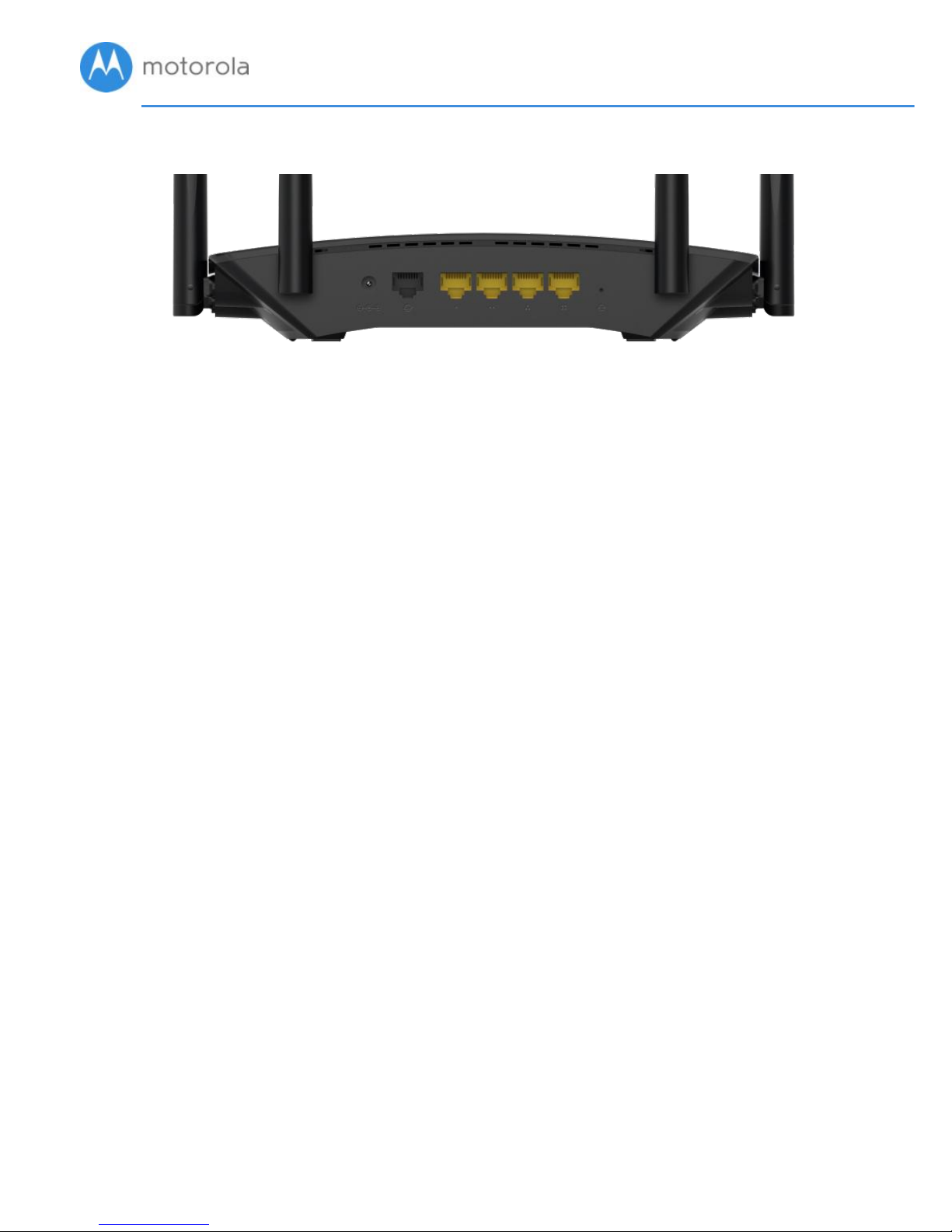

Back Panel

POWER

Connect the supplied power cube between the power jack and an

electrical outlet.

WAN

Connect your modem or in-building network to the WAN port with an

Ethernet cable.

ETHERNET (LAN 1, 2, 3, 4)

You can connect a computer, HDTV, game station, or other Ethernet-

capable device to any of these 4 LAN ports.

RESET

Press the reset button for 8 seconds in the unlikely event that you

need to reset your modem to factory defaults.

Troubleshooting Tips

Why can’t I connect to the Internet after installing my router?

Check that the power cube jack is correctly plugged into the router

and that that the power cube is plugged into a live outlet.

Verify that the cable between the router and modem (or Ethernet jack

if connecting to an in-building network) is plugged into the router’s

WAN jack.

If you’re using a modem, check that it’s powered up and connected to

the Internet.

Check that the modem that the router is plugged into is powered on

and connected to the Internet.

If you are installing the router at the same time as a new cable modem

you may have to wait up to 15 minutes for the cable modem to

connect to the Internet.

Try using another device to access the Internet. If you are using a

computer plugged into the router’s Ethernet port, try connecting to the

router with a wireless device such as your mobile phone. As a

reminder, the Wi-Fi SSID/Network Name and Wi-Fi Password/Key are

printed on the label on the bottom of your router.

Your computer might not be set up to use the router as its gateway.

Restarting your computer will force it to receive the correct gateway

information from the router.

Verify that your modem or external network is connected to the

Internet. Plug a computer directly into your modem or external network

and check that your service is working.

What if I am connected wirelessly but my connection seems slow

or keeps dropping?

Please re-read the Improving Wireless Performance section above.

What if I don’t know my MR1700’s Wi-Fi SSID/Network Name or

Wi-Fi Password/Key?

The default values are printed on the bottom label. Use these unless

you changed them. If you changed them, and you have a device that

connects wirelessly to the MR1700, it may show the Wi-Fi

SSID/Network Name and Wi-Fi Password/Key.

You can also find this information in the MR1700 Configuration

Manager. Information about using this is in the Configuration Manager

section above. If all else fails, reset the device to factory defaults by

holding the Reset button for 8 seconds. You can then use the default

values.

What if I think that wireless devices are interfering with my

MR1700 wireless router?

Where possible, put the MR1700 as far away as possible from

interfering devices such as microwave ovens, Bluetooth transmitters

and neighbors’ Wi-Fi routers.

Try to pick a less used wireless channel for your MR1700. Go into your

MR1700’s Configuration Manager.

1. To change the channel for the 2.4 GHz band select 2.4 GHz

wireless, to change the channel for the 5 GHz band select 5 GHz

wireless.

2. Select the channel you want in the Channel pulldown, then click

Apply.

Do you have any other questions? A good place to start is our full-

length manual: www.motorolanetwork.com/MR1700manual

We like to help.

Please visit our support Website or call our support specialists. Our

Website has our Motorola Mentor information, and also provides

returns and warranty information.

www.motorolanetwork.com/support

Email: support@motorolanetwork.com

Phone:

In the US and most other countries:

800-753-0797 or +1 617-753-0562

UK: +44 800 023 9083

Spain: +34 900 839 783

Limited Warranty

MTRLC LLC warrants this product against defects in material and

workmanship for a warranty period of 2 years. To read the full

warranty, please go to www.motorolanetwork.com/warranty

MTRLC LLC

99 High Street

Boston, MA 02110 USA
