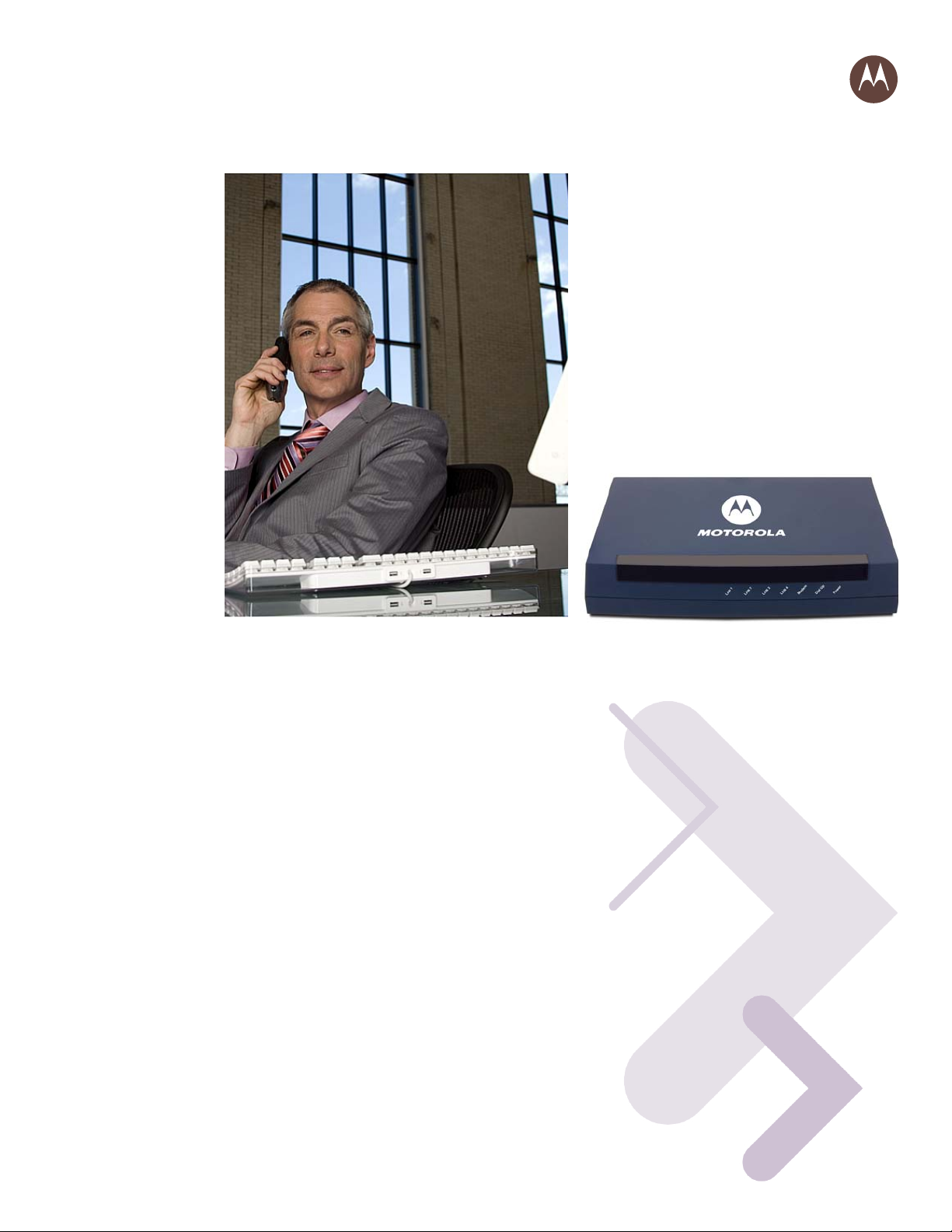

DATA SHEET

Netopia®4686-XL

Broadband VPN Router with Integrated Back-Up

High Performance

Hardware-based VPN

acceleration and integrated

Ethernet switch for speed and

performance

Mission-Critical

Improved uptime and higher

availability with integrated dial

back-up

Enterprise-Class

Robust routing, security, and

management features optimized

for enterprise applications

High-performance Ethernet broadband router with integrated VPN hardware

acceleration and dial back-up that provides speed, performance, and

enterprise-class features for the demanding business user

Designed for enterprise users and managed service

providers, the Motorola Netopia 4686-XL Broadband

VPN Router with integrated dial back-up is ideal for

retail and SMB applications. The 4686-XL connects

directly to any external broadband cable, DSL, or

fiber access modem, providing wire-speed VPN

networking and stateful firewall security, while

high-availability features such as dial back-up save

enterprises time and money.

The 4686-XL’s integrated V.92 modem automatically

dials a pre-configured backup connection if the

primary WAN connection is lost, using the industry

standard VRRP. Alternatively, the integrated modem

may be used for out-of-band remote management

by IT departments, VARs, or service providers.

With integrated hardware acceleration, the 4686-XL

powers wire-speed VPN applications for retail,

branch offices, and enterprise teleworkers. The

router comes standard with a wide range of routing,

security, and management features optimized for

enterprise applications. Unlike competitive solutions

that require expensive and cumbersome firmware

upgrades, the 4686-XL is deployment-ready out of

the box for applications requiring wire-speed VPNs,

stateful firewall security, and enterprise-class

remote management. The rich security feature set

and high-performance hardware features eliminate

the need for an additional firewall or VPN security

appliance.

For the enterprise user or managed service provider,

the 4686-XL is an ideal solution for secure, reliable,

and high-performance networking.

DATA SHEET

Netopia 4686-XL

Broadband VPN Router with Integrated Back-Up

Interfaces

WAN INTERFACE

One 10/100 Ethernet port, RJ-45, half- or

full-duplex/auto-sensing, MDI/MDI-X

LAN INTERFACE

Four 10/100 managed Ethernet ports, RJ-45, half- or

full-duplex/auto-sensing, MDI/MDI-X

PORTS

One RS-232 DB-9 serial management console port

One V.92 modem back-up port, RJ-11

Routing and Bridging

Network Address Translation (NAT), IP maps, and pinholes

Static routing

Default route

Numbered or unnumbered WAN interface

Up to eight subnets on each LAN interface, with DHCP server

associations

Transparent mapping option

Virtual router interfaces (ALAN)

Variable-length subnet mask

RFC 1058 RIP v1

RFC 2453 RIP v2

RFC 792 ICMP redirects

DHCP client, server, and relay agent

Extensive DHCP option support and filter rules

DNS relay/proxy

Netbios proxy

BootP support

PPP dial-on-demand

Heartbeat capabilities

IGMP multicast forwarding (LAN and WAN), snooping, and fast

leave

IP multicast outbound support through NAT

RFC 1112 IGMP v1

RFC 2236 IGMP v2

RFC 3376 IGMP v3

Multiple primary LAN subnets

High Availability

Backup default gateway through an external router

Dial back-up, external through console or internal V.92

VRRP support in all ports

Quality of Service

RFC 2474 DiffServ traffic prioritization through TOS

RFC 2598 DiffServ expedite forwarding (EF)

RFC 2597 DiffServ assured forwarding (AF), BE, and NC

support

IEEE 802.1p QoS

Traffic prioritization configurable by source and destination

addresses, port, and protocol

VPN

Embedded VPN hardware performance acceleration module

PPTP, L2TP, LNS to L2TP access server

GRE

IPSec (IKE, AH, ESP, 56-bit DES, and 168-bit 3DES)

L2TP encapsulation in IPSec

Up to 15 simultaneous VPN tunnels can be configured (client or

server)

Security

SPI (Stateful Packet Inspection) firewall

Configurable firewall

Configurable packet filtering

Denial-of-service protection

IPSec VPN gateway, tunnel mode (DES and 3DES encryption,

manual key and IKE, MD5 and SHA1 encapsulation header

protocol)

PPTP VPN gateway, client, or server termination

PPTP or IPSec VPN security associations

RFC 2865 RADIUS (AAA) management authentication

RFC 1492 TACACS+ authentication

Management

Menu-driven and CLI (full-featured scriptable with integrated

help) interfaces with console or Telnet access

Two-level tiered console access

Up to three backup user-defined configurations

System diagnostics and logs

TFTP download/upload of new firmware and configuration files

ICMP ping, trace route, Telnet, and syslog

LEDs for power, WAN, Ethernet, link, status, and activity

Internal dial-in console management

Configurable console timeout

Management port reassignment

Device and WAN event logs

Logging and scripting

SNMP v1 and v2 support with enterprise MIBs

Persistent configuration storage during power-down

Time and date set through NTP

MOTOROLA and the Stylized M Logo are registered in the U.S. Patent and Trademark Office. Netopia is registered to Netopia, Inc., a

wholly owned subsidiary of Motorola, Inc. All other product or service names are the property of their respective owners.

DATA SHEET

Netopia 4686-XL

Broadband VPN Router with Back-Up

Regulatory

FCC Part 68, Part 15, Class B

UL-Listed, CSA Approval

European EMC and Immunity

CE Mark

Environmental

TEMPERATURE

Operating 32 °F to 104 °F

(0 °C to 40 °C)

Storage 32 °F to 158 °F

(0 °C to 70 °C)

HUMIDITY

Operating/Storage 20% to 80% non-condensing

Power

External, 12 VDC, 1000 mA

Physical

WEIGHT

3.0 lb (1.4 kg) (unit carton)

DIMENSIONS

1.4 in H x 5.3 in W x 5.4 in L (3.5 cm x 13.5 cm x 13.7 cm)

All features, functionality, and other product specifications are subject to change

without notice or obligation.
