USER’S MANUAL

For

Motorola 56K/V90 External

Data/Fax/Voice Modem

Table of Contents

INTRODUCTION

Package Contents

System Requirement

1 - Installation

2 - COMMAND REFERENCE

2.1 General Command Information

2.2 AT Commands

2.2.a Commands Preceded by &

2.2.b Commands Preceded by \

2.2.c Commands Preceded by %

2.2.d Commands Preceded by +

2.2.e Commands Preceded by **

2.3 Dial Modifiers

2.4 Commands Not Preceded By AT

2.5 Result Codes

3 - S REGISTER REFERENCE

3.1 Register Summary

3.2 Glossary of the S Registers

4 - TESTING

4.1 Local Analog Loopback

4.2 Local Analog Loopback with Self-Test

5 - TROUBLESHOOTING GUIDE

6 - APPLICATION EXAMPLES

6.1 Dialing a Remote Modem

6.2 Dial a Stored Number

6.3 Manual Answer an Incoming Call

6.4 Auto Answer an Incoming Call

6.5 Voice to Data Switching

APPENDIX

A - CALLER ID COMMANDS

B - TECHNICAL SPECIFICATIONS

D - QUICK REFERENCE

E - GLOSSARY

F - ASCII CODE TABLE

G - Approximately Power Consumption

INTRODUCTION

Instructions for installing your Data/Fax/Voice Modem will be found in the Installation

Manual, while the information in this manual, deals exclusively with the operation of the

modem after it is installed, such as the command set, the internal configuration registers,

troubleshooting and testing.

Features

This Data/Fax/Voice Modems combine the features of a 56000 (Receive only)

/33600/28800/14400/9600 BPS for data modem and a 14400/9600 BPS for FAX modem.

Your new Data Modem gives your personal computer the ability to send and receive FAX

messages over the telephone line like a standard FAX machine. Your Data Modem also

allows your PC to communicate with other personal computers, terminals or BBS's

(Bulletin Board Systems) through the data modem functions.

When used as a data modem, your Modem uses the standard AT command set and is fully

compatible with the specification shown in the following table,

Modem Type Modulation/Function Control Code AT Command Set

Data Modem K56Flex Compatible

ITU-T V.90 Compatible

ITU-T V.34 1996 –33.6 Kbps to 2.4 Kbps

ITU-T V.32bis –14.4 Kbps to 4.8 Kbps

ITU-T V.32 –9.6 Kbps to 4.8 Kbps

ITU-T V.22bis –2.4 Kbps

ITU-T V.23 –1.2 Kbps/75 bps

ITU-T V22 –1.2 Kbps

ITU-T V.21 –300 bps

Bell 212A –1.2 Kbps

Bell 103 –300 bps

Automatic Mode Selection

Automatic Rate Adaption

Digital Near –End/Far –End Echo

Cancellation

ITU-T V.8 Signaling

ITU-T V.8bis Signaling

ITU-T V.54 Loopback Test support

ITU-T V.42/MNP™2-4 Error Correction

ITU-T V.42/MNP5 Data Compression

Auto-baud DTE Rate 230.4 Kbps Maximum

Hayes AT Commands

Fax Modem ITU-T V.17 –14.4 Kbps to 9.6 Kbps

ITU-T V.29 –9.6 Kbps to 4.8 Kbps

ITU-T V.27ter –4.8 Kbps and 2.4 Kbps

ITU-T V.21 Channel 2 –300 bps

TIA/EIA 578 Class 1 AT + Commands per

TIA/EIA 578 Class 1

Voice Modem Full-Duplex Speakerphone with Automatic

Gain Control and Room Monitor

Answering Machine

Full-Duplex Speakerphone Controller

Telephone Answering Machine Controller AT # Voice Support

Switching between DATA mode, FAX mode and Voice mode operation of your

Data/Fax/Voice Modem is done through its firmware, no hardware settings are required.

If you are already familiar with the use of a modem and the Hayes AT command set,

this modem will be extremely easy for you to use. Just read the installation procedures in

the installation manual and you are ready to begin operation.

If you are new to modem communications, we recommend that you read through this

manual first. If you come across terms that you don't understand, consult the glossary.

Words in boldface type are command names, commands, or default settings. Carriage

returns (Enter) are noted with <CR> or [ENTER]; this does not mean to enter these

characters literally; but instead to press the Enter key.

The communication software which should be used depends on the kind of machine that

you are going to communicate with. If you are going to call a FAX machine then you must

use the Fax software. If the machine that you are going to communicate with is a modem

then you must use a data modem communications software.

Note: This manual is written to be used for several models of Fax/Data Modems.

All the description in this manual about Caller ID, V.90 and Fax class 1 apply only

to the models which support these function.

Package Contents

The following material would be the bundle of this modem.

•Power Adapter

•Serial RS-232 Cable DB25/DB9

•Phone Cable , Type RJ11

•A CD-ROM with the INF Driver inside and a communication application

System Requirement

A host computer system should with a high speed RS-232 serial port capability of

supporting 115200 BPS is a highly recommendation. Fully data/fax/voice functionality is

only supported on system using a Intel 368 processor or higher or equivalent.

LED Indicator Specification

There are several LED light show in front of modem while the modem be powered on. And each light

would indicate the difference specification or meaning as following.

LED

Indicator Description

PWR POWER -- Light when the modem has power applied.

AA Auto Answer –When the light is on, the modem is autoanswering the incoming

call

TR Data Terminal Ready –Lights when the host computer is ready to send or

receive data. Indicates the status of the DTR signal from computer.

OH Off Hook –Lights when the modem is using the telephone line.

CD Data Carrier Detect –Lights when the modem success in on line and signal to

computer.

SD Transmit Data –Flashs when the modem are sent from the serial port of

computer to modem. At high data speeds this LED may appear always be ON.

Receive Data –Flashs when data is sent from modem via serial port to

computer.

At high data speeds may appear to always ON.

Modem Ready –When the light is on,the modem’s power on

1 - Installation

This chapter describes how to install your Data/fax/Voice modem in your computer and

connect it to a telephone and telephone line.

Installation overview

The installation process for Windows 95/98 consists of the following steps. And please

refer to the figure 1.1.

Connect the AC power adapter

1. Plug the power cable into the connector labeled AC on the modem.

2. Plug the other side of cable into the wall outlet.

Connect the modem into the computer’s RS-232 serial port

3. Plug the male of the interface cable into the female connector (labeled Serial Port)

on the modem’s back panel. Then you might tighten the screws.

4. Plug the other side of the cable into the serial port (ie. RS-232) on the back of the

computer, the terminal, or other devices. Then you might tighten the screws.

Connecting to the telephone line

To connect your modem to the telephone line:

1. Unplug your telephone from the wall jack by pressing the protruding tab toward the

plastic connector and removing the connector from the wall jack.

2. Take the telephone cord that was included in your modem package and plug either

end into LINE JACK on the modem .

3. And plug another end of the telephone cord into the LINE jack on your wall, just as

you plug telephone set into the wall as usual.

Connecting the telephone set

By connecting a telephone to your modem, you can use the telephone to make voice calls

when your modem is turned off or not being used. To connect a telephone set to your

modem.

Take the cord attached to your telephone and plug it into the fax/modem jack labeled

PHONE. And then lift the telephone handset and listen for a dial tone. If you can hear the

dial tone as usually. Mean that the telephone line path setup should be no problem.

Connection your External MIC- PHONE and SPEAKER to Modem

For voice application adapter Micro-phone to MIC and with one external SPEAKER

jack for external Speaker extension.

Quick Install Modem Driver on Your PC

We support you two difference way for you for installing your modem on PC. We suggest

you to use PNP(Plug and Play) start-up. That would be more easy to you. First of all.

TURN ON the POWER SWITCH in the rear of modem. The PWR LED will lights up.

Start-up Modem with PNP:

A). Power up or reboot your PC.

Waiting for Windows 95/98 boot-up and Windows95/98 would find your new modem

by automatically. Then it will stop while the modem was found and a dialog box

appears with the title New Hardware Found as shown below Figure 1.1. Click on OK.

B). Then the screen show as below appears, Figure 1.3, and asking you to insert the

media with the drivers for your new hardware. Now insert the software disk with

label INF DRIVER or CD-ROM included with you modem, and tell you PC where to get

the DRIVER for the new modem. Then

Click on [Other Locations] to point on your floppy.

C). Pointing to the disk which we inserted..

Then pick a file named “3450RDK.INF”.

Select “Motorola MC143450RDK”for the model of modem.

Now click the [Next ]. Then the Windows 95/98 will copy some related date into the

system by automatic. And next screen changes to the one shown in following figure

1.4. Click on [Next].

D). After the modem is installed in your computer system, reboot the computer

system and waiting for it started.

OK! Let’s check up you modem. Skip the next paragraph to the Testing your

modem

If you got a failed installation in last Plug-N-Play automatically process. You may try

the following process for manual installation. If you still could not accomplish the modem

installation. Please contact to your dealer for the service.

With Manual Installation :

A). Get into the SETUP in the Start button

[CONTROL PANEL]

[SYSTM]

[DEVICE MANGER]

[FLASH]

, and waiting for new modem detection. We recommend you to use the auto-detection

for COM port assigning. Or you must make sure that which COM port you use.

B). When the auto-detection is stop and the modem is found. Windows 95/98 would show

a standard modem was found cause of she could not recognize the name of

manufacture. So we must [Change] the name for modem.

Click on the [CHANGE…] button.

C). Point to the disk which we have prepared.

Then pick a file named “3450RDK.INF”.

Select “Motorola MC143450RDK”for the model of modem. Now click

the [Next ]. Then Windows 95/98 will copy some related date into the system by

automatic.

D). After the modem is installed in your computer system, reboot the computer

system and waiting for it started.

Testing your modem with Windows 95

Before you using any communication application to reach the modem, use the following

procedure to verify your new installed modem’s operation.

Turn on your computer and modem, use the following step to verify your new installed

modem.

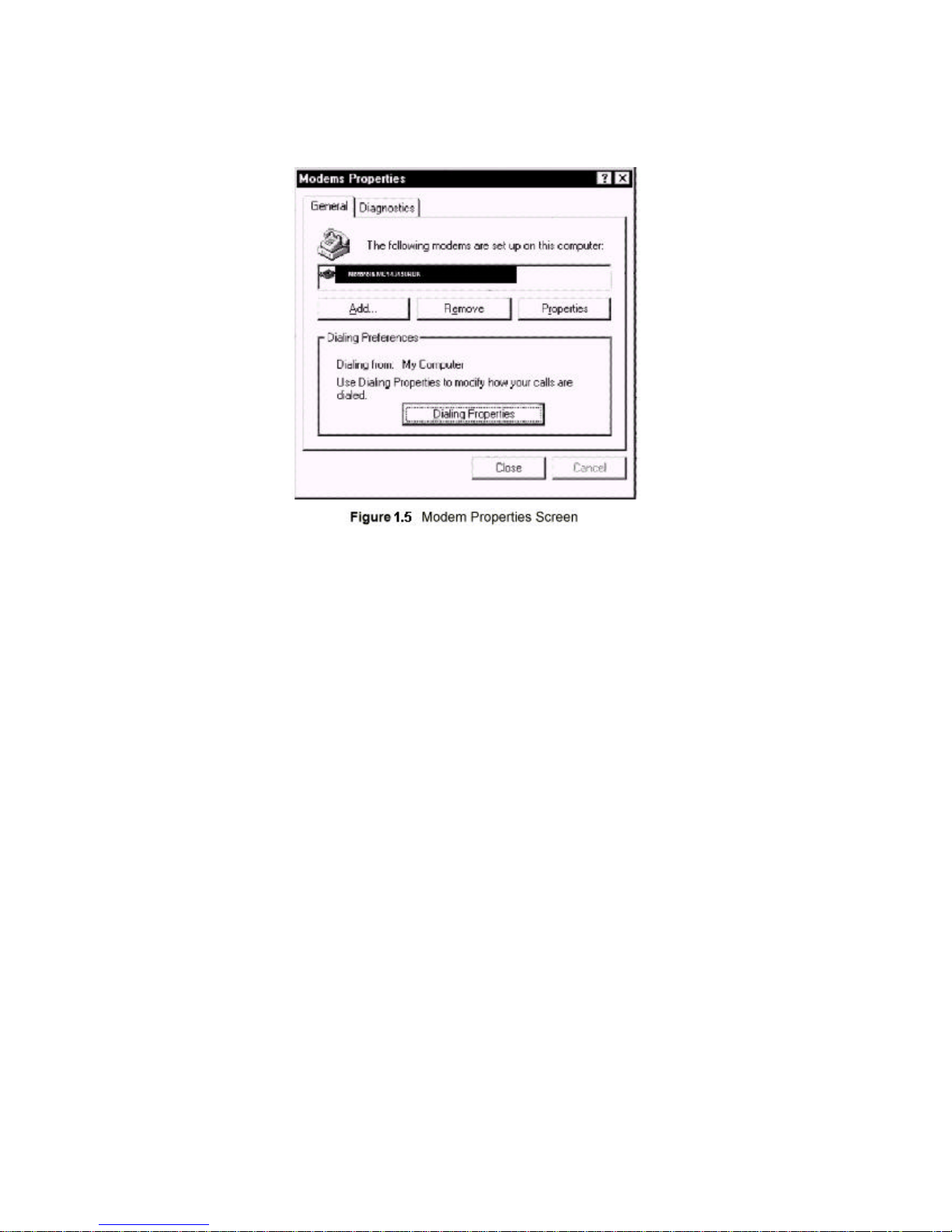

1. Return to CONTROL PANL and double click on your Modems icon. You should see

your modem listed as shown in following figure 1.5.

2. To verify the modem is working, click on the tab for Diagnostics

3. Select the COM port icon that is assigned to your modem. (Remember this COM

port)

4. Select the More Info button. Windows 95 informs you that this will takes a moments

as it communicates with modem. The More Info dialog windows appears showing

your port information and the ATI commands, which verify modem installation, as

shown in Figure 1.6 blow.

5. Choose OK to leave this window. (Command response is currently preliminary and is

always subject to change per upgrade. An ERROR message or other information is

acceptable for some of I commands. ) Be sure to write down the COM port number,

so you can enter it in your selected applications software later.

This process verifies that your modem is now operational in Windows 95/98. Go to the

communications software package bundled with your modem, or your selected software,

and follow the guidelines for marking connections.

Table des matières

Autres manuels Motorola Modem

Motorola

Motorola SURFboard 574808-001-c Manuel utilisateur

Motorola

Motorola SURFboard SBG900 Manuel utilisateur

Motorola

Motorola MG7540 Manuel utilisateur

Motorola

Motorola SURFboard SB6121 Manuel utilisateur

Motorola

Motorola SURFboard SBG941 Series Manuel du propriétaire

Motorola

Motorola CPEI 25150 Fiche technique

Motorola

Motorola MG7310 Manuel utilisateur

Motorola

Motorola SURFboard SBV6120 Manuel utilisateur

Motorola

Motorola CPEI 25150 Manuel utilisateur

Motorola

Motorola SURFboard SB6180 Manuel utilisateur

Motorola

Motorola iM1000 Manuel utilisateur

Motorola

Motorola SURFboard SBV6120E Manuel utilisateur

Motorola

Motorola VT2442 - VONAGE Manuel utilisateur

Motorola

Motorola SB4200 - SURFboard - 38 Mbps Cable Modem Manuel utilisateur

Motorola

Motorola WMC6300 Manuel utilisateur

Motorola

Motorola SB5120 - SURFboard - 38 Mbps Cable Modem Manuel utilisateur

Motorola

Motorola D15 Mode d’emploi

Motorola

Motorola SURFboard SB3500 Manuel utilisateur

Motorola

Motorola VMM6300 Manuel utilisateur

Motorola

Motorola ARRIS SBG6782-AC Manuel utilisateur

Motorola

Motorola 326X V.34 Manuel utilisateur

Motorola

Motorola Premium Motorola 3347 Manuel utilisateur

Motorola

Motorola SBV5121 Manuel utilisateur

Motorola

Motorola SBV5121 Manuel du propriétaire

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur
