Motorola DOCSIS 3.0 SB6121 Manuel utilisateur

Installation Guide

Motorola SURFboard®

SB6121 DOCSIS 3.0®Cable Modem

used to make any derivative work (such as translation, transformation, or adaptation) without written permission from

Motorola, Inc. Motorola and the Stylized M logo are registered trademarks of Motorola, Inc. All other product or service

names are the property of their respective owners.

Motorola reserves the right to revise this publication and to make changes in content from time to time without

obligation on the part of Motorola to provide notification of such revision or change. Motorola provides this guide without

warranty of any kind, implied or expressed, including, but not limited to, the implied warranties of merchantability and

fitness for a particular purpose. Motorola may make improvements or changes in the product(s) described in this manual

at any time.

SB6121 Cable Modem • Installation Guide iii

Uncontrolled Document

Contents

Safety and Regulatory Information

Introduction

In the Box ........................................................................................................................................ 1

Contact Information ......................................................................................................................... 1

System Requirements..................................................................................................................... 1

Product Overview

Front Panel....................................................................................................................................... 3

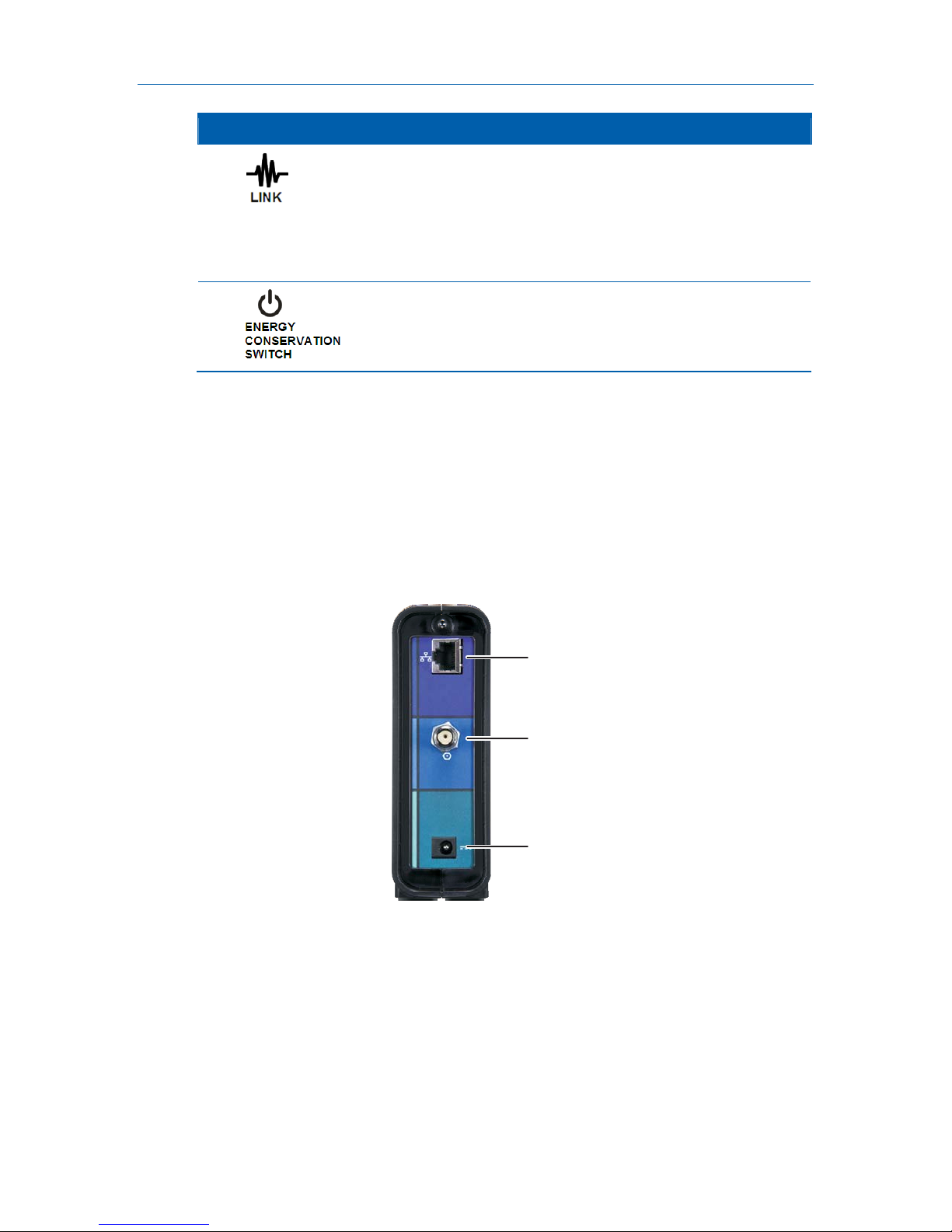

Rear Panel........................................................................................................................................ 4

MAC Label ....................................................................................................................................... 5

Installing the Modem

Connecting the SB6121................................................................................................................... 6

Using the Energy Conservation Switch .................................................................................... 7

Wall Mounting the Modem ............................................................................................................. 7

Wall Mounting Template........................................................................................................... 8

Connecting to the Internet

Checking for an Internet Connection.............................................................................................10

Configuring TCP/IP for Windows 7................................................................................................10

Configuring TCP/IP for Windows Vista .......................................................................................... 11

Configuring TCP/IP for Windows XP ............................................................................................. 11

Verifying the IP Address for Windows 7 ....................................................................................... 12

Verifying the IP Address for Windows Vista ................................................................................. 12

Verifying the IP Address for Windows XP..................................................................................... 12

Renewing the IP Address for Windows 7, Vista, or XP................................................................. 13

Monitoring Your Modem

Starting the Modem Configuration Manager................................................................................. 14

Restoring Your Modem Settings...................................................................................................15

Troubleshooting

Solutions ........................................................................................................................................ 16

Front Panel Icons and Error Conditions ......................................................................................... 17

Software License & Warranty

Software License........................................................................................................................... 18

Warranty Information..................................................................................................................... 19

SB6121 Cable Modem • Installation Guide iv

Uncontrolled Document

i Safety and Regulatory Information

IMPORTANT SAFETY INSTRUCTIONS

Read This Before You Begin

When using your equipment, basic safety precautions should always be followed to reduce the risk of fire, electric

shock, and injury to persons, including the following:

•Read all of the instructions listed here and/or in the user manual before you operate this device. Give particular

attention to all safety precautions. Retain the instructions for future reference.

•This device must be installed and used in strict accordance with manufacturer’s instructions, as described in the user

documentation that is included with the device.

•Comply with all warning and caution statements in the instructions. Observe all warning and caution symbols that

are affixed to this device.

•To prevent fire or shock hazard, do not expose this device to rain or moisture. The device must not be exposed to

dripping or splashing. Do not place objects filled with liquids, such as vases, on the device.

•This device was qualified under test conditions that included the use of the supplied cables between system

components. To ensure regulatory and safety compliance, use only the provided power and interface cables and

install them properly.

•Different types of cord sets may be used for connections to the main power supply circuit. Use only a main line cord

that complies with all applicable device safety requirements of the country of use.

•Installation of this device must be in accordance with national wiring codes and conform to local regulations.

•Operate this device only from the type of power source indicated on the device’s marking label. If you are not sure of

the type of power supplied to your home, consult your dealer or local power company.

•Do not overload outlets or extension cords, as this can result in a risk of fire or electric shock. Overloaded AC outlets,

extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. They may

result in a shock or fire hazard.

•Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or against

them. Pay particular attention to cords where they are attached to plugs and convenience receptacles, and examine

the point where they exit from the device.

•Place this device in a location that is close enough to an electrical outlet to accommodate the length of the power

cord.

•Place the device to allow for easy access when disconnecting the power cord of the device from the AC wall outlet.

•Do not connect the plug into an extension cord, receptacle, or other outlet unless the plug can be fully inserted with

no part of the blades exposed.

•Place this device on a stable surface.

•Avoid damaging the cable modem with static by touching the coaxial cable when it is attached to the

earth-grounded coaxial cable-TV wall outlet.

•Always first touch the coaxial cable connector on the cable modem when disconnecting or reconnecting the Ethernet

cable from the cable modem or user’s PC.

•It is recommended that the customer install an AC surge protector in the AC outlet to which this device is connected.

This is to avoid damaging the device by local lightning strikes and other electrical surges.

•Do not use this product near water: for example, near a bathtub, washbowl, kitchen sink or laundry tub, in a wet

basement, or near a swimming pool.

•Postpone installation until there is no risk of thunderstorm or lightning activity in the area.

SB6121 Cable Modem • Installation Guide v

Uncontrolled Document

•Do not cover the device or block the airflow to the device with any other objects. Keep the device away from

excessive heat and humidity and keep the device free from vibration and dust.

•Wipe the device with a clean, dry cloth. Never use cleaning fluid or similar chemicals. Do not spray cleaners directly

on the device or use forced air to remove dust.

•For added protection, unplug the device from the wall outlet and disconnect the cables to avoid damage to this

device due to lightning and power surges.

•Upon completion of any service or repairs to this device, ask the service technician to perform safety checks to

determine that the device is in safe operating condition.

•Do not open the device. Do not perform any servicing other than that contained in the installation and

troubleshooting instructions. Refer all servicing to qualified service personnel.

•This device should not be used in an environment that exceeds 40º C.

SAVE THESE INSTRUCTIONS

Note to CATV System Installer: This reminder is provided to call the CATV system installer’s attention to Section

820.93 of the National Electric Code, which provides guidelines for proper grounding and, in particular, specifies that

the coaxial cable shield shall be connected to the grounding system of the building, as close to the point of cable entry

as practical.

Caring for the Environment by Recycling

When you see this symbol on a Motorola product, do not dispose of the product with residential or commercial

waste.

Recycling your Motorola Equipment

Please do not dispose of this product with your residential or commercial waste. Some countries or regions, such as

the European Union, have set up systems to collect and recycle electrical and electronic waste items. Contact your

local authorities for information about practices established for your region. If collection systems are not available,

call Motorola Customer Service for assistance. Please visit www.motorola.com/recycle for instructions on recycling.

FCC STATEMENTS

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the device and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) This device must accept any interference received, including interference

that may cause undesired operation.

FCC CAUTION: Any changes or modifications not expressly approved by Motorola for compliance could void the user’s

authority to operate the equipment.

Use of the 5150-5250 MHz frequency band is restricted to indoor use only.

SB6121 Cable Modem • Installation Guide vi

Uncontrolled Document

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply with

the FCC RF exposure compliance requirements, the separation distance between the antenna and any person’s body

(including hands, wrists, feet, and ankles) must be at least 20 cm (8 inches).

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter except those

already approved in this filing.

The availability of some specific channels and/or operational frequency bands are country dependent and are firmware

programmed at the factory to match the intended destinations. The firmware setting is not accessible by the end user.

INDUSTRY CANADA (IC) STATEMENT

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:

•This device may not cause interference, and

•This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

In Canada, RLAN devices are restricted from using the 5600-5650 MHz frequency band.

CAUTION: To reduce the potential for harmful interference to co-channel mobile satellite systems, use of the

5150-5250 MHz frequency band is restricted to indoor use only.

High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 5650-5850 MHz

frequency bands. These radars could cause interference and/or damage to LE-LAN devices.

IC Radiation Exposure Statement

IMPORTANT NOTE: This equipment complies with IC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20 cm (8 inches) between

the radiator and your body.

Introduction • In the Box

SB6121 DOCSIS 3.0® Cable Modem • Installation Guide 1

Uncontrolled Document

1 Introduction

The Motorola®SURFboard®SB6121 DOCSIS®3.0 Cable Modem provides high-speed

Internet access to the Internet and other online services.

You can use your high-speed cable modem to directly connect one computer in your

home or business to the Internet.

This guide provides product overview and setup information for the SB6121. It also

provides instructions for installing the cable modem and configuring the Ethernet, router,

DHCP, and security settings.

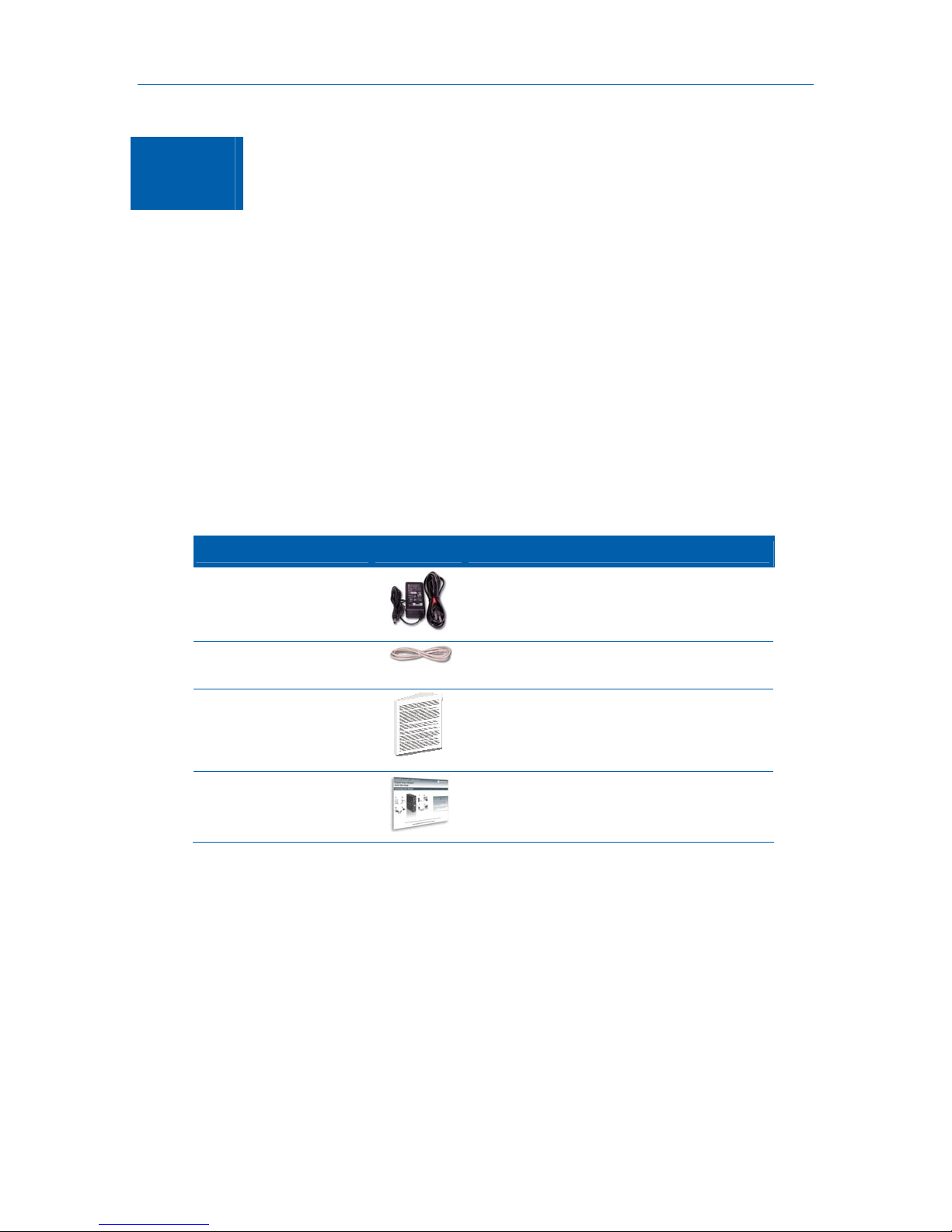

In the Box

Before installing the SB6121 cable modem, make sure the following items are included

in the box with the modem. If you obtained the modem from your service provider,

some of the included items may be different.

ITEM DESCRIPTION

Power Supply

Provides power via an AC electrical outlet

Ethernet Cable Standard Category 5 or higher, cable for

connecting to the network

Software License &

Regulatory Card

Contains software license, warranty, and

safety information for the SB6121

SB6121 Install Sheet

Provides basic information for connecting the

SB6121

Contact Information

For more information on Motorola consumer cable products, education, and support:

•Visit the Motorola support website:

3http://broadband.motorola.com/consumers/support

System Requirements

The SB6121 is compatible with the following operating systems:

Introduction • System Requirements

SB6121 DOCSIS 3.0® Cable Modem • Installation Guide 2

Uncontrolled Document

•Windows®7

•Windows Vista™, Service Pack 1 or later

•Windows XP, Service Pack 2 or later

•Mac®10.4 or later (Ethernet connection only)

•UNIX®(Ethernet connection only)

•Linux®(Ethernet connection only)

Product Overview • Front Panel

SB6121 DOCSIS 3.0® Cable Modem • Installation Guide 3

Uncontrolled Document

2 Product Overview

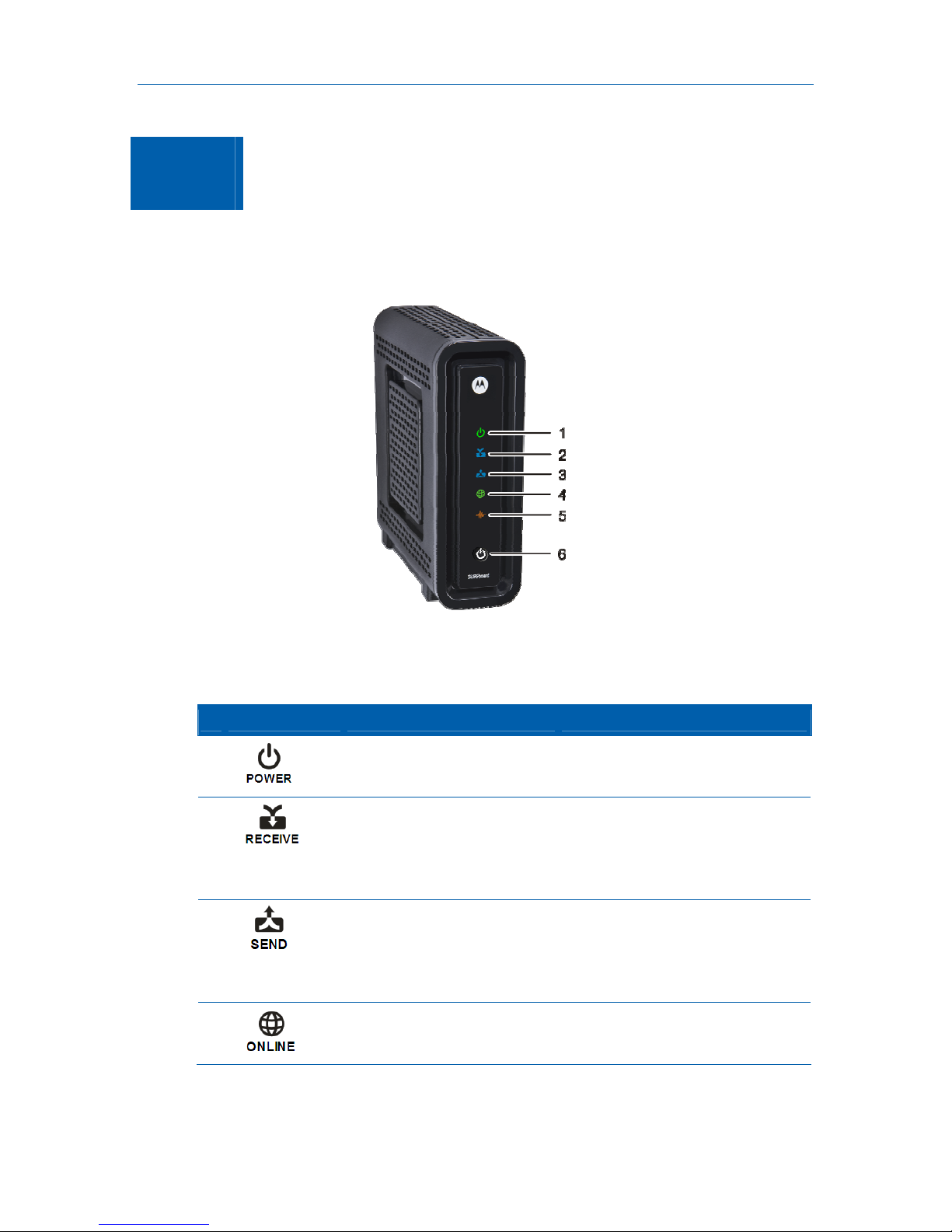

Front Panel

The SB6121 front panel icons provide the following modem status information for

power, communications, and errors:

ICON FLASHING ON

Not applicable — icon does

not flash

Green: Power is properly connected

Scanning for a downstream

(receive) channel connection

Green: Non-bonded downstream

channel is connected

Blue*: High-speed Internet

connection with bonded

downstream channels

Scanning for an upstream

(send) channel connection

Green: Non-bonded upstream

channel is connected

Blue*: High-speed Internet

connection with bonded upstream

channels

Scanning for an Internet

connection

Green: Startup process completed

Product Overview • Rear Panel

SB6121 DOCSIS 3.0® Cable Modem • Installation Guide 4

Uncontrolled Document

ICON FLASHING ON

Transmitting or receiving data

on Ethernet port

Amber: A device, computer, or hub

is connected to the Ethernet

(10Base-T) or Fast Ethernet

(100Base-T) port

Blue*: High-speed Gigabit Ethernet

(1000Base-T) connection from the

SB6121 to your PC

Powers on and off the cable modem

Note: The Energy Conservation switch may be an option that is not

provided by your service provider.

*Blue icon operation is not available in all locations. Your service provider may

implement bonded channels for high-speed Internet and Ethernet connections.

Note: To increase the bandwidth available for receiving and transmitting data, your

service provider may also implement bonded channels for RECEIVE and SEND channel

connections. The LINK icon turns blue when a high-speed Gigabit Ethernet (GigE)

connection is made.

Rear Panel

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Motorola Modem

Motorola

Motorola SURFboard SBV6120 Manuel utilisateur

Motorola

Motorola SURFboard SBV5120 Mode d’emploi

Motorola

Motorola SURFboard SBV5222 Manuel utilisateur

Motorola

Motorola SB5101 - SURFboard - 30 Mbps Cable Modem Manuel utilisateur

Motorola

Motorola MEA 3.1 Manuel utilisateur

Motorola

Motorola MG8725 Manuel utilisateur

Motorola

Motorola MG8702 Manuel utilisateur

Motorola

Motorola SURFboard SB6141 Manuel utilisateur

Motorola

Motorola MD1600 Manuel utilisateur

Motorola

Motorola SURFBOARD SBG1000 Manuel utilisateur

Motorola

Motorola iM1000 Manuel utilisateur

Motorola

Motorola SURFboards SBV6220 Manuel utilisateur

Motorola

Motorola CABLE MODEM SB6100J - GUIDE Manuel utilisateur

Motorola

Motorola SURFboard SBV5122 Manuel utilisateur

Motorola

Motorola MT7711 Manuel utilisateur

Motorola

Motorola SURFboard SBV5222 Manuel du propriétaire

Motorola

Motorola SURFboard SB4100 Manuel utilisateur

Motorola

Motorola CPEI 25150 Manuel utilisateur

Motorola

Motorola PRM240 i Manuel utilisateur

Motorola

Motorola SB5120 - SURFboard - 38 Mbps Cable Modem Manuel utilisateur

Motorola

Motorola SM56 Guide de configuration

Motorola

Motorola SURFboard SB4100 Manuel utilisateur

Motorola

Motorola SURFboard SBV5122 Instructions de montage

Motorola

Motorola SURFboard SB4000 Manuel utilisateur

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur
