Motorola CPEi 300 Series Manuel utilisateur

-1

Contents

Desktop CPEi 300 User Guide

Overview. . . . . . . . . . . . . 1

Powerful Features in a

Single Unit . . . . . . . . . . . 3

Front of CPE . . . . . . . . . . 3

Back of CPE . . . . . . . . . . 6

Operating Information. . . 7

Overview. . . . . . . . . . . . . 7

Before You Begin . . . . . . 7

Easy Setup. . . . . . . . . . . . 9

Advanced Setup . . . . . . 10

Before you Begin

Configuration . . . . . . . . 11

Logging In to the CPE. . 11

Setup Wizard and Authentication

Step 1 - Change Password 13

Step 2 - Device Time. . . 14

Step 3 - WiMAX Security 14

Step 4 - Account . . . . . . 15

Basic Configuration

Personalize Menu . . . . . 17

Internet Menu . . . . . . . . 21

Status Menu. . . . . . . . . . 25

Telephony Menu . . . . . . 26

Contents

Advanced Configuration

Port Fowarding Menu. . . 36

Local Address Menu . . . 39

Control Panel . . . . . . . . . 44

Configuring TCP/IP

Configuring TCP/IP in

Windows 2000 . . . . . . . . 47

Configuring TCP/IP in

Windows XP. . . . . . . . . . 51

Troubleshooting

Power LED is Off. . . . . . 56

A Computer Cannot

Log On to the CPE. . . . . 56

Cannot Connect to

the Internet . . . . . . . . . . . 56

Additional Troubleshooting

Help . . . . . . . . . . . . . . . . 56

Important Safety and Legal Information

Disposal of Motorola Equipment in

EU Countries . . . . . . . . . 62

Disposal of Motorola

Networks Equipment in

Non-EU countries. . . . . . 63

CMM Disclosure

Copyrights and Trademarks

Notice. . . . . . . . . . . . . . . 66

Copyrights . . . . . . . . . . . 66

Usage and Disclosure

Restrictions. . . . . . . . . . . 67

Trademarks. . . . . . . . . . . 68

Desktop CPEi 300 User Guide

Desktop CPEi 300 User

Guide

Overview

Thank you for purchasing the Motorola CPE Indoor (CPEi) 300

desktop device. The Desktop CPEi allows you to connect to the

wireless world easily and seamlessly without complicated installa-

tion and setup procedures. In addition it offers you the ability to

make Voice over Internet Protocol (VoIP) calls.

The Desktop CPE indoor (CPEi) device provides the user:

•

Convenience — with easy plug and play functionality.

Compact design.

•

Performance — dual antennas supply diversity technology.

Best in Class range and indoor penetration.

•

Control — remote management capability allows easy

detection and authentication once the unit is setup.

•

VoIP - two RJ11 ports allow for Voice over IP calls using

your CPEi 300.

Desktop CPEi 300 User Guide

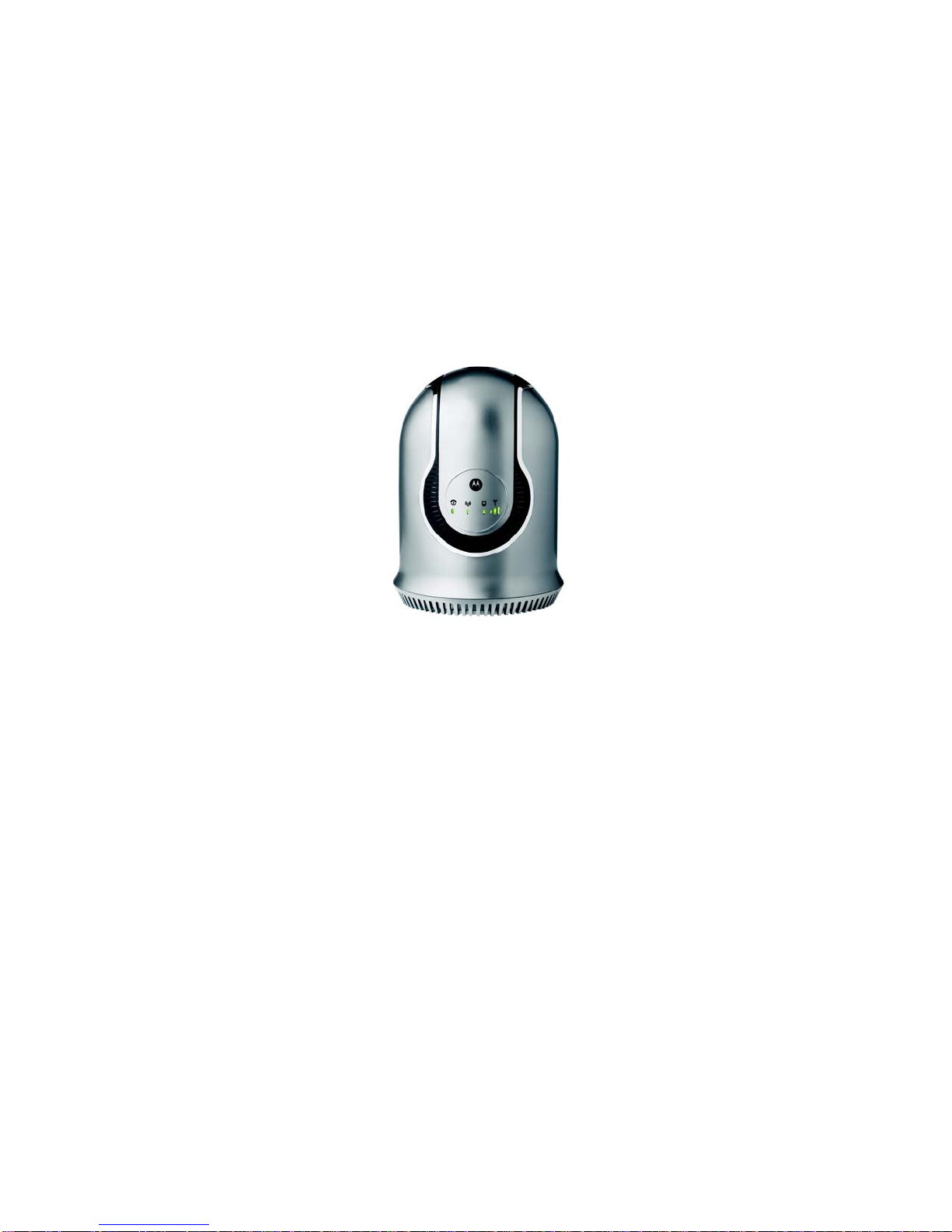

Desktop CPEi 300

The features and the physical appearance of your Desktop CPEi

device may differ slightly from the illustration.

This product is subject to change. For the most recent

documentation, visit the Product Documentation page on

www.motorola.com.

Desktop CPEi 300 User Guide

Powerful Features in a Single Unit

The CPE device provides the following features:

•

WiMAX Authentication

•

WAN DHCP Client

•

LAN DHCP Server

•

Home Gateway Functions

Front of CPE

The Front of the CPE units contain LED Link/Activity indicators.

The LEDs provide the status of the unit and signal strength

indicators for easy adjustment during setup.

Front of Unit

Desktop CPEi 300 User Guide

LED Indicator Interface

Power Status

The Power LED indicator is:

•

On — power to CPE is on.

•

Off — power to the CPE is off.

Ethernet Status The Ethernet LED indicator is:

•

On - LAN Ethernet link has been

established.

•

Blinking - LAN Ethernet activity

has been detected.

•

Off - LAN Ethernet link has been

dropped.

Signal Strength Full WiMAX Signal Strength is

detected if all WiMAX Signal Strength

LEDs are lit.

•

All WiMAX Signal Strength

LEDs are off - low signal

detected.

•

First WiMAX Signal Strength

LED is lit - low signal detected.

•

First and second WiMAX Signal

Strength LED is lit - high signal

detected.

Desktop CPEi 300 User Guide

Caution:

If the Power LED and all 3 WiMAX Signal Strength

LEDs are blinking, then a software upgrade is in progress. Do NOT

remove power to the CPE.

Note:

If the Power LED is BLINKING and all 3 WiMAX Signal

Strength LEDs are OFF, the CPE device is overheating, and you

will not have service.

WAN WiMAX While acquiring access to the WiMAX

Network:

•

The Power LED is ON.

•

The WAN LED is OFF.

•

All WiMAX Signal Strength

LEDs will be in vary between

ON, OFF and/or BLINKING

status.

Once connectivity to the WiMAX

Network is established:

•

The Power LED is ON.

•

The WAN LED is ON.

When WiMAX traffic is detected:

•

The Power LED is ON.

•

The WAN LED is BLINKING.

Desktop CPEi 300 User Guide

Back of CPE

The back of the CPE unit contains the reset switch, AC Power

Connector, Ethernet connector, Line 1 and Line 2 telephone ports,

and the External Antenna Connector(accessory available from your

service provider).

Back of the Unit

Port Descriptions

Back Panel Ports Description

External Antenna External Antenna Connector

Ethernet Ethernet Port

Power AC Power Connector

Reset

Note:

Hardware Reset Button (A

paperclip is recommended for accessing

this button). Before resetting the CPE,

ensure the power LED is ON.

Phone Line 1 RJ-11 port for use with VoIP.

Phone Line 2 RJ-11 port for use with VoIP.

Desktop CPEi 300 User Guide

Operating Information

Operating temperature for this unit is 0-40C (32-104F).

Installation

Overview

To install the Desktop CPEi 300 Series, you need to review the

following sections:

•

Before You Begin

•

Easy Setup

Before You Begin

Before you begin installation, check that you have received the

following items with your Desktop CPEi 300:

In the box with your CPE you should have:

Item Description

AC Adapter

Power adapter and cord connects the

Desktop CPE to an AC electrical outlet.

Ethernet Cable The ethernet cable connects the Internet

port on your Desktop CPE to your PC or

laptop computer.

Desktop CPEi 300

Quick Start Guide

Provides quick installation instructions

for getting your Desktop CPE up and

running.

Desktop CPEi 300 User Guide

In addition, you will also need:

•

A computer

•An RJ-11 telephone cable (optional). Two RJ-11

telephone cables will be required if your service

provider has supplied you with two telephone

numbers.
