Order this document by

M68000UMAD/AD

This document contains information on a product under development. Motorola reserves the right to change or discontinue this product without notice.

Addendum to

M68000

User Manual

M68000



Communications and Advanced

Consumer Technologies Group

SEMICONDUCTOR PRODUCT INFORMATION

August 7, 1997

This addendum to the

M68000UM/AD User’s Manual

, Revision 8, provides corrections to the original text as

well as additional information. This document and other information on this product is maintained on the World

Wide Web at http://www.motorola.com/68000.

OVERVIEW

This manual includes hardware details and programming information for the MC68HC000, the MC68HC001,

the MC68EC000, and the MC68SEC000. For ease of reading, the name M68000 MPUs will be used when

referring to all processors. Refer to M68000PM/AD,

M68000 Programmer's Reference Manual

, for detailed

information on the MC68000 instruction set.

The four microprocessors are very similar to each other and all contain the following features:

• Sixteen 32-Bit Data and Address Registers

• 16-Mbyte Direct Addressing Range

• Program Counter

• 6 Instruction Types

• Operations on Five Main Data Types

• Memory-Mapped Input/Output (I/O)

• 14 Addressing Modes

The following processors contain additional features:

• MC68HC001/MC68EC000/MC68SEC000

— Statically selectable 8- or 16-bit data bus

• MC68HC000/MC68EC000/MC68HC001/MC68SEC000

— Low power

Freescale Semiconductor, I

Freescale Semiconductor, Inc.

For More Information On This Product,

Go to: www.freescale.com

nc...

M68000 USER’S MANUAL ADDENDUM

MOTOROLA

The primary features of the MC68SEC000 embedded processor include the following:

• Direct Replacement for the MC68EC000

— Pin-for-pin compatibility with the MC68EC000 in the plastic QFP and TQFP packages

— Vast selection of existing third-party development tools for the MC68EC000 support the

MC68SEC000

— Software written for the MC68EC000 will run unchanged on the MC68SEC000

• Power Management

— Low-power HCMOS technology

— Static design allows for stopping the processor clock

— 3.3V or 5V operation

— Typical 0.5

A current consumption at 3.3V in sleep mode

• Software Strength

— Fully upward object-code compatible with other M68000 Family products

— M68000 architecture allows effective assembly code with a C compiler

• Upgrade

— Fully upward code-compatible with higher performance 680x0 and 68300 Family members

— ColdFire

code-compatible with minor modifications

1. MC68HC000

The primary benefit of the MC68HC000 is reduced power consumption. The device dissipates less power (by

an order of magnitude) than the NMOS MC68000.

The MC68HC000 is an implementation of the M68000 16/-32 bit microprocessor architecture. The

MC68HC000 has a 16-bit data bus implementation of the MC68000 and is upward code-compatible with the

MC68010 and the MC68020 32-bit implementation of the architecture.

1.1 MC68HC001

The MC68HC001 provides a functional extension to the MC68HC000 HCMOS 16-/32-bit microprocessor with

the addition of statically selectable 8- or 16-bit data bus operation. The MC68HC001 is object-code compatible

with the MC68HC000. You can migrate code written for the MC68HC001 without modification to any member

of the M68000 Family.

1.2 MC68EC000

The MC68EC000 is an economical high-performance embedded controller designed to suit the needs of the

cost-sensitive embedded-controller market. The HCMOS MC68EC000 has an internal 32-bit architecture that

is supported by a statically selectable 8- or 16-bit data bus. This architecture provides a fast and efficient

processing device that can satisfy the requirements of sophisticated applications based on high-level

languages.

The MC68EC000 is fully object-code compatible with the MC68000. You can migrate code written for the

MC68EC000 without modification to any member of the M68000 Family.

The MC68EC000 brings the performance level of the M68000 Family to cost levels previously associated with

8-bitmicroprocessors.The MC68EC000 benefitsfromtherich M68000 instructionsetand its relatedhighcode

density with low memory bandwidth requirements.

Freescale Semiconductor, I

Freescale Semiconductor, Inc.

For More Information On This Product,

Go to: www.freescale.com

nc...

MOTOROLA

M68000 USER’S MANUAL ADDENDUM

1.3 MC68SEC000

The MC68SEC000 is a cost-effective static embedded processor engineered for low-power applications. In

addition to providing the substantial cost and performance benefits of the MC68EC000, the low-power mode

of the MC68SEC000 provides significant advantages in power consumption and power management. The

typical current consumption of the MC68SEC000 is only 0.5

A in static standby mode and 15.0mA in normal

3.3V operation. The MC68SEC000 operates in either 3.3V or 5.0V systems. The remarkably low power

consumption, small footprint packages, and static implementation are combined in the MC68SEC000 for low-

power applications such as portable measuring equipment, electronic games, and battery-operated hand-held

consumer products.

The HCMOS MC68SEC000’s static architecture is a direct replacement for the MC68EC000, which offers the

lowest cost entry point to 32-bit processing. The internal 32-bit architecture provides fast and efficient

processing that satisfies the requirements of sophisticated applications based on high-level languages.

All of the existing third-party developer tools widely available for the MC68EC000 will directly support the

MC68SEC000. You can find detailed descriptions of these tools in the

High Performance Embedded Systems

Source Catalog

Freescale Semiconductor, I

Freescale Semiconductor, Inc.

For More Information On This Product,

Go to: www.freescale.com

nc...

M68000 USER’S MANUAL ADDENDUM

MOTOROLA

2.0 SIGNAL DESCRIPTION

Change Figure 3-3 on Page 3-2.

Figure 1. Input and Output Signals (MC68EC000 and MC68SEC000)

2.1 Data Bus (D15-D0)

In Section 3.2 on page 3-4, replace “The MC68EC000 and MC68HC001 use D7-D0 in 8-bit mode, and D15-

D8 are undefined.” with “Using the MC68HC001, MC68EC000, and MC68SEC000 mode pin, you can

statically select either 8- or 16-bit modes for data transfer. The MC68EC000, MC68SEC000, and

MC68HC001 use D7-D0 in 8-bit mode. D15-D8 are undefined.”

2.2 Bus Arbitration Control

In Section 3.4 on page 3-5, the sentence “In the 48-pin version of the MC68008 and MC68EC000, no pin is

available for the bus grant acknowledge signal; this microprocessor uses a two-wire bus arbitration

scheme.” should read “In the 64-pin MC68EC000 and MC68SEC000, no pin is available for the bus grant

acknowledge signal. These microprocessors use a two-wire bus arbitration scheme.”

2.3 System Control

The Mode subsection heading of Section 3.6 on page 3-7 should read ‘‘Mode (MODE) (MC68HC001/

68EC000/68SEC000).’’

2.4 MC68SEC000 Low-Power Mode

Add the following to Sections 4 and 5, Bus Operation.

The MC68SEC000 has been redesigned to provide fully static- and low-power operation. This section

describes the recommended method for placing the MC68SEC000 into a low-power mode to reduce the

ADDRESS BUS

DATA BUS

ASYNCHRONOUS

BUS CONTROL

BUS ARBITRATION

CONTROL

INTERRUPT

CONTROL

PROCESSOR

STATUS

A23-A0

D15-D0

R/W

UDS

LDS

DTACK

BERR

RESET

HALT

MODE

SYSTEM

CONTROL

GND

CLK

MC68SEC000

FC0

FC1

FC2

IPL0

IPL1

IPL2

AVEC

Freescale Semiconductor, I

Freescale Semiconductor, Inc.

For More Information On This Product,

Go to: www.freescale.com

nc...

M68000 USER’S MANUAL ADDENDUM

MOTOROLA

power consumption to its quiescent value

while maintaining the internal state of the processor. The

low-power mode described below will be routinely tested as part of the MC68SEC000 test vectors provided

by Motorola.

To successfully enter the low-power mode, the MC68SEC000 must first be in the supervisor mode. A

recommended method for entering the low-power mode is to use the TRAP instruction, which causes the

processor to begin exception processing, thus entering the supervisor mode. External circuitry should

accomplish the following steps during the trap routine:

1. Externallydetect a writeto the low-poweraddress. You selectthis address whichcan be anyaddress

in the 16 Mbyte addressing range of the MC68SEC000. A write to the low-power address can be

detected by polling A23–A0, R/W, and FC2–FC0. When the low-power address is detected, R/W is

a logic low, and the function codes have a five (101) on their output, the processor is writing to the

low-power address in supervisor mode and user-designed circuitry should assert the

ADDRESS_MATCH signal shown in Figure 2 and Figure 3.

Figure 3. MC68SEC000 Low-Power Circuitry for 8-Bit Data Bus

2. Execute the STOP instruction. The external circuitry shown in Figure 2 and Figure 3 will count the

number of bus cycles starting with the write to the low-power address and will stop the processor

clock on the first falling edge of the system clock after the bus cycle that reads the immediate data

of the STOP instruction. Figure 3 has one more flip-flop than Figure 2 because the MC68SEC000 in

The preliminary speciﬁcation for the MC68SEC000’s current drain while in the low-power mode is Idd < 2

A for 3.3V operation and

Idd < 5

A for 5.0V operation.

Figure 2. MC68SEC000 Low-Power Circuitry for 16-Bit Data Bus

ADDRESS_MATCH

RESTART

RESET

CPU_CLK

SYSTEM_CLK

ADDRESS_MATCH

RESTART

RESET

CPU_CL

SYSTEM_CLK

AS AS AS

Freescale Semiconductor, I

Freescale Semiconductor, Inc.

For More Information On This Product,

Go to: www.freescale.com

nc...

M68000 USER’S MANUAL ADDENDUM

MOTOROLA

8-bit mode requires two bus cycles to fetch the immediate data of the STOP instruction. After the

processor clock is disabled, it is often necessary to disable the clock to other sections of your circuit.

This can be done, but be careful that runt clocks and spurious glitches are not presented to the

MC68SEC000. A timing diagram is shown in Figure 4.

Figure 4. MC68SEC000 Clock StopTiming for 16-Bit Data Bus

Note:

While the MC68SEC000 is in the low-power mode, all inputs must be driven to V

or V

, or have a

pull-up or pull-down resistor.

3. This step is optional depending on whether your applications require the MC68SEC000 signals with

three-state capability to be placed into a high-impedance state. To place the MC68SEC000 into a

three-state condition, the proper method for arbitrating the bus (as described in

5.2 Bus Arbitration

inthe

M68000User’s Manual, Rev 8

)

houldbe completed during the fetchof the status register data

for the STOP instruction. A timing diagram with the bus arbitration sequence is shown in Figure 5.

Figure 5. MC68SEC000 Clock StopTiming with Bus Arbitration for 16-Bit Data Bus

Write to

Low-Power

Address

Fetch Immediate

Data of STOP

Instruction Stop

CLK S0 S1 S2 S3 S4 S5 S6 S7S0 S1 S2 S3 S4 S5 S6 S7

CPU_CLK

DTACK

CLK S0 S1 S2 S3 S4 S5 S6 S7S0 S1 S2 S3 S4 S5 S6 S7

CPU_CLK

DTACK

Write to

Low-Power

ess

Fetch Immediate

Data of STOP

Instruction Stop

Freescale Semiconductor, I

Freescale Semiconductor, Inc.

For More Information On This Product,

Go to: www.freescale.com

nc...

M68000 USER’S MANUAL ADDENDUM

MOTOROLA

After the previous steps are completed, the MC68SEC000 will remain in the low-power mode until it

recognizes the appropriate interrupt . External logic will also have to poll IPLB2–IPLB0 to detect the proper

interrupt. When the correct interrupt level is received, the following steps will bring the processor out of the

low-power mode:

1. Restart the system clock if it was stopped.

2. Wait for the system clock to become stable.

3. Assert the RESTART signal. This will cause the processor’s clock to start on the next falling edge of

the system clock. Figure 6 shows the timing for bringing the processor out of the low-power mode.

Both the RESTART and RESET signals are subject to the asynchronous setup time as specified in

the Electrical Characteristics section of this addendum.

WARNING

The system clock must be stable before the RESTART signal is asserted

to prevent glitches in the clock. An unstable clock can cause unpredictable

results in the MC68SEC000.

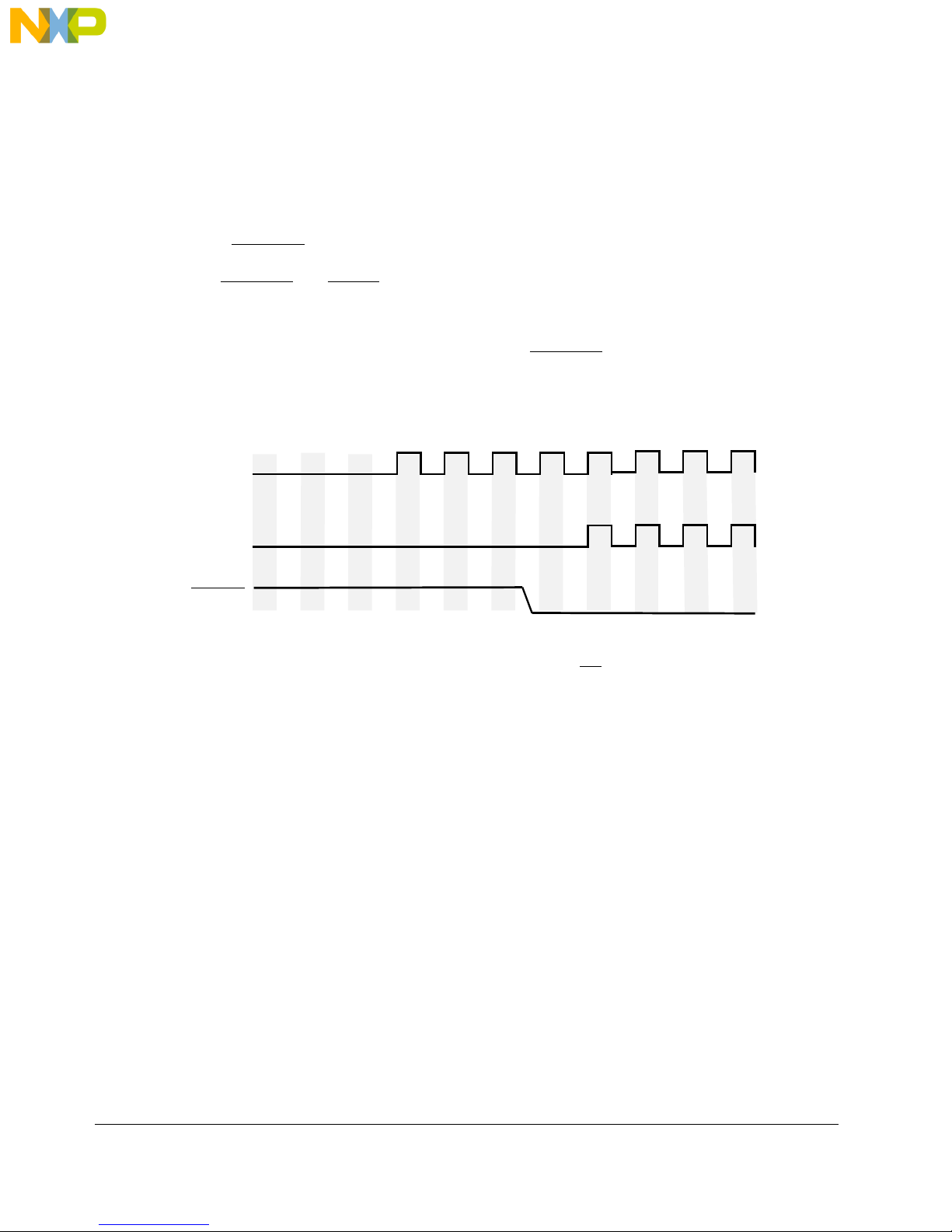

Figure 6. MC68SEC000 Clock Start Timing

4. If the MC68SEC000 was placed in a three-state condition, the BR signal must be negated before the

processor can begin executing instructions.

CLK

CPU_CLK

RESTART

Freescale Semiconductor, I

Freescale Semiconductor, Inc.

For More Information On This Product,

Go to: www.freescale.com

nc...

M68000 USER’S MANUAL ADDENDUM

MOTOROLA

An example trap routine is as follows:

TRAP_x MOVE.B #0,$low_power_address /* Write that causes ADDRESS_MATCH to assert */

STOP #$2000 /* STOP instruction with desired interrupt mask */

RTE /* Return from the exception */

The first instruction (MOVE.B #0,$low_power_address) writes a byte to the low-power address that will

cause the external circuitry to begin the sequence that will stop the processor’s clock. The second

instruction (STOP #$2000) loads the SR with the immediate data. This lets you set the interrupt that will

cause the processor to come out of the low-power mode. The final instruction (RTE) tells the processor to

return from the exception and resume normal processing.

3.0 MC68SEC000 ELECTRICAL SPECIFICATIONS

Add to the following table to Section 10.1.

3.1 MC68SEC000 MAXIMUM RATINGS

3.2 CMOS CONSIDERATIONS

The following change should be made to Section 10.4, CMOS Considerations.

“Although the MC68HC000 and MC68EC000 is implemented with input protection diodes, care should be

exercised to ensure that the maximum input voltage specification is not exceeded.” should read “Although

the MC68HC000, MC68EC000, and MC68SEC000 are implemented with input protection diodes, be

careful not to exceed the maximum input voltage specification.”

RATING SYMBOL VALUE UNIT

Supply Voltage V

–0.3 to 6.5 V

Input Voltage V

–0.5 to 6.5 V

Maximum Operating

Temperature Range

Commercial Extended "C" Grade

to T

0 to 70

–40 to 85

Storage Temperature Tstg –55 to 150

Freescale Semiconductor, I

Freescale Semiconductor, Inc.

For More Information On This Product,

Go to: www.freescale.com

nc...

M68000 USER’S MANUAL ADDENDUM

MOTOROLA

4.0 MC68SEC000 AC ELECTRICAL SPECIFICATIONS

Replace Figure 10-2 on page 10-6 with Figure 7.

Figure 7. Drive Levels andTest Points for AC Speciﬁcations - applies to all parts

0.8 V

2.0 V

DRIVE TO

0.5 V

2.0 V

0.8 V

VALID

OUTPUT nVALID

OUTPUT n + 1

2.0 V

0.8 V

2.0 V

0.8 V

2.0 V

0.8 V

VALID

OUTPUT nVALID

OUTPUT n+1

2.0 V

0.8 V

VALID

INPUT

2.0 V

0.8 V

2.0 V

0.8 V

DRIVE TO

0.5 V

DRIVE TO

2.4 V

VALID

INPUT

2.0 V

0.8 V

2.0 V

0.8 V

DRIVE

TO 0.5 V

DRIVE

TO 2.4 V

2.0 V

0.8 V

2.0 V

0.8 V

CLK

OUTPUTS(1) CLK

OUTPUTS(2) CLK

INPUTS(3) CLK

INPUTS(4) CLK

ALL SIGNALS(5)

NOTES:

1. This output timing is applicable to all parameters specified relative to the rising edge of the clock.

2. This output timing is applicable to all parameters specified relative to the falling edge of the clock.

3. This input timing is applicable to all parameters specified relative to the rising edge of the clock.

4. This input timing is applicable to all parameters specified relative to the falling edge of the clock.

5. This timing is applicable to all parameters specified relative to the assertion/negation of another signal.

LEGEND:

A. Maximum output delay specification.

B. Minimum output hold time.

C. Minimum input setup time specification.

D. Minimum input hold time specification.

E. Signal valid to signal valid specification (maximum or minimum).

F. Signal valid to signal invalid specification (maximum or minimum).

DRIVE

TO 2.4 V

Freescale Semiconductor, I

Freescale Semiconductor, Inc.

For More Information On This Product,

Go to: www.freescale.com

nc...

M68000 USER’S MANUAL ADDENDUM

MOTOROLA

5.0 MC68SEC000 DC ELECTRICAL SPECIFICATIONS

Add the following table to Section 10.13 on page 10-23.

= 5.0 Vdc

5%, 3.3 Vdc

10%,; GND = 0 Vdc; T

= T

to T

)

*During normal operation, instantaneous Vcc current requirements may be as high as 1.5A.

Currents listed are with no loading.

**Capacitance is periodically sampled rather than 100% tested.

3.3 V 5.0 V

CHARACTERISTIC SYMBOL MIN MAX MIN MAX UNIT

Input High Voltage V

2.0 V

Input Low Voltage V

GND 0.8 GND –

0.5 0.8 V

Input Leakage Current BERR, BR, DTACK, CLK, I PL2-IPL0, AVEC

MODE, HALT, RESET Iin — 2.5

20 — 2.5

20 uA

Three-State (Off State) Input Current I

TSI

— 2.5 — 2.5 uA

Output High Voltage V

2.4 — V

–0.75 — V

Output Low Voltage

(IOL = 1.6 mA) HALT

(IOL = 3.2 mA) A23–A0, BG, FC2–FC0

(IOL = 5.0 mA) RESET

(IOL = 5.3 mA) AS, D15–D0, LDS, R/W, UDS

—

0.5

—

0.5

Current Dissipation* f = 0 Hz I

— 0.7 — 1.0 mA

f=10MHz — 10 — 15 mA

f=16 MHz — 15 — 25 mA

f= 20 MHz — 20 — 30 mA

Capacitance (Vin = 0 V, T

= 25

C, Frequency = 1 MHz)** Cin — 20.0 — 20.0 pF

Load Capacitance HALT

All Others CL — 70

130 —70

130 pF

Freescale Semiconductor, I

Freescale Semiconductor, Inc.

For More Information On This Product,

Go to: www.freescale.com

nc...

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Motorola Matériel informatique

Motorola

Motorola M68060 Manuel utilisateur

Motorola

Motorola 68000 Manuel utilisateur

Motorola

Motorola MVME3600 Series Manuel utilisateur

Motorola

Motorola DigitalDNA MPC180E Manuel utilisateur

Motorola

Motorola PowerPC MPC750 Manuel utilisateur

Motorola

Motorola DigitalDNA ColdFire MCF5272 Manuel utilisateur

Motorola

Motorola DragonBall MC68328 Manuel utilisateur

Motorola

Motorola MPC821FADS Manuel utilisateur

Motorola

Motorola Starline SG1000 Manuel utilisateur

Motorola

Motorola NXP SYMPHONY DSP56007 Manuel d'instructions

Motorola

Motorola MC68030 Manuel utilisateur

Motorola

Motorola 68HC12 Manuel utilisateur

Motorola

Motorola MVME712C Mode d’emploi

Motorola

Motorola MC68306 Manuel utilisateur

Motorola

Motorola MC68302 Manuel utilisateur

Motorola

Motorola HC12 Manuel utilisateur

Motorola

Motorola MPC823e Manuel utilisateur

Motorola

Motorola M68MPB16Z1 Manuel utilisateur

Motorola

Motorola SPX3BUM/D Manuel utilisateur

Motorola

Motorola M68EM05A24 Manuel utilisateur

Motorola

Motorola STU-III/R Mode d’emploi

Motorola

Motorola M68MPB16Y1 Manuel utilisateur

Motorola

Motorola M68MPB916X1 Manuel utilisateur

Motorola

Motorola MC68VZ328 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
