Monoprice DARK MATTER 45548 Manuel utilisateur

32" Gaming Display

PN 43548 USER'S MANUAL

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to

these safety warnings and guidelines. Please keep this manual in a safe place for

future reference.

•This device is intended for indoor use only.

•Do not expose this device to water or moisture of any kind. Do not

place drinks or other containers with moisture on or near the device. If

moisture does get in or on the device, immediately remove it from its

power source and allow it to fully dry before reapplying power.

•Do not touch the device, the power cord, or any other connected

cables with wet hands.

•Do not place the monitor on an unstable surface where it could fall and

cause either personal injury or damage to the monitor and/or other

equipment.

•Do not expose this device to excessive vibration or extreme force,

shock, or fluctuations in temperature or humidity.

•Do not expose this device to excessively high temperatures. Do not

place it in, on, or near a heat source, such as a fireplace, stove, radiator,

etc. Do not leave it in direct sunlight.

•Do not block the ventilation holes in the monitor's casing. Do not place

the monitor in a confined space with inadequate ventilation.

Periodically check the ventilation holes to ensure they do not become

clogged with dust, debris, or nearby items.

•Do not place or install this device in an area where it can be exposed to

excessive amounts of dust, humidity, oil, smoke, or combustible vapors.

•Use only in a well-ventilated area. Do not use in close, confined spaces.

•Prior to operation, check the unit and power cord for physical damage.

Do not use if physical damage has occurred.

•Before plugging the unit into a power outlet, ensure that the outlet

provides the same type and level of power required by the device.

•Unplug this device from the power source when not in use.

•Take care to prevent damage to the power cord. Do not allow it to

become crimped, pinched, walked on, or become tangled with other

cords. Ensure that the power cord does not present a tripping hazard.

•Never unplug the unit by pulling on the power cord. Always grasp the

connector head or adapter body.

•Ensure that power is turned off and disconnected before making any

electrical connections.

•Clean using a soft, dry cloth only. Do not use chemical cleaners,

solvents, or detergents. For stubborn deposits, moisten the cloth with

warm water.

•This device has no user serviceable parts. Do not attempt to open,

service, or modify this device.

•Do not leave a single image on the display for a long period of time.

Doing so could cause "burn-in" of the image. It is recommended to use a

variable desktop background and to use a screen saver to prevent

"burn-in". Alternatively, ensure that the monitor is powered off for at

least 2 hours out of every 12.

•Keep the original foam packaging material for use when installing or

removing the included stand.

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your

ordering, purchasing, and delivery experience is second to none. If you have any

problem with your order, please give us an opportunity to make it right. You can

contact a Monoprice Customer Service representative through the Live Chat link

on our website www.monoprice.com or via email at support@monoprice.com.

Check the website for support times and links.

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the

items listed below. If anything is missing or damaged, please contact Monoprice

Customer Service for a replacement.

1x 32" Gaming Monitor

1x Stand Stem

1x Stand Base

3x M4x16 Screws

1x DisplayPort® Cable

1x AC Power Adapter

1x AC Power Cord

1x User's Manual

PRODUCT OVERVIEW

Connections

1. DC:DC barrel connector for connecting the included AC power adapter.

2. HDMI1: HDMI® input for connecting a video source device.

3. HDMI2: HDMI input for connecting a video source device.

4. DP1: DisplayPort® input for connecting a video source device.

5. DP2: DisplayPort input for connecting a video source device.

6. EARPHONE: 3.5mm audio jack for connecting headphones, an external

amplifier, or a pair of powered speakers.

Controls

7. POWER LED: The POWER LED illuminates solid blue when the monitor is

powered on. The POWER LED illuminates solid red when the monitor is

in standby mode. The POWER LED flashes red when the monitor is in

energy saving mode.

8. ROCKER: Use the ROCKER to control the monitor:

•PRESS: With the monitor powered off, momentarily press the

ROCKER to turn the monitor on. With the monitor powered on,

press and hold the ROCKER for 3 seconds to turn the monitor off.

•UP: When a menu is not displayed, push the ROCKER up to cycle

through the inputs. When the top level of the OSD menu, the

Brightness menu, or the Volume menu is displayed, push the

ROCKER up to exit the menu. When a submenu is displayed, push

the ROCKER up to return to the previous menu. If editing a value,

push the ROCKER up to exit editing and cancel any changes.

•DOWN: When a menu is not displayed, push the ROCKER down to

enter the OSD menu. When the OSD menu is displayed, push the

ROCKER down to enter the highlighted submenu or to edit the

highlighted option. If editing a value, push the ROCKER down to

exit editing and save the changes.

•LEFT: When the OSD menu is not displayed, push the ROCKER left

to display the Brightness adjustment menu. When the OSD menu is

displayed, push the ROCKER left to move the highlight left. When

editing a value, push the ROCKER left to decrease the value.

•RIGHT: When the OSD menu is not displayed, push the ROCKER

right to display the Volume adjustment menu. When the OSD menu

is displayed, push the ROCKER right to move the highlight right.

When editing a value, push the ROCKER right to decrease the value.

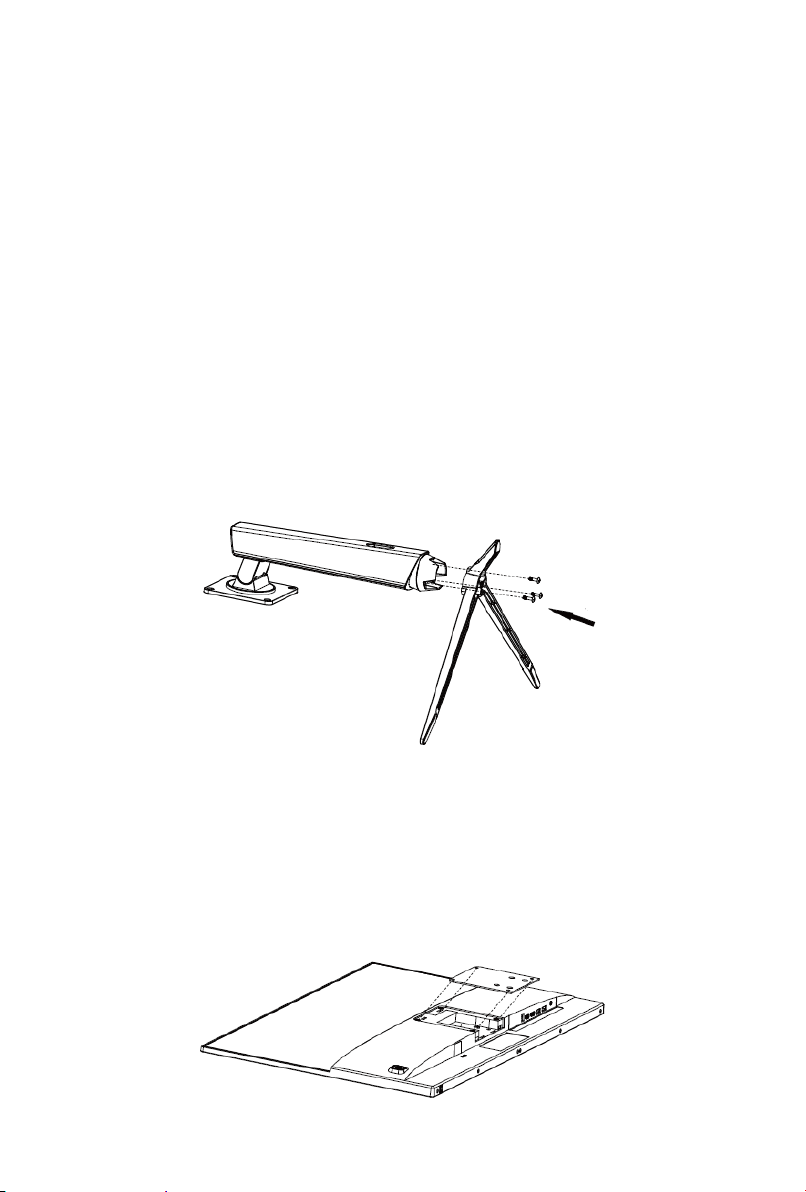

STAND INSTALLATION

Perform the following steps to install the stand.

1. Using the three included M4x16 Screws, attach the Stand Base to the

Stand Stem.

2. Spread a blanket or towel on a flat surface, then place the monitor face

down on the cushioned surface.

3. Remove the screws that are holding the protective plate on the back of

the monitor, then remove the plate. Place the protective plate in a safe

place for future use.

4. Insert the monitor plate on the stand assembly into the opening on the

back of the monitor, then secure it in place using the screws removed in

the previous step.

TECHNICAL SUPPORT

Monoprice is pleased to provide free, live, online technical support to assist you

with any questions you may have about installation, setup, troubleshooting, or

product recommendations. If you ever need assistance with your new product,

please come online to talk to one of our friendly and knowledgeable Tech

Support Associates. Technical support is available through the online chat

button on our website www.monoprice.com or through email by sending a

message to tech@monoprice.com. Check the website for support times and

links.

To download the latest drivers, firmware, manuals, etc., go to

www.monoprice.com and type the P/N into the search bar. If available, support

files are linked at the bottom of the product page.

SPECIFICATIONS

P/N

43548

Display Size

31.5"

Maximum Resolution

2560 x 1440p

Refresh Rate

165Hz

Video Input

2x HDMI® 2.0, 2x DisplayPort® 1.2

HDCP™ Version

2.2

VESA® Mount Size

100 x 100

Input Power

12 VDC, 5A

AC Adapter Input Power

100 ~ 240 VAC, 50/60 Hz

Maximum Power Consumption

60 watts

Standby Power Consumption

≤ 0.5 watts

Operating Temperature

+32 ~ +104°F (0 ~ +40°C)

Operating Humidity

20 ~ 85 % RH, noncondensing

Storage Temperature

+14 ~ +140°F (-10 ~ +60°C)

Storage Humidity

10 ~ 90% RH, noncondensing

Dimensions (with stand)

28.5" x 19.6" x 7.2" (724 x 498 x 183 mm)

Weight (with stand)

20.9 lbs. (9.5 kg)

Dimensions (without stand)

28.5" x 16.7" x 1.7" (724 x 424 x 43 mm)

Weight (without stand)

15.0 lbs. (6.8 kg)

REGULATORY COMPLIANCE

Notice for FCC

This device complies with Part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Modifying the equipment without Monoprice's authorization may result in the

equipment no longer complying with FCC requirements for Class B digital

devices. In that event, your right to use the equipment may be limited by FCC

regulations, and you may be required to correct any interference to radio or

television communications at your own expense.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.
