MONOPRICE 10594 Windows User's Manual

CONTENTS

I. General Information.........................................................................................1

1. Safety Warnings and Guidelines ..........................................................................1

2. Package Contents................................................................................................2

3. System Requirements ..........................................................................................2

4. Technical Support.................................................................................................2

5. Controls................................................................................................................3

6. Connections..........................................................................................................3

7. Adjustable Stand ..................................................................................................3

8. Software Installation .............................................................................................4

9. Hardware Installation............................................................................................6

10. Pen Operation ....................................................................................................8

11. Usage Tips .........................................................................................................9

II. Configuration..................................................................................................10

1. The Info Tab.......................................................................................................10

2. The Monitor Setting Tab.....................................................................................11

3. The Button Tab...................................................................................................12

4. The Pressure Tab...............................................................................................13

5. The Calibration Tab............................................................................................14

III. Pen Storage and Maintenance.................................................................15

1. Storing the Digital Pen........................................................................................15

2. Replacing the Battery in the Digital Pen .............................................................15

3. Replacing the Pen Tip ........................................................................................16

MONOPRICE 10707 Windows User's Manual

I. General Information

1. Safety Warnings and Guidelines

For your safety and the continued operation of your equipment, please read and heed

the following safety warnings and guidelines:

1. Do not expose this device to water or moisture of any kind. Do not place drinks or

other containers with moisture on or near the device. If moisture does get in or on

the device, immediately unplug it from the power outlet.

2. This device ventilates excessive heat through the slots and openings in the case.

Do not block or cover these openings. Ensure that the device is in an open area

where it can get sufficient airflow to keep from overheating.

3. Use only the AC adapter included with this device. If the AC adapter is lost or

damaged, use only an exact replacement (12 VDC, 4A).

4. Do not modify the power cord or otherwise attempt to bypass the grounding by

using a "cheater" plug. If your power outlet does not accommodate a three-prong

NEMA 5-15 type plug, contact a professional electrician to replace the obsolete

power outlet.

5. Remove power from the monitor when it will not be in use for some time. If it will

not be used for a very long time, unplug all connections as well.

6. Take care not to allow any objects, particularly metallic or conductive objects, to

fall into the monitor. If there is anything loose or rattling around inside the case, have

the monitor serviced by qualified personnel to remove the foreign object(s).

7. This device has no user serviceable parts. Do not attempt to disassemble or

modify this device in any way. Servicing should be conducted by qualified service

personnel only.

8. Do not use water, solvents, or chemical cleaners on this device. Clean using a

soft, dry cloth only.

MONOPRICE 10707 Windows User's Manual

2. Package Contents

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service

for a replacement.

1x Monitor

1x AC power adapter

1x AC power cord (NEMA 5-15 to IEC 60320 C13)

1x VGA cable

1x USB cable (A male to A male)

1x CD-ROM with drivers

1x Pen stylus

1x Pen charging cable

1x Pen holder

1x Pen tip removal tool

4x Spare pen tips

3. System Requirements

To properly use this pen monitor you will need the following:

Windows XP or later (32- & 64-bit)

Available VGA, DVI-A, or DVI-D video output

Available USB port

CD-ROM or internet connection for driver installation

4. Technical Support

Monoprice is pleased to provide free, live, online technical support to assist you with

any questions you may have about installation, setup, troubleshooting, or product

recommendations. If you ever need assistance with your new product, please come

online to talk to one of our friendly and knowledgeable Tech Support Associates.

Technical support is available through the online chat button on our website

(www.monoprice.com) during regular business hours, 7 days a week. You can also get

assistance through email by sending a message to tech@monoprice.com.

MONOPRICE 10707 Windows User's Manual

5. Controls

MENU: Press this button to access the monitor's internal On Screen Display (OSD)

menu system. When the menu is displayed, the MENU button functions as a Select

or OK button.

Minus (-): The Minus (-) button moves the menu cursor/highlight down one entry. If

an entry has been selected for editing, the Minus (-) button decreases the selected

value.

Plus (+): The Plus (+) button moves the menu cursor/highlight up one entry. If an

entry has been selected for editing, the Plus (+) button increases the selected value.

AUTO: When the OSD menu is displayed, the AUTO button functions as an ESC or

BACK button. When the OSD menu is not displayed, the AUTO button adjusts the

screen automatically.

POWER: The power button is used to turn the monitor on/off. When it is powered

on, the LED to the right of the button glows green. When in standby, the LED glows

red. When power is turned off, the LED is also off.

6. Connections

DVI: This DVI input can accept both DVI-A and Single Link DVI-D signals. A DVI

cable is NOT included.

VGA: The standard VGA input. Plug one end of the included VGA cable into your

video card output and the other end into this monitor input.

DC IN: Plug the DC barrel connector on the AC adapter into this jack.

USB: This USB A male port is used to connect the monitor to your PC's USB port. A

USB A male to A male cable is included.

7. Adjustable Stand

The monitor stand is designed to provide a wide range of adjustments, so you can find

the optimum angle to suit your style and needs. To adjust the stand, pull up on the

release latch, then adjust the stand as desired. The stand can be adjusted to present

the screen at a 10 ~ 80° angle.

MONOPRICE 10707 Windows User's Manual

8. Software Installation

Important! Do not plug the monitor into your PC until after you

have installed the driver software.

Unless your computer is running Windows 8, which has built-in touch-screen/tablet

support, you will need to install the device driver and utility. To install the driver, perform

the installation steps below:

1. Insert the Driver CD into the CD-ROM drive and wait for the main installation

screen to appear. If you have autorun disabled or for some other reason the

installation program does not start, open the disc in Windows Explorer and double-

click the SETUP.EXE program to begin the setup.

2. Click the Win Driver button to launch the installer.

MONOPRICE 10707 Windows User's Manual

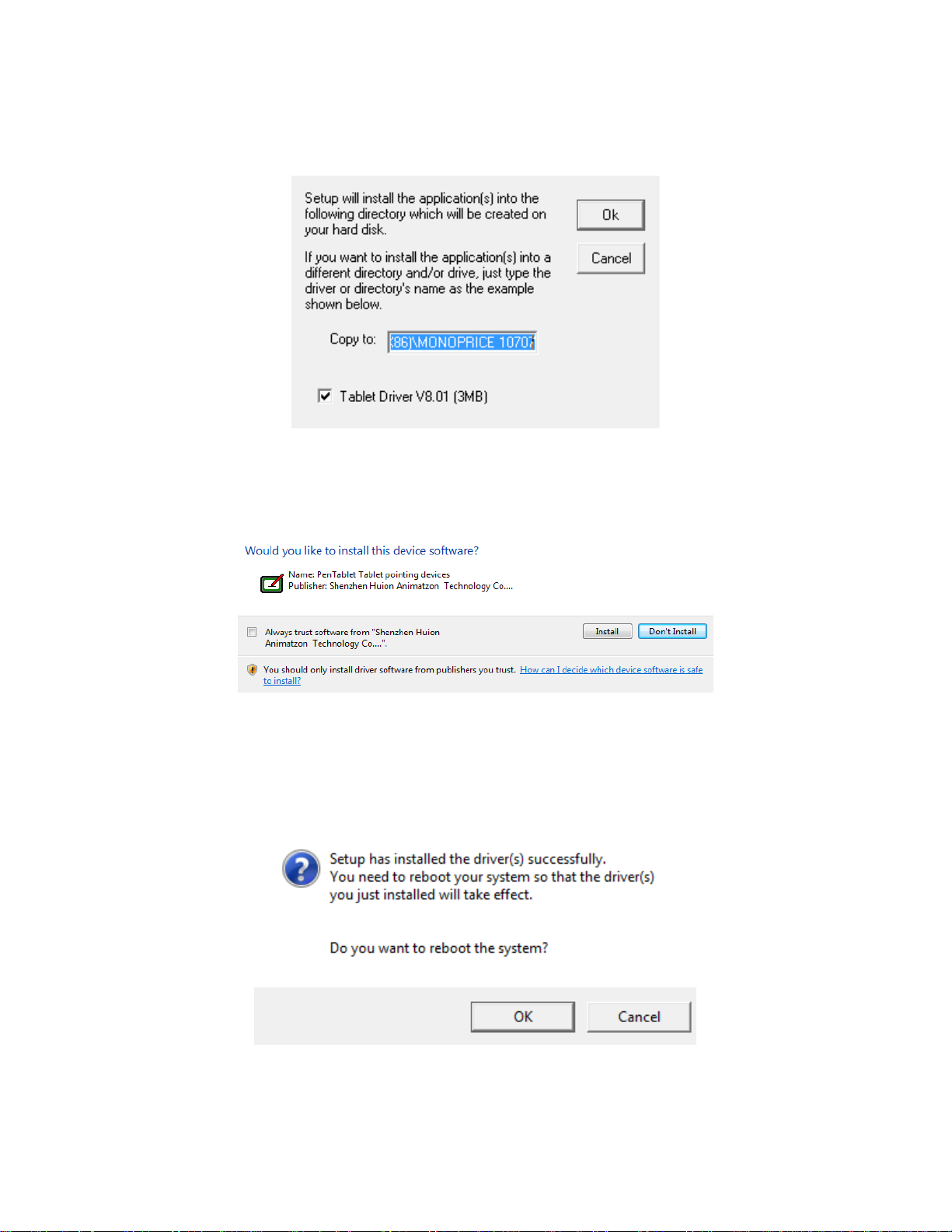

3. The default install directory is C:\Program Files (x86)\Monoprice 10707. Click

the OK button to begin the installation process.

4. If prompted by Windows Security to verify the driver source, click the Install

button to continue the installation. Repeat this process as needed until the

installation is complete.

5. When the installation is complete, you will be prompted to reboot your computer.

However, since we need to install the hardware, we will want to power the computer

down instead. Click the Cancel button then save any open files and power off your

PC.

MONOPRICE 10707 Windows User's Manual

9. Hardware Installation

Note: This Pen Monitor does not function properly in a Windows multi-monitor

configuration. For proper operation in Windows, it must be the only monitor connected

to the system.

After you have installed the software driver and utility to your system and after you have

powered it off, perform the following steps to connect the monitor to your system.

1. Ensure that your computer is powered OFF.

2. Unplug all other monitor connections from your PC.

3. Position the monitor so that you can easily access the connections on the rear.

4. Plug one end of the included VGA cable into the VGA input port on the monitor

and plug the other end into the VGA output port on your computer. Tighten the

thumbscrews on each connector to ensure that they do not come loose.

Note: Alternatively, you can use a DVI cable (not included). Your video card

should be capable of producing DVI-A or Single Link DVI-D signals.

5. Plug the DC barrel connector on the AC adapter into the DC IN port on the back

of the monitor.

6. Plug the C13 connector on the AC power cord into the AC adapter. Plug the other

end into an AC power outlet.

7. Press the Power button on the monitor, then power on your computer.

Important: Do not plug in the USB cable yet. This will be done after the PC has been

restarted.

MONOPRICE 10707 Windows User's Manual

8. Once your computer has completed its startup procedure, right-click the desktop

to access the Context menu. If you are using Windows XP, select the Properties

option. If you are using Windows Vista or Windows 7, select the Screen Resolution

option.

9. If using Windows XP, click the Settings tab to get to the resolution screen. For

Windows Vista and Windows 7 you are already on the resolution screen. Ensure that

the video resolution is set to 1440 x 900. Click OK to continue.

MONOPRICE 10707 Windows User's Manual

10. Plug one end of the included USB cable into the USB port on the monitor and

the other into an available USB port on your computer. Windows will then finalize the

installation of the monitor and its driver.

10. Pen Operation

Prior to using the pen stylus, ensure it is fully charged by plugging it into a USB

charging source using the included proprietary USB charging cable. The pen will take

about 1 hour to fully charge.

LED Indicator

The LED on the pen indicates the charge status with the following patterns:

LED glows red: Charging is in progress.

LED off: Charging is complete.

When the pen performance and response starts to deteriorate, it is time to recharge the

pen's internal battery.

Note: The pen's LED is located behind the buttons and can be seen through the

opening in the case.
