Monoprice 27771 Manuel utilisateur

User’s Manual

P/N 27771

Gaming Monitor

To assure the product to work in best status

Please read the user manual carefully before operation and

keep it well for use

27”

TABLE OF CONTENTS

A. INSTRUCTIONS

1. Safety Warnings and Guidelines

4. Package Contents

5. Installation

6. The Main Parts and Terminals

B.KEYPAD FUNCTION

8. Keypad Function

9. Quick Enter Keypad

C. MENU ADJUSTMENT

D. OTHERS

11. The Remote Control

15. Trouble Shooting

13. Product Specification

12. The LED Indicator

2. Features

3. Viewing Angle Adjustment

7. Setup

14. Compatible Video Resolutions

10. OSD Menu Map

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra

attention to these safety warnings and guidelines. Please keep this

manual in a safe place for future reference.

• Do not place the monitor on an unstable surface where it could fall

and cause either personal injury or damage to the monitor and/or

other equipment.

• Do not expose the monitor to water or moisture of any kind. Do not

place objects containing moisture, such as a glass or vase, where it

could tip over and spill into or onto the monitor.

• If the monitor is exposed to water or moisture, immediately unplug

it from its power source and allow it to completely dry out before

reapplying power.

• Do not block the ventilation holes in the monitor's casing. Do not

place the monitor in a confined space with inadequate ventilation.

• Do not place the monitor near a heat source, such as a fireplace,

heating vent, radiator, etc. Do not leave it in direct sunlight.

• The power supply for this monitor uses a NEMA 5-15 three prong,

grounded plug. Do not use a "cheater" plug or otherwise bypass the

grounding pin.

• The power supply for this monitor accepts a wide range of input

voltages, from 100 to 240 VAC, 50 or 60 Hz. Ensure that your power

source is within these limits. If not, consult a professional electrician

or your power company for a resolution.

• Unplug the monitor if it will go unused for a long period of time.

• This monitor has no user serviceable parts. Do not open the case or

otherwise attempt to modify this monitor.

• Clean using a soft, dry cloth only. Do not use chemical cleaners,

solvents, or detergents. For stubborn deposits, moisten the cloth

with warm water.

• Do not leave a single image on the display for a long period of time.

Doing so could cause "burn-in" of the image. It is recommended to

use a variable desktop background and to use a screen saver to

prevent "burn-in". Alternatively, ensure that the monitor is powered

off for at least 2 hours out of every 12.

FEATURES

• 3840 x 2160 maximum resolution

• 16:9 aspect ratio

• HDMI®, and DisplayPort video inputs

• +13°/0° tilt range using included stand

• 5ms response time

VIEWING ANGLE ADJUSTMENT

The included monitor stand supports tilt adjustment from -0° (down)

to +13° (up). To adjust the angle, grasp the bezel at both the top and

bottom of the monitor and move it as desired. Use soft cloth gloves or

a soft, dry cloth to grasp the monitor without touching the screen.

13°

Package Contents

1x Monitor

1x Stand Base

1x HDMI 2.0 Cable

1x AC Power Adapter

1x AC Power Cord

1x remote control 2x battery

1x User's Manual

6x Screws for Stand Base

User’s Manual

P/N 27771

Gaming Monitor

To assure the product to work in best status

Please read the user manual carefully before operation and

keep it well for use

27”

Installation

QUICK START GUIDE

Put the monitor face down on a stable and smooth surface, pay attention

not to damage or scratch the front glass / screen. It’s better putting a

soft piece of cloth on the table beforehand to protect the monitor. Make

sure the monitor is unplugged before starting installation.

SETTING UP THE MONITOR

1. Put the monitor face down on a stable and smooth surface; make sure

you have enough space to operate safely

2. Make sure you have the base kit with all his parts (7 screws / 3 stand

parts) to set up the monitor correctly.

Display The base kit

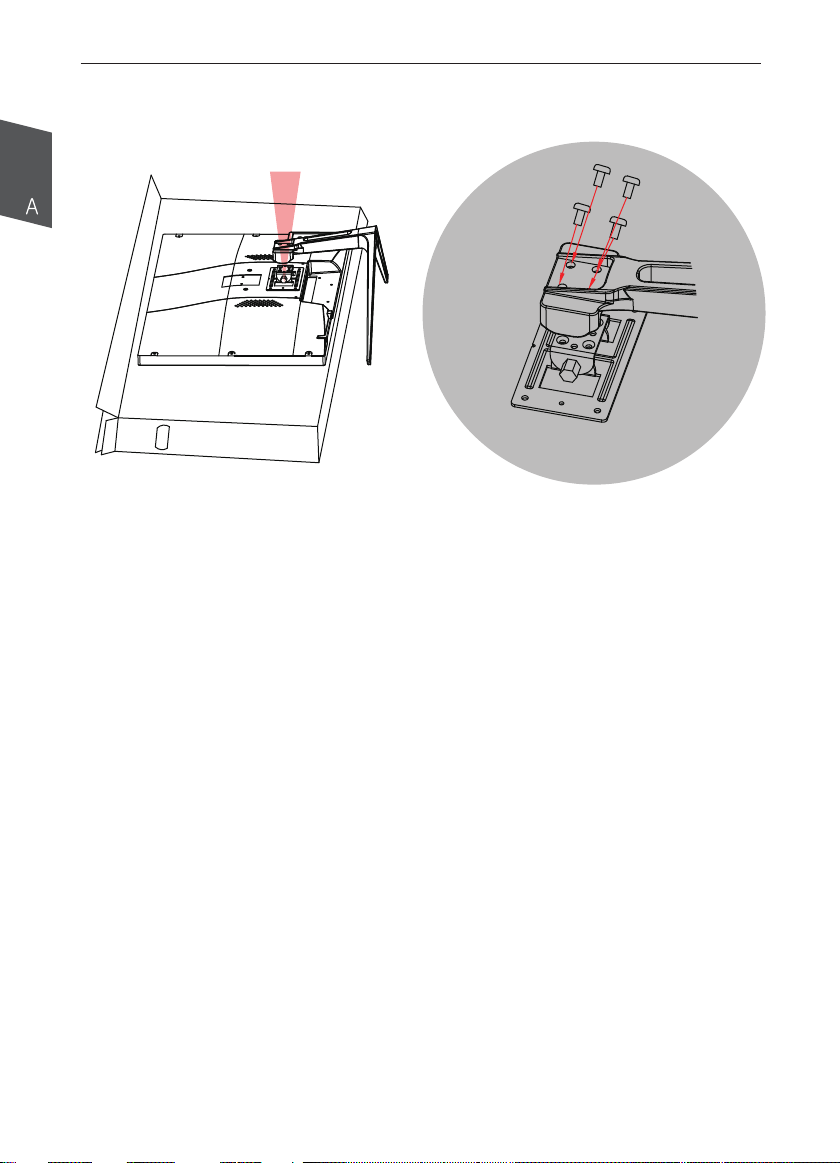

3. Secure the bracket and stand with the included screwdriver and screws as

per the below picture.

4. Put the base kit on the back side of the display as per the below picture.

Fix the stand kit to the back side of the monitor as per the above picture.

Screw without force.

5. Make sure the stand and base are firmly attached.

6. Make sure both monitor and computer are unplugged.

7. Plug power cord and signal cable (HDMI or DP) to the monitor.

8. Plug the computer and monitor power cord to the power supply.

9. Turn on the monitor and computer.

NOTE / CAUTION

After turning on computer and monitor if no image is displaying make sure you

have chosen the right signal cable.

Please make sure to earth the power cord.

Speaker Hole VESA hole

100mm x 100mm I/O Port

Keypad

Back

LED Indicator/IR

signal receiver Base Screen

Front

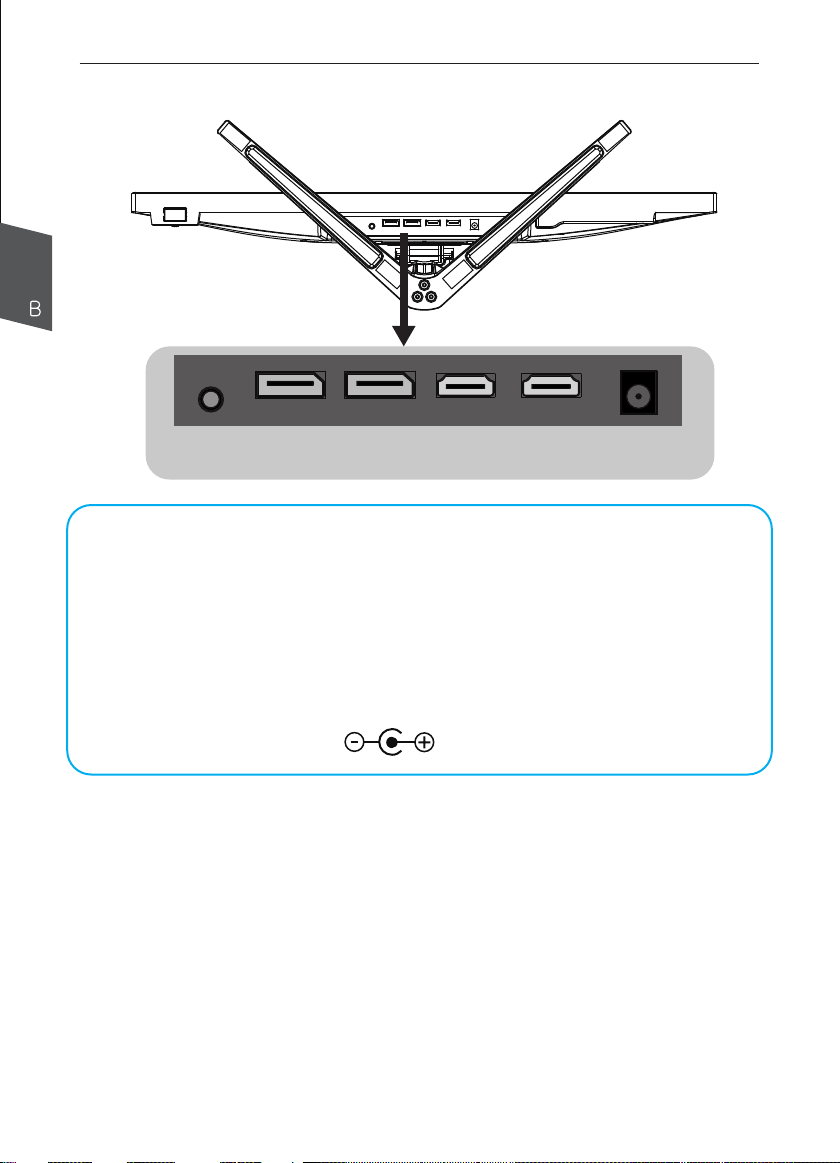

The Main Parts and Terminals

V- V+

HDMI : HDMI 2.0 version, maximum resolution 3840 x 2160 @60Hz.

DP: Display Port 1.2 version, maximum resolution 3840x2160@60Hz.

DC IN : 12V Please use only the power DC adaptor and power cord included

in Package.

Please refer to the below picture for the definition of the DC port

The Main Parts and Terminals

SETUP

1. If you will be using the desk stand, use a Phillips screwdriver and the

four included Screws to attach the Stand Base to the stand.

2. Using the included DisplayPort cable, plug one end into the Display

Port input on the monitor, then plug the other end into the Display

Port output on your computer.

3. Plug the DC barrel connector on the included AC Power Adapter into

the DC IN connector on the monitor.

4. Plug the C13 included AC Power Cord into the AC Power Adapter,

then plug the other end into a nearby AC power outlet.

DC INHDMI 2 HDMI 1DP 2 DP 1

AUDIO

OUT

AUDIO OUT : To be use when using HDMI or DP signal to get audio on

earphone or speakers.

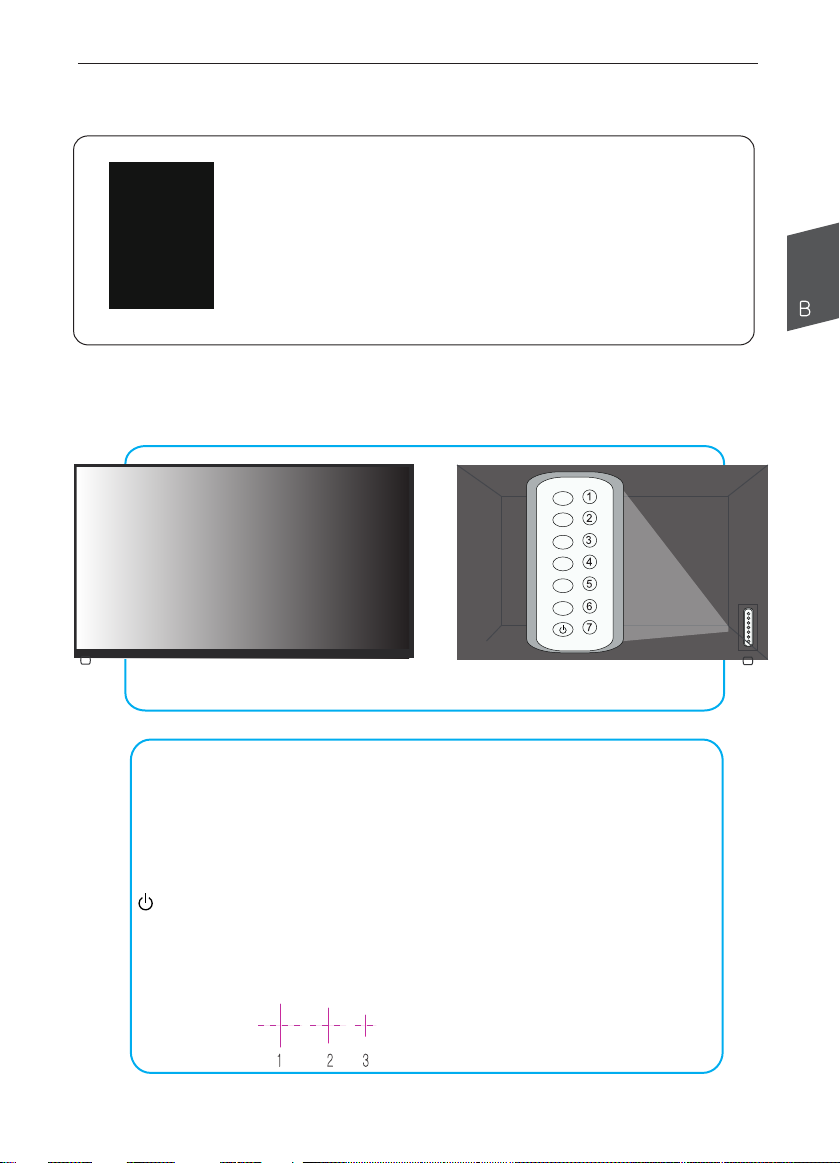

Keypad on the front panel

Select Input Source：

1. Press the “Select”button, the main menu will

display on the screen.

2. Press the ▲ and ▼ to select a applicable input

source, and press the “V-” button or wait for 3

seconds to perform the selection.

OSD Menu

SELECT

V.+

V.-

▲

▼

HDMI 1

HDMI 2

DP 1

DP 2

Control Button Functions

MENU : Activates the menu, Selects the highlighted function.

SELECT: Select input source.

V.+： Increases Volume/Select sub-menu rightward.

V.- : Decrease Volume/Select sub-menu leftward.

▲ ：Moves highlight up, select the sub-menu .

▼ ：Moves highlight down, select the sub-menu .

：Turns monitor on/off.

Quick Enter function

▲ ： Press to adjust the aspect ratio.

▼ ： Press to display the Cross hair target .

Keypad
