MONOPRICE

24" WQHD 144Hz Ultra Slim Aluminum Monitor

with FreeSync™

P/N 24656/30672/30673

User's Manual

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future

reference.

This monitor is intended for indoor use only.

Do not expose this monitor to water or moisture of any kind. Do not place drinks

or other containers with moisture on or near the device. If moisture does get in

or on the device, immediately unplug it from the power outlet and allow it to

fully dry before reapplying power.

Do not touch the monitor, the power cord, or any other connected cables with

wet hands.

Do not subject the monitor to extreme force, shock, or fluctuations in

temperature or humidity.

Do not expose this monitor to excessively high temperatures. Do not place it in,

on, or near heat sources, such as a fireplace, stove, radiator, etc. Do not leave it

in direct sunlight.

Prior to operation, check the unit and power cord for physical damage. Do not

use if physical damage has occurred.

Take care to prevent damage to the power cord. Do not allow it to become

crimped, pinched, walked on, or become tangled with other cords. Ensure that

the power cord does not present a tripping hazard.

Ensure that power is turned off and disconnected before making any electrical

connections.

Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

This monitor has no user serviceable parts. Do not open the case or otherwise

attempt to modify this monitor.

Do not leave a single image on the display for a long period of time. Doing so

could cause "burn-in" of the image.

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your

ordering, purchasing, and delivery experience is second to none. If you have any

problem with your order, please give us an opportunity to make it right. You can

contact a Monoprice Customer Service representative through the Live Chat link on our

website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-

Sun: 9am-6pm PT) or via email at [email protected]

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service

for a replacement.

1x 24" Monitor

1x Stand Neck

1x Stand Base

3x M4x10 Screws

3x M4x6 Screws

1x High Speed HDMI® Cable

1x AC Power Adapter

1x AC Power Cord

1x User's Manual

PRODUCT OVERVIEW

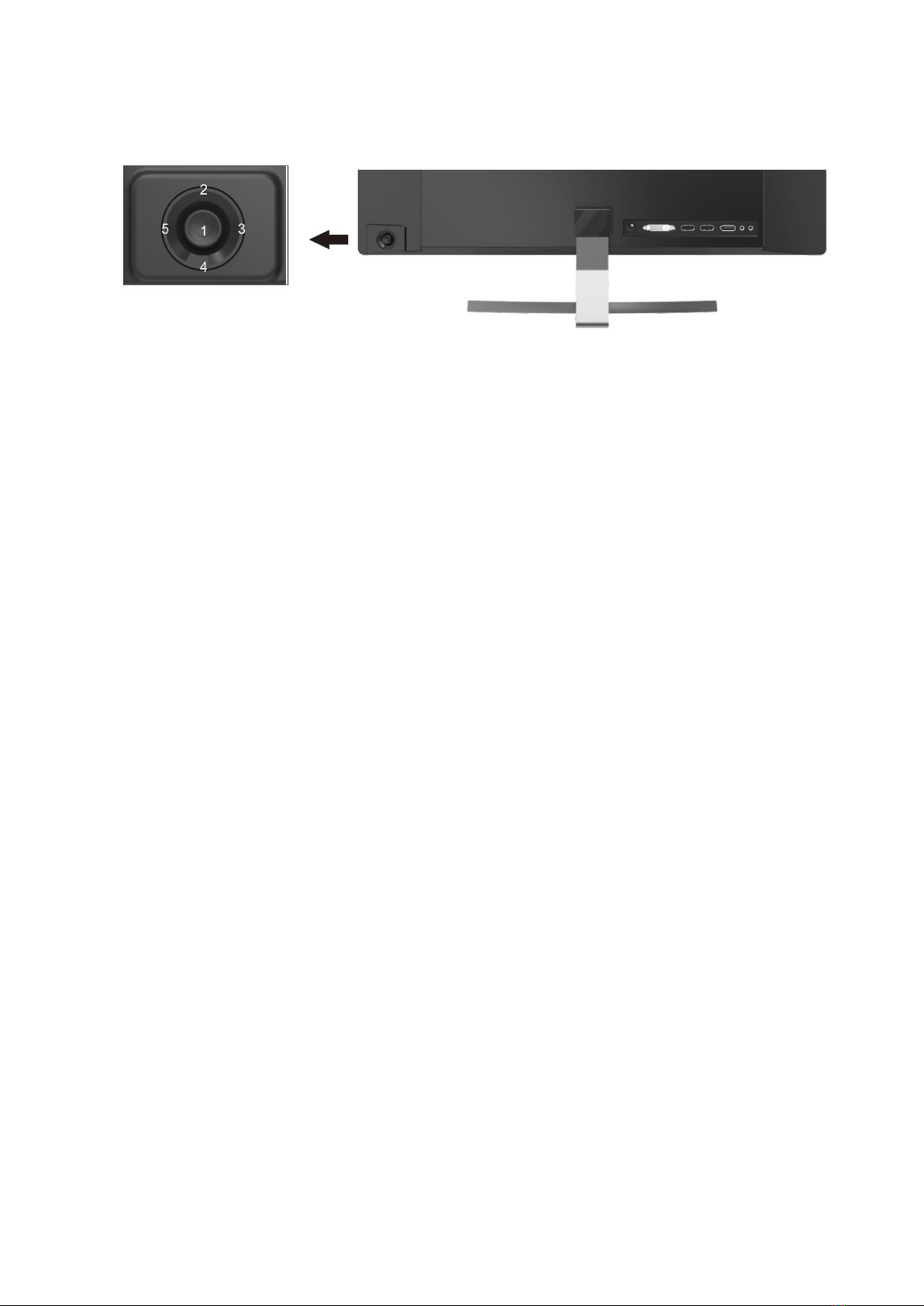

Rear Panel

Controls

1. Power: Press the joystick in to turn the monitor on or to put it into standby

mode.

2. Menu: Push the joystick up to display the OSD menu. If the menu is displayed,

push the joystick up to select or edit the highlighted entry. If editing an entry,

push the joystick up to save the changes.

3. Left: If the OSD menu is displayed, push the joystick to the left to move the

highlight down. If editing an entry, push the joystick to the left to decrease the

value or to cycle back through the available options.

4. Exit: If the OSD menu is displayed, push the joystick down to exit to the previous

menu. If at the top menu, push the joystick down to exit the OSD menu. If

editing an entry, push the joystick down to cancel the editing and restore the

previous value.

5. Right: If the OSD menu is displayed, push the joystick to the right to move the

highlight up. If editing an entry, push the joystick to the right to increase the

value or to cycle forward through the available options.

STAND ASSEMBLY

To conserve space in the packaging, the stand is shipped in two parts. First, place a

towel or blanket on a flat surface to serve as a cushion, then place the monitor face

down on the cushion. Use the included M4x6 screws to attach the Stand Base to the

Stand Neck, then use the included M4x10 screws to attach the Stand Assembly to the

monitor.

OSD MENU SYSTEM

Picture Menu

Brightness: Adjusts the overall screen brightness. The adjustment range is from 0-100 in

1 point increments.

Contrasts: Adjusts the amount of contrast between the bright and dark areas of the

image. The adjustment range is from 0-100 in 1 point increments.

Sharpness: Adjusts the amount of edge enhancement on the image. The adjustment

range is 0-4 in 1 point increments.

Aspect Ratio: Adjusts the image aspect ratio. The available options are Full, 16:9, 4:3, and

1:1. The Full option uses the aspect ratio output by the connected video source,

while the other three options force the individual aspect ratios.

Ultra Vivid: Adjusts the amount of color saturation in use. The available options are Off,

High, Middle, and Low.

DCR: Enables or disable the Dynamic Contrast Ratio feature, which uses the image

backlighting to artificially increase overall image contrast. DCR is not well suited

for use with fast moving images found in action movies and video games.

Color Menu

Color Effects: Selects one of the image color presets designed for use with different

applications. The available options are Standard, FPS, RAC, RTS, and Movie. The

FPS, RAC, and RTS options are designed for gaming with First Person Shooters,

Racing games, and Real Time Strategy games.

Saturation: Adjust the amount of color saturation. The adjustment range is 0-100 in 1

point increments.

Gamma: Selects one of the available gamma options. The available options are Off, 1.8,

2.0, 2.2, and 2.4.

Temperature: Selects one of the color temperature values. The available options are

9300, 7500, 6500, 5400, sRGB, and User.

R: Adjusts the amount of red color in the image. The adjustment range is 0-255 in 1 point

increments.

G: Adjusts the amount of green color in the image. The adjustment range is 0-255 in 1

point increments.

B: Adjusts the amount of blue color in the image. The adjustment range is 0-255 in 1

point increments.

Advance Menu

Volume: Adjusts the volume level. The adjustment range is 0-100 in 1 point increments.

Mute: Enables or disables audio muting. The available options are On and Off.

Over Drive: Adjusts how quickly the monitor is able to switch colors for anti-ghosting

purposes. The available options are On and Off.

Free Sync: Enables or disables the FreeSync™ feature, which uses a dynamic refresh rate

aimed at reducing screen tearing. The available options are On and Off.

Low Blue Ray: Adjusts the amount of blue light contained in the image. The available

options are Off, Low, Middle, and High.

Los: The available options are Off, Los 1, Los 2, and Los 3.

OSD Menu

Language: Selects one of the available languages for the OSD menu system. The

available languages are English, Chinese, Korean, French, German, Spanish,

Russian, Dutch, and Italian.

Menu Time: Adjusts the amount of time the OSD menu will remain on screen with no

button activation. The adjustment range is 10-60 seconds in 1 second intervals.

OSD H Position: Sets the horizontal position of the OSD menu on the screen. The

adjustment range is 0-100 in 1 point increments.

OSD V Position: Sets the vertical position of the OSD menu on the screen. The

adjustment range is 0-100 in 1 point increments.

Transparency: Adjusts the amount of transparency in the OSD menu. The adjustment

range is 0-255 in 1 point increments.

Reset: Resets all monitor settings to the factory default values.

Information Menu

This screen displays the firmware version, active input, screen resolution, horizontal

frequency, and pixel clock.

SPECIFICATIONS

Model

24656, 30672, 30673

Maximum Resolution

2560 x 1440

Maximum Refresh Rate

144 Hz

Pixel Pitch

0.2058 x 0.2058 mm

Brightness

250 cd/m2

Contrast Ratio

1,000:1

Dynamic Contrast Ratio

500,000:1

Response Time

1ms

Viewing Angles (H / V)

170° / 160°

Maximum Colors

16.7 million

Video Inputs

1x DisplayPort, 1x Dual-Link DVI-D, HDMI®

DisplayPort Version

1.2a

HDMI® Version

2.0

Input Power

12 VDC, 4A

AC Adapter Input Power

100~240 VAC, 50/60 Hz

Maximum Power Consumption

48 watts

Operating Temperature

+32 ~ +122°F (0 ~ +50°C)

Storage Temperature

-4 ~ +140°F (-20 ~ +60°C)

Operating Humidity

10~ 85% RH, non-condensing

Dimensions (without stand)

21.6" x 12.8" x 1.5" (548 x 324 x 37mm)

Dimensions (with stand)

21.6" x 15.8" x 5.5" (548 x 401 x 140 mm)

Weight (without stand)

7.3 lbs. (3.33 kg)

Weight (with stand)

8.3 lbs. (3.76 kg)

TECHNICAL SUPPORT

Monoprice is pleased to provide free, live, online technical support to assist you with

any questions you may have about installation, setup, troubleshooting, or product

recommendations. If you ever need assistance with your new product, please come

online to talk to one of our friendly and knowledgeable Tech Support Associates.

Technical support is available through the online chat button on our website

www.monoprice.com during regular business hours, 7 days a week. You can also get

assistance through email by sending a message to [email protected]

REGULATORY COMPLIANCE

Notice for FCC

Modifying the equipment without Monoprice's authorization may result in the

equipment no longer complying with FCC requirements for Class B digital devices. In

that event, your right to use the equipment may be limited by FCC regulations, and you

may be required to correct any interference to radio or television communications at

your own expense.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Notice for Industry Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

EU Declaraton of Conformity

Monoprice, Inc. declares the product described within this user guide or manual is in

compliance with below applicable directives. The full text of the EU Declaration of

Conformity is available at the following internet address:

https://www.monoprice.com/product?c_id=113&cp_id=11307&cs_id=1130703&p_id=246

56&seq=1&format=2

or the CE DoC can be found within this user manual

EMC Directive 2004/108/EC

Low Voltage Directive 2014/35/EU

RoHS2 Directive 2011/65/EU

WEEE Directive 2012/19/EC

Packaging & Packaging Waste Directive 94/62/EC

REACH Directive 1907/2006/EC

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Monoprice Moniteur

Monoprice

Monoprice Crystal Pro 44029 Manuel utilisateur

Monoprice

Monoprice 16384 Manuel utilisateur

Monoprice

Monoprice Dark Matter 40778 Manuel utilisateur

Monoprice

Monoprice 24657 Manuel utilisateur

Monoprice

Monoprice 30602 Manuel utilisateur

Monoprice

Monoprice 34in CrystalPro Curved 1000R VA Panel Manuel utilisateur

Monoprice

Monoprice 27772 Manuel utilisateur

Monoprice

Monoprice 13808 Manuel utilisateur

Monoprice

Monoprice 38035 Manuel utilisateur

Monoprice

Monoprice 30618 Manuel utilisateur

Monoprice

Monoprice 37924 Manuel utilisateur

Monoprice

Monoprice Dark Matter 42772 Manuel utilisateur

Monoprice

Monoprice Dark Matter 44632 Manuel utilisateur

Monoprice

Monoprice 34712 Manuel utilisateur

Monoprice

Monoprice 34711 Manuel utilisateur

Monoprice

Monoprice 27771 Manuel utilisateur

Monoprice

Monoprice 33821 Manuel utilisateur

Monoprice

Monoprice DARK MATTER 45548 Manuel utilisateur

Monoprice

Monoprice 10509 Manuel utilisateur

Monoprice

Monoprice 10707 Manuel utilisateur

Monoprice

Monoprice 12520 Manuel utilisateur

Monoprice

Monoprice 10734 Manuel utilisateur

Monoprice

Monoprice 24659 Manuel utilisateur

Monoprice

Monoprice 10489 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
